Bolide ETL CCAM Core Listed RG59+18/2 Siamese Cable 1000' Black | BTG-BP0033/CB1000-E

Bolide Technology GroupSKU: BTG-BP0033/CB1000-E

Price:
Sale price$170.00
Add to cart

Description

Bolide 1000FT ETL CCA Core RG59+18/2 Siamese Cable | BTG-BP0033/CB1000-E

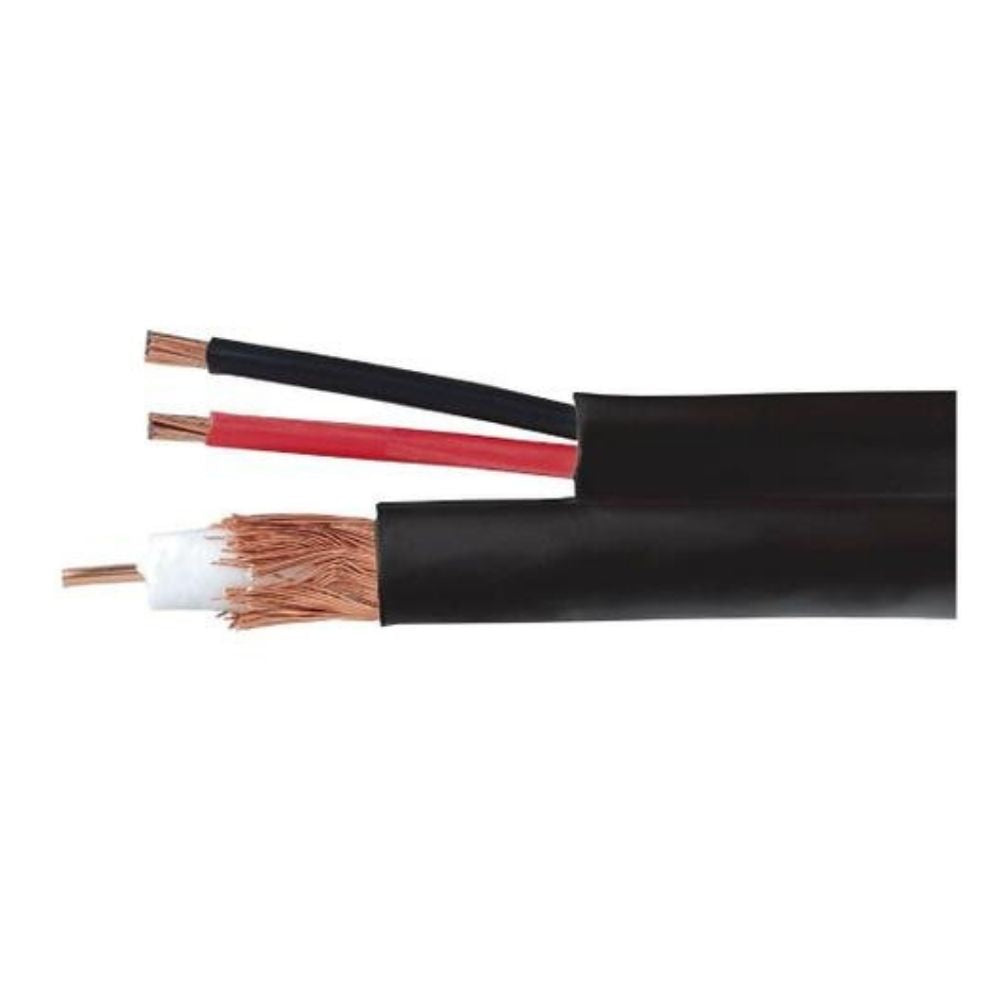

1000FT ETL CCA Core RG59+18/2 Siamese Cable in Black.

Features
  • RG59 CCAM(Copper Clad Aluminum & Magnesium) 20AWG Center Conductor+18/2 CCTV Stranded Black/Red Power Cable. One Cable Solution
  • 20 AWG CCAM Center Conductor. 95% Coverage Braid Shield
  • Attached 2 Stranded CCAM 18 AWG 7x0.385mm Black/Red Power Cable
  • White Color PVC jacket
  • ISO 9000 Certified * Ideal for composite video, RGBHV video, component video and even surveillance systems
Technical Specifications
  • Color: Black
  • Length: 1000 FT
  • Dialectric: Gas Injected Foam POE
  • Conductor: CCAM (Copper Clad Aluminum Magnesium)
  • Shielding: 95% Braid Coverage
  • Jacket: 75° PVC U/V BLACK
  • Nom. Imp (Ω ): 75
  • Nom. Vel of Prop.: 82%
  • Attenuation (100ft): Freq. 1 MHz, 033 dB Freq. 10 MHz, 0,88 dB Freq. 50 MHz, 1,85 dB Freq. 100 MHz, 2,51 dB Freq. 200 MHz, 3,58 dB Freq. 4000 MHz, 5,29 dB Freq. 700 MHz, 7,45 dB Freq. 900 MHz, 8,7 dB Freq. 1000 MHz, 9,31 dB
  • Product Dimensions: 13 x 12.9 x 12.7 inches
  • Item Weight: 34.8 pounds
