Description

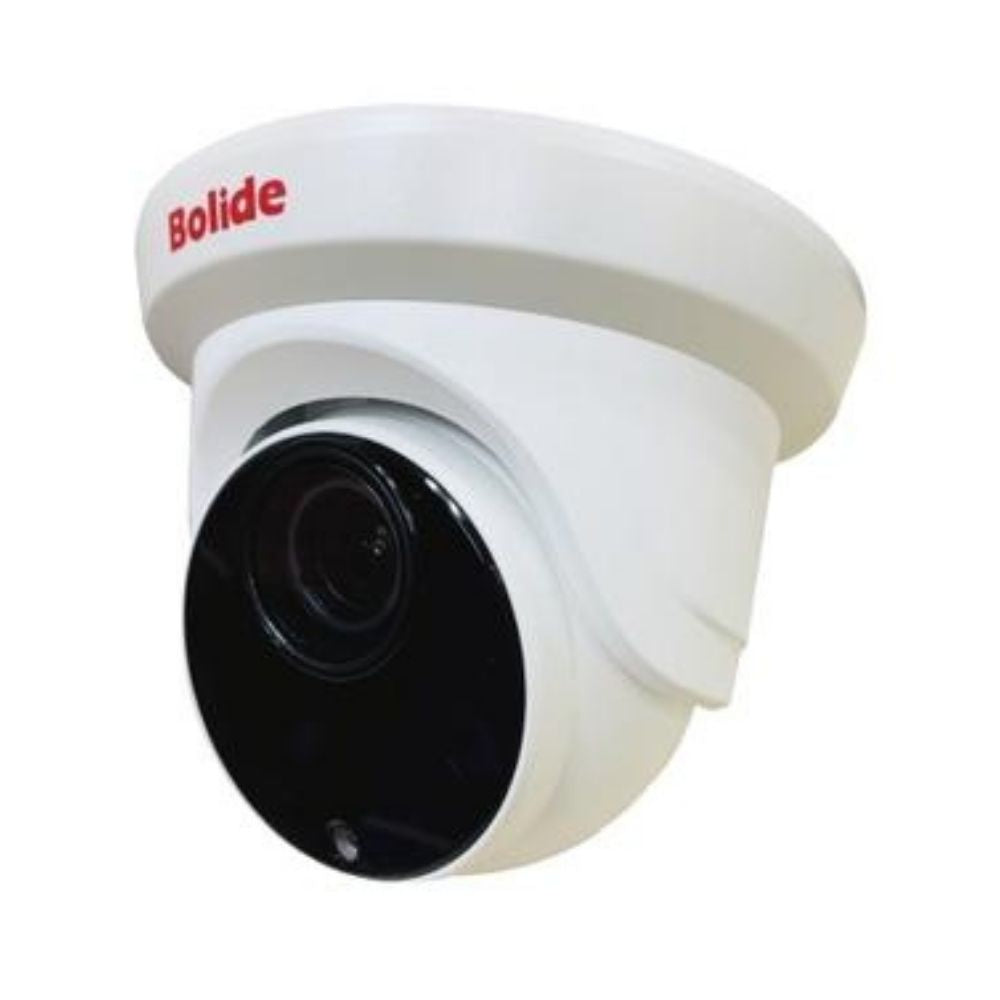

Bolide Facial Recognition + 4K High Definition Varifocal Lens IR Dome Camera | BTG-BN9029AI

H.265 8MP (4K) 2.8-12mm Motorized Lens Varifocal IP66 IR Eyeball Camera, POE, 12VDC, BNC Output, SD Card Slot, Audio In/Out, Alarm In/Out, IR Up to 200ft, iPac AI Enabled with Facial Recognition System.

Technical Specifications
  • Image Sensor: 1/2.5" Progressive CMOS
  • Min. Illumination: Color 0.1lux @ F1.2(AGC ON)
  • Shutter: 1/5 ~ 1/20000s
  • Slow shutter: Support
  • Lens :3.3 ~ 12 mm (Motorized)
  • Lens Mount: M12 / M14
  • F No.: F 1.6 ±5%
  • Day & Night: IR cut filter with switch (Auto / Schedule / Triggered by Alarm In)
  • WDR: 120dB
  • Digital Noise Reduction: 2D / 3D DNR
  • Video Compression: H.265/H.264/MJPEG
  • Resolution: 8MP (3840 x 2160)
  • Video Bit Rate: 8Kbps ~ 16Mbps
  • Triple Stream: Main-stream, Sub-stream, Mobile-stream
  • Frame Rate: Main stream: (1-15fps optional) 4K(3840x2160), 5MP(2592x1944), 4MP(2592x1520), 3MP(2048x1536), 2MP(2304x1296), 1080P(1920x1080), 960P(1280x960P), 720P(1280x720P). Substream: 720P(1280x720P), D1(704x480), VGA(640x480), QVGA(320x240). Mobile stream: VGA(640x480), QVGA(320x240)
  • Image Settings: Flip, Rotation, Corridor mode, Saturation, Brightness, Contrast, Hue, Sharpness, Mirror mode, Shaded
  • BLC: Support
  • ROI: Support
  • Privacy Mask Support
  • Video Analytics: Perimeter Intrusion Detection, Line Crossing Detection, Stationary Object Detection, Pedestrian Detection, Cross and People Counting, Camera obstruction, Region of interest. DEEP LEARNING: Face Detection, Face Recognition, Human detection, Vehicle detection.
  • Protocols: TCP/IP, HTTP, DHCP, DNS, DDNS, RTP/RTSP, PPPoE, SMTP, NTP, UPnP, SNMP, HTTPS, FTP
  • Security: Flash-Prevention, Dual Stream, Heartbeat, Mirror, Password Protection, Privacy Mask, IP Address Filtering
  • System Compatibility: ONVIF 2.4, RTSP (Profile S, Profile G)
  • Certificates/Program: CE, FCC, RoHS / GSA
  • Interface: RJ45 10M / 100M Ethernet interface x1
  • Led & IR Range: 40pcs(SMD) Up to 35m (dome)
  • SD storage: Yes, Micro SD or SD memory slot Up to 128 Gb
  • Alarm Trigger: Yes
  • Audio: Yes
  • Video Output: BNC output - 1Vpp
  • Reset Button: Yes
  • Water Proof: IP67
  • Power Supply: 12 VDC ± 10%, POE (802.3af)
  • Consumption: 5W (Max. 7W with active IR cut filter)
  • Temperature: Storage -30°C ~ 60°C, Operation -30°C ~ 55°C
  • Humidity: ~ 95% (without condensation)
