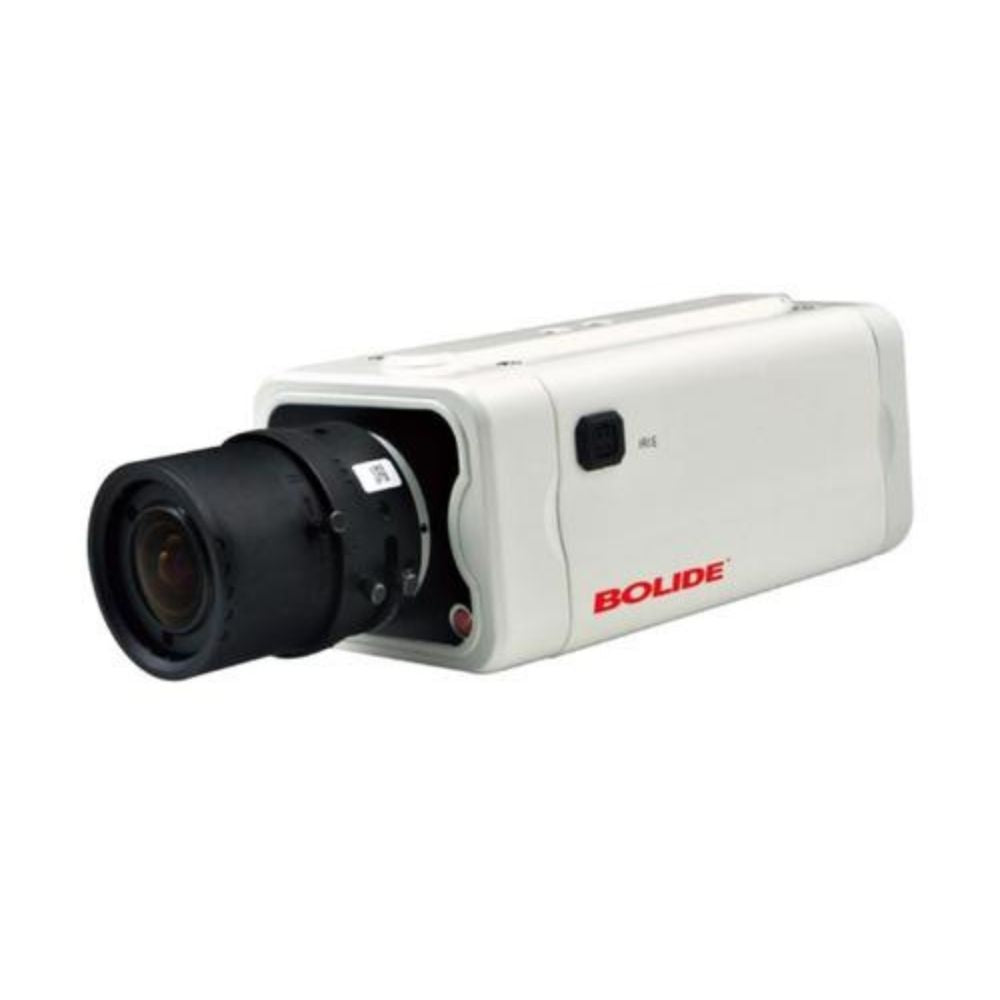

Bolide H.265 4MP High Definition Box Camera | BTG-BN7002
The new Ipac NX series features up to 4 Mega Pixels of stunning Ultra HD resolution combined with the Next Generation of compression standards High Efficiency Video Coding (HEVC /H.265)- which allows for bitrates nearly half those of other cameras utilizing older H.264 compression technology. The iPac NX series offers double the storage and half of the bandwidth requirements without sacrificing resolution or frame rate. With options including Edge recording, alarm input/output, audio input/output. The iPac NX series is perfect for any application.
Technical Specifications
- Image Sensor: 1/3” Progressive Scan CMOS
- Minimum Illumination: 0.01Lux @(F1.2,AGC ON), 0.028Lux @(F1.2,AGC ON), 0 Lux with IR
- Shutter Speed: 1/5 s – 1/20,000 s
- Lens Type: No lens, External
- Lens Mount: CS mount
- Day and Night: Filter with Auto Switch
- Dynamic Range: Wide Dynamic Range 120db
- Digital Noise Reduction: 2D / 3D DNR
- Video Compression: H.265 / H.264 / MJPEG
- Image Resolution: Up to 4MP (2592 X 1520)
- Video Bit Rate: 256K-8M
- Frame Rate: 4MP (2592 X 1520) @ 20fps, 3MP (2048 x 1536) @ 30fps, 2MP (2304 x 1296) @ 30fps, 1080P (1920 x 1080) @ 30fps, 720P (1280 x 720) @ 30fps, 960H (1280 x 960), Substream @ 30 fps, D1 (704 x 480), VGA (640 x 480), QVGA (320 x 240) @30 fps, Mobilestream @ 10 fps, QVGA (320 X 240) - @1-30 fps
- Image Settings: Rotate Mode, Saturation, Brightness, Contrast, Sharpness, and adjustable browser
- Day and Night Switch: Auto / Schedule / Triggered by Alarm In
- System Compatibility: ONVIF S, RTSP
- Interface: 1 RJ45 10M / 100M Ethernet Interface / RS-485
- Alarm / Audio: 1 I/O Alarm interface / 1 I/O Audio interface
- POE: Built-In POE
- Security: Flash-Prevention, Dual Stream, Heartbeat, Mirror, Password Protection, Privacy Mask, IP Address Filtering
- Power Supply: 12 VDC ± 10%, POE (802.3af)
- Power Consumption: Max. 5 W (Max. 7W with IR cut filter on)
- Operating Temp.: -22 °F - 140 °F Humidity 95% or less (non-condensing)
- Dimensions: 6' x 2,5' x 2,8'
- Net Weight: 1.43 lb
- Weather-Rating: IP67 Rated
