Bolide 64-Channel 4K H.265 NVR with 32-Port Built-in POE | BTG-BN-NVR/64NXPOE

Bolide Technology GroupSKU: BTG-BN-NVR/64NXPOE

Price:
Sale price$2,558.52
Add to cart

Description

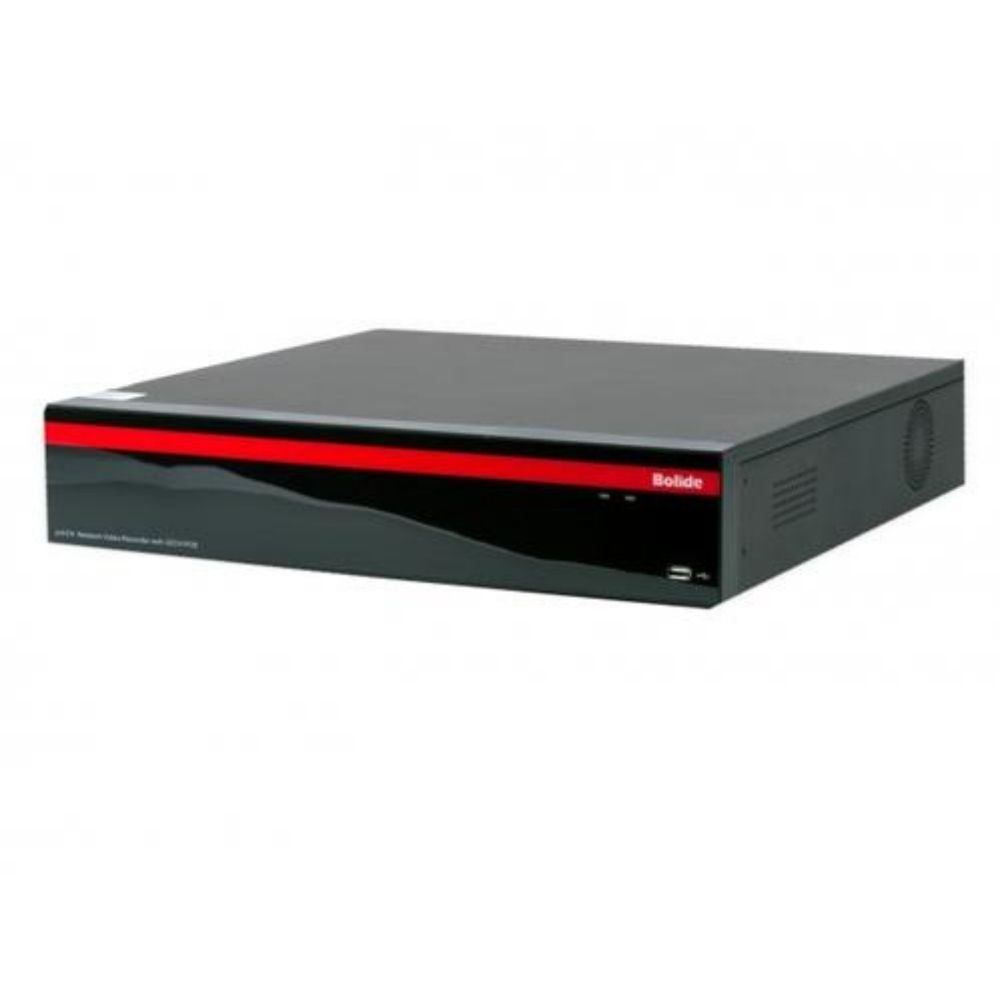

Bolide 64-Channel 4K H.265 NVR with 32-Port Built-in POE | BTG-BN-NVR/64NXPOE

64-Channel 4K H.265 NVR with 32-Port Built-in POE, Supports Up to 4K Cameras, 640Mbps Throughput 4K Output, HDMI, VGA, 8 Hard Drive Bay Up to 8TB each bay, 64TB max.

HDD not included

Technical Specifications
  • Recording Bandwidth: 1Max 640Mbps Throughput
  • Recording Resolution: 8MP(4K), 5MP, 3MP, 2MP(1080P), 1.3MP(960P), 1.0MP(720P)
  • Display Split: 1 / 4 / 6 / 8 / 9 / 10 / 13 / 14 / 16 / 32 / 36 / 64
  • Recording Frames Per Second: 8MP (4K): 15 FPS, 5MP: 15FPS, 4MP: 20FPS, 3MP: 30FPS, 2MP: 30FPS

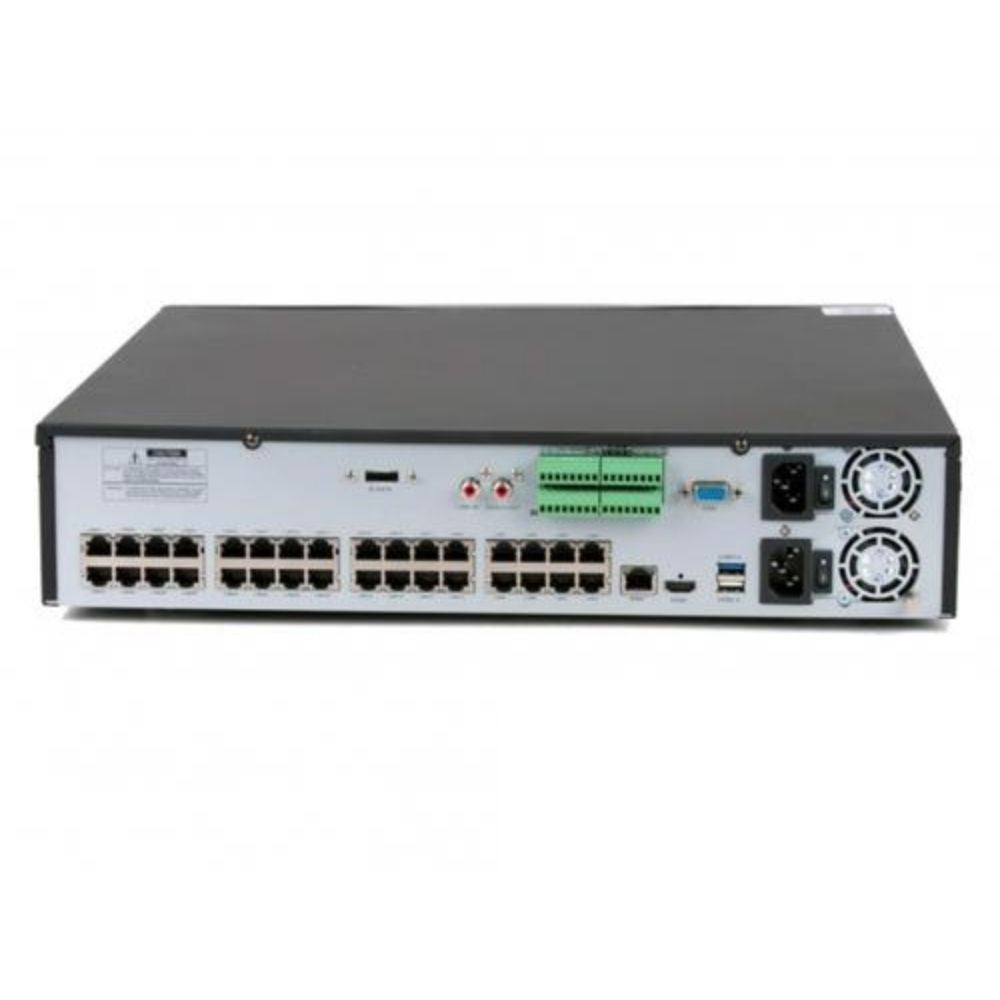

  • Output Interface: 1 HDMI (up to 4K) , 1 VGA
  • Display Resolution: 1024*768, 1280*720, 1280*1024, 1440*900, 1920*1080, 1680*1050, 1600*1200, 1900*1200, 2560*1440, 3840*2160
  • RS-485: Yes
  • ONVIF: ONVIF Profile S Version 2.6
  • POE: 32 PoE ports, single port up to 802.3at(30w)
  • Power Supply: 2x AC 100~240V, PoE Switch: 48V
  • Dimension (W×D×H): 17.5” x 17” x 3.5” (Rackmount Ears Included)
  • E-SATA: Yes
  • Line in: Yes
  • Alarm Input/out: 32CH Input / 1CH Output
  • Audio: 1-Channel Audio In / 1-Channel Audio Out
  • Ethernet: RJ-45 port (1000M)
  • Mobile Device Access: Yes, Bolide Quick Connect for iOS and Android
  • Internal HDD: 8 SATA HDD Bays, each HDD up to 8TB
  • USB: 1x 3.0 USB for video backup/ firmware upgrade , 2x 2.0 USB for mouse

If you want to use your own HDD, the warranty will be voided
