Model BEL002 Electric Deadbolt | FAS-SB-BEL002

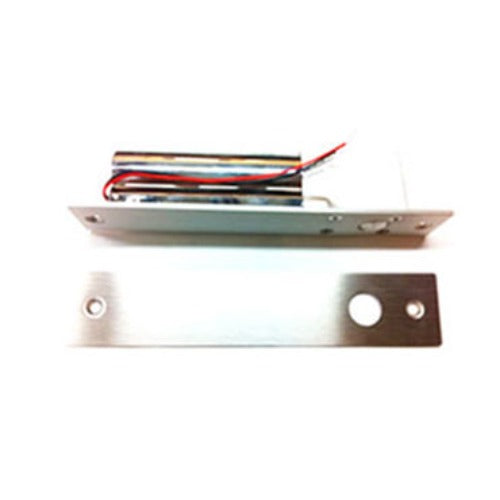

This is a Fail-Safe Electric Deadbolt Model BEL002. This Electric Dead-Bolt the door's integral relay with access controllers or digital keypads.

Features
  • Fail-Safe Lock (Locked When Energized)
  • Time Delay ( 0, 3, 6, or 9 seconds)
  • Release as power off
  • Magnetic switch for sensing door position
  • Drop to hold position by magnetic
Technical Specifications
  • Power Requirement: DC12V +-10%, .8A
  • Approximate Weight: 2 Lbs.
  • Operating Temperature: 0C - 55C
  • Bolt: .61" (15.5 mm) D. Stainless Steel .59" Throw (15 mm)
  • Cutout Size: 8.35" L (212 mm) x 1.38" W (35 mm)
  • Backset Minimum: 1.70" (43 mm)
  • Cover Plate Size: 8.7" L (220 mm) x 1.5" W (38 mm) x 0.03" D (.75 mm)
  • Face Plate Size: 8.27" L (210 mm) x 1.33" W (34 mm) x .12" D (3.04)
  • Strike Size: 3.54" L (90 mm) x .94" W (23.8 mm) x 1.06" D (27 mm)

Quantity discounts for this electric deadbolt are available upon request.
