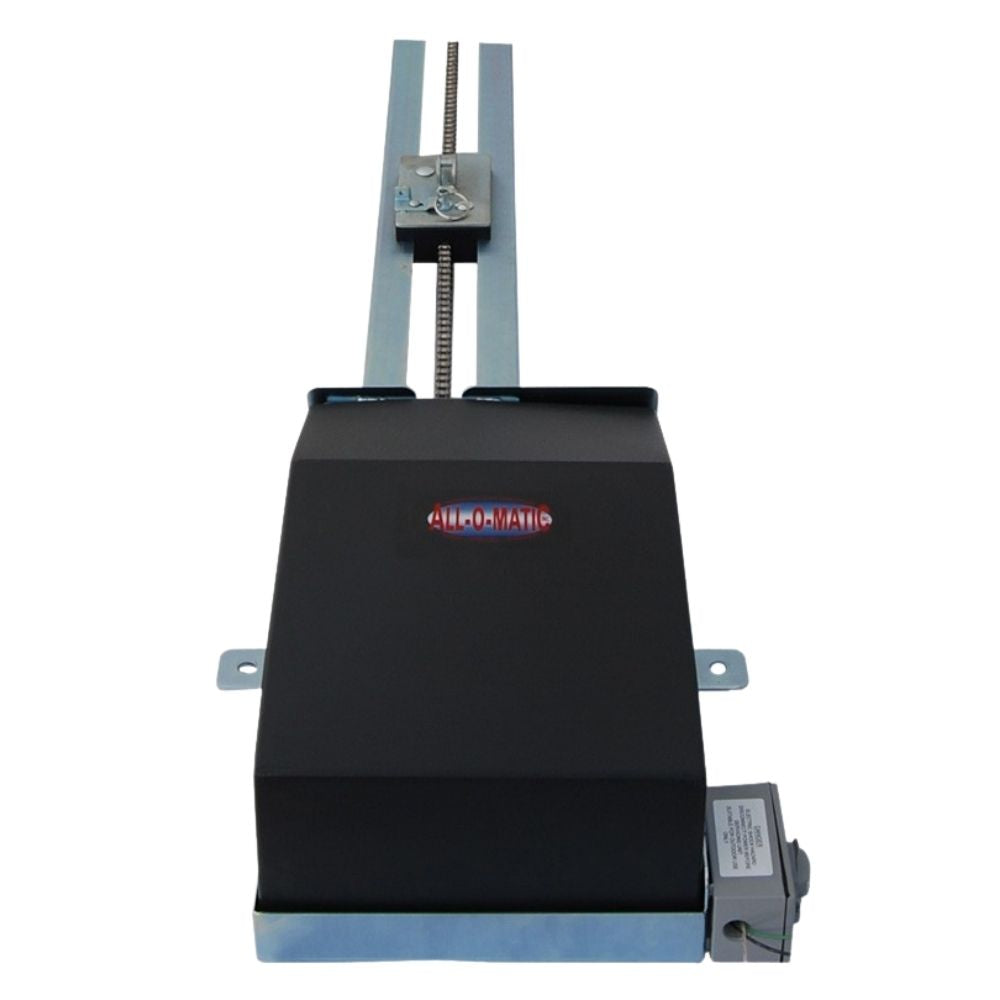

All-O-Matic's new OH-200 DC overhead gate operator is the first and only commercial overhead gate operator available with a true integrated long-term battery backup. The OH-200 DC overhead gate operator comes equipped with an industry-first Brushless DC motor, built-in loop rack, slow start/stops algorithm, heavy-duty frame, and parts that last a lifetime. The OH-200 DC offers days of uninterrupted operation in the event of a power failure. Unlike other currently available open and die single cycle battery backups, in the event of a power failure the OH-200 DC seamlessly switches from AC power to backup mode and runs off of its included (2 – 8Ah) batteries. For multi-residential and commercial applications such as apartment buildings or large underground parking structures, there is no other choice than the All-O-Matic OH-200 DC Overhead Gate Operator. All All-O-Matic Gate Operators are covered by our 5/7 Year Manufacturers Warranty.

DC operators are equipped with a control board that offers an array of features, including a programmable relay and leaf delay, a slow start/stop algorithm, and solar power capability. The integrated battery backup offers up to two weeks of uninterrupted operation in the event of a power outage. The brushless DC motors are smooth and quiet but are robust and durable and require zero maintenance.

Include

• (2) - 7Ah Batteries

Technical Specifications

• Max Gate Weight: 800 lbs.
• Max Gate Length: 22 feet
• Warranty: 5 years commercial

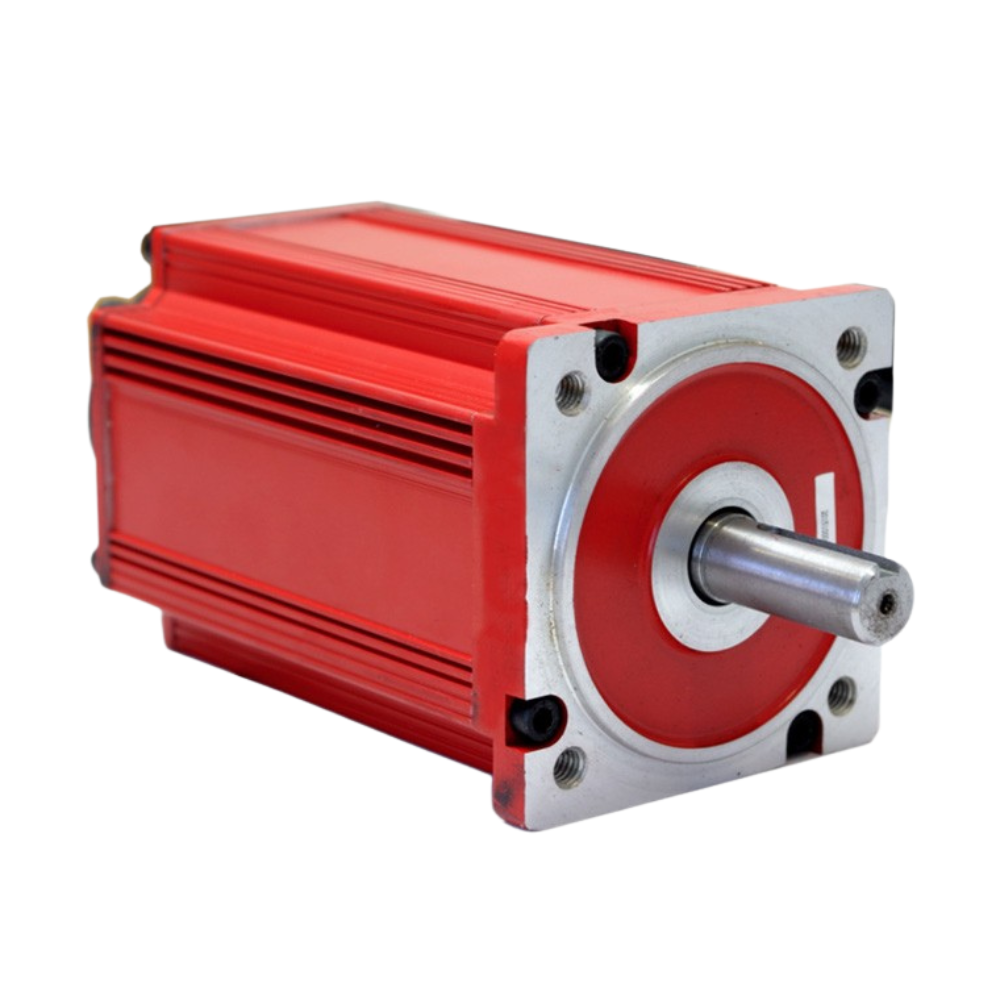

• Motor: 24 VDC brushless – ½ HP motor
• Gate Speed: 20 seconds for full open (6.5’ to 8’ gate)
• Power Options: 115V/230V Single Phase
• Duty Cycle: Continuous
• Battery Back-Up: Integrated, with (2) 7Ah 12VDC batteries
• Battery Back-Up Capacity: 100 cycles on an 800 lb. gate
• Temperature Range: -40 to 160°

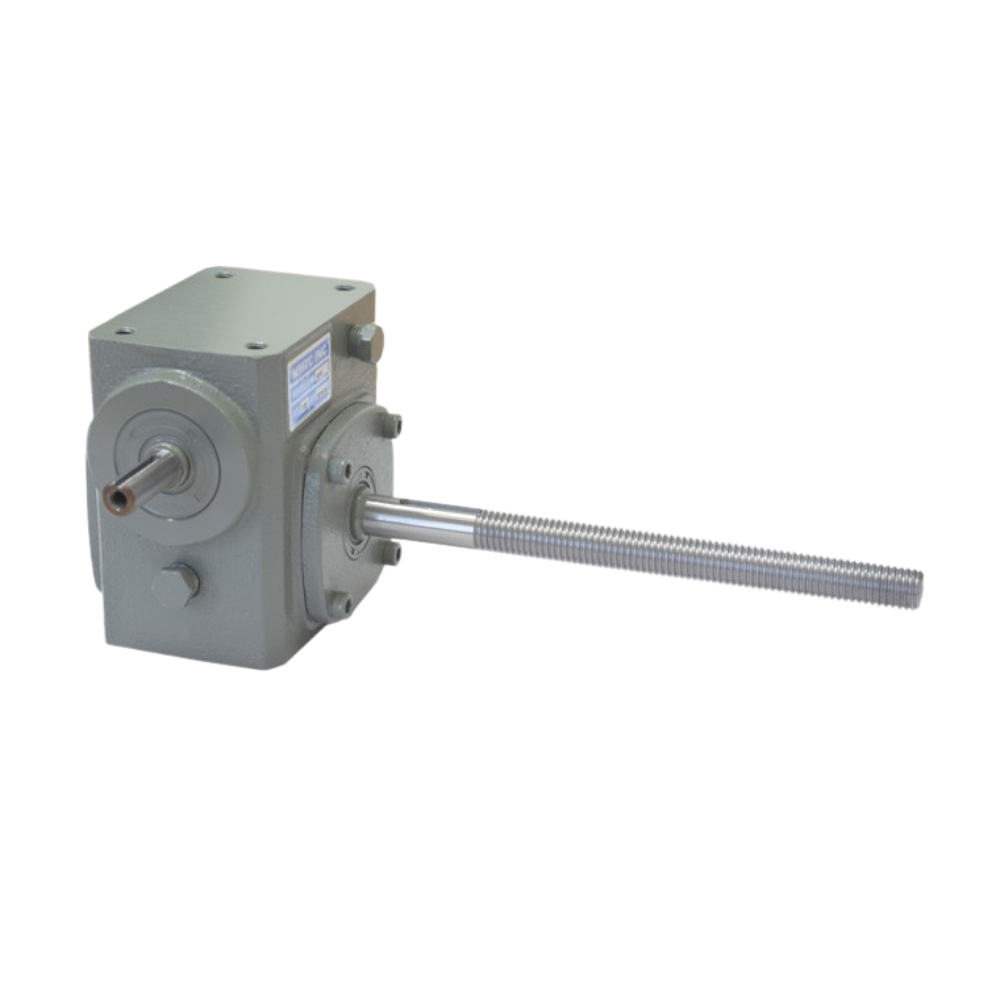

• Gearbox Ratio: 30:1
• Size: 13” X 144” X 8”
• Shipping Weight: 110 lbs.
• Emergency Release: Lockable quick-release drive arm and carriage
• Belt Size: 4L-200 (AX18)
• Main Sprocket Size: 41B15X5/8
• Chain Size: 41NP
• Gearbox Sprocket: 41B15X5/8
• Breaker Requirement: 20 amp dedicated
• Gearbox Pulley: 2 ½” with ½” bore
• Motor Pulley: 2” with 5/8” bore
