AES e-Loop Inground Commercial Loop Kit with LCD Transmitter (EXIT MODE) | AES-EL00IG-KLT

AESSKU: AES-EL00IG-KLT

Price:
Sale price$666.99

Estimate shipping

AES e-Loop Inground Commercial Loop Kit with LCD Transmitter (EXIT MODE) | AES-EL00IG-KLT

The Inground Wireless Vehicle Detection System uses magnetometer sensors to detect the presence and movement of vehicles. These detections are transmitted to a nearby transceiver for gate activation. The sensors are installed in the ground of entry or exit passages using sikaflex, contain a replaceable LIthium battery, and can withstand almost any vehicle. Gate or door controller must have a dedicated open input and autoclose function enabled.

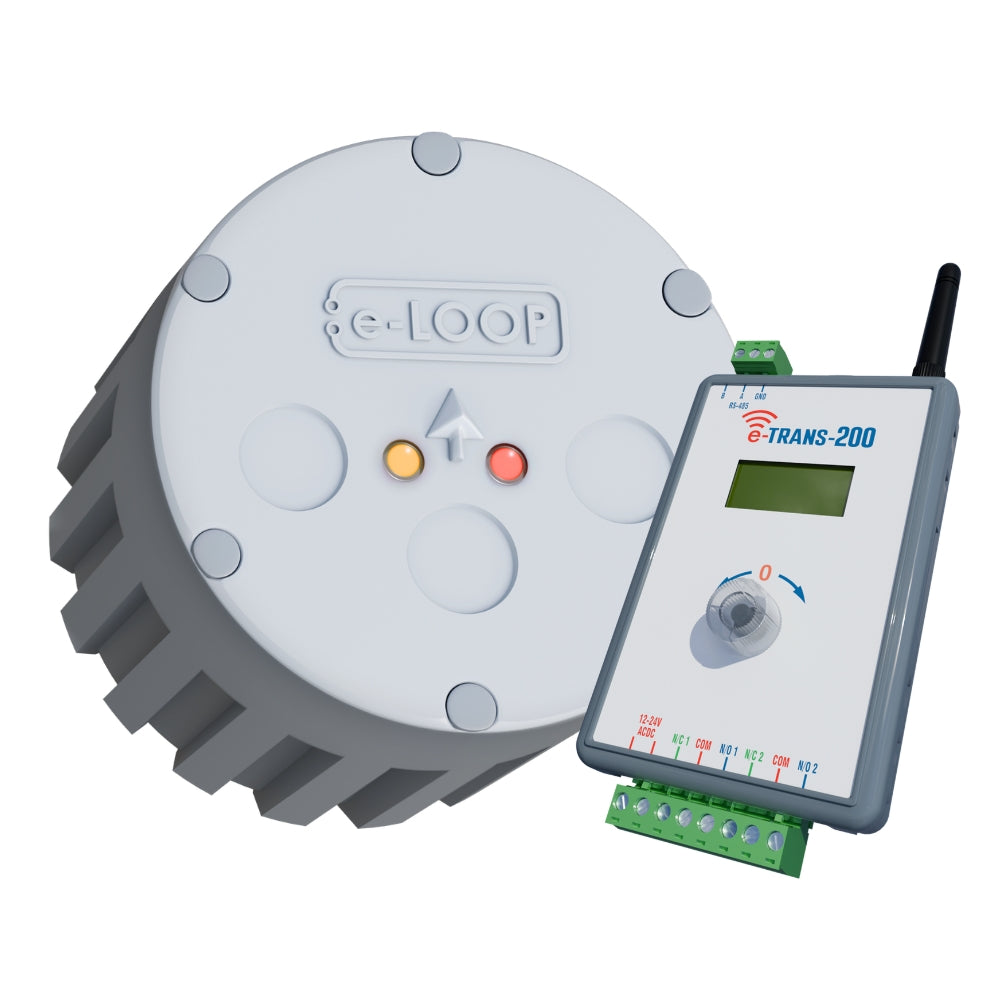

Includes
  • 1 x e-Loop inground Exit mode wireless detection module
  • 1 x LCD transceiver (Trans-200)
  • 2 x Dyna bolts
  • 1 x Magnet
Features
  • High-security 128-bit encryption.
  • Quick and easy installation
  • Magnetic Field Detection
  • Recesses into the driveway – 55mm inground height x 89mm diameter (2.1” x 3.5”).
  • Not affected by ground movement.
  • 14500 mA battery (included) giving up to 6-10 years of battery life (depending on mode).
  • Top access for changing battery.
  • Up to 50 meters range
Technical Specifications

Radio

  • Frequency: 433.39 MHz
  • Modulation: FSK
  • Bitrate: 9.6 kbps
  • Bandwidth: 250 kHz
  • Antenna Type: PCB
  • Nominal Output Power: 10 dBm
  • Receive Sensitivity: -126.2 dBm
  • Security: 128-Bit AES Encryption
  • Spurious Emissions
    • 30 - 1000 MHz: < -56 dBm
    • 1 - 12.75 GHz: < -44 dBm
    • 1.8 - 1.9 GHz: < -56 dBm
    • 5.15 - 5.3 GHz: < -51 dBm

Power, Physical and Environment

  • Power: 1 * 3.6 V 14500ma
  • Dimensions: 88*88*55mm
  • Weight: 300g
  • Environment
    • designed for inground (flush) mounting
    • IP68 ingress Protection
  • Operating Temp: -20° to 80° C (-4°F to 176°F)
  • Standby Power: 14μA
  • Activation Power: 50mA
Compliance
  • Safety: Tested to CE Approval
  • EMC: Tested to EN 301 489-1 V2.2.3 “ElectroMagnetic Compatibility (EMC) standard for radio equipment and services; Part 1: Common technical requirements; Harmonized Standard for Electro Magnetic Compatibility” Including:
    • a) Emissions to EN 55032 “Electromagnetic compatibility of multimedia equipment”
    • b) Transmitter and receiver test to EN 300 220-1 V3.1.1 ‘Short Range
      Devices (SRD) operating in the frequency range 25MHz. to 1000MHz; Part 1: Technical Characteristics and methods of measurement.”
    • c) Immunity Tests to EN 301 489-1
Product Literature
