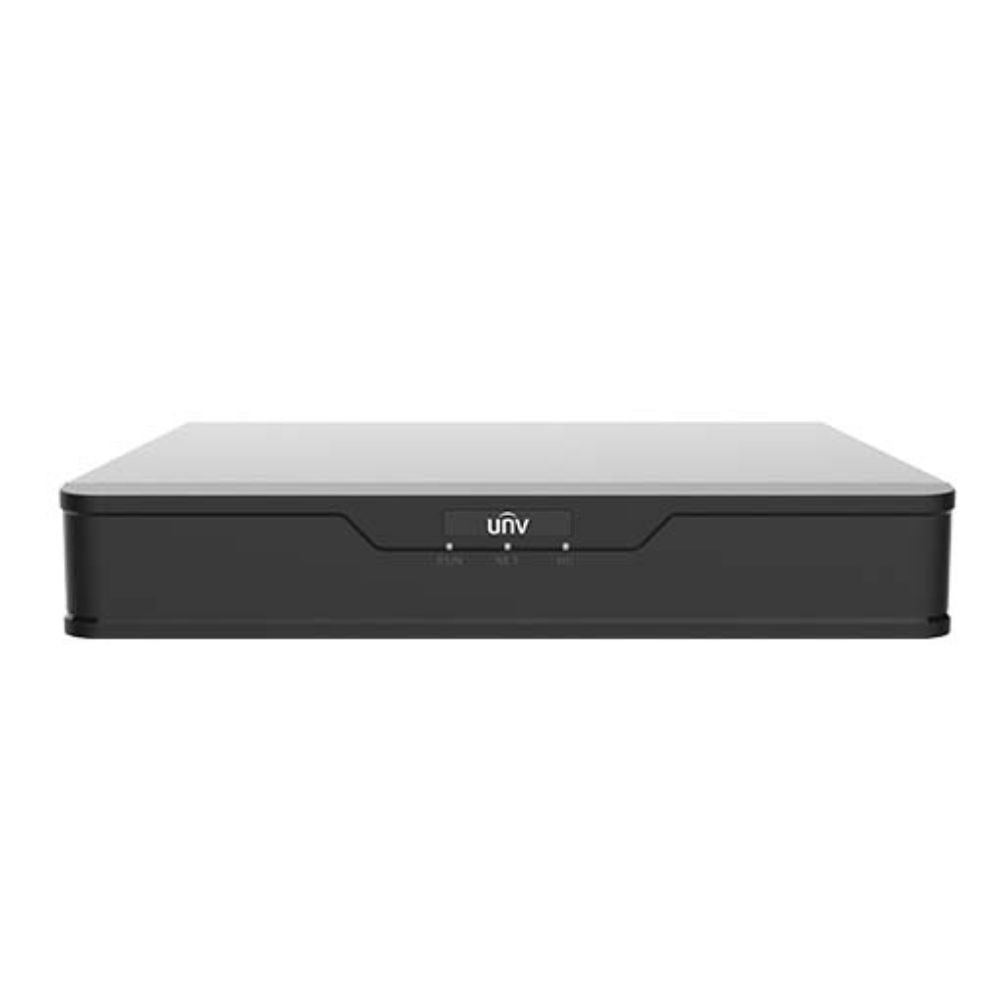

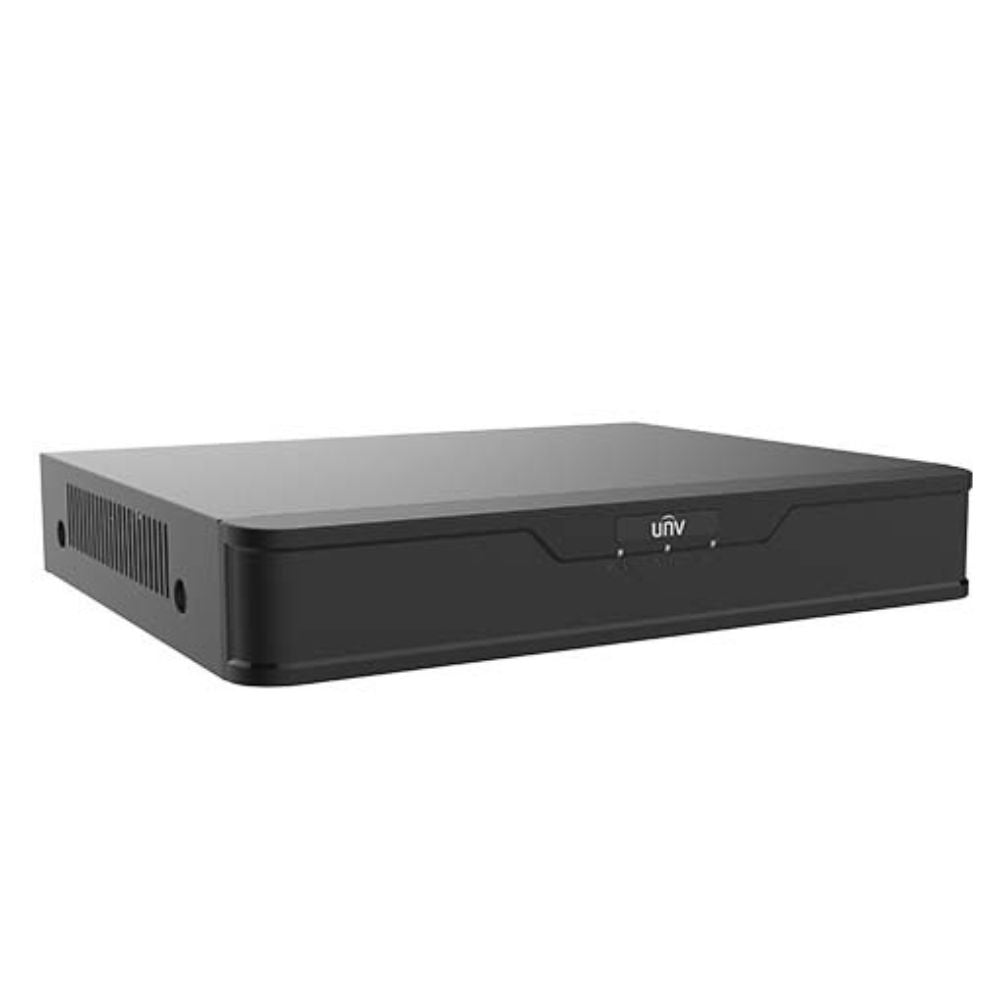

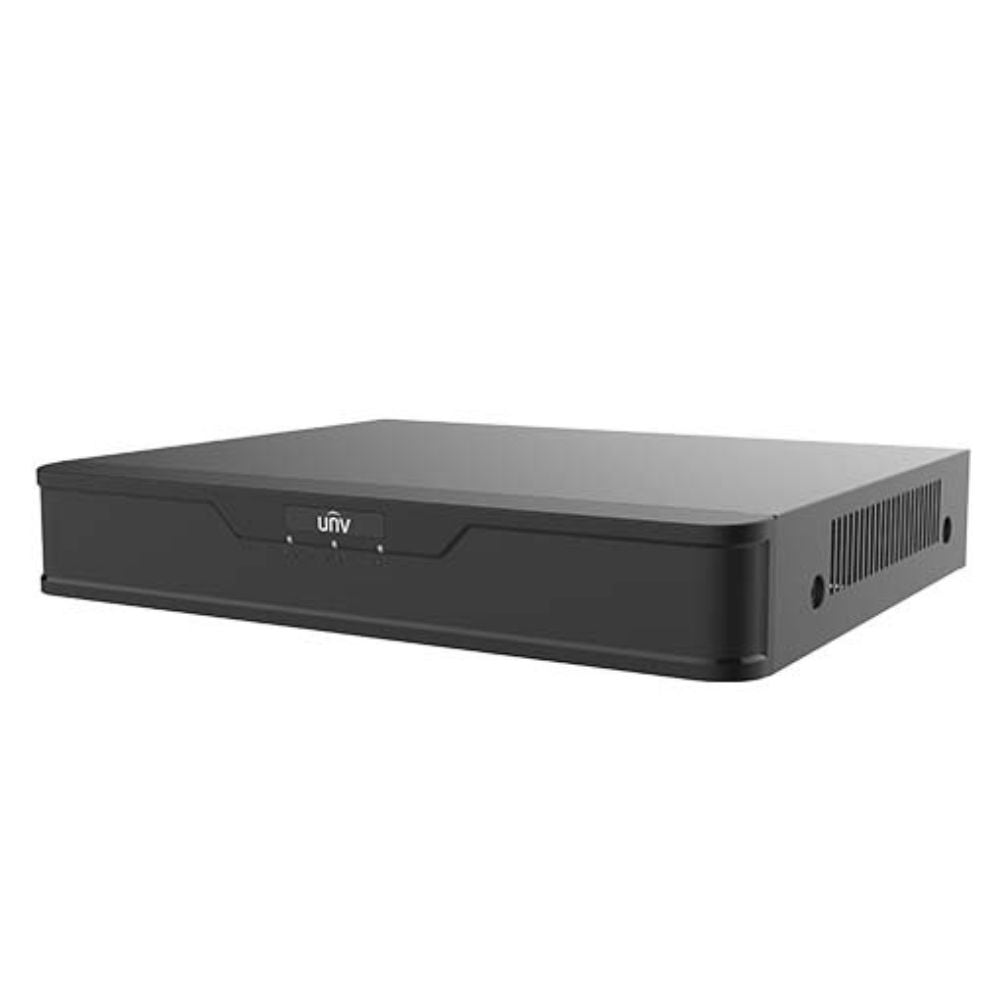

UNV Digital Video Recorder Ultra HD 2.0 | UNV-XVR301-16G3
Experience the best in video surveillance with this 16-channel digital video recorder. With its advanced recording capabilities, you can monitor and protect your home or business like never before. Whether you're looking to secure your property or keep an eye on your loved ones, this DVR is a perfect choice. Order yours today and enjoy peace of mind knowing you're always protected.
Features
- Support H.265/H.264 video formats
- Support audio over coaxial cable(only for TVI cameras)
- Support TVI, AHD, CVI, CVBS, and IP cameras with adaptive access
- 16-channel BNC input
- Support 1-ch HDMI output, 1-ch VGA output at up to 1920*1080
- Long transmission distance over coaxial cable
- Support mainstream cameras of ONVIF and RTSP protocols
Technical Specifications
Video/Audio Input
- Analog Video Input: 16-ch, BNC
- IP Video Input: 8-ch (up to 16-ch after analog camera conversion)
- Supported Analog Camera Types
- Support AHD input: 5MP@12fps, 4MP@15fps, 1080P@30fps, 720P@30fps
- Support TVI input: 5MP@12fps, 4MP@15fps, 1080P@30fps, 720P@30fps
- Support CVI input: 1080P@30fps, 720P@30fps
- Support CVBS input
- Audio Input: 1-ch, RCA
- Audio Compression: G.711U
Video/Audio Output
- VGA Output: 1920x1080/60Hz, 1920x1080/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz
- HDMI Output: 1920x1080/60Hz, 1920x1080/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz
- Audio Output: 1-ch, RCA
- Synchronous Playback: HD:8-ch, SD:16-ch
- Live view display: HDMI/VGA: 1/4/6/8/9/16/25
- Two-way Audio: 1-ch, RCA
Network
- Incoming Bandwidth: 40Mbps (up to 56Mbps after all analog camera conversion)
- Outgoing Bandwidth: 64Mbps
- Remote Users: 128
- Protocols: TCP/IP, P2P, UPnP, DHCP, HTTP, HTTPS, DNS, DDNS, SMTP
- Browser: IE (IE10/11) for Windows, Firefox (version 52.0 and above) for Windows, Chrome (version 45 and above) for Windows, Edge (version 79 and above) for Windows
- Recording Resolution: 5MP Lite/4MP Lite /1080P/1080P Lite/720P/D1/CIF
- Recording Frame Rate
- Main stream: 5MP Lite@6fps, 4MP Lite@8fps, 1080P Lite@12fps, 720P@12fps
- Sub stream: D1@6fps, D1@8fps, D1@12fps, D1@12fps
- Audio Sample Rate: 8KHz,16 bit per channel
- Audio Bit Rate: 64Kbps per channel
Decoding
- Capability: Analog: 8 x 5MP Lite@6, 8 x 4MP Lite@8, 8 x 1080P Lite@12
IP: 1 x 8MP@30, 2 x 4MP@30, 4 x 1080P@30
Hard Disk
- SATA: 1 SATA interface
- Capacity: Up to 8TB for each HDD (The maximum HDD capacity varies with environment temperature)
General Alarm
- General Alarm: Motion detection
- Alert Alarm: IP Conflict, Network Disconnected, Disk offline, Disk Abnormal, Illegal Access, Hard Disk Space Low, Hard Disk Full, Recording/Snapshot Abnormal
External Interface
- Network Interface: 1 RJ45 10M/100M self-adaptive Ethernet Interface
- USB Interface: Rear panel 2 x USB2.0
- Serial Interface: 1 x RS485
General
- Power Supply: 12V DC
- Power Consumption: ≤ 10 W (without HDD)
- Working Environment: -10°C ~ + 55°C ( +14°F ~ +131°F ), Humidity ≤ 90% RH(non-condensing)
- Dimensions (W×D×H): 260mm ×226mm× 47mm (10.2" × 8.9"×1.8")
- Weight (without HDD): ≤1.1 Kg (2.42lb)
Certification
- UL, CE, FCC, RoHS, WEEE
