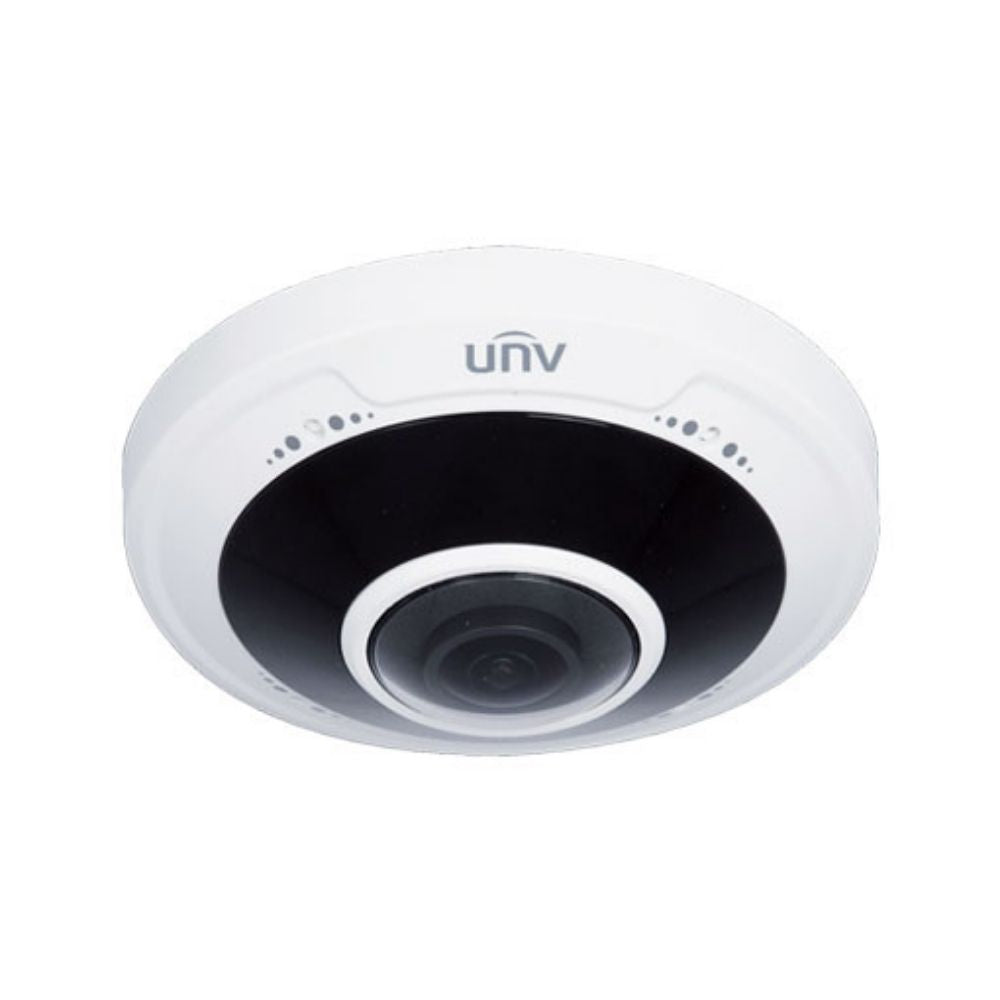

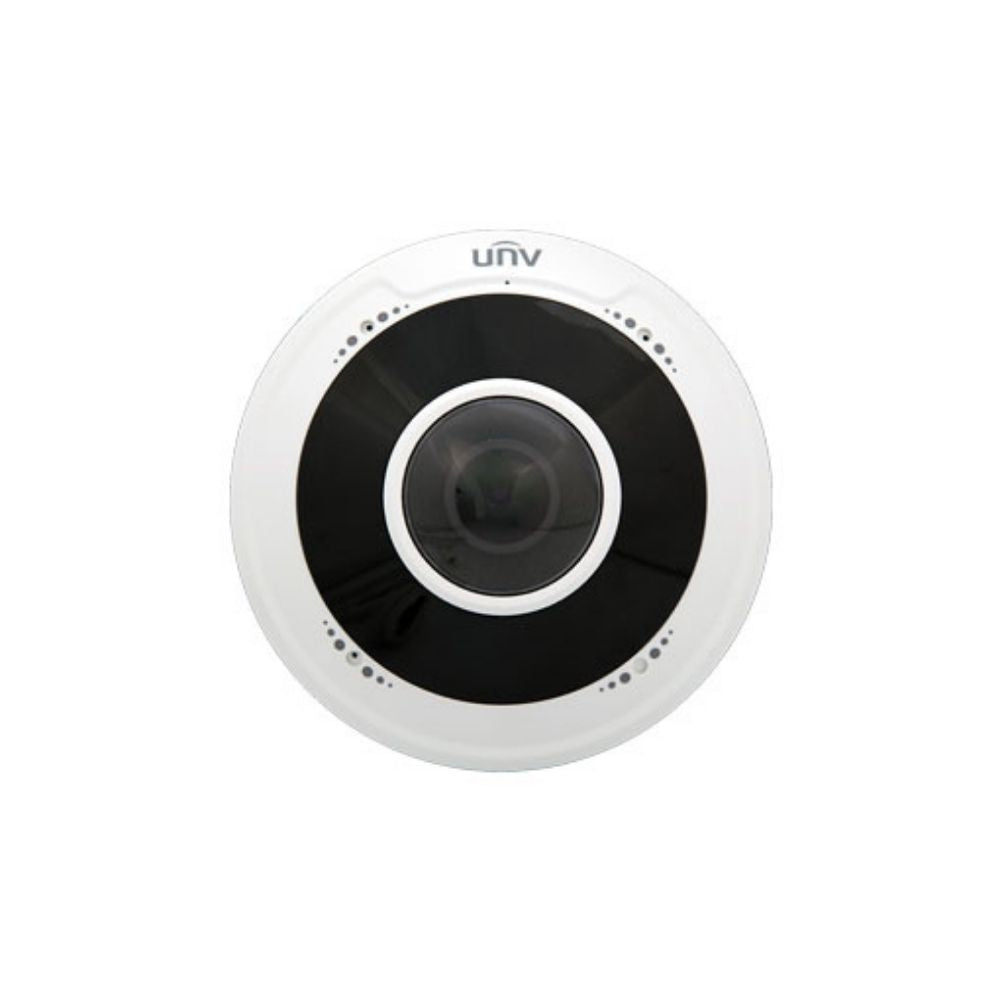

UNV 5MP Fisheye Fixed Dome Network Camera | UNV-IPC815SB-ADF14K-I0

UNV 5MP Fisheye Fixed Dome Network Camera | UNV-IPC815SB-ADF14K-I0

Features

• High-quality image with 5MP, 1/2.8"CMOS sensor

• 5MP (2592*1944):@ 30/25fps;

• Ultra 265, H.265, H.264, MJPEG

• 120dB true WDR technology enables a clear image in a strong light scene

• Built-in 2 Mic, Supports the detection of sounds over longer distances

• Alarm:1 in/1 out, Audio: 1 in/1 out

• Smart IR, up to 10m (33ft) IR distance

• Supports 256 G Micro SD card

• IK10 vandal resistant

• IP66 protection

• Support PoE power supply

Technical Specifications

Camera

• Image Sensor: 1/2.8", progressive scan, 5.0 megapixel, CMOS
• Minimum Illumination: Colour: 0.01 Lux (F2.0, AGC ON) 0 Lux with IR

• Day/Night: IR-cut filter for day & night function

• Shutter: Auto/Manual, shutter time: 1~1/100000 s

• WDR: 120dB

• S/N: >55dB

• Lens type: 1.4mm@F2.0

• Angle of View: 360°
• DORI Distance
• Detect (m): 31.5
• Observe (m): 12.6
• Recognize (m): 6.3
• Identify (m): 3.2
• IR Range: UP to 10m (33ft)

• Wavelength: 850nm

• IR On/Off Control: Auto/Manual

Video

• Compression: Ultra 265, H.265, H.264, MJPEG
• H.264 code profile: Baseline profile, Main profile, High profile
• Frame Rate
• Main Stream: 5MP (2592*1944): Max.30fps;
• Sub Stream: 1080P (1920*1080): Max.30fps; 720P (1280*720), Max 30fps;
• Third Stream: D1 (720*576), Max 30fps; 640*360,Max 30fps; 2CIF(704*288), Max 30fps; CIF(352*288), Max 30fps;
• Video Bit Rate: 128 Kbps~16 Mbps

• U-code: Support

• ROI: Up to 8 areas

• Video Stream: Triple streams

• OSD: Up to 8 OSDs

• Privacy Mask: Up to 4 areas


• White Balance: Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2

• Image Setting: Image rotation, brightness, saturation, contrast, sharpness, gain adjustable by the web browser
• Digital noise reduction: 2D/3D DNR

• Smart IR: Support

• Flip: Normal/Flip Vertical/ Flip Horizontal/180°

• Dewarping: N/A

• HLC: N/A

• BLC: Support

• Defog: Digital Defog

Audio

• Audio Compression: G.711

• Audio Bitrate: 64 Kbps

• Two-way audio: Supported

• Suppression: Supported

• Sampling Rate: 8 KHZ

Storage

• Edge Storage: Micro SD, up to 256GB
• Network Storage: ANR, NAS (NFS)

Network

• Protocols: IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS, RTMP, SSH
• Compatible Integration: ONVIF (Profile S, Profile G, Profile T), API, SDK

• User/Host" Up to 32 users. 2 user levels: administrator and common user

• Security Password protection, Strong password, HTTPS encryption, Export operation logs, Basic and digest authentication for RTSP, Digest authentication for HTTP, TLS 1.2, WSSE, and digest authentication for ONVIF
• Client:  EZStation / EZView / EZLive
• Web Browser
• Plug-in required live view: IE9+, Chrome 41 and below, Firefox 52 and below
• Plug-in free live view: Chrome 57.0+, Firefox 58.0+, Edge 16+

Live View Display

• Mount Type: Support table, wall, and ceiling
• Decoding Mode: Support software decoding
• Display Mode (11 display modes in total)
• Software decoding

• Ceiling mount: fisheye view, 360°Panoramic+1PTZ, 180°Panoramic, Fisheye+3PTZ, Fisheye+4PTZ, 360°Panoramic+6PTZ, Fisheye+8PTZ

• Wall mount: fisheye view, Panoramic, Panoramic+3PTZ, Panoramic+4PTZ, Panoramic+8PTZ

• Table mount: fisheye view, 360°Panoramic+1PTZ, 180°Panoramic, Fisheye+3PTZ, Fisheye+4PTZ, 360°Panoramic+6PTZ, Fisheye+8PTZ

Interface

• Audio I/O
• Input: impedance 35 kΩ; amplitude 2 V [p-p]

• Output: impedance 600 Ω; amplitude 2 V [p-p]
• Alarm I/O: 1/1

• RS485: N/A

• Built-in Mic: Supported 2

• Built-in Speaker: N/A

• WIFI: N/A

• Network: 1 RJ45 10M/100M Base-TX Auto-adaptive Ethernet

• Video Output: N/A

Certifications

• EMC
• FCC CFR 47 Part 15

• EN 55032:2015

• EN 55024:2010

• EN 61000-3-2:2014

• EN 61000-3-3-2013
• Safety
• IEC 62368-1

• EN 62368-1

• UL 62368-1
• Environment: CE-ROHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU); REACH (Regulation (EC) No 1907/2006)

General

• Power: DC12V±25%,PoE (IEEE 802.3af)
• Power consumption: Max 8.5W
• Dimensions (Ø x H): Φ125 × 43.7 mm (Φ4.9" × 1.7")
• Net Weight: 0.36kg (0.79lb)
• Material: Metal + Plastic
• Working Environment: -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing)

• Storage Environment: -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing)

• Surge Protection: 4KV
• Reset Button: Supported
• Protection
• Ingression protection: IP66

• Vandal-resistant: IK10
