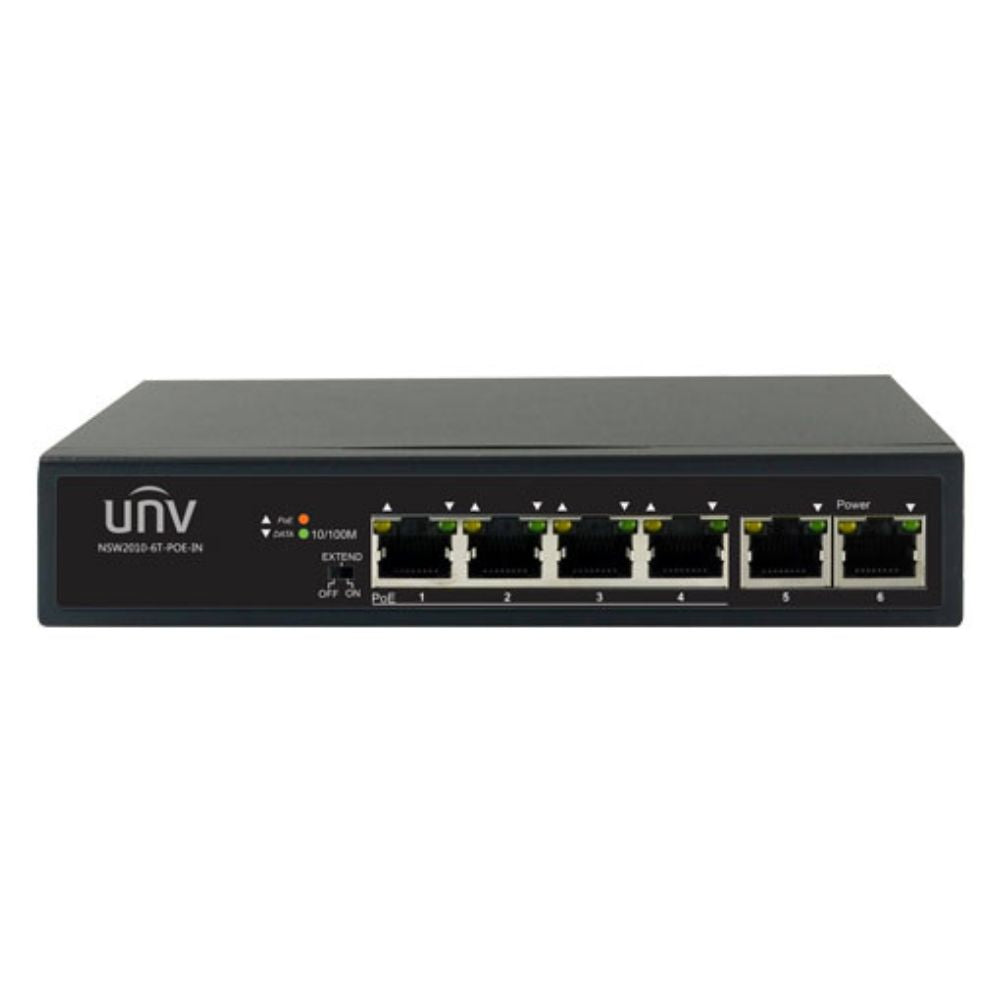

UNV 4PoE+2Port Switch | UNV-NSW2010-6T-POE-IN
Introducing the UNV 4PoE+2Port Switch, also known as UNV-NSW2010-6T-POE-IN, a cutting-edge networking solution designed to meet the diverse demands of modern businesses. This versatile switch offers a range of features and technical specifications that make it an ideal choice for various applications, from general networking to security and surveillance systems.
Features
- Multiple working modes to address your business needs: Normal, Secure, and Surveillance
- Support port traffic control
- Support for secure mode, all downlink ports can communicate only with uplink ports
- Up to 250m transmission distance on surveillance mode
- Support buffer optimization
- All metal housing, safe and reliable
Technical Specifications
- Ports: 6×100Mbps network ports (RJ45), including 4 PoE ports
- Standards: IEEE802.3, IEEE802.3u, IEEE802.3az, IEEE802.3x, IEEE802.3af, IEEE802.3at
- Switching capacity: 1.2Gbps
- Forwarding performance: 0.90Mpps
- Packet Buffer: 768Kbit
- MAC: 2K
- Dimensions (W×D×H): 160mm x 93mm x 32mm (6.3" × 3.7" × 1.3")
- Weight: <0.6kg
- Power supply: AC: 100-240V, 50/60Hz
- PoE: 802.3at/af
- Max. PoE Power
- Max capacity: 65W
- Max capacity for single port: 30W
- Cooling Fans: 0
- Mean Time Between Failure (MTBF): >50000 hours
- Ambient temperature: 0°C-45°C (32°F-113°F)
- Operating humidity: 10%~90% (noncondensing)
- Storage humidity: 5%~90% (noncondensing)
- Indicator
- PoE
- Off: No PoE power supply
- Steady on: PoE power supply is normal
- Flashing: PoE power supply is abnormal
- LINK/ACT
- Off: No link
- Steady: Linked at 10/100Mbps
- Flashing: Transmitting data
- Speed
- Off: Linked at 10/100Mbps
On: Linked at 1000Mbps - Working Mode
- Default (Normal mode): All ports can communicate with each other.
- EXTEND (Surveillance mode): Transmission distance up to 250 meters.
