UNV IPC6422SR-X25-VF-B 2MP 25x LightHunter Network PTZ Dome Camera | All Security Equipment

Roll over image to zoom in Click on image to zoom

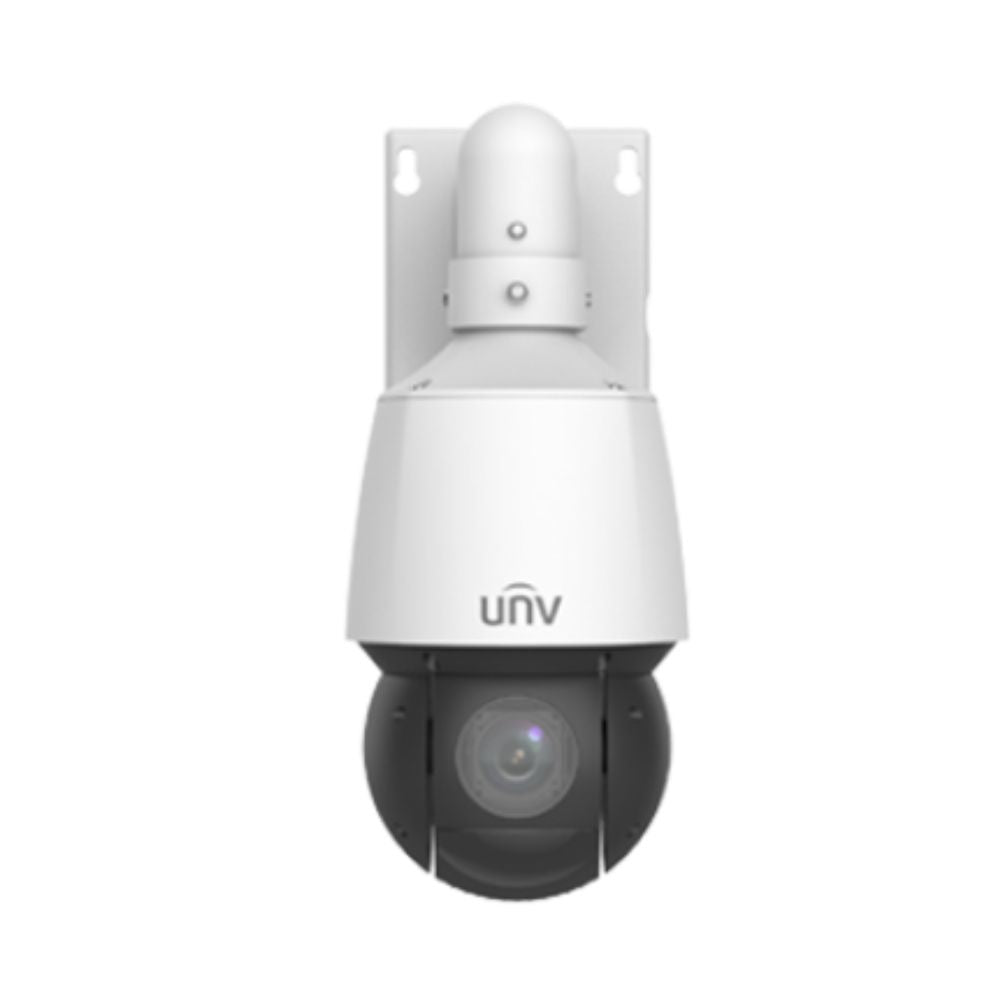

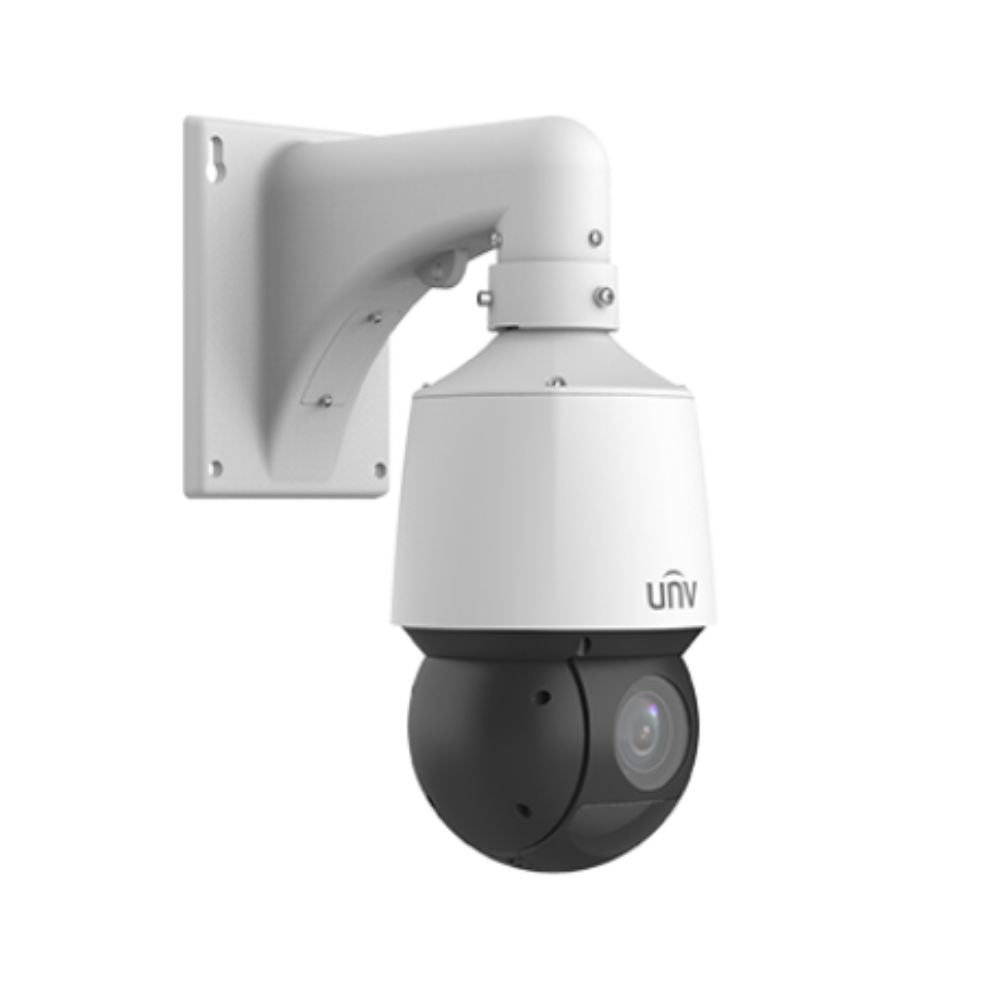

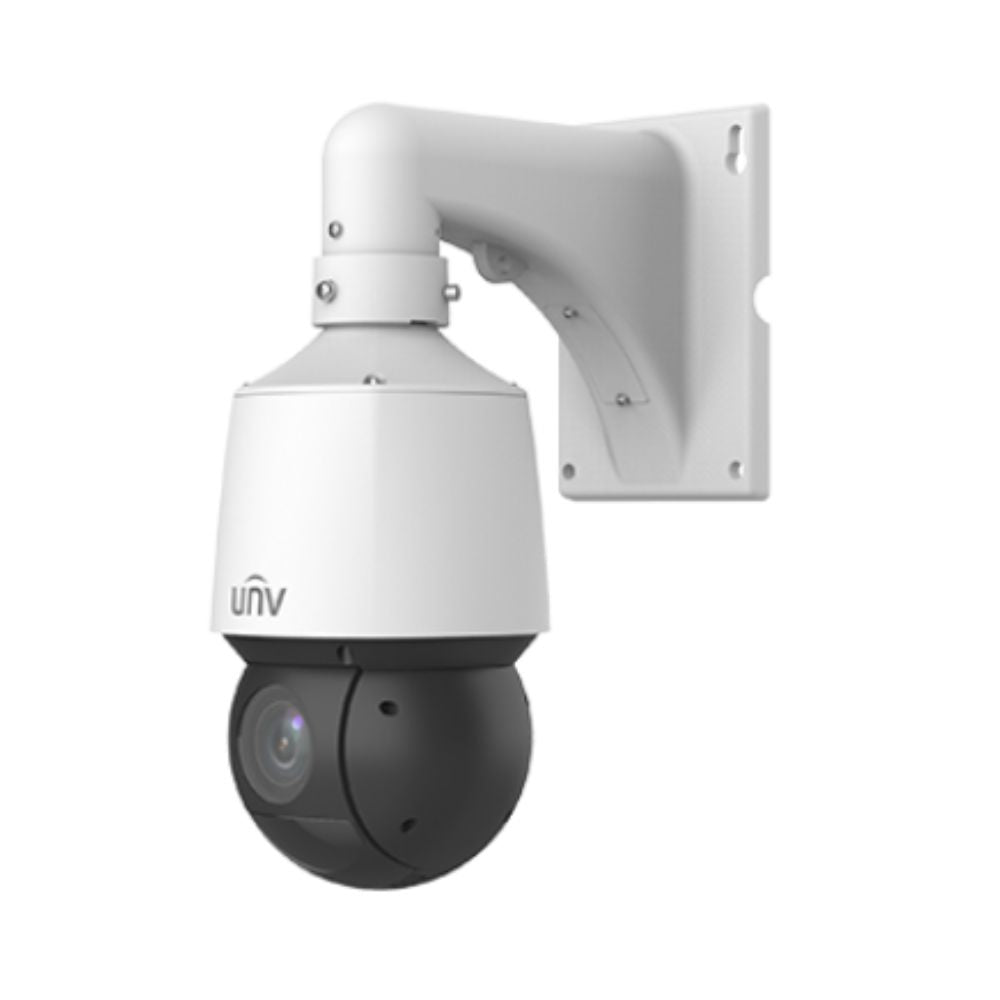

UNV IPC6422SR-X25-VF-B 2MP 25x LightHunter Network PTZ Dome Camera

Name: UNV IPC6422SR-X25-VF-B 2MP 25x LightHunter Network PTZ Dome Camera
Brand: UNV
SKU: UNV-IPC6422SR-X25-VF-B
Price: 1089.00 USD
Availability: OutOfStock

Write a review

Free US Shipping

UNVSKU: UNV-IPC6422SR-X25-VF-B

Price:

$1,089.00

Quantity:

Required fence width (Linear feet):

Share this product

UNV IPC6422SR-X25-VF-B 2MP 25x LightHunter Network PTZ Dome Camera

The UNV 25x LightHunter Network PTZ Dome Camera is ideal for outdoor applications requiring precise monitoring and detailed footage. Its powerful zoom capabilities allow for close-up views of distant objects, while the LightHunter technology ensures clear images even in challenging lighting conditions.

Sensor: 1/2.8", 2.0 megapixel, progressive scan, CMOS
Min. Illumination: Color: 0.001 Lux (F1.5, AGC ON), 0 Lux with IR
Day/Night: IR-cut filter with auto switch (ICR)
Shutter: Auto/Manual, 1 ~ 1/100000s
WDR: 120dB
S/N: >52dB
Lens: Lens type5 ~ 125mm, AF automatic focusing and motorized zoom lens
Digital Zoom: 16
Optical Zoom: 25
Iris: Auto; F1.5 ~ F4.0
Field of View (H): 54.37° ~ 2.68°
Field of View (V): 32.23° ~ 1.51°
Field of View (D): 66.88° ~ 3.16°
DORIDORI Distance: Lens (mm): 577.6 (254.5ft) / 1251939.7 (6363.7ft), Detect (m): 31.0 (101.8ft) / 775.9 (2545.5ft), Observe (m): 15.5 (50.9ft) / 387.9 (1272.7ft), Recognize (m): 7.8 (25.5ft) / 194.0 (636.4ft), Identify (m): 577.6 (254.5ft)
Illuminator: IR Range Up to 100m (328 ft) IR rangeWavelength850nmIR On/Off ControlAuto/Manual
Video: Video Compression: Ultra 265, H.265, H.264, MJPEG, Frame Rate: Main Stream: 2MP(19201080),Max 60fps; Sub Stream: 2MP (19201080), Max 60fps; Third Stream: D1 (720*576), Max 60fps;, Video Bit Rate: 128 Kbps~16 Mbps, U-code: Support, ROI: Support, Video Stream: Triple streams, OSD: Up to 8 OSDs, Privacy Mask: 24 areas, up to 4 areas per scene, Image: White BalanceAuto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2Digital Noise Reduction2D/3D DNRSmart IRSupportFlipNormal/Flip Vertical/Flip Horizontal/180°HLCSupportBLCSupportDefogDigital Defog, Events: Basic DetectionMotion detection, Audio detection, Tampering AlarmAuto TrackingSupport, General Function: Watermark, IP Address Filtering, Alarm input, Alarm output, Access Policy, ARP Protection, RTSP Authentication, User Authentication
Audio: Audio Compression: G.711U,G.711A, Audio Bitrate: 64 Kbps, Two-way Audio: Support, Suppression: Support, Sampling Rate: 8 kHz
Storage: Edge Storage: Micro SD, up to 256 GB, Network Storage: ANR,NAS(NFS)
Network: Protocols: IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS, RTMP,SSL/TLS, Compatible Integration: ONVIF (Profile S, Profile G, Profile T), API,SDK, User/Host: Up to 32 users. 3 user levels: administrator, operator and common user
Security: Password protection, Strong password, HTTPS encryption, Export operation logs, Basic and digest authentication for RTSP, Digest authentication for HTTP, TLS 1.2, WSSE and digest authentication for ONVIF
Client: EZStation, EZLive, EZView, Web Browser: Plug-in required live view: IE 10 and above, Chrome 45 and above, Firefox 52 and above, Edge 79 and above
Pan & Tilt: Pan Range: 360° (endless), Pan Speed: 0.1°/s ~ 200°/sPreset speed: 240°/s, Tilt Range: –15° ~ 90° (auto reverse), Tilt Speed: 0.1°/s ~ 120°/sPreset speed: 200°/s, Number of Presets: 1024, Preset Patrol: 16 patrols, up to 64 presets for each patrol, Route Patrol: 16 patrols, up to 32 actions for each patrol, Recorded Patrol: 16 patrols, up to 128 actions for each patrol, Patrol Stay Time: 15s ~ 1800s, Preset Image Freeze: Support, Home Position: Support
Interface: Audio I/O: 1/1, Alarm I/O: 2/1, Serial Port: 1 RS485, Built-in Mic: N/A, Built-in Speaker: N/A
WIFI: N/A
Network: 1 * RJ45 10M/100M Base-TX Ethernet
Video Output: 1 BNC
Certification: EMC: CE-EMC (EN 55032:2015+A11:2020+A1:2020,EN 61000-3-3:2013+A1:2019+A2:2021,EN IEC 61000-3-2: 2019+A1: 2021,EN 55035: 2017+A11:2020), FCC (47 CFR Part 15, Subpart B，ANSI C63.4-2014), Safety: CE LVD (EN 62368-1:2014+A11:2017), CB (IEC 62368-1:2014), UL (UL 62368-1, 2nd Ed., Issue Date: 2014-12-01), Environment: CE-RoHS (2011/65/EU;(EU)2015/863)
Protection: IP67 (IEC 60529:1989+AMD1:1999+AMD2:2013), IK10 (IEC 62262:2002)
General: Power: DC12V(±25%, 3A), PoE+(IEEE 802.3at), Power consumption: MAX 21W, Power Interface: Ø 5.5mm coaxial power plug, Dimensions (Ø x H): Ø166 x 295mm (Ø6.5” x 11.6”), Weight: 3.05kg(6.72lb), Working Environment: -40℃ ~ 70℃ (-40°F ~ 158°F)，Humidity: ≤95% RH (non-condensing), Storage Environment: -40℃ ~ 70℃ (-40°F ~ 158°F)，Humidity: ≤95% RH (non-condensing), Surge Protection: 6KV, Reset Button: Support

UNV IPC6422SR-X25-VF-B 2MP 25x LightHunter Network PTZ Dome Camera

UNV IPC6422SR-X25-VF-B 2MP 25x LightHunter Network PTZ Dome Camera

UNV IPC6422SR-X25-VF-B 2MP 25x LightHunter Network PTZ Dome Camera
