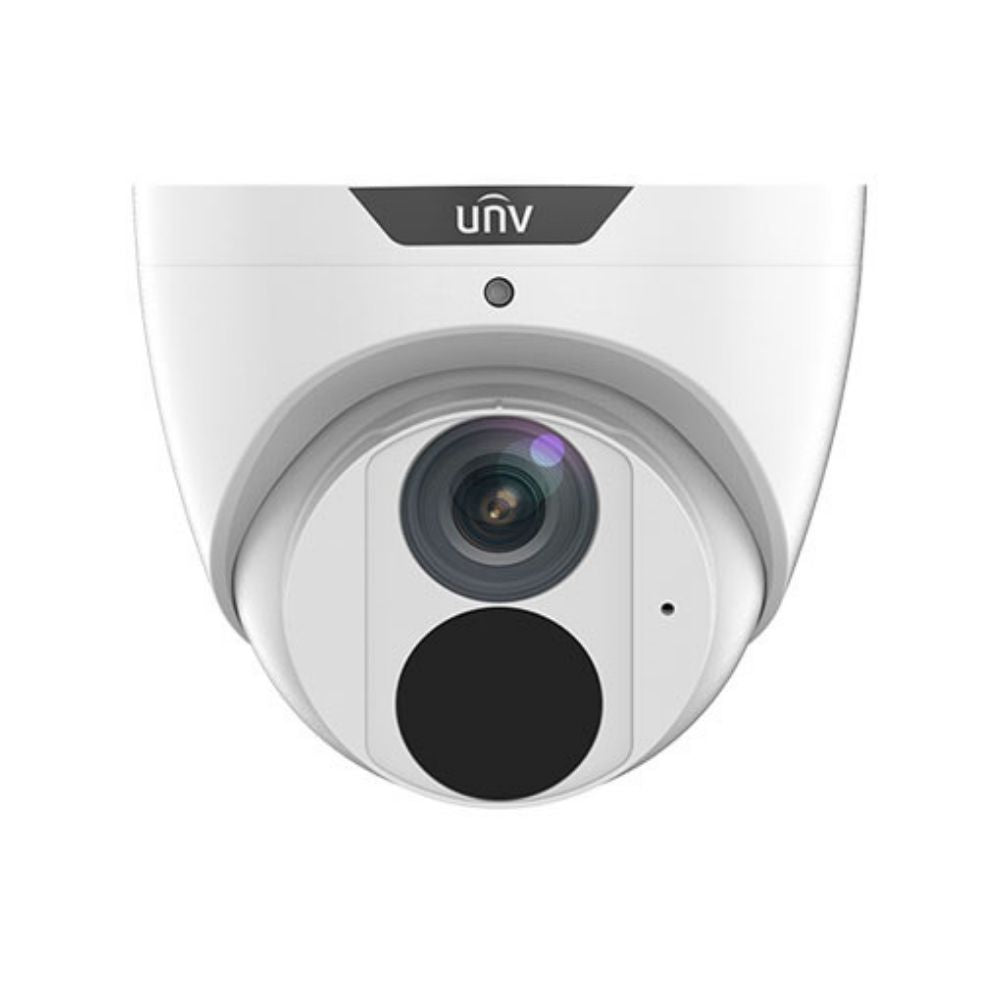

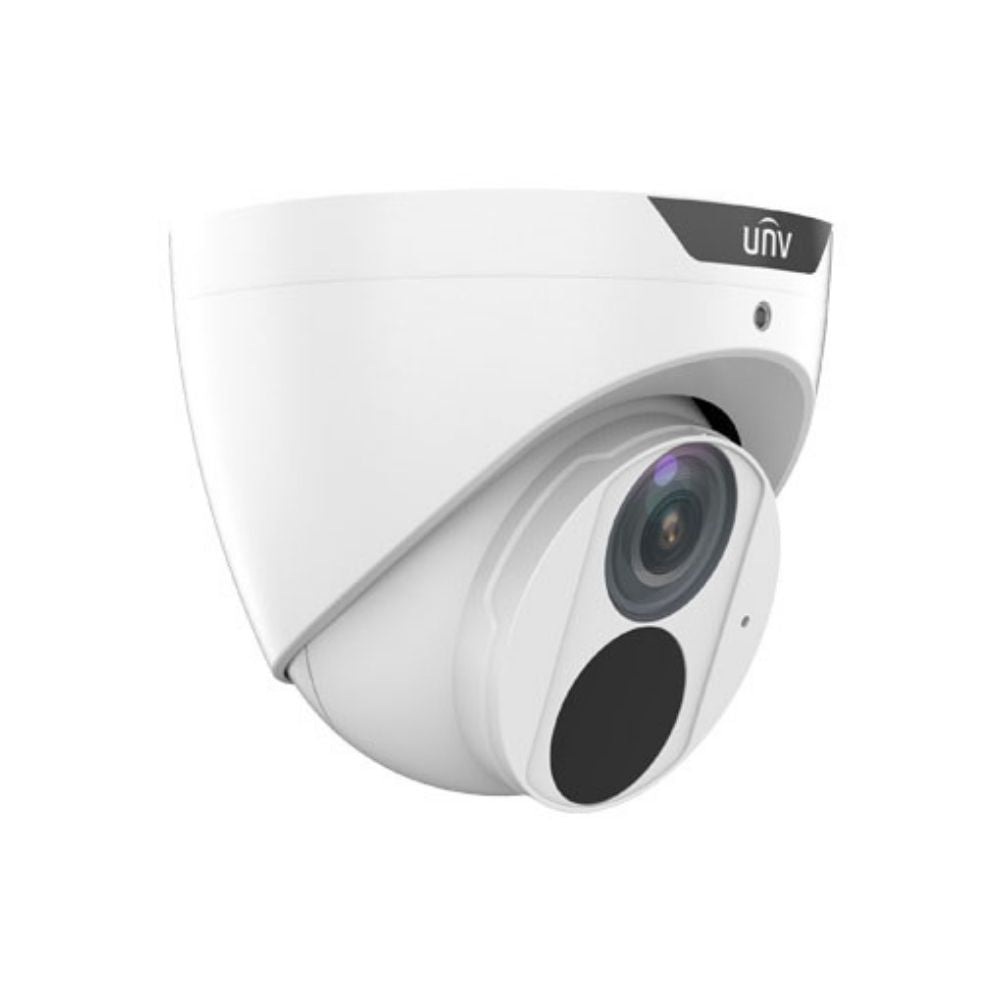

UNV 8MP HD IR Fixed Eyeball Network Camera | UNV-IPC3618SB-ADF28KM-I0
Introducing the UNV 8MP HD IR Fixed Eyeball Network Camera, model UNV-IPC3618SB-ADF28KM-I0. This advanced surveillance solution is meticulously engineered to provide exceptional security features and cutting-edge technology. With a high-resolution 8-megapixel sensor, the UNV-IPC3618SB-ADF28KM-I0 ensures crystal-clear and detailed visuals, optimizing identification and monitoring in various scenarios.
Features
- High-quality image with 8MP, 1/2.7"CMOS sensor
- 8MP (3840*2160)@20fps; 5MP (3072*1728)@30/25fps; 4MP (2560*1440)@30/25fps; 2MP (1920*1080) @30/25fps
- Ultra 265, H.265, H.264, MJPEG
- 120dB true WDR technology enables a clear image in a strong light scene
- Support 9:16 Corridor Mode
- Built-in Mic
- Smart IR, up to 30m (98ft) IR distance
- Supports 256 G Micro SD card
- IP67 protection
Technical Specifications
Camera
- Sensor: 1/2.7", 8.0 megapixel, progressive scan, CMOS
- Lens: 2.8mm@F2.0
- DORI Distance
- Detect (m): 84.0
- Observe (m): 33.6
- Recognize (m): 16.8
- Identify (m): 8.4
- Angle of View (H): 112.4°
- Angle of View (V): 60.1°
- Angle of View (O): 146.1°
- Adjustment angle: Pan: 3° ~ 360°
- Shutter: Auto/Manual, 1 ~ 1/100000s
- Minimum Illumination: Colour: 0.01Lux (F2.0, AGC ON) 0Lux with IR on
- Digital Noise Reduction: 2D/3D DNR
- Day/Night: IR-cut filter with auto switch (ICR)
- S/N: >56dB
- IR Range: Up to 30m (98ft) IR range
- Wavelength: 850nm
- IR On/Off Control: Auto/Manual
- Defog: Digital Defog
- WDR: 120dB
Video
- Compression: Ultra 265, H.265, H.264, MJPEG
- H.264 code profile: Baseline profile, Main profile, High profile
- Frame Rate
- Main Stream: 8MP (3840*2160), Max 20fps; 5MP (3072*1728), Max 30fps; 4MP (2560*1440), Max 30fps; 1080P (1920*1080), Max 30fps;
- Sub Stream: 1080P (1920*1080), Max 30fps;720P (1280*720), Max 30fps; D1 (720*576), Max 30fps; 640*360,Max 30fps; 2CIF(704*288), Max 30fps; CIF(352*288), Max 30fps;
- Third Stream: D1 (720*576), Max 30fps; 640*360,Max 30fps; 2CIF(704*288), Max 30fps; CIF(352*288), Max 30fps;
- Video Bit Rate: 128 Kbps~16 Mbps
- OSD: Up to 8 OSDs
- Privacy Mask: Up to 4 areas
- ROI: Up to 8 areas
- Motion Detection: Up to 4 areas
- White Balance: Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2
- Smart IR: Support
- Flip: Normal/Flip Vertical/ Flip Horizontal/180°
- Dewarping: Support
- HLC: Support
- BLC: Support
Audio
- Audio Compression: G.711
- Suppression: Supported
- Sampling Rate: 8 KHZ
Storage
- Edge Storage: Micro SD, up to 256GB
- Network Storage: ANR
Network
- Protocols: IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS
- Compatible Integration: ONVIF (Profile S, Profile G, Profile T), API
- Client: EZStation / EZView / EZLive
- Web Browser
- Plug-in required live view: IE9+, Chrome 41 and below, Firefox 52 and below
- Plug-in free live view: Chrome 57.0+, Firefox 58.0+, Edge 16+, Safari 11+
Interface
- Built-in Mic: Supported
- Network: 1 RJ45 10M/100M Base-TX Ethernet
Certifications
- CE: EN 60950-1
- UL: UL60950-1
- FCC: FCC Part 15
General
- Power: DC 12V±25%, PoE (IEEE 802.3af)
- Power consumption: Max 5.0W
- Dimensions (Ø x H): Φ110.5 x 94.1mm (Φ4.4” x 3.7”)
- Net Weight: 0.44kg (0.97lb)
- Material: Metal
- Working Environment: -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing)
- Storage Environment: -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing)
- Surge Protection: 2KV
- Ingress Protection: IP67
- Reset Button: N/A
