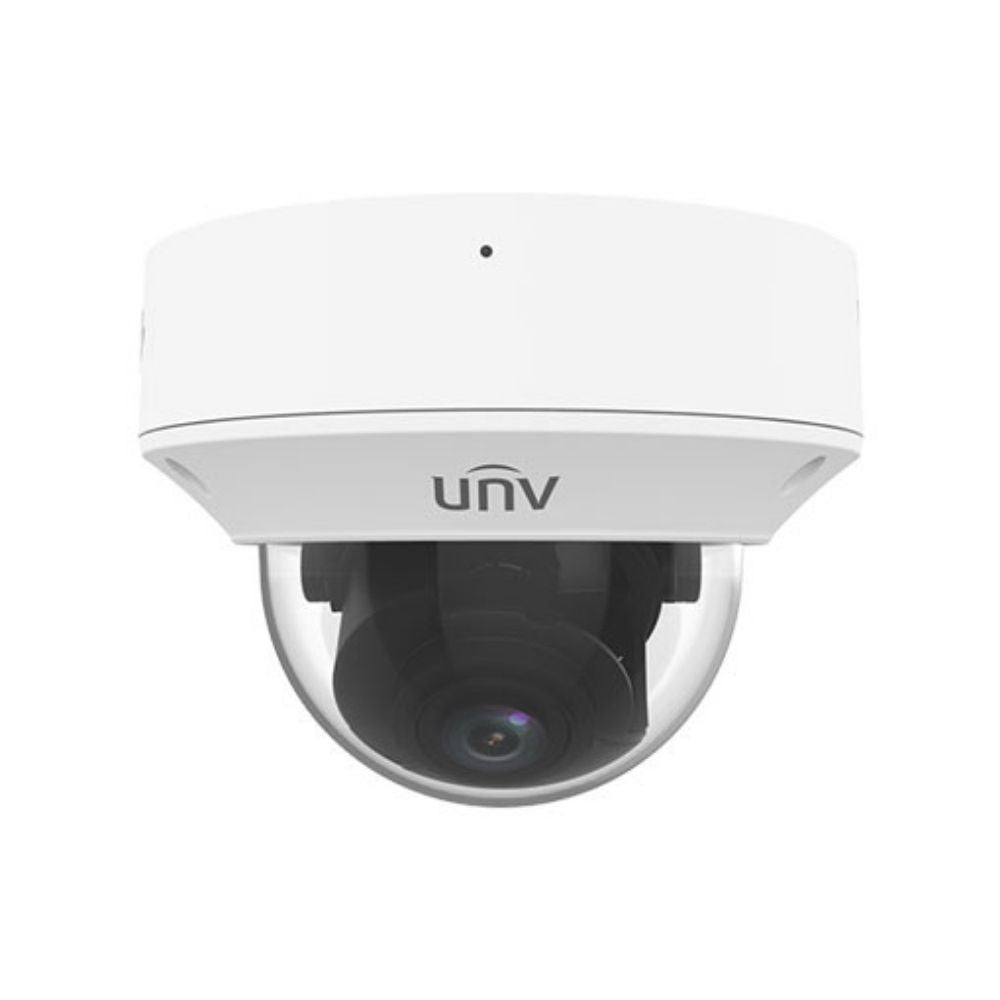

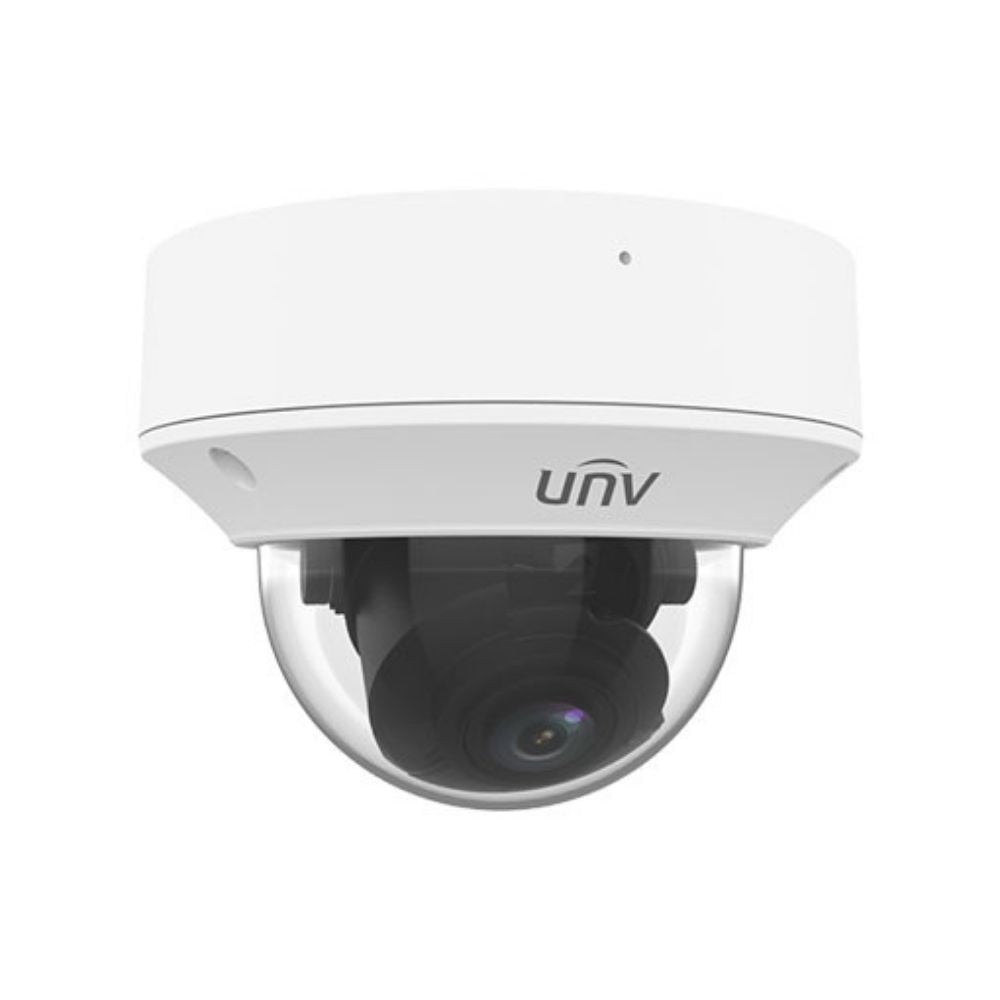

UNV 8MP HD Intelligent LighterHunter IR VF Dome Network Camera | UNV-IPC3238SB-ADZK-I0

UNV 8MP HD Intelligent LighterHunter IR VF Dome Network Camera | UNV-IPC3238SB-ADZK-I0

Welcome to the world of possibilities, where knowledge meets innovation. In an age marked by the rapid exchange of information and ideas, having a trusted source of insights and assistance can be transformative. Whether you're seeking answers to your questions, exploring new horizons, or seeking guidance on a wide range of topics, I'm here to assist. As your AI companion, I bring a wealth of information and the ability to provide thoughtful responses to your queries. So, feel free to ask, discover, and expand your understanding. Let's embark on a journey of learning and exploration together.

Features

• High-quality image with 8MP, 1/2.8"CMOS sensor
• 8MP (3840*2160)@20fps; 5MP (3072*1728)@30/25fps; 4MP (2560*1440)@30/25fps; 2MP (1920*1080) @30/25fps
• Ultra 265, H.265, H.264, MJPEG
• LightHunter technology ensures ultra-high image quality in a low illumination environment
• 120dB true WDR technology enables a clear image in a strong light scene
• Support 9:16 Corridor Mode
• Built-in Mic
• Alarm: 1 in/1 out, Audio: 1 in/1 out
• Smart IR, up to 40m (131ft) IR distance
• Supports 256 G Micro SD card
• IK10 vandal resistant
• IP67 protection
• Support PoE power supply

Technical Specifications

Camera

• Sensor: 1/2.8", 8.0 megapixel, progressive scan, CMOS
• Lens: 2.8 ~ 12mm, AF automatic focusing and motorized zoom lens
• DORI Distance
• Lens (mm): 2.8
• Detect (m): 86.9
• Observe (m): 34.8
• Recognize (m): 17.4
• Identify (m): 8.7

• Angle of View (H): 107.4°~ 29.2°
• Angle of View (V): 54.2°~ 16.3°
• Angle of View (O): 111.0°~33.1°
• Adjustment angle: Pan: 0° ~ 355°
• Shutter: Auto/Manual, 1 ~ 1/100000s
• Minimum Illumination: Colour: 0.003Lux (F1.6, AGC ON) 0Lux with IR on
• Day/Night: IR-cut filter with auto switch (ICR)
• Digital Noise Reduction: 2D/3D DNR

• S/N: >56 dB

• IR Range: Up to 40m (131ft) IR range

• Wavelength: 850nm

• IR On/Off Control: Auto/Manual

• Defog: Digital Defog

• WDR: 120dB

Video

• Video Compression: Ultra 265, H.265, H.264, MJPEG
• H.264 code profile: Baseline profile, Main profile, High profile
• Frame Rate
• Main Stream: 8MP (3840*2160), Max 20fps;5MP (3072*1728), Max 30fps; 4MP (2560*1440), Max30fps; 1080P (1920*1080), Max 30fps;
• Sub Stream: 1080P (1920*1080), Max 30fps;720P (1280*720), Max 30fps; D1 (720*576), Max 30fps; 640*360,Max 30fps; 2CIF(704*288), Max 30fps; CIF(352*288), Max 30fps;
• Third Stream: D1 (720*576), Max 30fps; 640*360,Max 30fps; 2CIF(704*288), Max 30fps; CIF(352*288), Max 30fps;
• Video Bit Rate: 128 Kbps~16 Mbps
• OSD: Up to 8 OSDs
• Privacy Mask: Up to 4 areas
• ROI: Up to 8 areas
• Motion Detection: Up to 4 areas


• White Balance: Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2
• Smart IR: Support
• Flip: Normal/Vertical/Horizontal/180°/90°Clockwise/90°Anti-clockwise
• Dewarping: Supported
• HLC: Supported
• BLC: Supported

Audio

• Audio Compression: G.711
• Two-way audio: Supported
• Suppression: Supported
• Sampling Rate: 8KHZ

Storage

• Edge Storage: Micro SD, up to 256GB
• Network Storage: ANR

Network

• Protocols:  IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS
• Compatible Integration: ONVIF (Profile S, Profile G, Profile T), API
• Client:  EZStation / EZView / EZLive
• Web Browser
• Plug-in required live view: IE9+, Chrome 41 and below, Firefox 52 and below
• Plug-in free live view: Chrome 57.0+, Firefox 58.0+, Edge 16+, Safari 11+

Interface

• Audio I/O
• Input: impedance 35kΩ; amplitude 2V [p-p]
• Output: impedance 600Ω; amplitude 2V [p-p]
• Alarm I/O: 1/1
• Built-in Mic: Supported
• Network: 1 RJ45 10M/100M Base-TX Ethernet

Certifications

• CE: EN 60950-1
• UL: UL60950-1
• FCC: FCC Part 15

General

• Power: DC 12V±25%, PoE (IEEE 802.3af)
• Power consumption: Max 9.0W
• Dimensions (Ø x H): Φ148 x 111.4mm (Ø5.8” x 4.4”)
• Net Weight: 0.97kg (2.14lb)
• Material: Metal + Plastic
• Working Environment: -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing)

• Storage Environment: -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing)

• Surge Protection: 2KV
• Ingress Protection: IP67
• Vandal Resistant: IK10
• Reset Button: Supported
