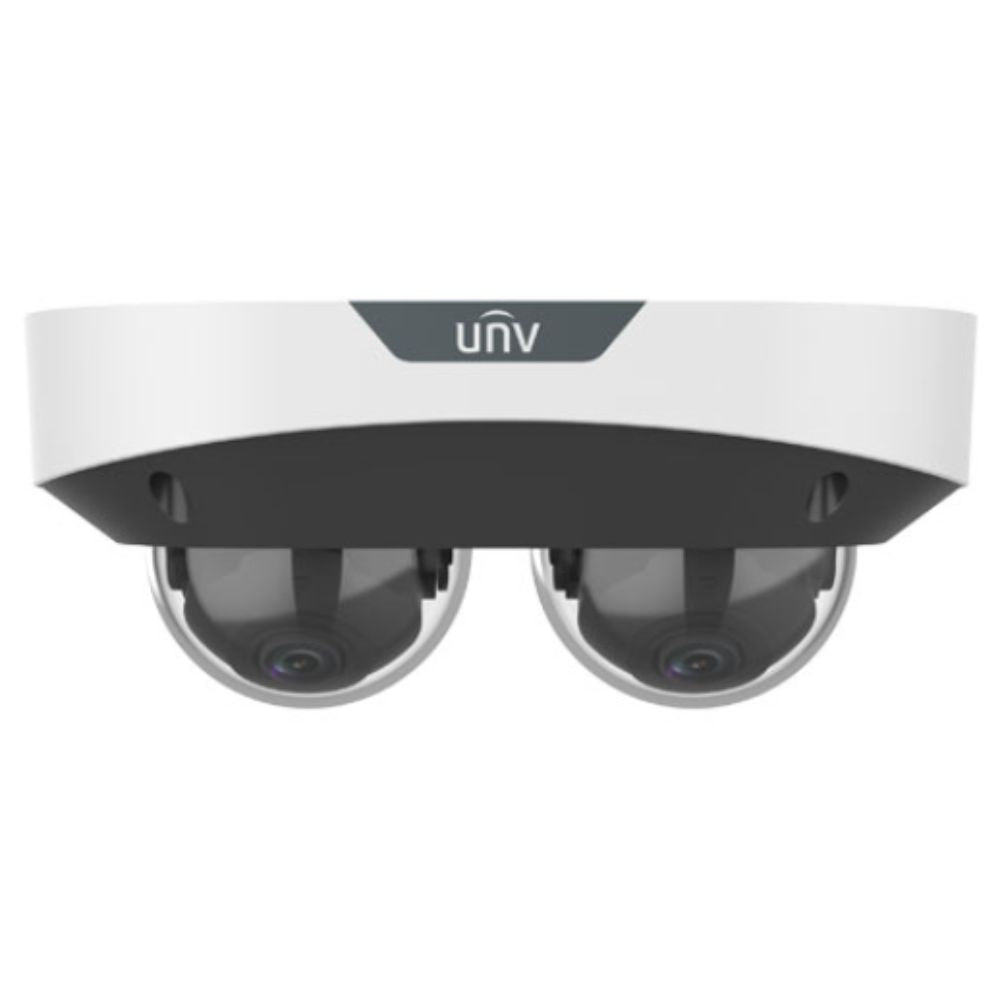

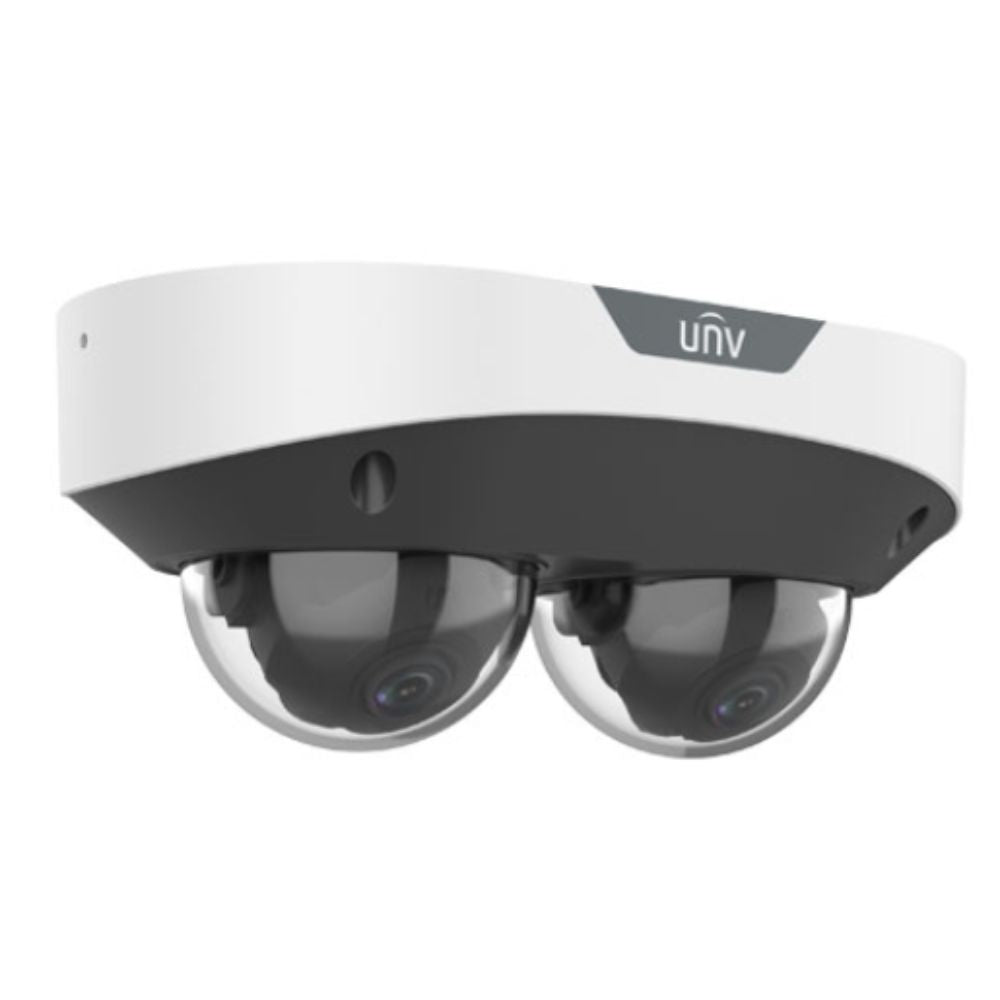

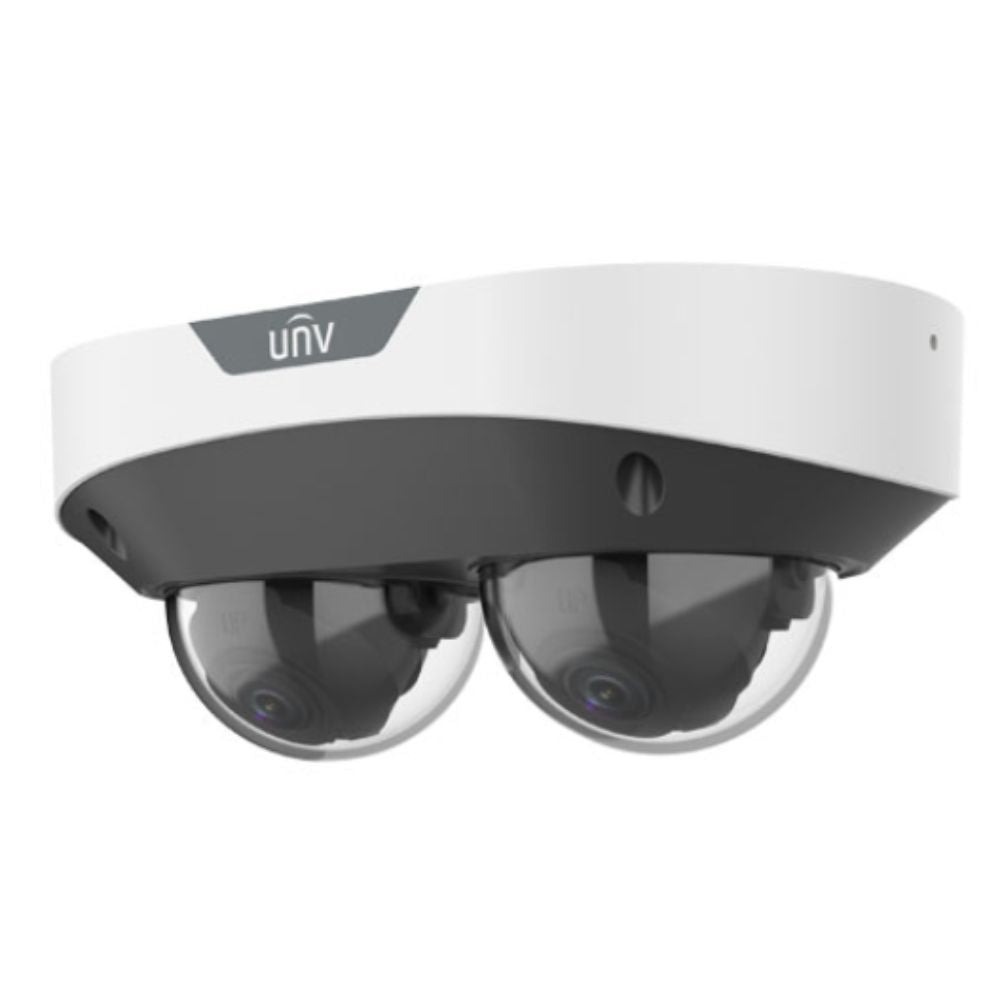

UNV IPC3222SS-ADF28K-I1 2*2MP Dual-channel Non-Splicing Multiview Series IR Fixed Intelligent Network Camera

• High quality image with 2*2MP resolution, 1/2.8"CMOS sensor
• Single IP with dual channels
• 2MP (1920*1080)@30/25fps; 720P (1280*720) @30/25fps
• Ultra 265, H.264,H.265, MJPEG
• Both channels support intelligent perimeter protection, include cross line, intrusion, enter area, leave area detection
• Based on target classification, smart intrusion prevention significantly reduce false alarm caused by leaves, birds and lights etc., accurately focus on human and motor vehicle and non-motor vehicle
• Intelligent People Flow Counting and Crowd Density Monitoring (Only Channel 1)
• 130dB true WDR technology enables clear image in strong light scene
• Built-in two Mics
• Supports 256 GB Micro SD card
• DC12V or PoE(IEEE 802.3af) power supply
• IP67 protection and IK10 vandal resistant
• 3-Axis

• CameraSensor: 1/2.8", 2.0 megapixel, progressive scan, CMOS
• Minimum Illumination (Color): 0.003 lux (F1.6, AGC ON)
• Day/Night: IR-cut filter with auto switch (ICR)
• Shutter: Auto/Manual, 1 ~ 1/100000s
• Adjustment Angle: Pan: 0° ~ 180°, Tilt: 0° ~ 66°, Rotate: 0° ~ 346°
• WDR: 130dB
• S/N Ratio: >52dB
• Lens Type: 2.8mm@F1.6, 4.0mm@F1.6
• Iris: Fixed
• Field of View (Horizontal): 100.2°, 86.88°
  Field of View (Vertical): 54.5°, 44.39°
  Field of View (Oblique): 104.9°, 91.76°
• DORIDORI Distance:
  Lens (mm): 2.8
  Detect (m): 43.4m (142.5ft)
  Observe (m): 17.4m (57ft)
  Recognize (m): 8.7m (28.5ft)
  Identify (m): 4.3m (14.3ft)
  Lens (mm): 4.0
  Detect (m): 62.1m (203.6ft)
  Observe (m): 24.8m (81.5ft)
  Recognize (m): 12.4m (40.7ft)
  Identify (m): 6.2m (20.4ft)
• Illuminator: IR Range: Up to 30m (98ft)
  IR Range Wavelength: 850nm
  IR On/Off Control: Auto/Manual
• Video:
• Compression: Ultra 265, H.265, H.264, MJPEG
  H.264 Code Profile: Baseline profile, Main profile, High profile
• Frame Rate:
  Main Stream: 1080P (19201080), Max 30fps; 720P (1280720), Max 30fps
  Sub Stream: 720P (1280720), Max 30fps; D1 (720576), Max 30fps; 640360, Max 30fps; 2CIF(704288), Max 30fps; CIF(352*288), Max 30fps; Third Stream: D1 (720576), Max 30fps; 640360,Max 30fps; 2CIF(704288), Max 30fps; CIF(352288), Max 30fps
• Video Bit Rate: 128 Kbps~16 Mbps
• U-code: Support
• OSD: Up to 8 OSDs
• Privacy Mask: Up to 4 areas
• ROI: Up to 8 areas
• Video Stream: Triple streams
• Image:
  White Balance: Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2
• Digital Noise Reduction: 2D/3D DNR
• Smart IR: Support
• Flip: Normal/ Flip Vertical/ Flip/Horizontal/180°/90°Clockwise/90°Anti-clockwise
• Dewarping: N/A
• HLC: Support
• BLC: Support
• Defog: Digital Defog
• Intelligent Features:
  Smart intrusion prevention: Support false alarm filtering: Line crossing detection, Intrusion detection, Enter Area detection, Leave Area detection
• Statistical Analysis: People counting, support people flow counting and crowd density monitoring(Only Channel 1)
• Events:
  Basic Detection: Motion detection, Ultra motion detection, Tampering alarm, Audio detection
• General Function:
  Watermark: Support
  IP address filtering: Support
  Tampering alarm: Support
  Access policy: Support
  ARP protection: Support
  RTSP authentication: Support
  User authentication: Support
• Audio:
  Compression: G.711U, G.711A
  Bitrate: 64 Kbps
  Two-way audio: Support
  Suppression: Support
  Sampling Rate: 8KHZ
  Storage:
  Edge Storage: Micro SD, up to 256GB
  Network Storage: ANR, NAS(NFS)
• Network:
  Protocols: IPv4,IPv6, IGMP, ICMP ,ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, RTMP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS, SSL/TLS, SSH
  Compatible Integration: ONVIF (Profile S, Profile T, Profile G), API,SDK
  User/Host: Up to 32 users. 3 user levels: administrator, common user and operator
• Security:
  Password protection: Support
  Strong password: Support
  HTTPS encryption: Support
  Export operation logs: Support
  Basic and digest authentication for RTSP: Support
  Digest authentication for HTTP: Support
  TLS 1.2 , WSSE and digest authentication for ONVIF: Support
• Client:
  EZStation: Support
  EZView: Support
  EZLive: Support
  Web Browser: Plug-in required live view: IE 10 and above, Chrome 45 and above, Firefox 52 and above, Edge 79 and above
  Plug-in free live view: Chrome 57.0 and above, Firefox 58.0 and above, Edge 16 and above
• Interface:
  Audio I/O: Input: impedance 35kΩ; amplitude 2V [p-p], Output: impedance 600Ω; amplitude 2V [p-p]
  Alarm I/O: 1/1
  Serial Port: N/A
  Built-in Mic: Built-in two Mics
  Built-in Speaker: N/A
  WiFi/AN: Support
  Network: 1 RJ45 10M/100M Base-TX Ethernet
  Video Output: N/A
• Certifications:
  EMC: CE-EMC (EN 55032, EN 61000-3-3, EN IEC 61000-3-2, EN 55035), FCC (FCC 47 CFR part15 B)
  Safety: CE-LVD (EN 62368-1), UL/CUL (UL 62368-1, CAN/CSA C22.2 No. 62368-1)
  Environment: CE-RoHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU)
  Protection: IP67 (IEC 60529), IK10 (IEC 62262)
• General:
  Power: DC 12V±25%, PoE (IEEE 802.3af)
  Power consumption: Max 8.2w
  Power Interface: Ø 5.5mm coaxial power plug
• Dimensions: 176×104×72mm (6.9" × 4.1" ×2.8")
• Weight: 0.62kg(1.37lb)
• Material: Metal
• Working Environment: -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing)
• Storage Environment: -30°C
