UNV 4MP HD Intelligent LightHunter IR Fixed Mini Dome Camera | UNV-IPC314SB-ADF28K-I0

UNV 4MP HD Intelligent LightHunter IR Fixed Mini Dome Camera | UNV-IPC314SB-ADF28K-I0

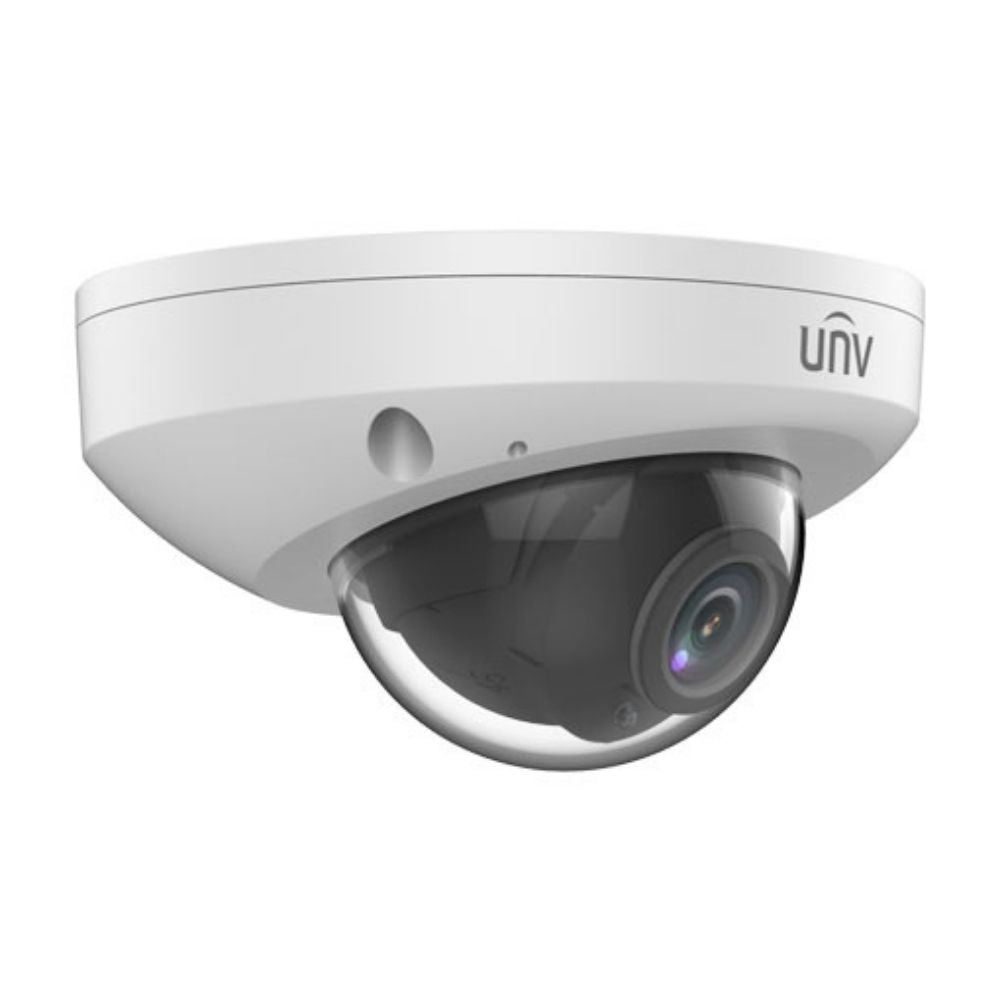

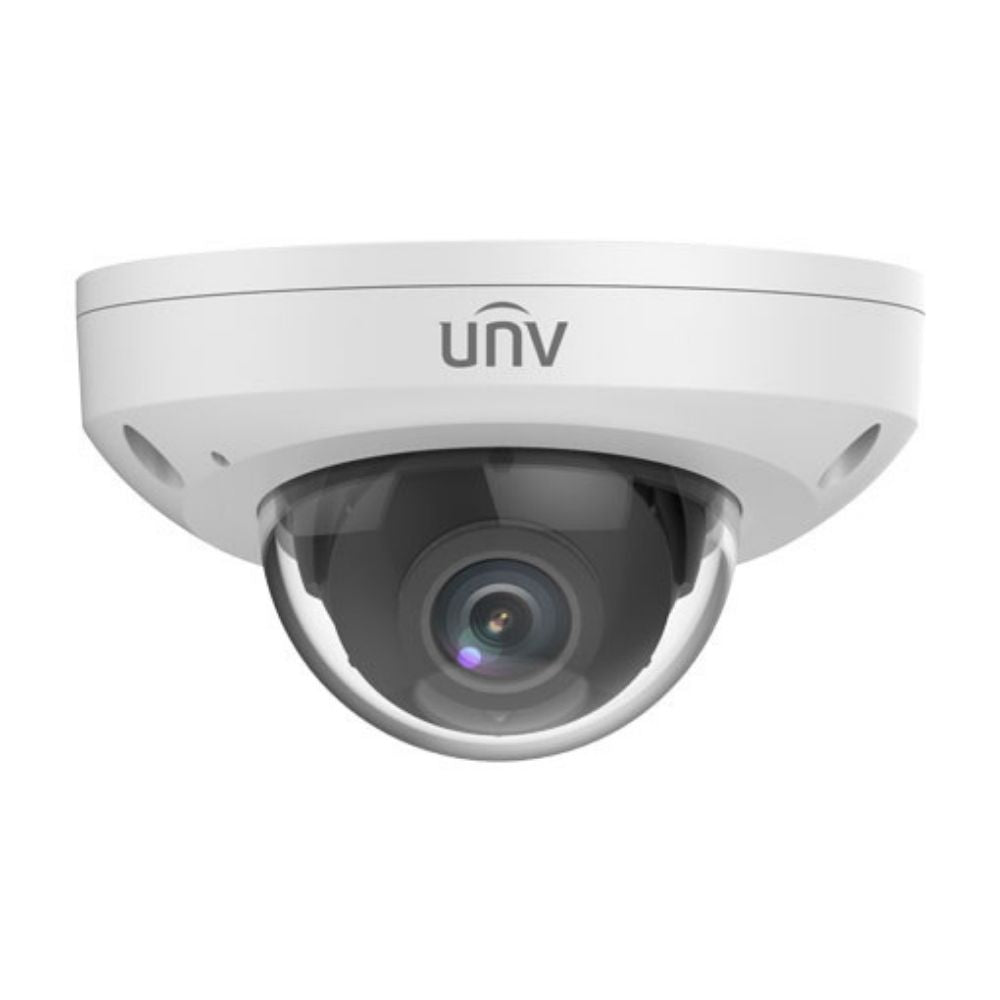

Introducing the UNV 4MP HD Intelligent LightHunter IR Fixed Mini Dome Camera, model UNV-IPC314SB-ADF28K-I0. This compact and advanced surveillance solution is designed to deliver exceptional security features and cutting-edge technology. With a high-resolution 4-megapixel sensor, the UNV-IPC314SB-ADF28K-I0 ensures clear and detailed visuals, optimizing identification and monitoring in various scenarios.

Features

• High-quality imaging with 4MP, 1/3"CMOS sensor
• 4MP (2688*1520)@ 30/25fps; 4MP (2560*1440)@ 30/25fps; 3MP (2304*1296) @30/25fps; 2MP (1920*1080) @30/25fps;
• Ultra 265, H.265, H.264, MJPEG
• LightHunter technology ensures ultra-high image quality in a low illumination environment
• 120dB true WDR technology enables clear imaging in a strong light scene
• Support 9:16 Corridor Mode
• Built-in Mic
• Smart IR, up to 30m (98ft) IR distance
• Supports 256 G Micro SD card
• IK10 vandal resistant
• IP67 protection
• Support PoE power supply
• 3-Axis  

Technical Specifications

Camera

• Sensor: 1/3", 4.0 megapixel, progressive scan, CMOS
• Lens: 2.8mm@F1.6
• DORI Distance
• Lens (mm): 2.8
• Detect (m): 63
• Observe (m): 25.2
• Recognize (m): 12.6
• Identify (m): 6.3

• Angle of View (H): 101.1°
• Angle of View (V): 55.3°
• Angle of View (O): 111.1°
• Adjustment angle: Pan: 0° ~90°
• Shutter: Auto/Manual, 1 ~ 1/100000s
• Minimum Illumination: Colour: 0.003Lux (F1.6, AGC ON) 0Lux with IR
• Day/Night: IR-cut filter with auto switch (ICR)
• Digital Noise Reduction: 2D/3D DNR

• S/N: >56 dB

• IR Range: Up to 30m (98ft) IR range

• Wavelength: 850nm

• IR On/Off Control: Auto/Manual

• Defog: Digital Defog

• WDR: 120dB

Video

• Video Compression: Ultra 265, H.265, H.264, MJPEG
• H.264 code profile: Baseline profile, Main profile, High profile
• Frame Rate
• Main Stream: 4MP (2688*1520), Max 30fps; 4MP (2560*1440), Max 30fps; 3MP (2304*1296), Max 30fps; 2MP (1920*1080), Max 30fps;
• Sub Stream: 720P (1280*720), Max 30fps; D1 (720*576), Max 30fps; 640*360,Max 30fps; 2CIF(704*288), Max 30fps; CIF(352*288), Max 30fps;
• Third Stream: D1 (720*576), Max 30fps; 640*360,Max 30fps; 2CIF(704*288), Max 30fps; CIF(352*288), Max 30fps;
• Video Bit Rate: 128 Kbps~16 Mbps
• OSD: Up to 8 OSDs
• Privacy Mask: Up to 4 areas
• ROI: Up to 8 areas
• Motion Detection: Up to 4 areas


• White Balance: Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2
• Digital noise reduction: 2D/3D DNR
• Smart IR: Support
• Flip: Normal/Vertical/Horizontal/180°/90°Clockwise/90°Anti-clockwise
• Dewarping: N/A
• HLC: Supported
• BLC: Supported

Audio

• Audio Compression: G.711
• Suppression: Supported
• Sampling Rate: 8KHZ

Storage

• Edge Storage: Micro SD, up to 256GB
• Network Storage: ANR, NAS (NFS)

Network

• Protocols: IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS
• Compatible Integration: ONVIF (Profile S, Profile G, Profile T), API
• Client:  EZStation / EZView / EZLive
• Web Browser
• Plug-in required live view: IE9+, Chrome 41 and below, Firefox 52 and below
• Plug-in free live view: Chrome 57.0+, Firefox 58.0+, Edge 16+, Safari 11+

Interface

• Audio I/O
• Audio cable
• 1 Input: impedance 35kΩ; amplitude 2V [p-p]
• 1 Output: impedance 600Ω; amplitude 2V [p-p]
• Built-in Mic: Supported
• Network: 1 RJ45 10M/100M Base-TX Ethernet

Certifications

• CE: EN 60950-1
• UL: UL60950-1
• FCC: FCC Part 15

General

• Power: DC 12V±25%, PoE (IEEE 802.3af)
• Power consumption: Max 6.0W
• Dimensions (Ø x H): Φ110 x 61mm (Ø4.3” x 2.4”)
• Net Weight: 0.37kg (0.82lb)
• Material: Metal + Plastic
• Working Environment: -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing)

• Storage Environment: -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing)

• Surge Protection: 2KV
• Ingress Protection: IP67
• Vandal Resistant: IK10
• Reset Button: N/A

Product Literature

• UNV IPC314SB-ADF28K-I0 Data Sheet
• UNV Camera Installation Guide

• UNV Network Cameras User Manual
