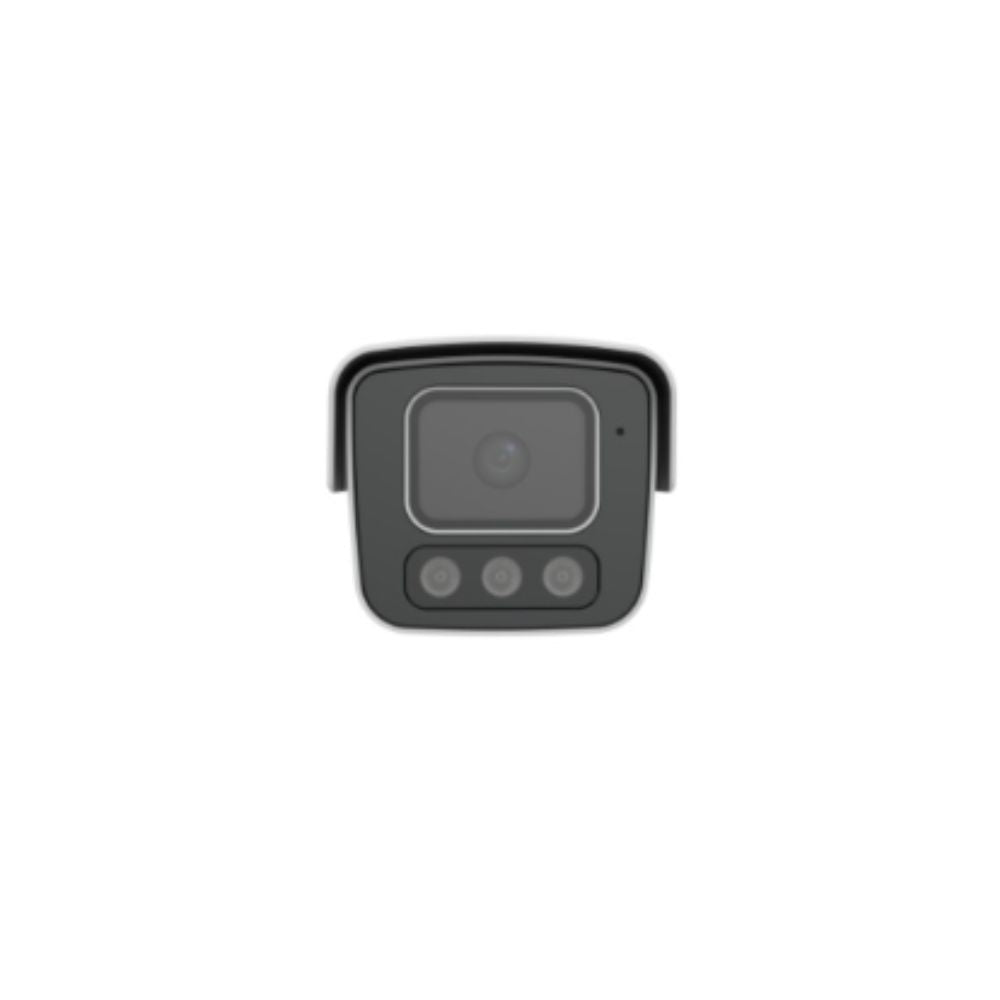

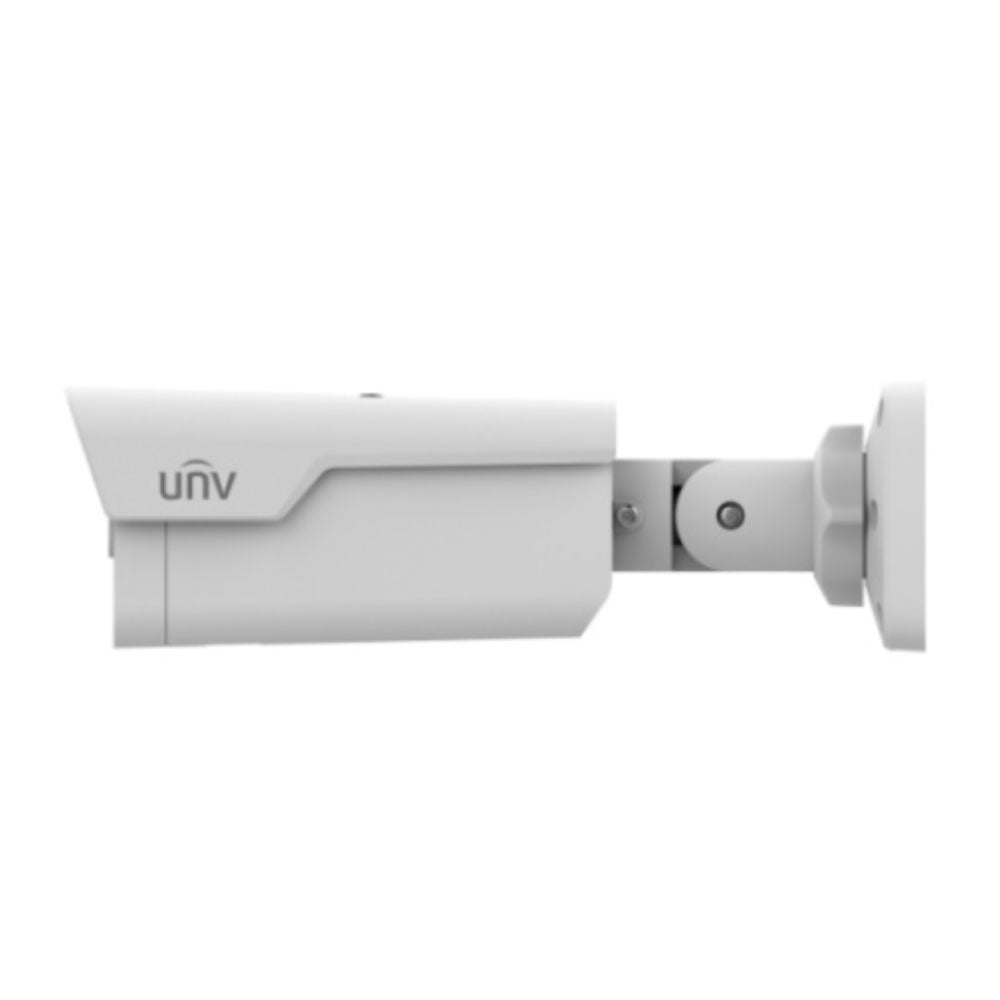

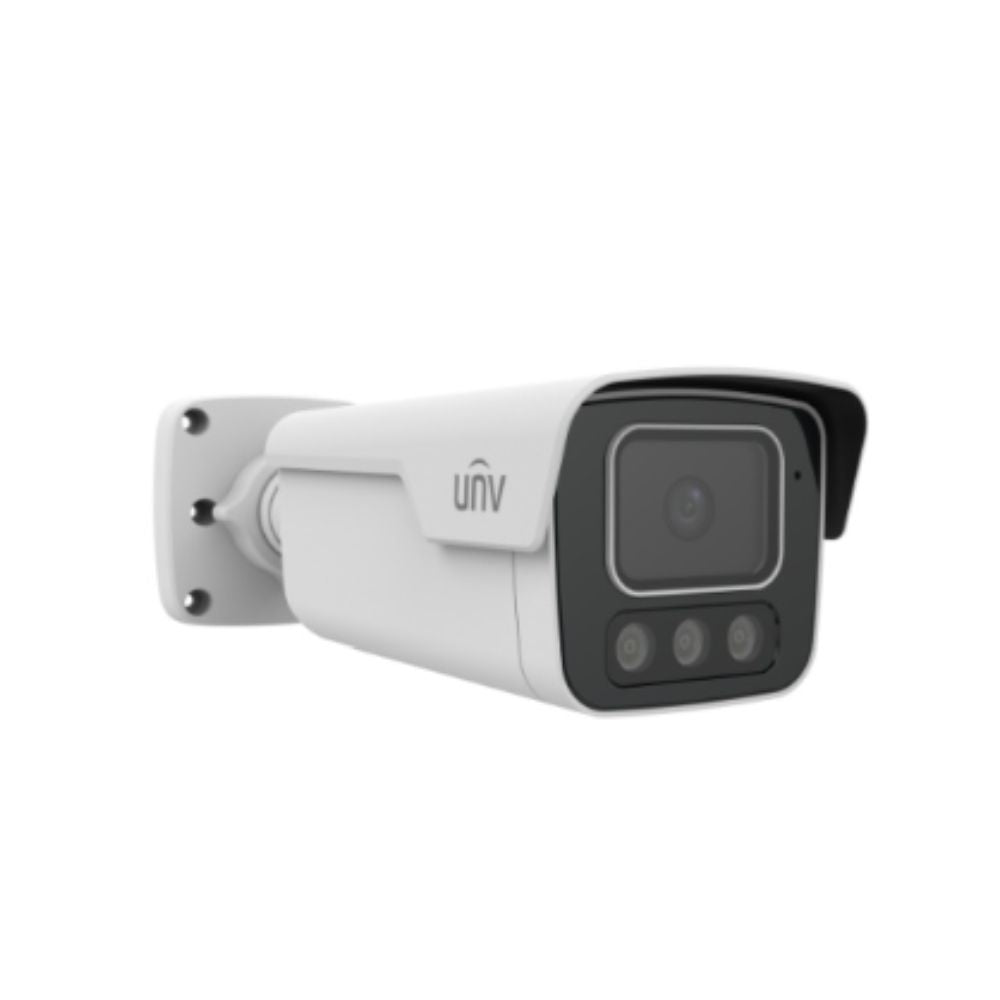

UNV IPC2B18SS-ADF28KMC-I1 8MP HD Intelligent Light and Audible Warning Fixed Bullet Network Camera

• High quality image with 8MP, 1/2.8"CMOS sensor
• 8MP (3840*2160)@ 30/25(default)fps; 5MP (3072*1728)@ 30/25fps; 4MP (2560*1440) @30/25fps; 2MP (1920*1080) @30/25fps
• Ultra 265, H.265, H.264, MJPEG
• Intelligent perimeter protection, include cross line, intrusion, enter area, leave area detection
• Based on target classification, smart intrusion prevention significantly reduce false alarm caused by leaves, birds and lights etc., accurately focus on human and, motor vehicle and non-motor vehicle
• Intelligent People Flow Counting and Crowd Density Monitoring
• Smart intrusion prevention with Color retrieval
• Auto Scene Match (ASM)（Only WDR）
• 130dB true WDR technology enables clear image in strong light scene
• Support red & blue warning light
• Support 9:16 Corridor Mode
• Alarm:1 in/1 out, Audio: 1 in/1 out, Built-in Mic and Speaker
• Smart IR, up to 40m (131 ft) IR distance
• Supports 512 G Micro SD card
• IP67 protection

• Camera Sensor: 1/2.8", 8.0 megapixel, progressive scan, CMOS
• Minimum Illumination: Colour: 0.001 Lux (F1.0, AGC ON)
• 0 lux with IR on
• Day/Night: IR-cut filter with auto switch (ICR)
• Shutter: Auto/Manual, 1 ~ 1/100000s
• Adjustment angle: Pan: 0° ~ 360°, Tilt: 0° ~ 90°, Rotate: 0° ~ 360°
• WDR: 130dB
• S/N: >56dB
• Lens: 2.8mm@F1.0, 4.0mm@F1.0
• Iris: Fixed
• Field of View (H): 106.5°, 92°
• Field of View (V): 57.9°, 51°
• Field of View (D): 132°, 106°
• DORI Distance: Lens (mm), Detect (m), Observe (m), Recognize (m), Identify (m)
• 2.8: 86.9, 34.8, 17.4, 8.7
• 4.0: 124.1, 49.7, 24.8, 12.4
• IR Range: Up to 40m (131 ft)
• Warm Light Range: Up to 40m (131 ft)
• Wavelength: 850nm
• Light On/Off Control: Auto/Manual
• Video Compression: Ultra 265, H.265, H.264, MJPEG
• H.264 code profile: Baseline profile, Main profile, High profile
• Frame Rate: Main Stream: 8MP (38402160), Max 30fps; 5MP (30721728), Max 30fps; 4MP (25601440), Max 30fps; 1080P (19201080), Max 30fps; 720P (1280*720), Max 30fps
• Sub Stream: 720P (1280720), Max 30fps; D1 (720576), Max 30fps; 640360, Max 30fps; 2CIF(704288), Max 30fps; CIF(352*288), Max 30fps
• Third Stream: D1 (720576), Max 30fps; 640360, Max 30fps; 2CIF(704288), Max 30fps; CIF(352288), Max 30fps
• Video Bit Rate: 128 Kbps~16 Mbps
• U-code: Support
• OSD: Up to 8 OSDs
• Privacy Mask: Up to 4 areas
• ROI: Up to 8 areas
• Video Stream: Triple streams
• Auto Scene Match (ASM): Support (Only WDR)
• White Balance: Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2
• Digital Noise Reduction: 2D/3D DNR
• Smart IR: Support
• Flip: Normal/Vertical/Horizontal/180°/90°Clockwise/90°Anti-clockwise
• Dewarping: N/A
• HLC: Support
• BLC: Support
• Defog: Digital Defog
• Smart intrusion prevention: Support false alarm filtering: Cross Line detection, Intrusion detection, Enter Area detection, Leave Area detection
• Statistical Analysis: People counting, support people flow counting and crowd density monitoring
• Attribute Collection: SIP with color retrieval
• Basic Detection: Motion detection, Ultra motion detection, Tampering alarm, Audio detection
• General Function: Watermark, IP address filtering, tampering alarm, alarm input, alarm output, access Policy, ARP protection, RTSP authentication, user authentication
• Audio Compression: G.711U, G.711A
• Audio Bitrate: 64 Kbps
• Two-way Audio: Support
• Suppression: Support
• Sampling Rate: 8KHZ
• Edge Storage: Micro SD, up to 512GB
• Network Storage: ANR, NAS(NFS)
• Protocols: IPv4, IPv6, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS, RTMP, SSL/TLS, SSH
• Compatible Integration: ONVIF (Profile S, Profile G, Profile T), API, SDK
• User/Host: Up to 32 users. 3 user levels: administrator, common user, and operator
• Security: Password protection, Strong password, HTTPS encryption, Export operation logs, Basic and digest authentication for RTSP, Digest authentication for HTTP, TLS 1.2, WSSE, and digest authentication for ONVIF
• Client: EZStation, EZView, EZLive
• Web Browser: Plug-in required live view: IE 10 and above, Chrome 45 and above, Firefox 52 and above, Edge 79 and above
• Plug-in free live view: Chrome 57.0 and above, Firefox 58.0 and above, Edge 16 and above
• Audio I/O: Input: impedance 35kΩ; amplitude 2V [p-p], Output: impedance 600Ω; amplitude 2V [p-p]
• Alarm I/O: 1/1
• RS485: N/A
• Built-in Mic: Support
• Built-in Speaker: Support
• WIFI: N/A
• Network: 1 * RJ45 10M/100M Base-TX Ethernet
• Video Output: N/A
• EMC: CE-EMC (EN 55032, EN 61000-3-3, EN IEC 61000-3-2, EN 50130)
• FCC: (FCC 47 CFR part 15 B)
• Safety: CE-LVD (EN 62368-1)
• CB: (IEC 62368-1)
• UL/CUL: (UL 62368-1, CAN/CSA C22.2 No. 62368-1)
• Environment: CE-RoHS (2011/65/EU; (EU) 2015/863); WEEE (2012/19/EU)
• Protection: IP67 (IEC 60529)
• Power: DC 12V±25%, PoE (IEEE 802.3af)
• Power consumption: Max 10.0W
• Power Interface: Ø 5.5mm coaxial power plug
• Dimensions (L × W × H): 269 × 96 × 82mm (10.6” × 3.8” × 3.2”)
• Weight: 0.97kg (2.14lb)
• Material: Metal+Plastic
• Working Environment: -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing)
• Storage Environment: -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing)
• Surge Protection: 4KV
• Reset Button: Support
• Web Client Language: 20 Languages
• Traditional Chinese, English, Simplified Chinese, Polish, German, Russian, French, Korean, Dutch, Czech, Portuguese (Europe), Portuguese (Brazil), Japanese, Thai, Turkish, Spanish (Latin America), Spanish (Europe), Hungarian, Italian, Vietnamese
