UNV 4MP HD LightHunter IR VF Bullet Network Camera | UNV-IPC2324SB-DZK-I0

UNV 4MP HD LightHunter IR VF Bullet Network Camera | UNV-IPC2324SB-DZK-I0

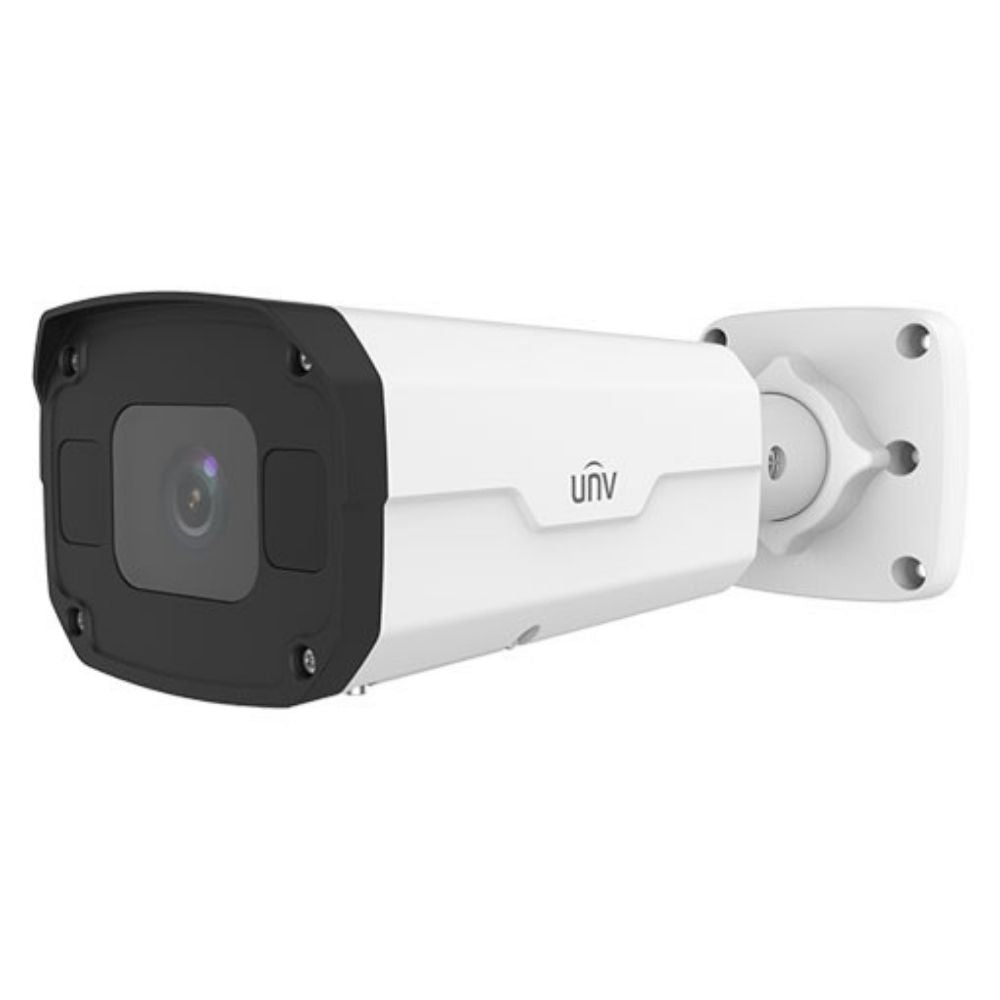

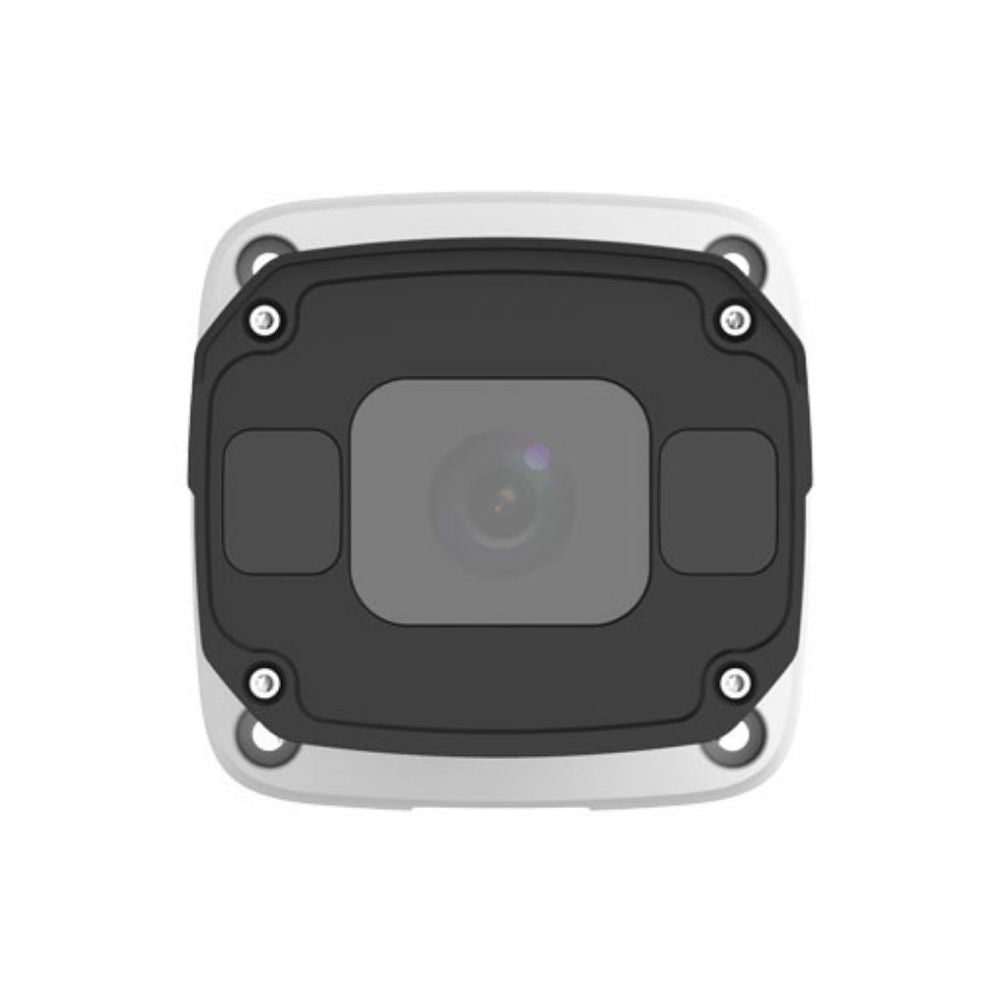

Introducing the UNV 4MP HD LightHunter IR VF Bullet Network Camera, model UNV-IPC2324SB-DZK-I0. This sophisticated surveillance solution is designed to provide exceptional security features and cutting-edge technology. With a high-resolution 4-megapixel sensor, the UNV-IPC2324SB-DZK-I0 ensures clear and detailed visuals, optimizing identification and monitoring in various scenarios.

Features

• High quality image with 4MP, 1/3"CMOS sensor
• 4MP (2688*1520)@ 30/25fps; 4MP (2560*1440)@ 30/25fps; 3MP (2304*1296) @ 30/25fps; 2MP (1920*1080) @30/25fps;
• Ultra 265, H.265, H.264, MJPEG
• LightHunter technology ensures ultra-high image quality in low illumination environment
• 120dB true WDR technology enables a clear image in a strong light scene
• Support 9:16 Corridor Mode
• Alarm:1 in/1 out, Audio: 1 in/1 out
• Smart IR, up to 50m (164ft) IR distance
• Supports 256 G Micro SD card
• IK10 vandal resistant
• IP67 protection
• Support PoE power supply

Technical Specifications

Camera

• Sensor: 1/3", 4.0megapixel, progressive scan, CMOS
• Lens: 2.7 ~ 13.5mm, AF automatic focusing and motorized zoom lens
• DORI Distance
• Lens (mm): 2.7
• Detect (m): 60.8
• Observe (m): 24.3
• Recognize (m): 12.2
• Identify (m): 6.1
• Angle of View (H): 98.26°~ 31.35°
• Angle of View (V): 54.76°~ 18.55°
• Angle of View (O): 127.74°~36.99°
• Adjustment angle: Pan: 0° ~ 360°
• Shutter: Auto/Manual, shutter time: 1 ~ 1/100000s
• Minimum Illumination: Colour: 0.002Lux (F1.2, AGC ON) 0Lux with IR on
• Day/Night: IR-cut filter with auto switch (ICR)
• S/N: >52dB
• IR Range: Up to 50m (164 ft) IR range
• Wavelength: 850nm
• IR On/Off Control: Auto/Manual
• Defog: Digital Fog
• WDR: 120dB

Video

• Video Compression: Ultra 265, H.265, H.264, MJPEG
• H.264 Code Profile: Baseline profile, Main profile, High profile
• Frame Rate
• Main Stream: 4MP (2688*1520), Max 30fps;4MP (2560*1440), Max 30fps; 3MP (2304*1296), Max 30fps; 1080P (1920*1080), Max 30fps;
• Sub Stream: 720P (1280*720), Max 30fps; D1 (720*576), Max 30fps; 640*360,Max 30fps; 2CIF(704*288), Max 30fps; CIF(352*288), Max 30fps;
• Third Stream: D1 (720*576), Max 30fps; 640*360,Max 30fps; 2CIF(704*288), Max 30fps; CIF(352*288), Max 30fps;
• Video Bit Rate: 128 Kbps~16 Mbps
• 9:16 Corridor Mode: Supported
• OSD: Up to 8 OSDs
• Privacy Mask: Up to 4 areas
• ROI: Up to 8 areas
• Motion Detection: Up to 4 areas


• White Balance: Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2
• Digital Noise Reduction: 2D/3D DNR
• Smart IR: Support
• Flip: Normal/Vertical/Horizontal/180°/90°Clockwise/90°Anti-clockwise
• Dewarping: N/A
• HLC: Supported
• BLC: Supported

Audio

• Audio Compression: G.711
• Two-way audio: Supported
• Suppression: Supported
• Sampling Rate: 8KHZ

Storage

• Edge Storage: Micro SD, up to 256GB
• Network Storage: ANR, NAS (NFS)

Network

• Protocols: IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS
• Compatible Integration: ONVIF (Profile S, Profile G, Profile T), API
• Client: GuardStation/GuardLive/Guardview

• Web Browser
• Plug-in required live view: IE9+, Chrome 41 and below, Firefox 52 and below
• Plug-in free live view: Chrome 57.0+, Firefox 58.0+, Edge 16+, Safari 11+

Interface

• Audio I/O:
• 1 Input: impedance 35kΩ; amplitude 2V [p-p]
• 1 Output: impedance 600Ω; amplitude 2V [p-p]
• Alarm I/O: 1/1
• Network: 1 RJ45 10M/100M Base-TX Ethernet

Certifications

• CE: EN 60950-1
• UL: UL60950-1
• FCC: FCC Part 15

General

• Power: DC 12V±25%, PoE (IEEE 802.3af)
• Power consumption: Max 8.5W
• Power Interface: 5.5mm coaxial power plug
• Dimensions (L × W × H): 245.4 × 85.4 × 86.4mm (9.7” × 3.4” × 3.4”)
• Net Weight: 0.92kg (2.03lb)
• Working Environment: -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing)

• Storage Environment: -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing)

• Surge Protection: 6KV
• Ingress Protection: IP67
• Vandal Resistant: IK10
• Reset Button: N/A

Product Literature

• UNV IPC2324SB-DZK-I0 Data Sheet
• UNV IPC2300 Series-Network Bullet Cameras Quick Guide
• UNV Camera Installation Guide
• UNV Network Cameras User Manual
