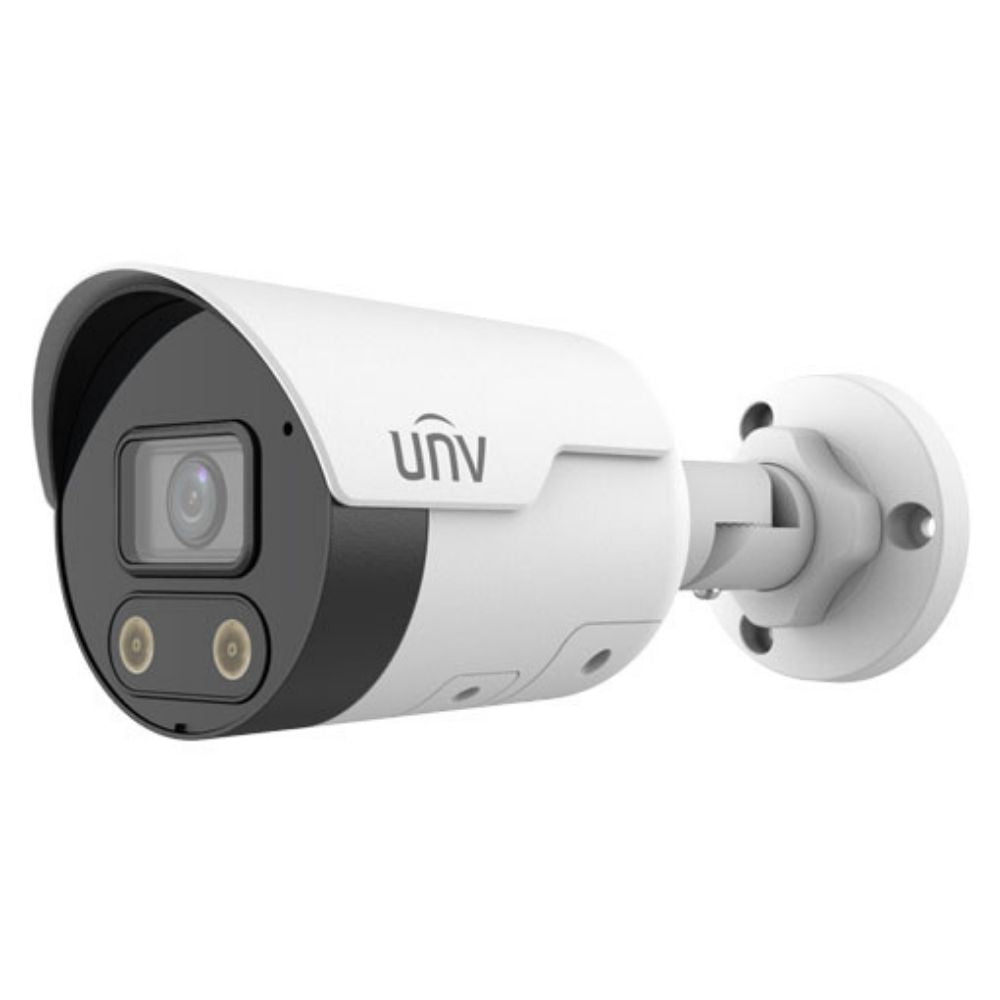

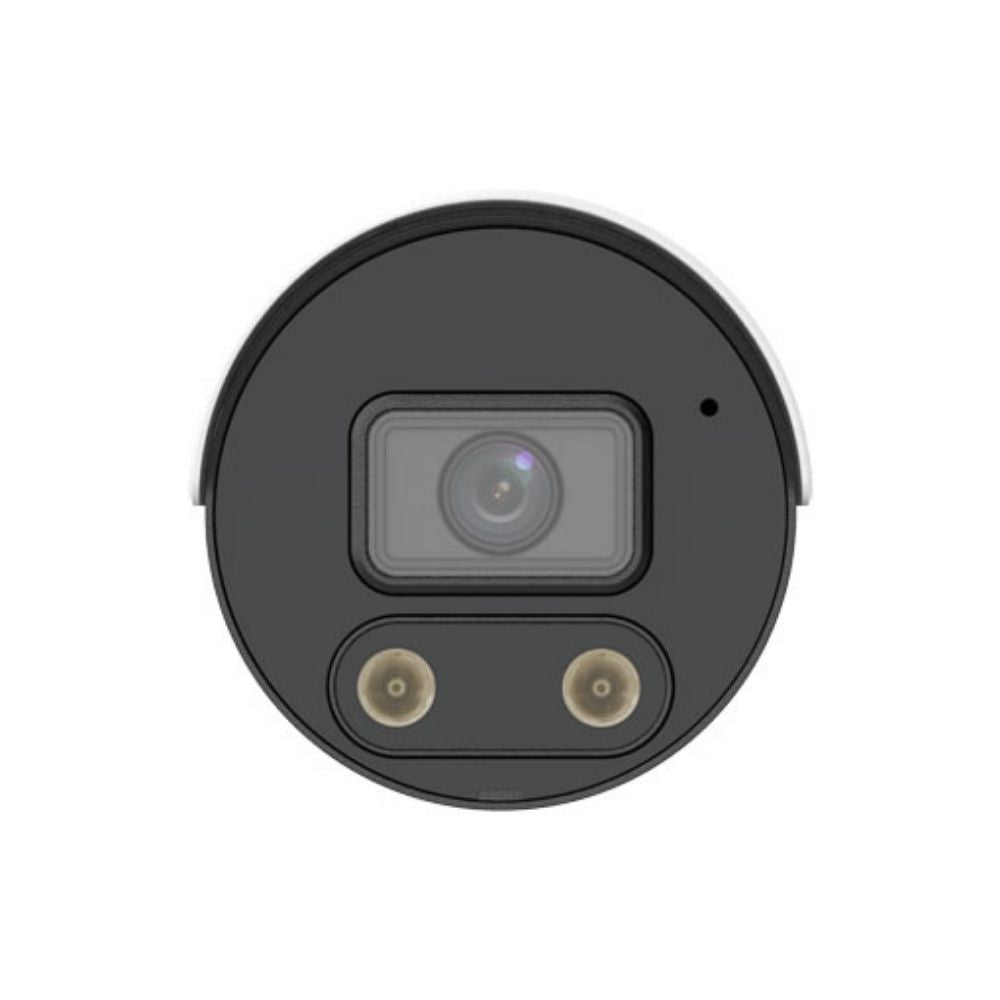

UNV 4MP HD Light and Audible Warning Fixed Bullet Network Camera | UNV-IPC2124SB-ADF28KMC-I0

The Prime- I series has enhanced hardware such as WDR, audio, alarm, SD cards. Available in a variety of mainstream resolutions, such as 2/4/5/8MP, different levels of image quality can be displayed. Prime-I series also features Smart Intrusion Prevention to reduce false alarms. Prime products are commonly used in commercial buildings, parks, and small project applications to effectively ensure safety.

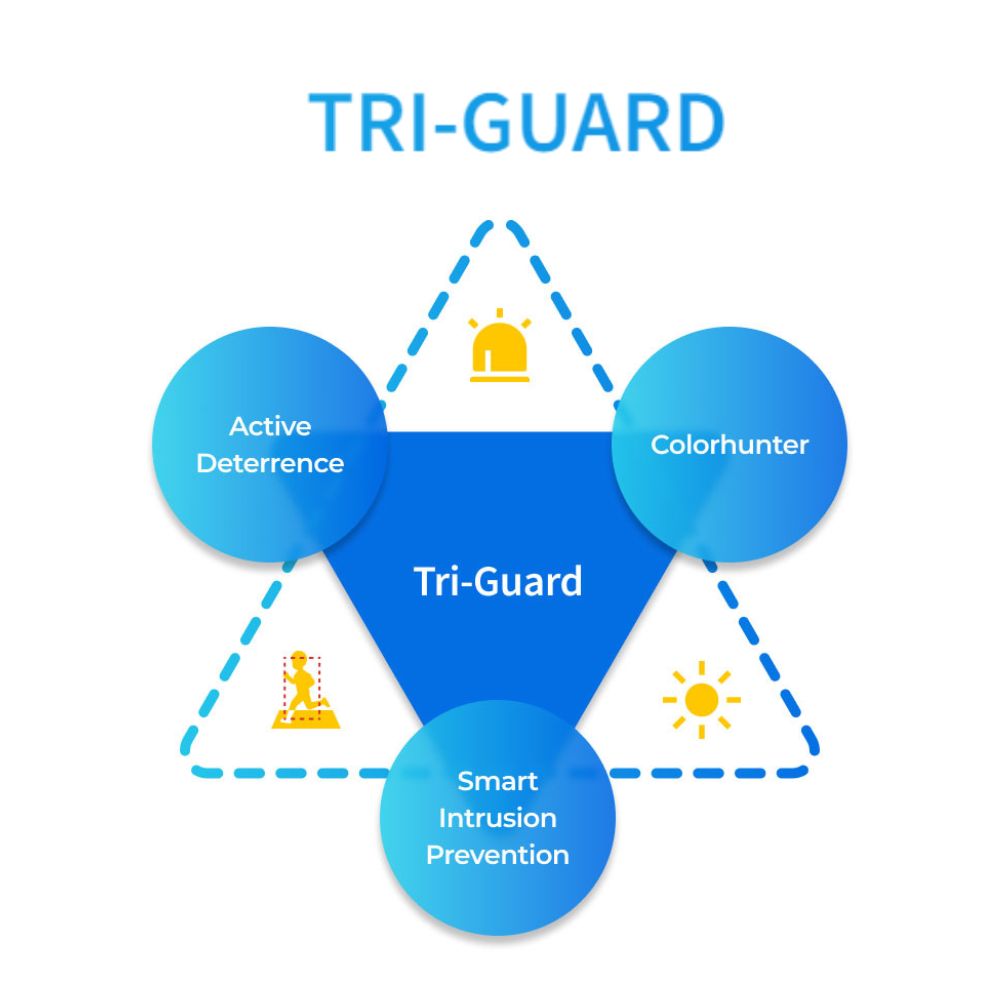

UNV Tri-Guard technology integrates Smart Intrusion Prevention (SIP), ColorHunter, and Active Deterrence. It’s designed to prevent crimes at night - It can not only alert when events happen, but also get color information in a low-light environments.

Features

• High quality image with 4MP, 1/2.7"CMOS sensor
• 4MP (2688*1520)@ 30/25fps; 4MP (2560*1440)@ 30/25fps; 3MP (2304*1296) @30/25fps; 2MP (1920*1080) @30/25fps;
• Ultra 265, H.265, H.264, MJPEG
• Supports sound and light alarm linkage. When Smart intrusion prevention is triggered, the camera links sound alarmed and light linkage.
• 120dB true WDR technology enables a clear image in a strong light scene
• Support 9:16 Corridor Mode
• Built-in Mic and Speaker
• Smart IR, up to 30m (98ft) IR distance
• Supports 256 G Micro SD card
• IP67 protection
• Support PoE power supply

Technical Specifications

Camera

• Sensor: 1/2.7", 4.0 megapixel, progressive scan, CMOS
• Minimum Illumination: Colour: 0.003Lux (F1.6, AGC ON) 0Lux with Light on
• Day/Night: IR-cut filter with auto switch (ICR)
• Shutter: Auto/Manual, 1 ~ 1/100000s
• Adjustment angle: Pan: 0° ~ 360°
• WDR: 120dB
• S/N: >56dB

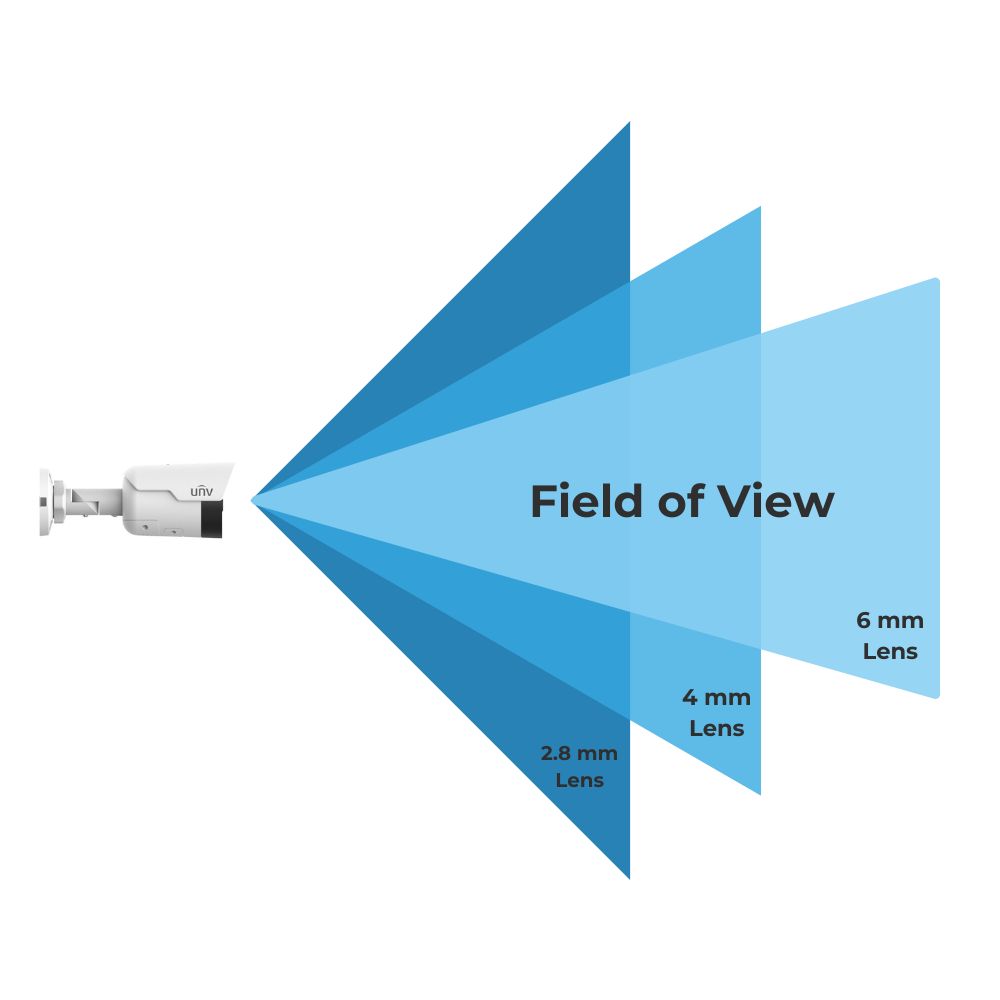

• Lens: 2.8mm@F1.6

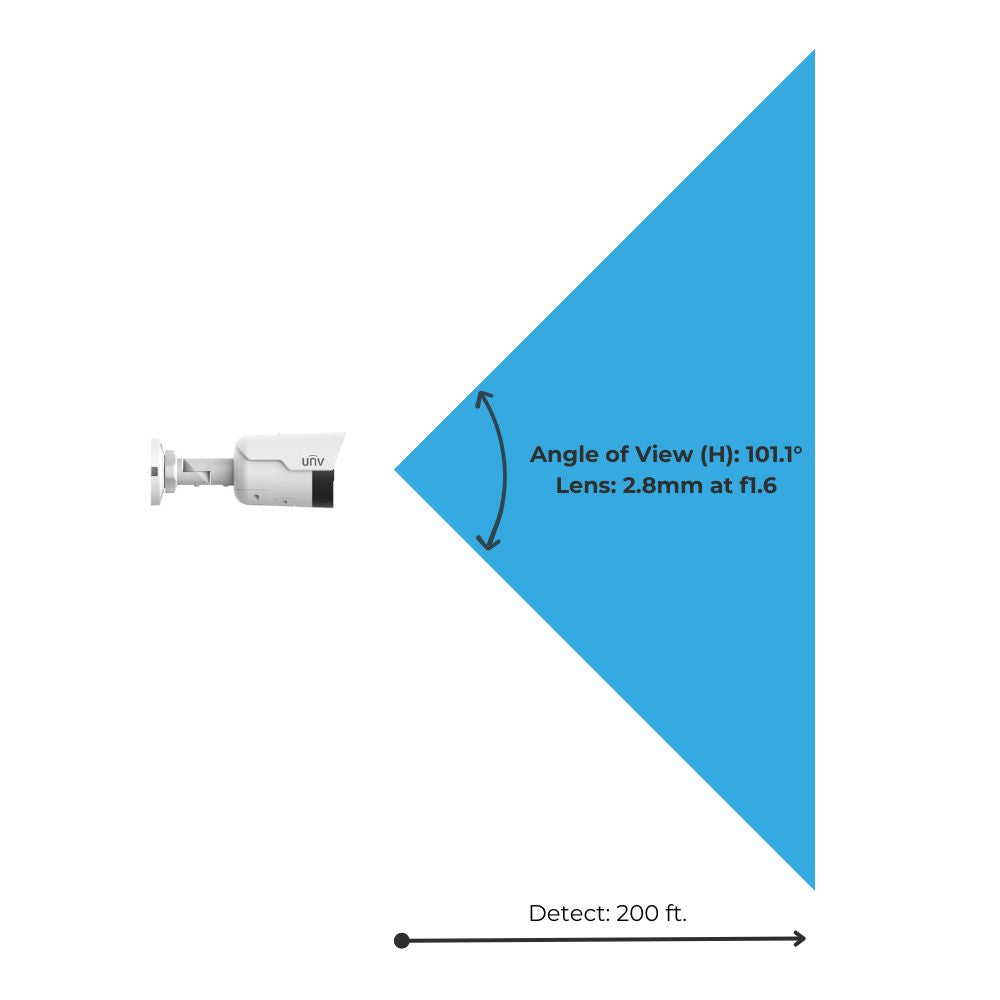

• Angle of View (H): 101.1°
• Angle of View (V): 55.3°
• Angle of View (D): 111.1°

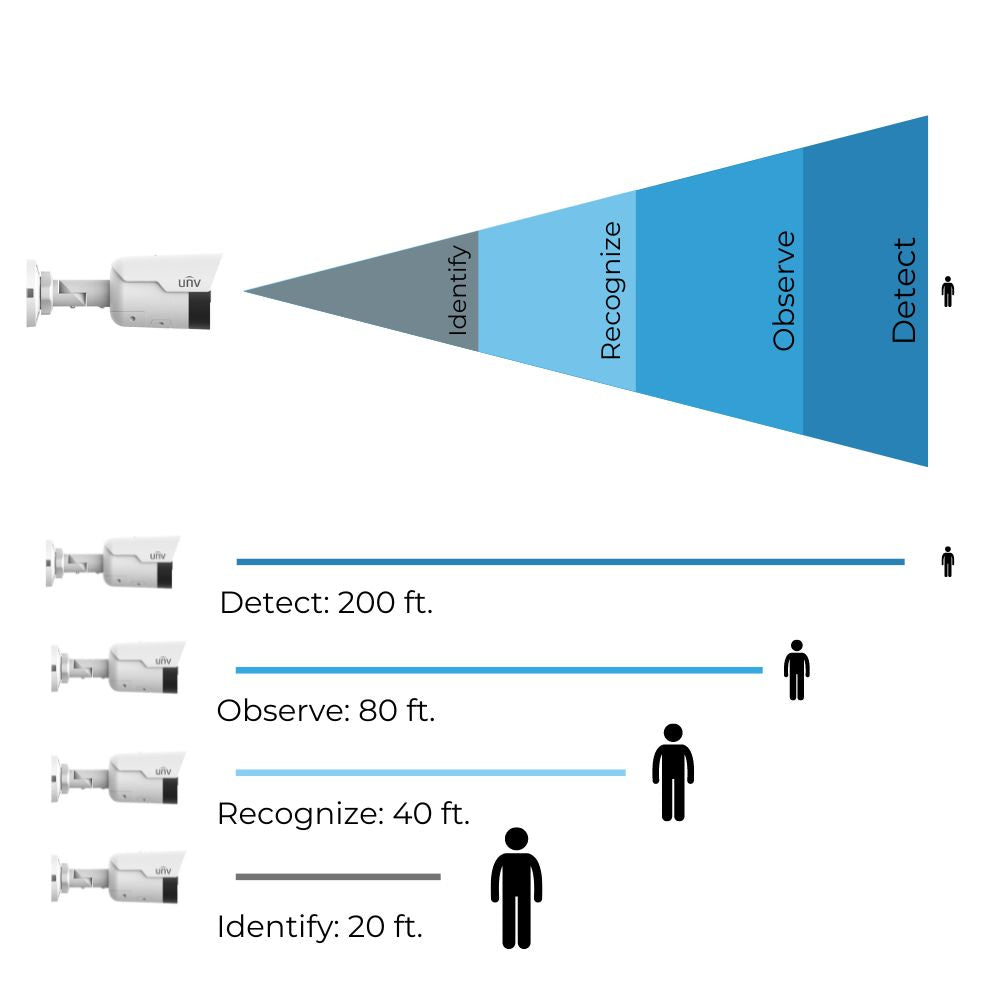

• DORI Distance
• Lens (mm): 2.8
• Detect (m): 63.0
• Observe (m): 25.2
• Recognize (m): 12.6
• Identify (m): 6.3
• IR Range: Up to 30m (98 ft) IR range
• Wavelength: 850nm
• IR On/Off Control: Auto/Manual

Video

• Video Compression: Ultra 265, H.265, H.264, MJPEG
• H.264 Code Profile: Baseline profile, Main profile, High profile
• Frame Rate
• Main Stream: 4MP (2688*1520), Max 30fps;4MP (2560*1440), Max 30fps; 3MP (2304*1296), Max 30fps; 1080P (1920*1080), Max 30fps;
• Sub Stream: 720P (1280*720), Max 30fps; D1 (720*576), Max 30fps; 640*360,Max 30fps; 2CIF(704*288), Max 30fps; CIF(352*288), Max 30fps;
• Third Stream: D1 (720*576), Max 30fps; 640*360,Max 30fps; 2CIF(704*288), Max 30fps; CIF(352*288), Max 30fps;
• Video Bit Rate: 128 Kbps~16 Mbps
• U-code: Support
• ROI: Up to 8 areas
• Video Stream: Triple streams
• OSD: Up to 8 OSDs
• Privacy Mask: Up to 4 areas


• White Balance: Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2
• Image Setting: Image rotation, brightness, saturation, contrast, sharpness, gain are adjustable by a web browser
• Digital Noise Reduction: 2D/3D DNR
• Smart IR: Support
• Flip: Normal/Vertical/Horizontal/180°/90°Clockwise/90°Anti-clockwise
• Dewarping: N/A
• HLC: Supported
• BLC: Supported
• Defog: Digital Defog

Audio

• Audio Compression: G.711
• Audio Bitrate: 64 Kbps
• Two-way audio: Supported
• Suppression: Supported
• Sampling Rate: 8KHZ

Storage

• Edge Storage: Micro SD, up to 256GB
• Network Storage: ANR, NAS (NFS)

Network

• Protocols: IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS, RTMP, SSH
• Compatible Integration: ONVIF (Profile S, Profile G, Profile T), API, SDK
• User/Host: Up to 32 users. 2 user levels: administrator and common user
• Security: Password protection, Strong password, HTTPS encryption, Export operation logs, Basic and digest authentication for RTSP, Digest authentication for HTTP, TLS 1.2, WSSE, and digest authentication for ONVIF
• Client: EZStation/EZView/EZLive
• Web Browser
• Plug-in required live view: IE9+, Chrome 41 and below, Firefox 52 and below
• Plug-in free live view: Chrome 57.0+, Firefox 58.0+, Edge 16+

Interface

• Audio I/O: N/A
• Alarm I/O: N/A
• RS485: N/A
• Built-in Mic: Support
• Built-in Speaker: Support
• WIFI: N/A
• Network: 1 RJ45 10M/100M Base-TX Ethernet
• Video Output: N/A
• Alarm Light: Support

Certifications

• EMC
• FCC CFR 47 Part 15
• EN 55032:2015
• EN 55024:2010
• EN 61000-3-2:2014
• EN 61000-3-3-2013
• Safety
• IEC 62368-1
• EN 62368-1
• UL 62368-1
• Environment: CE-ROHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU); REACH (Regulation (EC) No 1907/2006)

General

• Power: DC 12V±25%, PoE (IEEE 802.3af)
• Power consumption: Max 11.5W
• Power Interface: 5.5mm coaxial power plug
• Dimensions (L × W × H): 191× 75 × 74mm (7.5” × 3.0” × 2.9”)
• Net Weight: 0.50kg (1.10lb)
• Material: Metal
• Working Environment: -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing)
• Storage Environment: -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing)
• Surge Protection: 4KV
• Ingress Protection: IP67
• Reset Button: Supported
