Hanwha Vision 4K IR Outdoor Vandal Dome AI PTRZ Camera | HAN-XNV-9083RZ

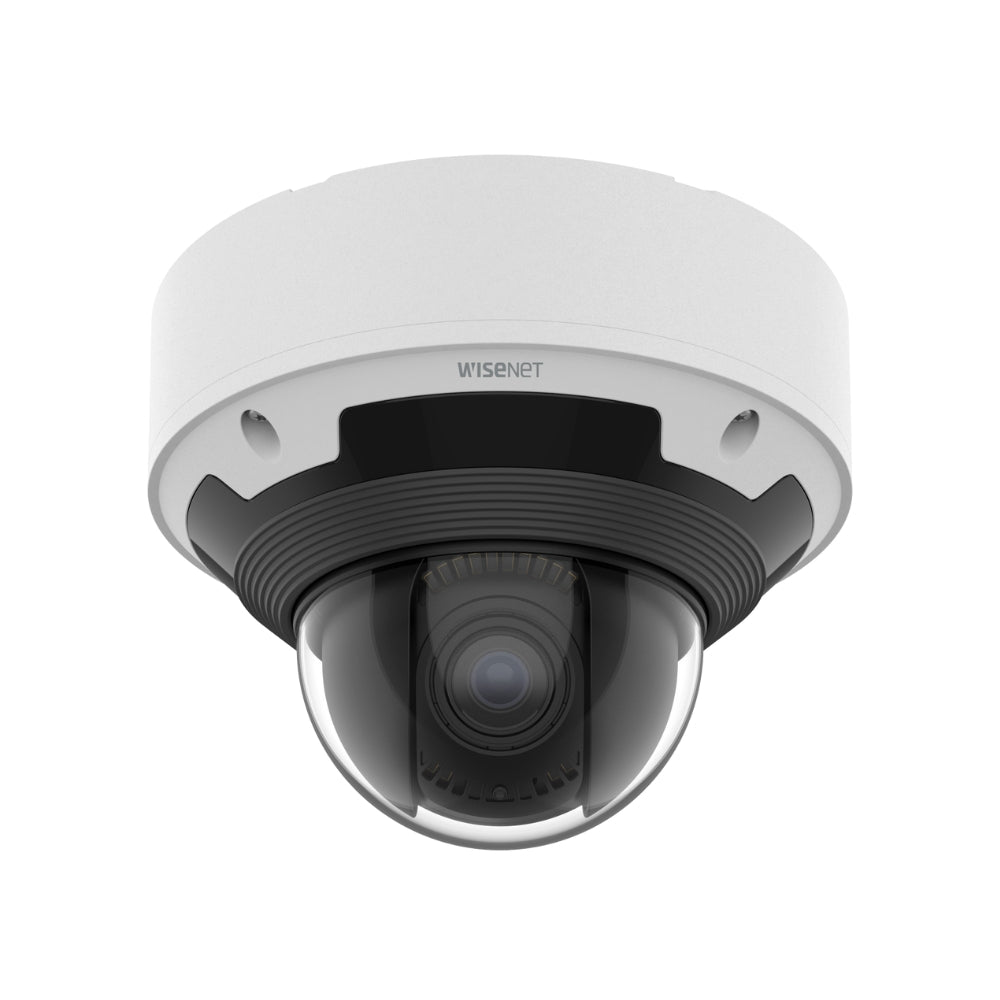

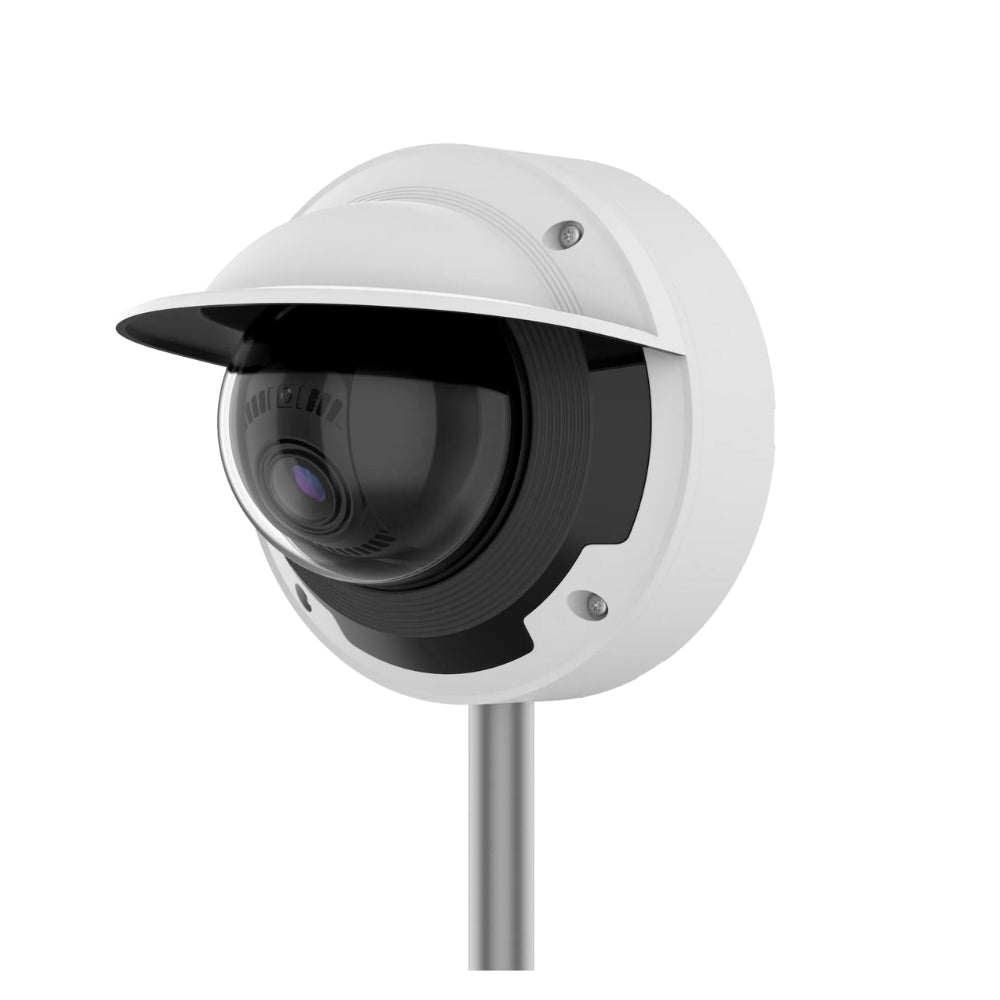

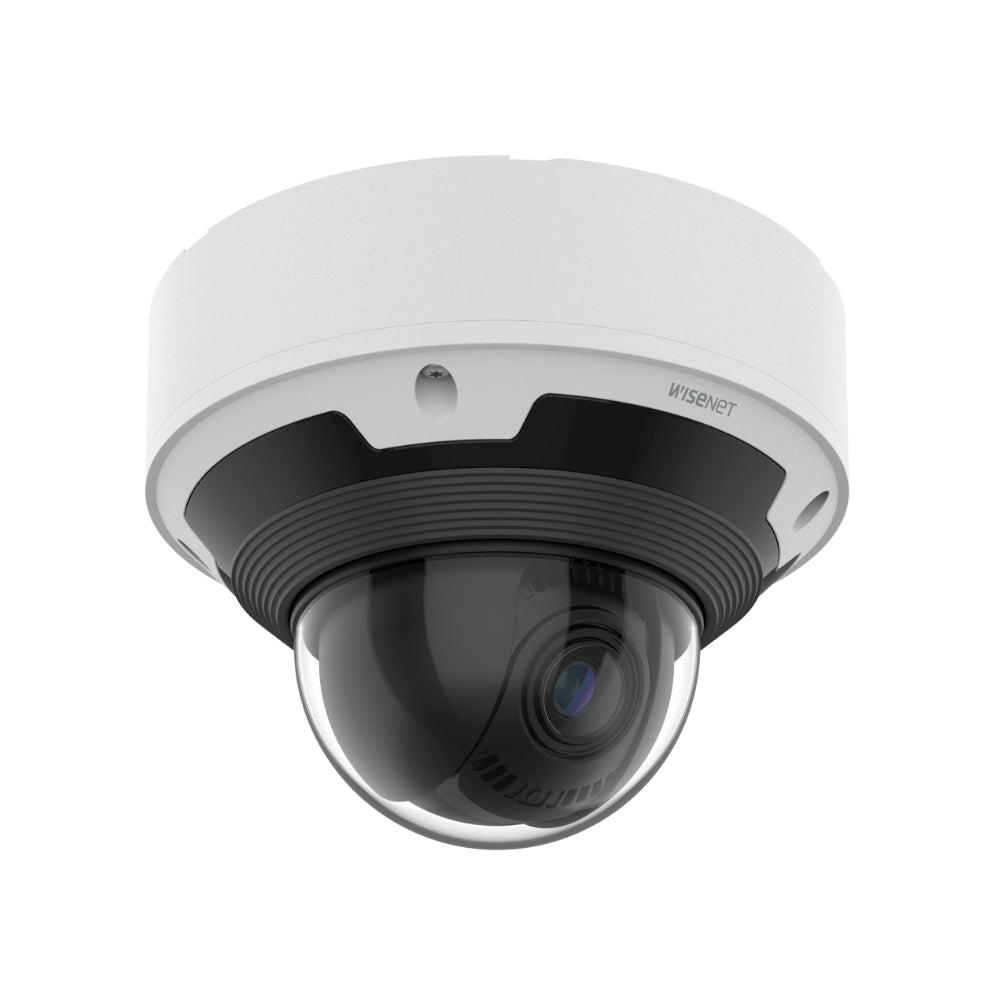

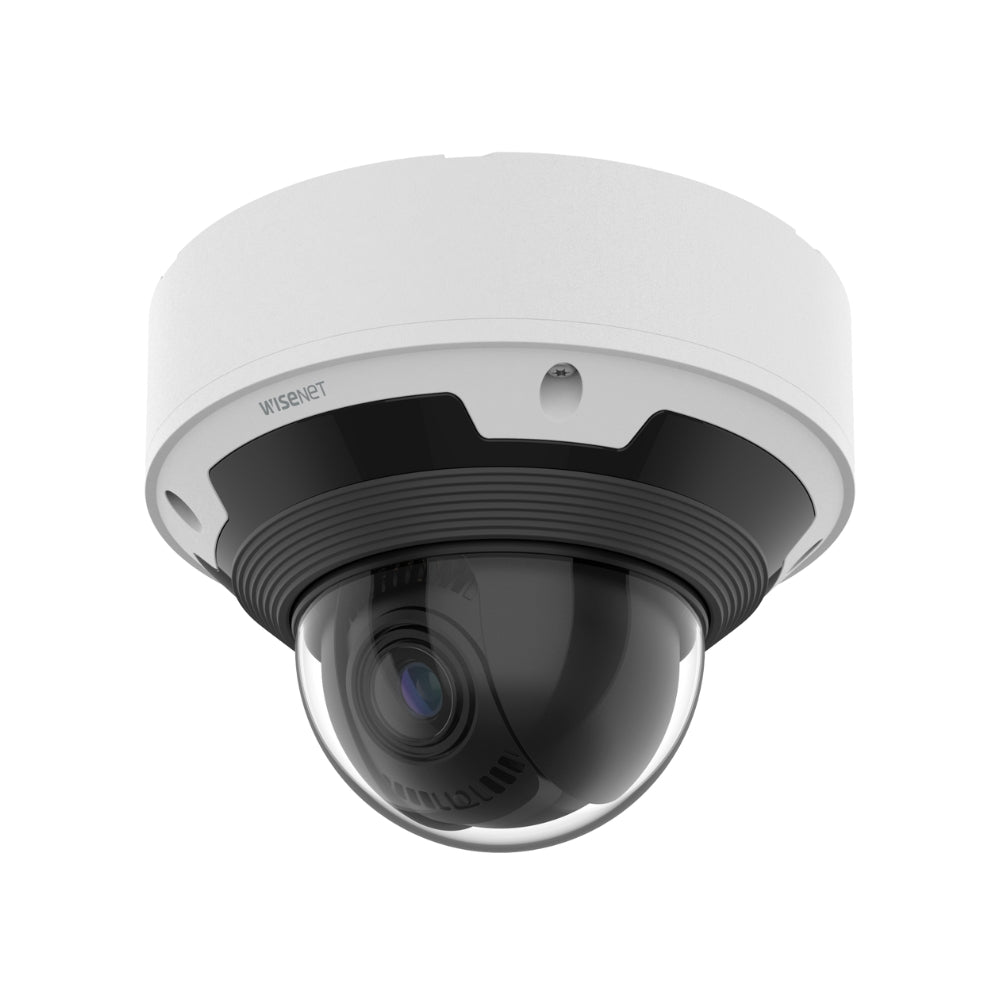

Designed for monitoring outdoor areas, the white XNV-9083RZ 8MP Network PTRZ Dome Camera from Hanwha Techwin uses a 1/1.8" progressive scan CMOS sensor to capture 4K UHD resolution video at 30 fps. An IR LED provides up to 98' of night vision. A 4.4-9.3mm motorized varifocal lens delivers a 113 to 47° horizontal field of view. The camera features a 0 to 350° pan range, a 0 to 85° tilt range, a 0 to 340° rotation range, and a 2.1x optical zoom. Dual card slots each accept microSD/SDHC/SDXC cards up to 512GB for a storage total of up to 1TB (available separately). Integrated PoE technology simplifies connectivity by transferring data and power through a single cable.

Features
  • 8MP resolution
  • 4K resolution
  • 4.4~9.3mm (2.1x) motorized varifocal
  • Remote lens adjustment with PTRZ
  • Color: 0.04 Lux (F1.3, 1/30sec, 30IRE), 0 Lux (IR LED on)
  • Maximum 30 fps (H.265/H.264)
  • IR viewable length: 15m (49.21ft), 30m(98.43ft) based on scene
  • Day & Night (ICR), extremeWDR (120 dB)
  • Hard-coated dome bubble
  • WiseNR(Based on AI engine), WiseStream III(Based on AI engine)
  • Analytics events based on AI engine (NPU): Object detection (Person/Face/Vehicle - car, truck, bus, bicycle, motorcycle/License plate)
  • IVA (Virtual line/Area, Enter/Exit, Loitering, Direction, Intrusion)
  • Analytics events: Defocus detection, Motion detection, Tampering, Fog detection
  • Audio detection, Sound classification, Shock detection, Appear/Disappear
  • IP66/IP67/IP6K9K, NEMA4X, IK10+, FIPS 140-2
  • Operating temperature: -50°C~+55°C(-58°F ~ +131°F)
  • Power: PoE+/12VDC, Metal shielded RJ-45
Technical Specifications
  • Video
    • Imaging Device: 1/1.8" progressive CMOS
    • Resolution: 3840x2160, 3328x1872, 3072x1728, 2592x1944, 2688x1520, 1920x1080, 1600x1200, 1280x1024, 1280x960, 1280x720, 1024x768, 800x600, 800x448, 720x576, 720x480, 640x480, 640x360, 320x240
    • Max. Framerate: H.265/H.264: Max. 30fps/25fps(60Hz/50Hz)MJPEG: Max. 15fps/12fps(60Hz/50Hz)
    • Min. Illumination: Color: 0.03Lux(F1.3, 1/30sec, 30IRE)BW: 0.003Lux(F1.3, 1/30sec, 30IRE), 0Lux(IR LED on)
  • Lens
    • Focal Length (Zoom Ratio): 4.4~9.3mm(2.1x) motorized varifocal
    • Max. Aperture Ratio: F1.3(Wide) ~ F2.15(Tele)
    • Angular Field of View: H: 113°(Wide)~47°(Tele)V: 58°(Wide)~26°(Tele)D: 138°(Wide)~54°(Tele)
    • Min. Object Distance: 0.5m(1.64ft)
    • Focus Control: Simple focus, Manual
    • Lens Type: P-iris(IR corrected)
  • Pan / Tilt / Rotate
    • Pan / Tilt / Rotate Range: Remote adjustment(Max. 200cycles)0°~350° / 0°~85° / 0°~340°
  • Operational
    • Camera Title: Displayed up to 85 characters
    • Day & Night: Auto(ICR)
    • Backlight Compensation: BLC, HLC, WDR, SSDR
    • Wide Dynamic Range: extremeWDR (120dB)
    • Digital Noise Reduction: WiseNRⅡ(Based on AI engine), SSNRⅤ
    • Digital Image Stabilization: Support
    • Defog: Support
    • Motion Detection: 8ea, 8point Polygonal zones
    • Privacy Masking: 32ea, 4point Quadrangle zones- Color: Gray, Green, Red, Blue, Black, White- Mosaic
    • Gain Control: Off / Max Gain / Manual
    • White Balance: ATW / Narrow ATW / AWC / Manual / Indoor / Outdoor
    • LDC: Support (Fill/stretch mode)
    • Electronic Shutter Speed: Minimum / Maximum / Prefer / Anti-flicker (2~1/12,000sec)Auto Prefer shutter control(Based on AI engine)
    • Video Rotation: Flip, Mirror, Hallway view(90°/270°)
    • Analytics:
      • Classified object type: Person/Face/Vehicle/License plateAttributes: Vehicle(Type: car/bus/truck/motorcycle/bicycle)Support DetectionShotAnalytics events based on AI engine - Object detection, Virtual line(Crossing/Direction), Virtual area(Loitering/Intrusion/Enter/Exit)Analytics events - Defocus detection, Motion detection, Tampering, Fog detection, Virtual area(Appear/Disappear)* Audio detection, Sound classification(with NW I/O box SPM-4210)
    • Alarm Triggers: Analytics, Network disconnect, App event, Time schedule* Alarm input(with NW I/O Box SPM-4210)
    • Alarm Events: When alarm trigger occurred - File upload(image) : e-mail/FTP - Notification : e-mail\n -
      • Recording: SD/SDHC/SDXC or NAS recording at event triggers - Alarm output(with NW I/O box
      • SPM-4210) - Handover(PTZ preset, Send message by HTTP/HTTPS/TCP)
    • IR Viewable Length: 15m(49.21ft)30m(98.43ft) based on scene
  • Network
    • Ethernet: Metal shielded RJ-45(10/100/1000BASE-T)
    • Video Compression: H.265/H.264: Main/High, MJPEG
    • Smart Codec: Manual(5ea area), WiseStreamⅡ, WiseStreamⅢ(Based on AI engine)
    • Bitrate Control: H.264/H.265: CBR or VBRMJPEG: VBR
    • Streaming: Unicast(20 users) / Multicast\nMultiple streaming(Up to 10 profiles, 3 virtual channel support)
    • Protocol: IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour, LLDP, SRTP (TCP, UDP Unicast)
    • Security: TPM 2.0 (FIPS 140-2 level 2)HTTPS(SSL) Login Authentication\nDigest Login Authentication, IP. Address Filtering, User access log,802.1X Authentication(EAP-TLS, EAP-LEAP, EAP-PEAP MSCHAPv2), Device Certificate(Hanwha Techwin Root CA, pre-installed), Secure by default certificate, Secure OS/Boot/Storage, Verify firmware forgery
    • Application Programming Interface: ONVIF Profile S/G/T/M, SUNAPI(HTTP API), Wisenet open platform
  • General
    • Webpage Language: English, Korean, Chinese, French, Italian, Spanish, German, Japanese, Russian, Portuguese, Czech, Polish, Turkish, Dutch, Greek, Hungarian
    • Edge Storage: Micro SD/SDHC/SDXC 2slot Max. 1TB (512GB * 2)
      • Memory 4GB RAM, 512MB Flash
  • Environmental & Electrical
    • Operating Temperature / Humidity: -50°C~+55°C(-58°F ~ +131°F) * Start up should be done at above -30°C\n0~95%RH(noncondensing) Humidity control /w AIR vent
    • Storage Temperature / Humidity: -50°C ~ +60°C(-58°F ~ +140°F) / Less than 90% RH
    • Certification: IP66/IP67/IP6K9K, NEMA4X, IK10+
    • Input Voltage: PoE+(IEEE802.3at type 2, Class4)
    • Power Consumption: PoE+: Max 22.5W, typical 12.1W
  • Mechanical
    • Color / Material: White / Aluminum, Hard-coated dome bubble
    • RAL Code: RAL9003
    • Product Dimensions / Weight: Ø180x135mm(7.09x5.31"), 2000g(4.41 lb)
    • Compatible Conduit hole / Gangbox: 19.1mm(3/4")(M25), single, double, 4" octagon, 4" square
    • Hanging Mount (Dome): SBP-187HMW
  • Certifications & Standards
    • EMC: EN 50121-4, FCC 47 CFR 15 Subpart B Class A, ICES-3(A)/NMB-3(A), CE/UKCA - EN 55032 Class A, EN 50130-4, EN 61000-3-2, EN 61000-3-3, VCCI CISPR 32 Class A, RCM AS/NZS CISPR 32 Class A, KS C 9832 Class A, KS C 9835
    • Safety: UL 62368-1, CAN/CSA C22.2 NO. 62368-1, IEC 62471
    • Environment: EN IEC 63000, IEC 60529 IP66/IP67, ISO 20653 IP6K9K, IEC 62262 IK10+, NEMA 250 type 4X
  • DORI (EN62676-4 standard)
    • Detect (25PPM/ 8PPF): Wide: 51.7m(166.77ft) / Tele: 176.6m(579.49ft)
    • Observe (63PPM/ 19PPF): Wide: 20.3m(66.71ft) / Tele: 70.7m(231.80ft)
    • Recognize (125PPM/ 38PPF): Wide: 10.2m(33.35ft) / Tele: 35.3m(115.90ft)
    • Identify (250PPM/ 76PPF): Wide: 5.1m(16.68ft) / Tele: 17.7m(57.95ft)
