Hanwha Vision 2MP Network Bandit Barrier Lens | HAN-SLA-T2880BA

Hanwha VisionSKU: HAN-SLA-T2880BA

Price:
Sale price$705.36

Estimate shipping

Hanwha Vision 2MP Network Bandit Barrier Lens | HAN-SLA-T2880BA

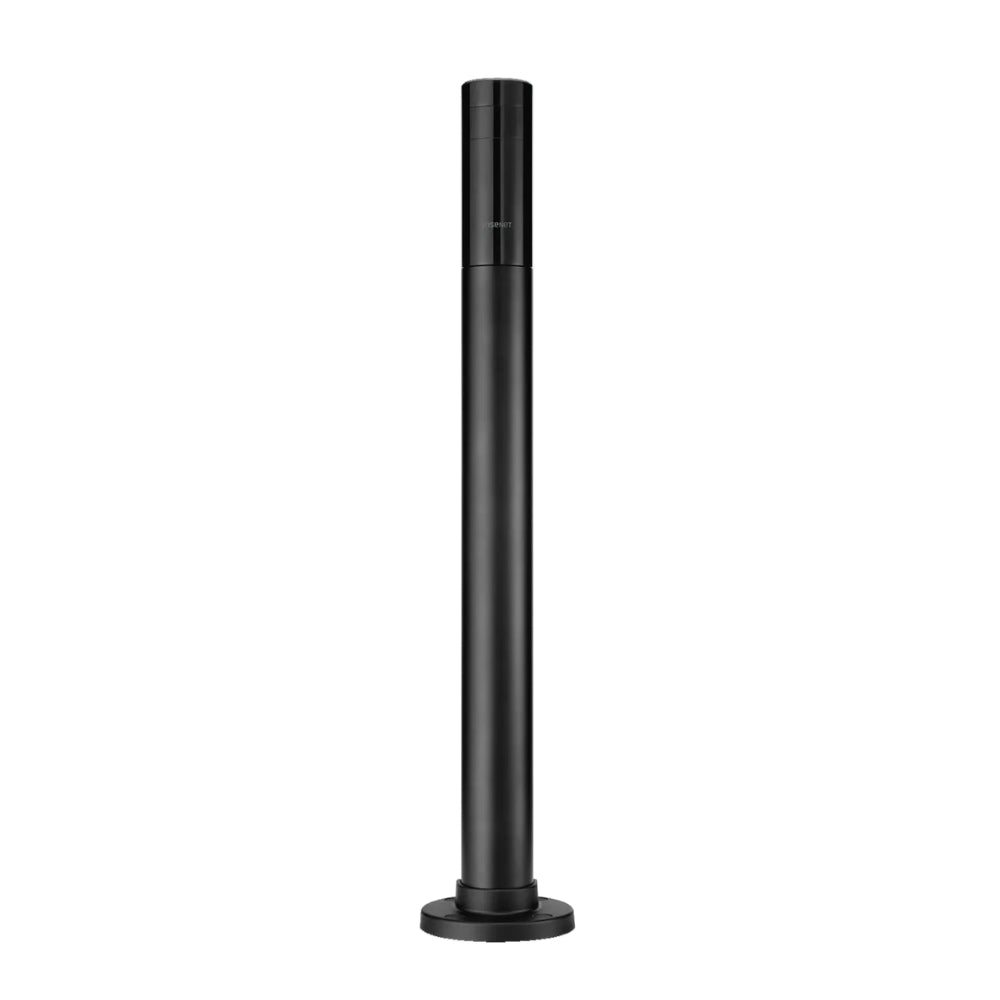

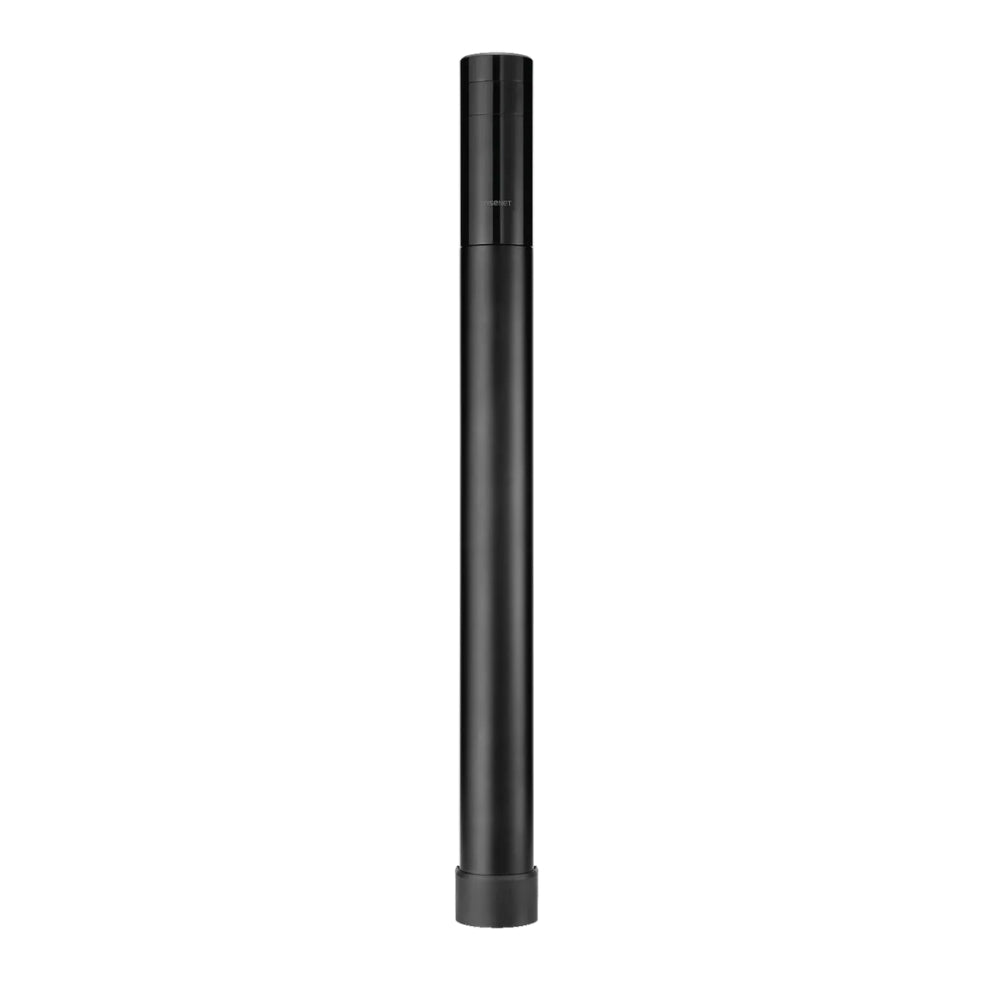

The SLA-T2880BA Bandit Barrier / Teller Tower lens is designed for banking and retail applications. The bandit barrier lens is adjustable in height to suit your installation environment and can be mounted flat against a wall/counter/partition, or anchored to a counter below. Designed for overt surveillance while being stylish to blend into the surroundings and obtain video from the desired height and angle.

Note: Compatible with XNB-6002 and PNM-9000QB

Features
  • 2 Megapixel (1920 x 1080) resolution
  • 2.8mm wide-angle lens provides a 107.4° FoV
  • Includes an 8m cable that can be cut to length as needed
  • Black color
  • Supports up to 60fps@2MP
  • WDR (120dB), LDC
  • Adjustable height and installation options for various installation types
  • Requires optional XNB-6002 / PNM-9000QB main unit
Technical Specifications
  • Imaging Device: 1/2.8" 2MP CMOS
  • Total Pixels: 1,945(H) x 1,109(V) 2.16MP
  • Effective Pixels: 1,945(H) x 1,097(V) 2.13MP
  • Scanning: System Progressive Scan
  • Min. Illumination: Color: 0.03 Lux (F1.6, 1/30sec)
  • S / N Ratio: 50dB
  • Focal Length (Zoom Ratio): 2.8mm fixed
  • Max. Aperture Ratio: F2.0
  • Angular Field of View: H : 107.4˚ / V : 62.2˚ / D : 122.0˚
  • Min. Object Distance: 0.5m (1.64ft)
  • Focus Control: Fixed focus
  • Lens / Mount Type: Fixed / RJ12 connected to the main unit with 8m cable, can be cut to length
  • Day & Night: Auto (Electrical) / Color / B/W / Schedule
  • Backlight Compensation: Off / BLC / HLC (Masking / Dimming) / WDR
  • Wide Dynamic Range: 120dB
  • Contrast Enhancement: SSDR (Off / On)
  • Digital Noise Reduction: SSNRV (2D + 3D Noise filter) (Off / On)
  • Digital Image Stabilization: Off / On
  • Defog: Off / Auto (input from fog detection) / Manual
  • Resolution: 1920 x 1080, 1280 x 1024, 1280 x 960, 1280 x 720, 1024 x 768, 800 x 600, 800 x 448, 720 x 576, 720 x 480, 640 x 480, 640 x 360, 320 x 240
  • Maximum Framerate: H.265 / H.264: Maximum 60fps at all resolutions, MJPEG: Maximum 30fps
  • Operating Temperature / Humidity: -10°C ~ +55°C (+14°F ~ +131°F) / Less than 90% RH
  • Storage Temperature / Humidity: -30°C ~ +60°C (-22°F ~ +140°F) / Less than 90% RH
  • Color / Material: Black / Plastic & Metal
  • Dimensions (WxH): 66.5x46x175~737mm (2.6x1.8x6.9~29.0")
  • Weight: 250~1,000g (0.55~2.205 lb)
