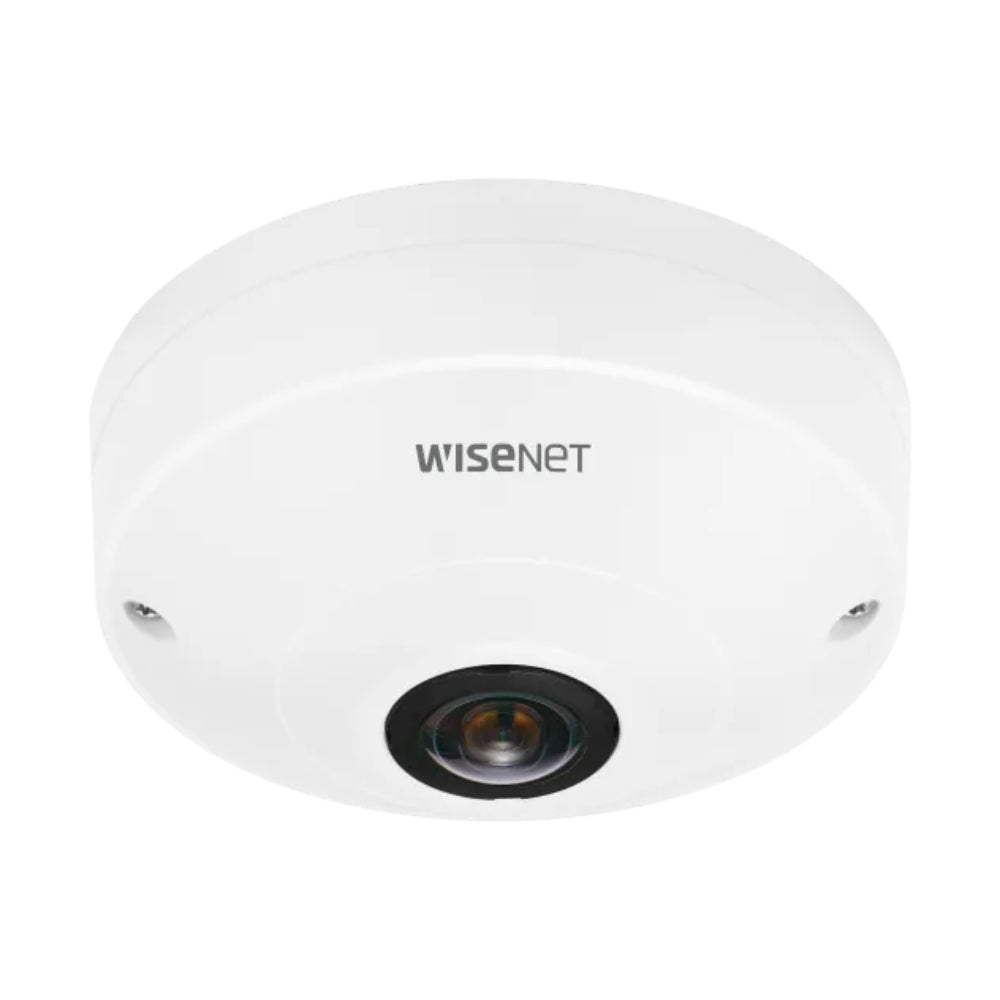

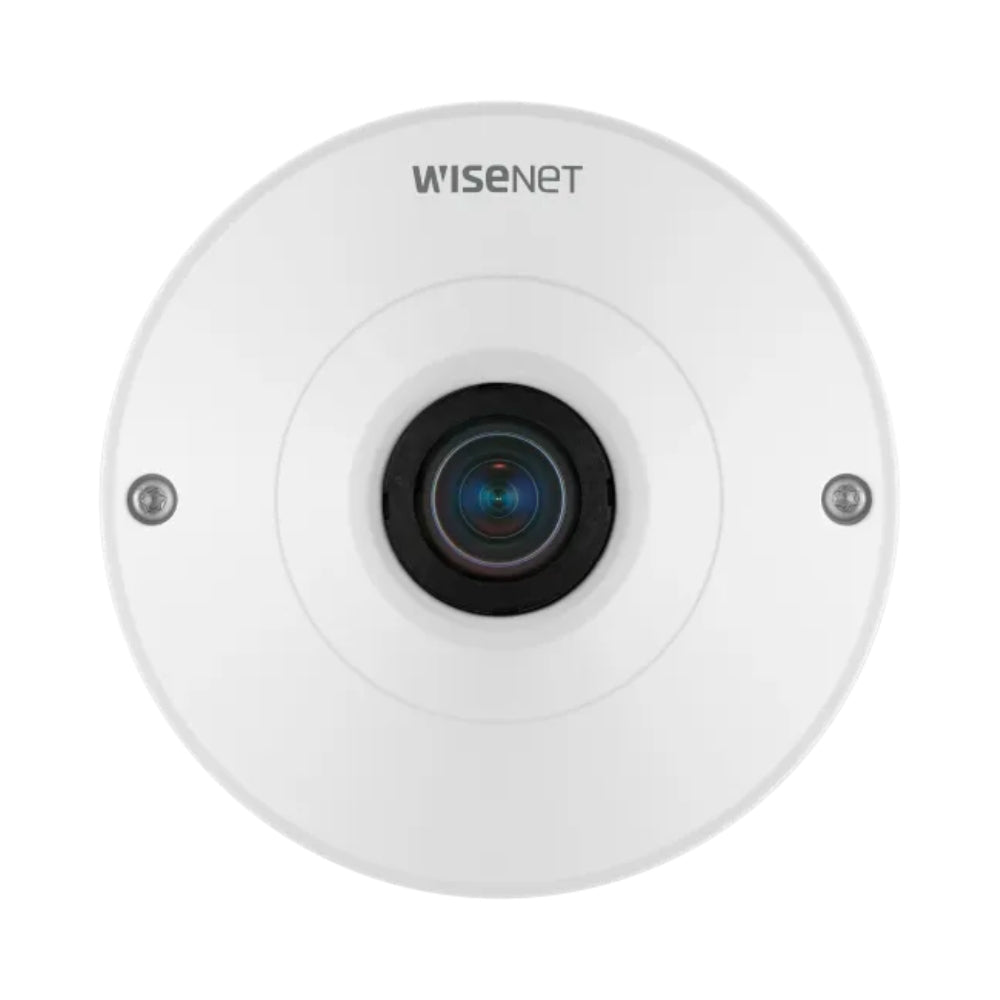

Hanwha Vision 12 MP Sensor 360° Indoor Fisheye Camera | HAN-QNF-9010

Q series cameras are affordable products equipped with features essential to the creation of a safe and secure environment. Being able to deliver sharp and clear images in 5MP & 2MP makes it an ideal product for securing small to medium-sized spaces such as retail or banking spaces and offices. Q series cameras are equipped with a wide range of Intelligent Video Analytics features, helping users detect different types of incidents and have full situational awareness of their facility.

Features

• Q Series
• 12 MP image sensor, 3008 x 3008 resolution output, 30fps
• Fisheye lens 1.08mm (187°X187°)
• Original fisheye view, onboard dewarping to Single panorama, Double panorama, Quad view
• Lens rotation & analog video output for easy installation and adjustment
• Triple Codec: H.265, H.264, and MJPEG multiple streaming
• WiseStream II compression technology
• WDR 120dB
• Defocus, Tampering, motion detection
• Heatmap, people counting business intelligence
• Micro SD/SDHC/SDXC slot maximum 256 GB, PoE powered
• IP42-rated, PoE-powered
• White camera body

Technical Specifications

• Video

• Imaging Device: 1/2.3" 12M CMOS
• Effective Pixels: 3008(H) x 3008(V)
• Minimum Illumination: Color: 0.39 Lux (F2.2, 1/30sec)
• Video Out: CVBS: 1.0 Vp-p / 75Ω composite, 720x480, for Installation
• Lens

• Focal Length (Zoom Ratio): 1.08mm fixed focal
• Maximum Aperture Ratio: F2.2
• Angular Field of View: H: 187° / V: 187° / D: 187°
• Minimum Object Distance: 0.5m(1.64ft)
• Operational

• Camera Title: Displayed up to 85 characters
• Day & Night: Auto(Electrical)
• Backlight Compensation: BLC, WDR, SSDR
• Wide Dynamic Range: 120dB
• Digital Noise Reduction: SSNRⅤ
• Motion Detection: 4ea, polygonal zones
• Privacy Masking: 6ea, Rectangle zones
• Gain Control: Low / Middle / High
• White Balance: ATW / AWC / Manual / Indoor / Outdoor
• Electronic Shutter Speed: Minimum / Maximum / Anti-flicker (2~1/12,000sec)
• Video Rotation: Flip, Mirror
• Analytics: Defocus detection, Motion detection, Tampering
• Business Intelligence: People counting, Heatmap
• Alarm Triggers: Analytics, Network disconnect
• Alarm Events: File upload via FTP and e-mail
• Notification via e-mail
• SD/SDHC/SDXC or NAS recording at event triggers
• Network

• Ethernet: RJ-45(10/100BASE-T)
• Video Compression: H.265/H.264: Main/High, MJPEG
• Resolution:
• Overview: 3008x3008, 640x640
• Double panorama: 2560x1280, 1920x960, 1280x640, 1024x512, 640x320
• Single panorama: 3200x800, 2560x640, 1920x480, 1280x320, 1024x256
• Quad view: 2560x1920, 1920x1440, 1280x960, 1024x768, 640x480
• Max. Framerate: H.265/H.264:
• Overview-Maximum 30fps@3008x3008,
• Double panorama-Maximum 28fps@2560x1280,
• Single panorama-Maximum 28fps@3200x800,
• MJPEG: Maximum 5fps
• Smart Codec: Manual(5ea area), WiseStreamⅡ
• Bitrate Control: H.264/H.265: CBR or VBR
• MJPEG: VBR
• Streaming: Unicast(6 users) / Multicast
• Multiple streaming(Up to 3 profiles)
• Protocol: IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour
• Security: HTTPS(SSL) Login Authentication
• Digest Login Authentication
• IP Address Filtering
• User access log
• 802.1X Authentication(EAP-TLS, EAP-LEAP)
• Device Certificate(Hanwha Techwin Root CA)
• Edge Storage: Micro SD/SDHC/SDXC slot 256GB
• Application Programming Interface:
• ONVIF Profile S/G/T
• SUNAPI(HTTP API)
• Wisenet open platform
• Web Viewer:
• Supported OS: Windows 7, 8.1, 10, Mac OS X 10.12, 10.13, 10.14
• Recommended Browser: Google Chrome
• Supported Browser: MS Internet Explorer 11, MS Edge, Mozilla Firefox (Windows
• 64-bit only), Apple Safari (Mac OS X only)
• Memory 2048MB RAM, 256MB Flash
• Environmental

• Operating Temperature / Humidity: -10°C ~ +40°C(+14°F ~ +104°F) / Less than 90% RH
• Storage Temperature / Humidity: -50°C ~ +60°C(-58°F ~ +140°F) / Less than 90% RH
• Certification: IP42
• Electrical

• Input Voltage: PoE(IEEE802.3af, Class3)
• Power Consumption: PoE: Maximum 7.7W, typical 6.4W
• Mechanical

• Color / Material: White / Plastic
• RAL Code: RAL9003
• Product dimensions/weight: Ø 3.90"x1.93, 0.82lbs
• DORI

• Detect (25PPM/ 8PPF): 34.9m(114.49ft)
• Observe (63PPM/ 19PPF): 13.9m(45.60ft)
• Recognize (125PPM/ 38PPF): 7.0m(22.96ft)
• Identify (250PPM/ 76PPF): 3.5m(11.48ft)
