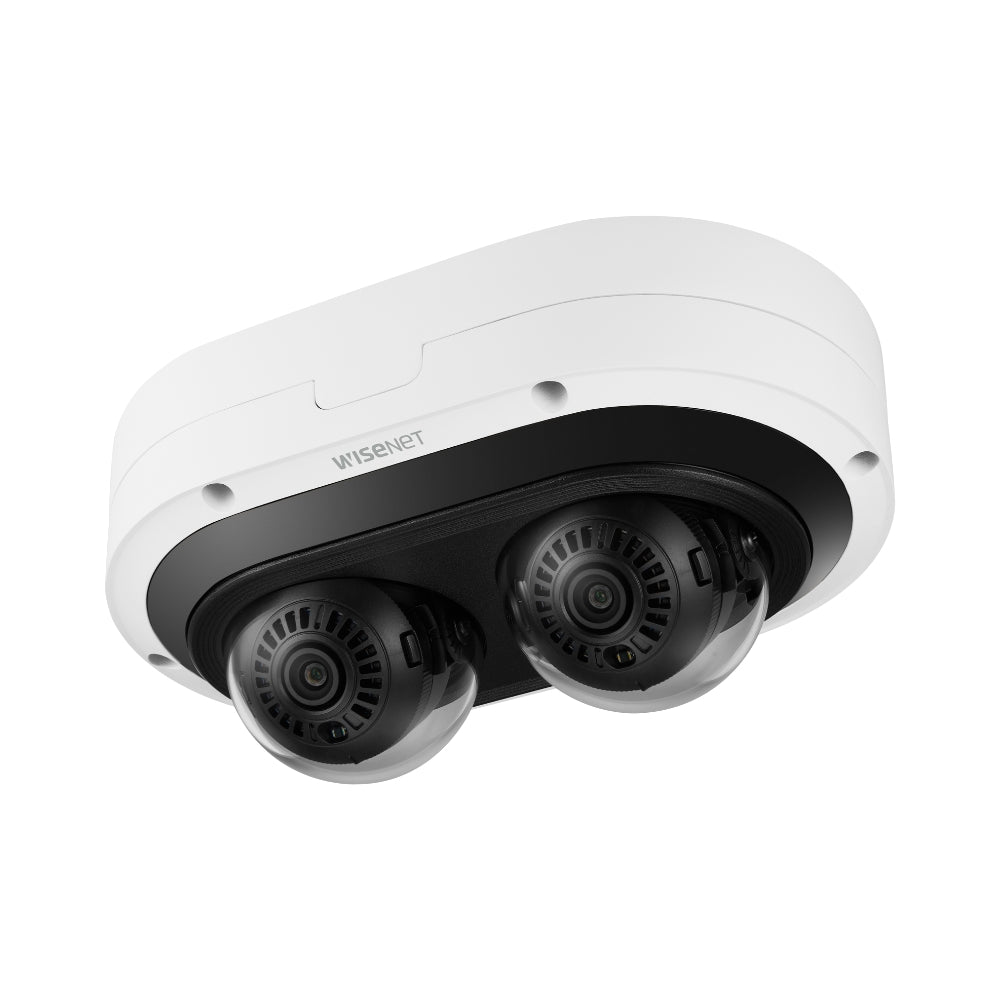

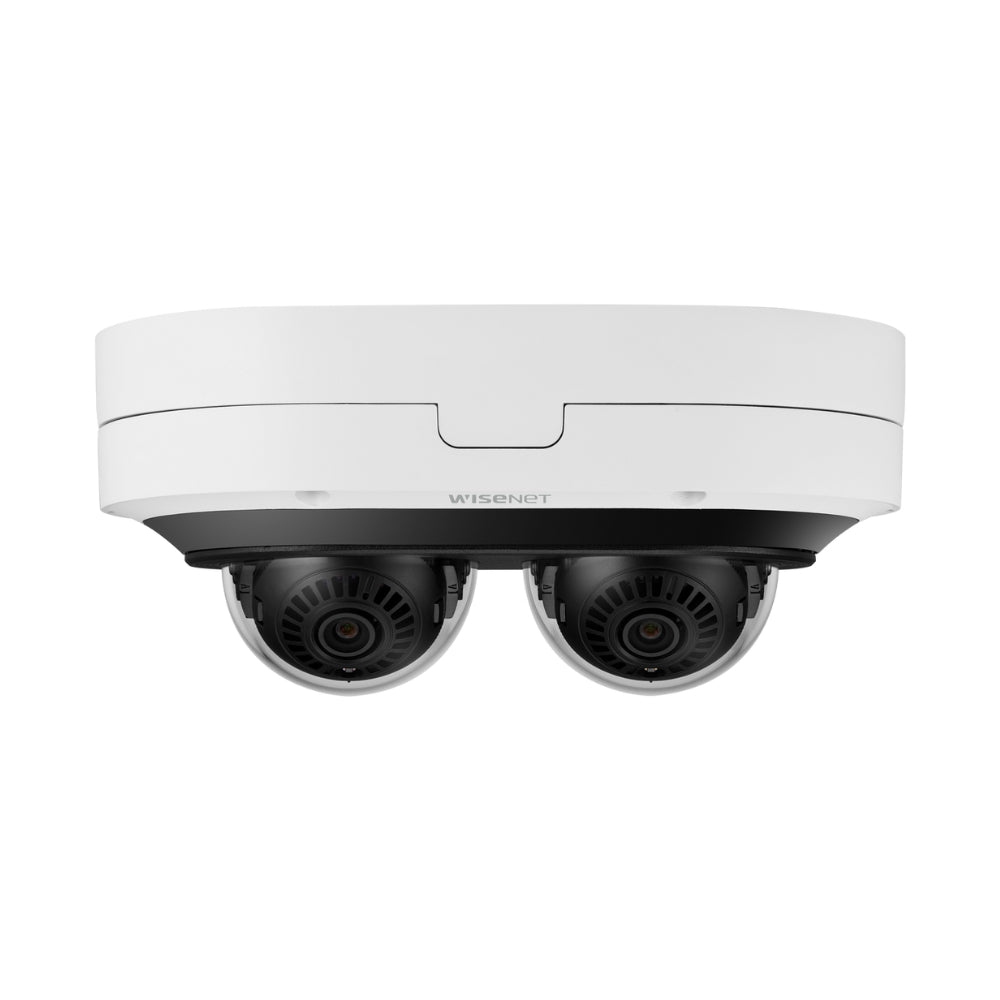

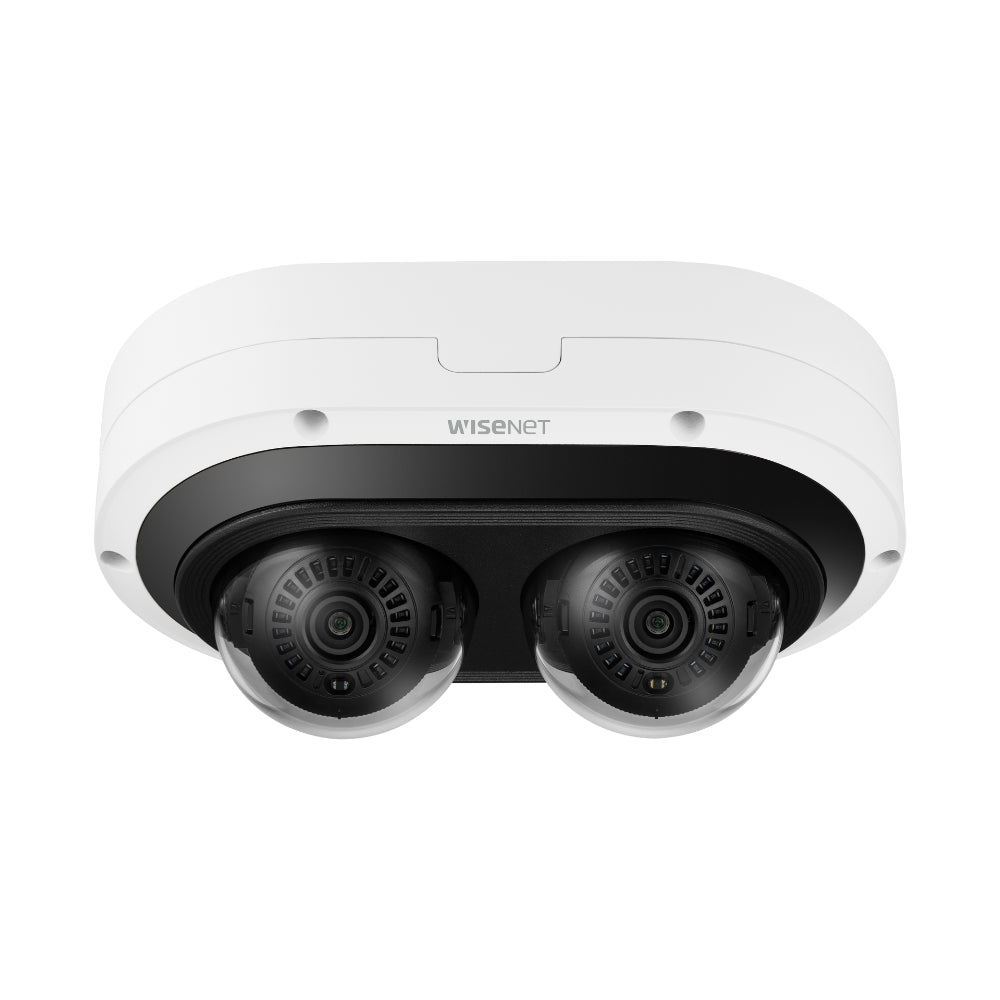

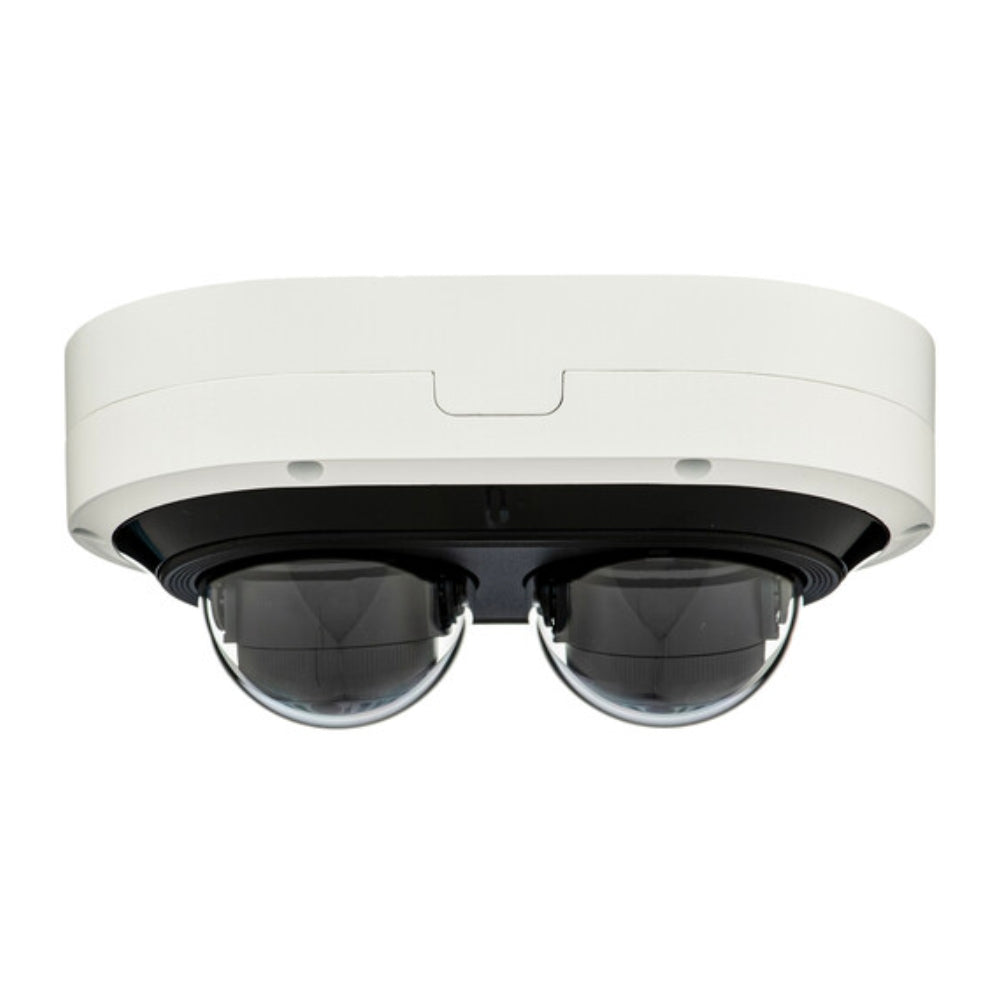

Hanwha Vision 6MP X 2 AI, IR Outdoor Dome Camera | HAN-PNM-C12083RVD
The PNM-C12083RVD is an outdoor vandal-rated network camera featuring 2 Channels, with AI & IR in a dome camera form factor.
This unit uses two 1/2.8" CMOS image sensors to capture 3328 x 1872 resolution video per sensor at 15 fps. IR LEDs provide up to 82' of night vision. The camera's 3.54-6.69mm motorized varifocal lenses each deliver a 95.08 to 47.64° horizontal field of view. An onboard memory card slot accepts microSD/SDHC/SDXC cards up to 512GB (available separately). Integrated PoE technology simplifies connectivity by transferring data and power through a single cable.
Features
- Analytics events based on AI engine: Classified object(Person/Face/Vehicle/License
- plate)
- Attributes(vehicle type: Car/Bus/Truck/Motorcycle/Bicycle)
- Support BestShot
- WiseNRⅡ, Auto prefer shutter control, WiseStreamⅢ, extremeWDR (120dB)
- Maximum 3328x1872 resolution
- Maximum 15fps@6M
- Color: 0.16lux(F1.67, 1/30sec, 30IRE), 0 Lux (IR LED on)
- 3.54~6.69mm motorized varifocal, 78° tilt angle
- IR viewable length: IR 25m(82ft) based on scene
- TPM 2.0(FIPS 140-2 certified)
- • IP66, IK10, NEMA4X
Technical Specifications
-
Video
- Imaging Device: 1/2.8" CMOS x 2CH
- Resolution: 3328x1872, 3072x1728, 2592x1944, 2688x1520, 1920x1080, 1600x1200, 1280x1024, 1280x960, 1280x720, 1024x768, 800x600, 800x448, 720x576, 720x480, 640x480, 640x360, 320x240
- Max. Framerate: H.265/H.264: 6MP Max.15fps
- MJPEG: Max.15fps
- Min. Illumination: Color: 0.16lux(F1.67, 1/30sec, 30IRE)
- BW: 0.016lux(F1.67, 1/30sec, 30IRE), 0lux(IR LED on)
- Video Out: USB: micro USB Type B, 1280x720 for installation
-
Lens
- Focal Length (Zoom Ratio): 3.54~6.69mm motorized varifocal
- Max. Aperture Ratio: F1.67(Wide)~F2.64(Tele)
- Angular Field of View: H: 95.08(Wide)~47.64(Tele)
- V: 50.78(Wide)~26.7(Tele)
- D: 112.6(Wide)~54.74(Tele)
- Min. Object Distance: 1.5m(4.92ft)
- Focus Control: Simple focus
- Lens Type: Fixed IRIS
-
Pan / Tilt / Rotate
- Pan / Tilt / Rotate Range: 0~355°/0~78°/0~180°
-
Operational
- Camera Title: Displayed up to 85 characters
- Day & Night: Auto(ICR)
- Backlight Compensation: BLC, WDR, SSDR
- Wide Dynamic Range: extremeWDR(120dB)
- Digital Noise Reduction: WiseNRⅡ(Based on AI engine), SSNRⅤ
- Motion Detection: 8ea, 8point Polygonal zones
- Privacy Masking: 6ea, Quadrangle zones
- - Color: Gray, Black, White
- Gain Control: Support
- White Balance: ATW / AWC / Manual / Indoor / Outdoor
- LDC: Support
- Electronic Shutter Speed: Minimum / Maximum / Anti-flicker (1/5~1/12,000sec)
- Auto prefer shutter control(Based on AI engine)
- Video Rotation: Flip, Mirror, Hallway view (90°/270°) - Each channel separately
- Analytics: Classified object type: Person/Face/Vehicle/License plate
- Attributes : Vehicle(Type:car/bus/truck/motorcycle/bicycle)
- Support Bestshot
- Analytics events based on AI engine
- - Object detection, Virtual line(Crossing/Direction), Virtual area(Loitering/Intrusion/Enter/Exit)
- Analytics events*
- - Defocus detection, Motion detection, Tampering, Virtual area(Appear/Disappear)
- * Support Audio detection and sound classification via optional SPM-4210 I/O box
- Alarm I/O: * Support Alarm via optional SPM-4210 I/O box
- Alarm Triggers: Analytics, Network disconnect, Alarm input via optional SPM-4210 I/O box
- Alarm Events: When alarm trigger occurred
- - File upload(image) : e-mail/FTP
- - Notification: e-mail
- - Recording: SD/SDHC/SDXC or NAS recording at event triggers
- - Handover(PTZ preset, Send message by HTTP/HTTPS/TCP)
- - * Alarm output via optional SPM-4210 I/O box
- Audio In: * Audio in via optional SPM-4210 I/O box
- Audio Out: * Audio out via optional SPM-4210 I/O box
- IR Viewable Length: 25m(82ft)
-
Network
- Ethernet: Metal shielded RJ-45 (10/100/1000BASE-T)
- Video Compression: H.265/H.264: Main/Baseline/High, MJPEG
- Smart Codec: Manual(5ea area), WiseStreamⅡ, WiseStreamⅢ(Based on AI engine)
- Bitrate Control: H.264/H.265: CBR or VBR
- MJPEG: VBR
- Streaming: Unicast(10 users) / Multicast
- 5 profiles per channel
- Protocol: IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour, LLDP, SRTP (TCP, UDP Unicast)
- Security: TPM 2.0 (FIPS 140-2 level 2)
- HTTPS(SSL) Login Authentication
- Digest Login Authentication
- IP Address Filtering
- User access log
- 802.1X Authentication(EAP-TLS, EAP-LEAP, EAP-PEAP MSCHAPv2)
- Device Certificate(Hanwha Techwin Root CA, pre-installed)
- Secure by default certificate
- Secure OS/Boot/Storage, Verify firmware forgery
- Application Programming Interface: ONVIF Profile S/T
- SUNAPI(HTTP API)
- Open platform
-
General
- Webpage Language: English, Korean, Chinese, French, Italian, Spanish, German, Japanese, Russian, Swedish, Portuguese, Czech, Polish, Turkish, Dutch, Greek, Hungarian
- Edge Storage: Micro SD/SDHC/SDXC 1slot Max. 512GB
- Memory: 4GB RAM, 512MB Flash
-
Environmental & Electrical
- Operating Temperature / Humidity: -40°C~+55°C(-40°F ~ +131°F) / Less than 95% RH(Non-condensing)
- Storage Temperature / Humidity: -50°C~+60°C(-58°F~+140°F) / Less than 95% RH(Non-condensing)
- Certification: IP66, IK10, NEMA4X
- Input Voltage: PoE+(IEEE802.3at, Class4)
- Power Consumption: PoE+: Max 21W, typical 16.5W
-
Mechanical
- Color / Material: White / Aluminum
- Hard-coated dome bubble
- RAL Code: RAL9003
- Product Dimensions / Weight: 215(W)x135(D)x93.2(H)mm(8.46"x5.31"x3.67") / 2.93lbs
- Compatible Conduit hole / Gangbox: 3/4" (M25)
- single, double, 4" octagon, 4" square
-
DORI (EN62676-4 standard)
- Detect (25PPM/ 8PPF): Wide: 60.9m(199.82ft) / Tele: 150.8m(494.65ft)
- Observe (63PPM/ 19PPF): Wide: 24.4m(79.93ft) / Tele: 60.3m(197.86ft)
- Recognize (125PPM/ 38PPF): Wide: 12.2m(39.96ft) / Tele: 30.2m(98.93ft)
- Identify (250PPM/ 76PPF): Wide: 6.1m(19.98ft) / Tele: 15.1m(49.46ft)
