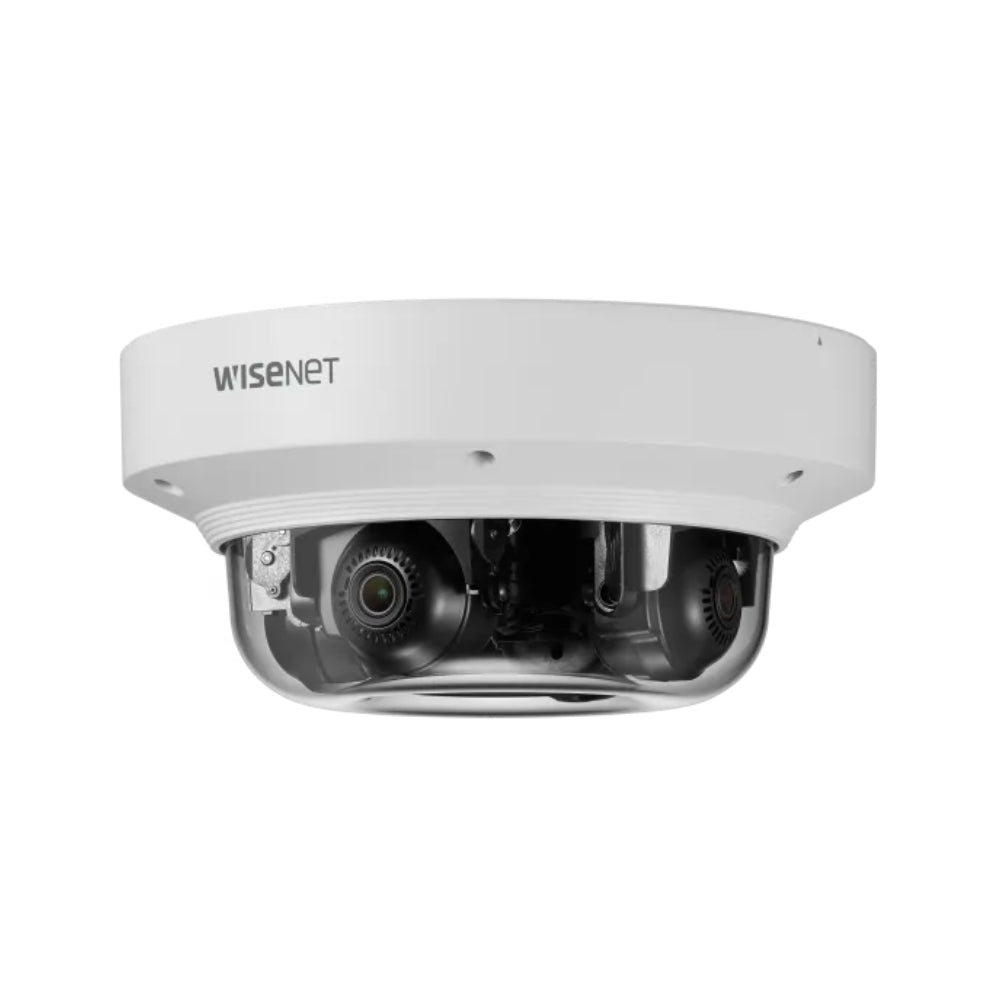

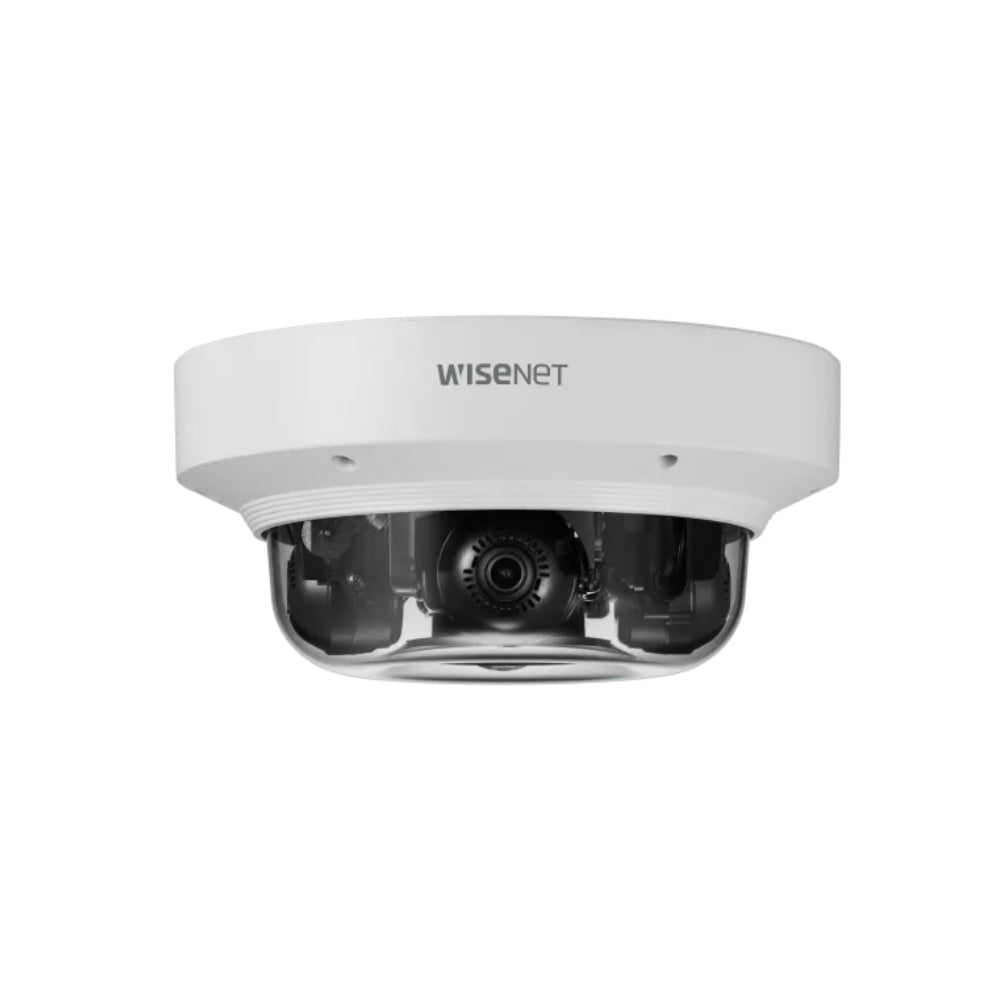

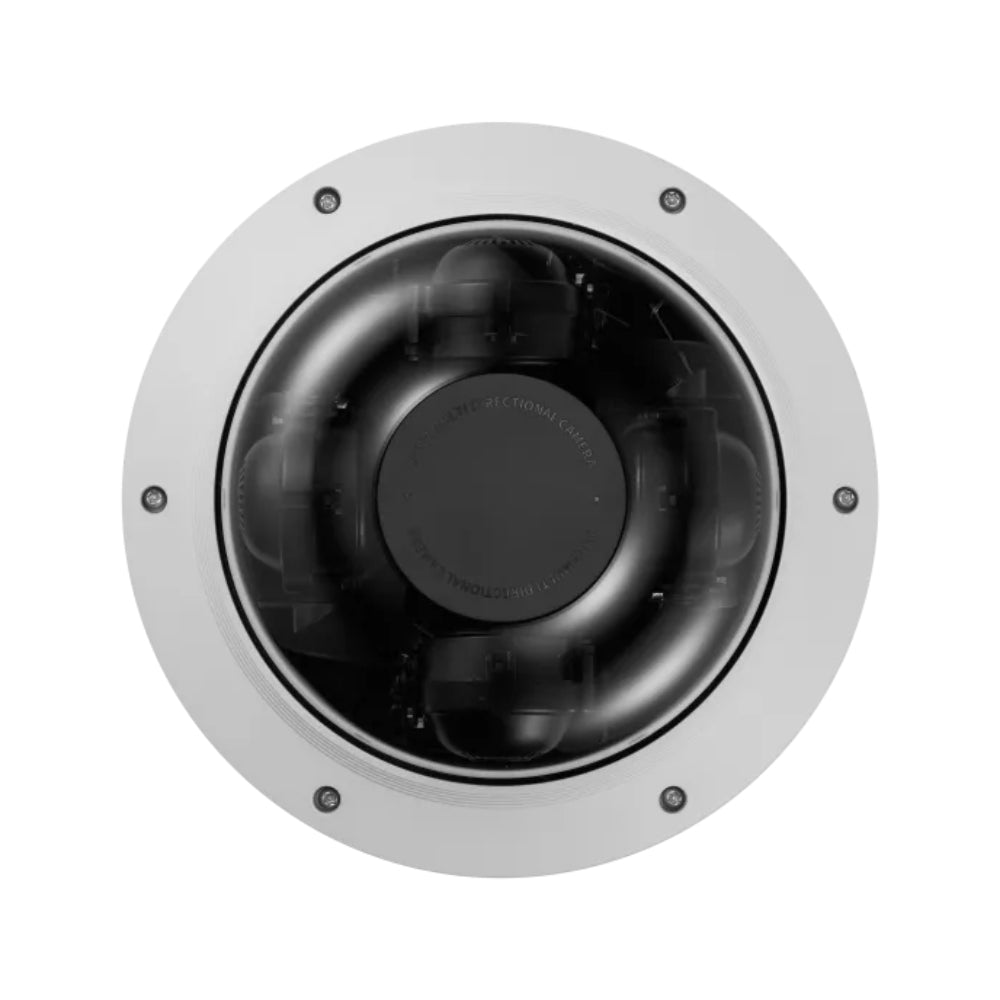

Monitor an indoor or outdoor area with the white WiseNet P Series PNM-9084QZ1 8MP 4-Sensor PTRZ Network Dome Camera from Hanwha Techwin. This unit uses four 1/2.8" 2MP CMOS sensors to capture 1920 x 1080 resolution video per sensor at 60 fps, for a total resolution of 8MP. Four 3-6mm motorized varifocal lenses deliver a 107 to 56.3° horizontal field of view. The camera features 360° panning, a 0 to 73° tilt range, a 0 to 90° rotation range, and 2x optical zoom.

Features

• Maximum 8MP @ 60fps, 2MP X 4 sensors using one IP address
• Motorized varifocal 3.0~ 6mm (FOV: 107⁰ ~ 56.3⁰)
• Motorized PTRZ function allows for simple adjustment of camera positioning remotely, ideal for difficult-to-reach locations. Easily adjust the Pan around the track, Tilt, rotation, zoom, & focus.
• Full 90⁰ "look down" tilt capability
• Triple codec: H.265, H.264, and MJPEG multiple streaming
• WiseStream II compression technology
• WDR 120dB @ 2MP @ 60fps
• Loitering, directional detection, fog detection, tampering, motion detection, object enter or exit an area
• Hallway view
• 4x microSD/SDHC/SDXC Memory Card slots, one for each channel
• Alarm I/O, Audio I/O
• Power: HPoE (IEEE802.3bt), injector included
• IP66, IK10, NEMA4X
• Easy Gangbox mounting installation

Technical Specification

• Video
• Imaging Device: 1/2.8" CMOS x 4CH
• Resolution: 1920x1080, 1280x1024, 1280x960, 1280x720, 1024x768, 800x600, 800x448, 720x576, 720x480, 640x480, 640x360, 320x240
• Max. Framerate: H.265/H.264: Max. 60fps/50fps(60Hz/50Hz)
• MJPEG: Max. 30fps/25fps(60Hz/50Hz)
• Min. Illumination: Color: 0.04lux(F2.2, 1/30sec)
• BW: 0.004lux(F2.2, 1/30sec)
• Lens
• Focal Length: (Zoom Ratio) 3~6mm(2x) motorized varifocal
• Max. Aperture Ratio: F2.2(Wide)-F3.1(Tele)
• Angular Field of View: H: 107(Wide)~56.3(Tele) / V: 57(Wide)~31.5(Tele) / D: 126(Wide)~64.3(Tele)
• Min. Object Distance: 0.5m(1.64ft)
• Focus Control: Simple focus
• Lens Type: Fixed iris
• Pan / Tilt / Rotate
• Pan / Tilt / Rotate Range: Remote adjustment (Max. 200cycles)
• 0~360 / 0~73 / 0~90
• Operational
• Camera Title: Displayed up to 85 characters
• Day & Night: Auto(ICR)
• Backlight Compensation: BLC, HLC, WDR, SSDR
• Wide Dynamic Range: 120dB
• Digital Noise Reduction SSNRⅤ
• Digital Image Stabilization: Support
• Defog: Support
• Motion Detection: 8ea, 8point polygonal zones
• Privacy Masking: 32ea, polygonal zones
• - Color: Grey, Green, Red, Blue, Black, White
• - Mosaic
• Gain Control: Low / Middle / High
• White Balance: ATW / AWC / Manual / Indoor / Outdoor
• LDC: Support
• Electronic Shutter Speed: Minimum / Maximum / Anti-flicker (2~1/12,000sec)
• Video Rotation: Flip, Mirror
• Analytics: Defocus detection, Directional detection, Fog detection, Face detection, Motion detection, Appear/Disappear, Enter/Exit, Loitering, Tampering, Virtual line, Audio detection
• Alarm I/O: Input 1ea / Output 1ea
• Alarm Triggers: Analytics, Network disconnect, Alarm input
• Alarm Events: File upload via FTP and e-mail
• Notification via e-mail
• SD/SDHC/SDXC at event triggers
• Alarm output
• Handover
• Audio In: Selectable(mic in/line in)
• Supply voltage: 2.5VDC(4mA), Input impedance: 2K Ohm
• Audio Out: Line out, Max. output level: 1Vrms
• Network

• Ethernet: Metal shielded RJ-45(10/100/1000BASE-T)
• Video Compression: H.265/H.264: Main/Baseline/High, MJPEG
• Audio Compression: G.711 u-law /G.726
• G.726(ADPCM) 8KHz, G.711 8KHz
• G.726: 16Kbps, 24Kbps, 32Kbps, 40Kbps
• AAC-LC: 48Kbps at 16KHz
• Smart Codec: Manual(5ea area), WiseStream Ⅱ
• Bitrate Control: H.264/H.265: CBR or VBR
• MJPEG: VBR
• Streaming: Unicast(20 users) / Multicast
• Multiple streaming(Up to 10 profiles)
• Protocol: IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour, LLDP
• Security: HTTPS(SSL) Login Authentication
• Digest Login Authentication
• IP Address Filtering
• User access log
• 802.1X Authentication(EAP-TLS, EAP-LEAP)
• Application Programming Interface: ONVIF Profile S/T
• SUNAPI(HTTP API)
• Wisenet open platform
• General
• Webpage Language: English, Korean, Chinese, French, Italian, Spanish, German, Japanese, Russian, Swedish, Portuguese, Czech, Polish, Turkish, Dutch, Hungarian, Greek
• Edge Storage: Micro SD/SDHC/SDXC 4slot 256GB(each CH)
• Memory: 5GB RAM, 1280MB Flash
• Environmental & Electrical
• Operating Temperature / Humidity: -40°C~+55°C(-40°F~+131°F) / Less than 90% RH
• *Start-up should be above -35C
• Storage Temperature / Humidity: -50°C~+60°C(-58°F~+140°F) / Less than 90% RH
• Certification: IP66, IK10, NEMA4X
• Input Voltage: HPoE
• Power Consumption: Max. 33W, Typical 20W
• Mechanical
• Color / Material: White / Aluminum
• RAL Code: RAL9003
• Product Dimensions / Weight: Ø9.88"x4.59" / 6.62lbs
• Compatible Conduit hole / Gangbox: 3/4"
• DORI (EN62676-4 standard)
• Detect (25PPM/ 8PPF): Wide: 28.4m(11.18ft) / Tele: 71.8m(28.27ft)
• Observe (63PPM/ 19PPF): Wide: 11.4m(4.49)ft) / Tele: 28.7m(11.30ft)
• Recognize (125PPM/ 38PPF): Wide: 5.7m(2.24ft) / Tele: 14.4m(5.67ft)
• Identify (250PPM/ 76PPF): Wide: 2.8m(1.10)ft) / Tele: 7.8m(3.07ft)
