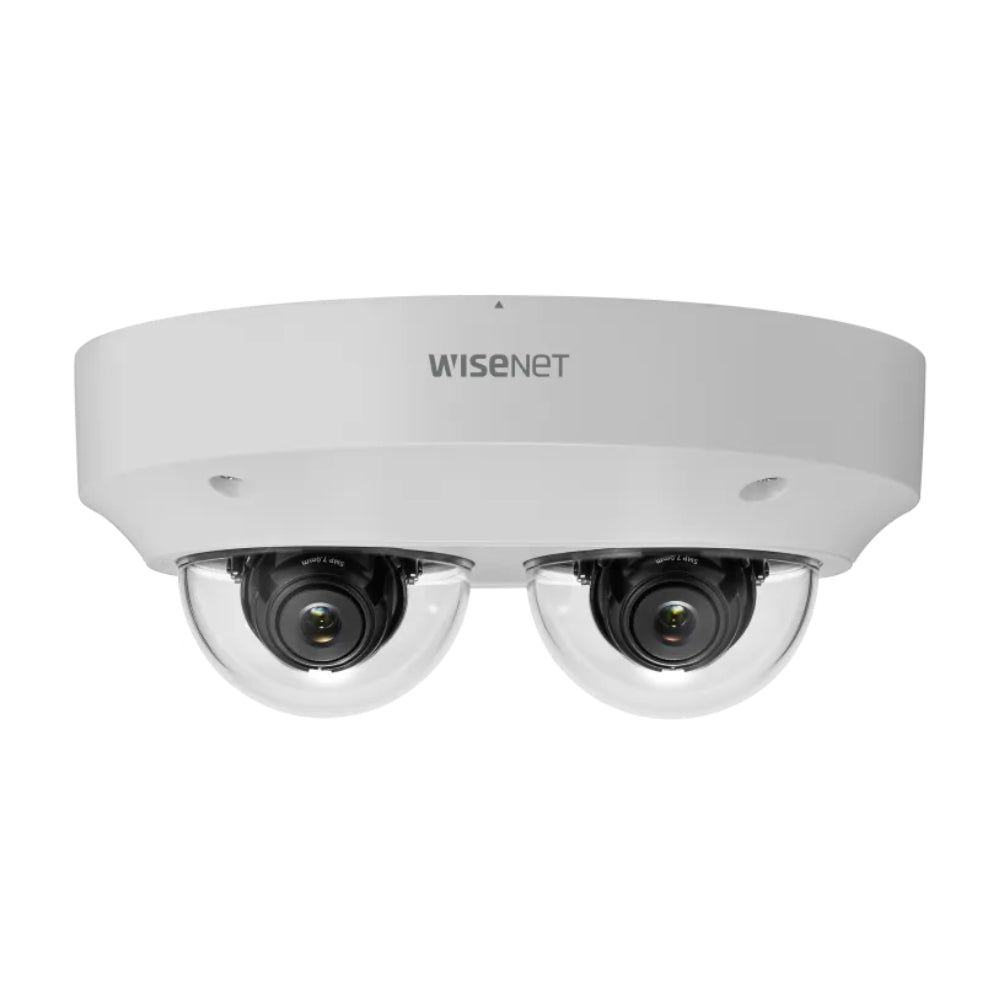

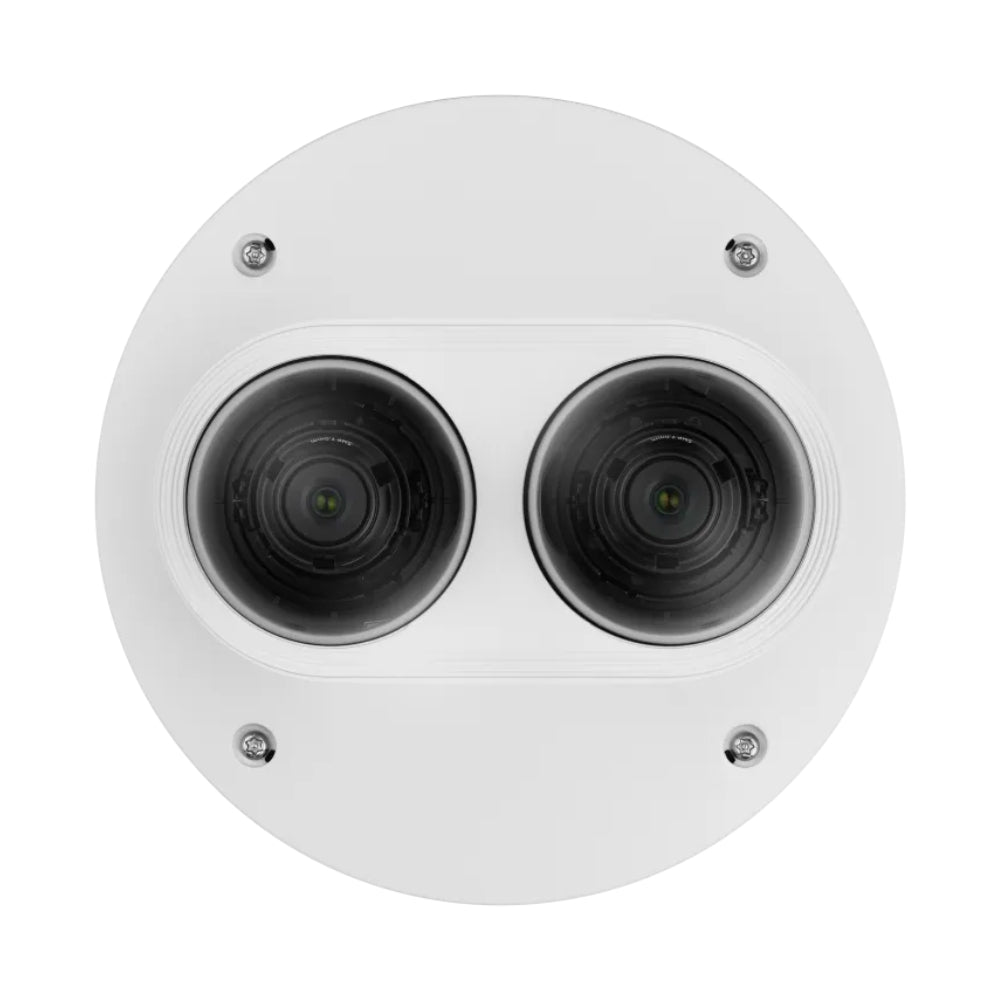

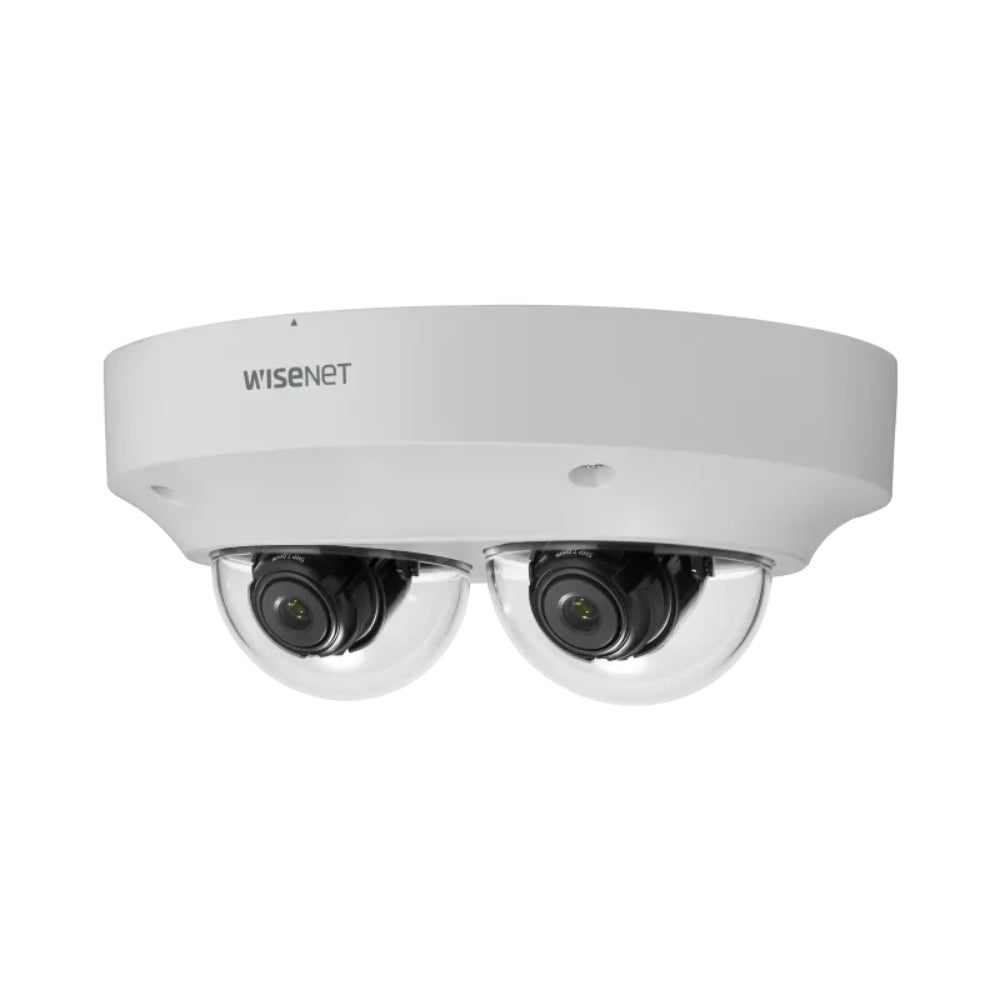

Hanwha Vision 5MP x 2CH Multi-Directional Network Camera | HAN-PNM-9000VD

Hanwha Vision 5MP x 2CH Multi-Directional Network Camera | HAN-PNM-9000VD

PNM-9000VD delivers 5MP image quality and modular lens configuration and supports 30fps image capture and true WDR(120dB) without compromising the frame rate for each of its 5MP sensors. It is able to simultaneously monitor angles instead of installing multiple cameras. According to the desired direction and viewing angle, the user can select lenses 3.7mm, 4.6mm, and 7.0mm.

Features

• Interchangeable 2 x 5MP lens modules, 10MP total resolution
• 30fps @ 5MP (H.265 / H.264)
• WDR 120dB, HLC
• 3.7mm, 4.6mm, 7mm fixed lens (5MP module)
• H.265, H.264, MJPEG codec, Multi-streaming support
• Video analytics, WiseStream II
• IP66, IK10, SD / SDHC / SDXC memory x 2 slots
• White body
• Lens modules are required, not included with the camera
• 5MP X 2 sensors sold separately

Technical Specifications

• Video

• Resolution: 2560x1920, 2560x1440, 1920x1080, 1600x1200, 1280x1024, 1280x960, 1280x720, 1024x768, 800x600, 800x448, 720x576, 720x480, 640x480, 320x240
• Max. Framerate: H.265/H.264: Max. 30fps/25fps(60Hz/50Hz)
• MJPEG: Max. 30fps/25fps(60Hz/50Hz)
• Video Out: CVBS: 1.0 Vp-p / 75Ω composite, 720x480(N), 720x576(P) for installation
• Lens

• Optional Lens:
• SLA-5M3700D(5MP 3.7mm)
• SLA-5M4600D(5MP 4.6mm)
• SLA-5M7000D(5MP 7.0mm)
• Operational

• Camera Title: Displayed up to 85 characters
• Day & Night: Auto(Electrical)
• Backlight Compensation: BLC, HLC, WDR, SSDR
• Wide Dynamic Range: 120dB
• Digital Noise Reduction: SSNRⅤ
• Digital Image Stabilization: Support
• Defog: Support
• Motion Detection: 8ea, 8point polygonal zones
• Privacy Masking: 32ea, polygonal zones
• - Color: Grey/Green/Red/Blue/Black/White
• - Mosaic
• Gain Control: Low / Middle / High
• White Balance: ATW / AWC / Manual / Indoor / Outdoor
• LDC: Support
• Electronic Shutter Speed: Minimum / Maximum / Anti-flicker (2~1/12,000sec)
• Video Rotation: Flip, Mirror, Hallway view(90/270)
• Analytics: Defocus detection, Directional detection, Fog detection, Face detection, Motion detection,
• Appear/Disappear, Enter/Exit, Loitering, Tampering, Virtual line
• Alarm Triggers: Analytics, Network disconnect
• Alarm Events: File upload via FTP and e-mail
• Notification via e-mail
• SD/SDHC/SDXC or NAS recording at event triggers
• Handover
• Network

• Ethernet: RJ-45(10/100BASE-T)
• Video Compression: H.265/H.264: Main/Baseline/High, MJPEG
• Smart Codec: Manual(5ea area), WiseStreamⅡ
• Bitrate Control: H.264/H.265: CBR or VBR
• MJPEG: V
• Streaming: Unicast(20 users) / Multicast
• Multiple streaming(Up to 10 profiles)
• Protocol: IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP,RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour
• Security: HTTPS(SSL) Login Authentication
• Digest Login Authentication
• IP Address Filtering
• User access log
• 802.1X Authentication(EAP-TLS, EAP-LEAP)
• Application Programming: Interface ONVIF Profile S
• SUNAPI(HTTP API)
• General

• Webpage Language: English, Korean, Chinese, French, Italian, Spanish, German, Japanese, Russian, Swedish, Portuguese, Czech, Polish, Turkish, Dutch, Hungarian, Greek
• Edge Storage: Micro SD/SDHC/SDXC 2slot 256GB(Each CH)
• Memory: 1024MB RAM, 256MB Flash
• Environmental & Electrical

• Operating Temperature / Humidity: -40°C~+55°C(-40°F~+131°F) / Less than 90% RH
• Storage Temperature / Humidity: -50°C~+60°C(-58°F~+140°F) / Less than 90% RH
• Certification: IP66, IK10
• Input Voltage: PoE(IEEE802.3af, Class3)
• Power Consumption: PoE: 12.95W, typical 12.00W
• Mechanical

• Color / Material: White / Aluminum
• RAL Code: RAL9003
• Product Dimensions / Weight: Ø197.6x84mm(7.78x3.31"), 1250g(2.76 lb)
• Compatible Conduit hole / Gangbox: 1/2"
• Hanging Mount (Dome): SBP-201HMW
