Hanwha Vision 8K & 32 Megapixel Network Camera | HAN-TNB-9000

Hanwha Vision 8K & 32 Megapixel Network Camera | HAN-TNB-9000

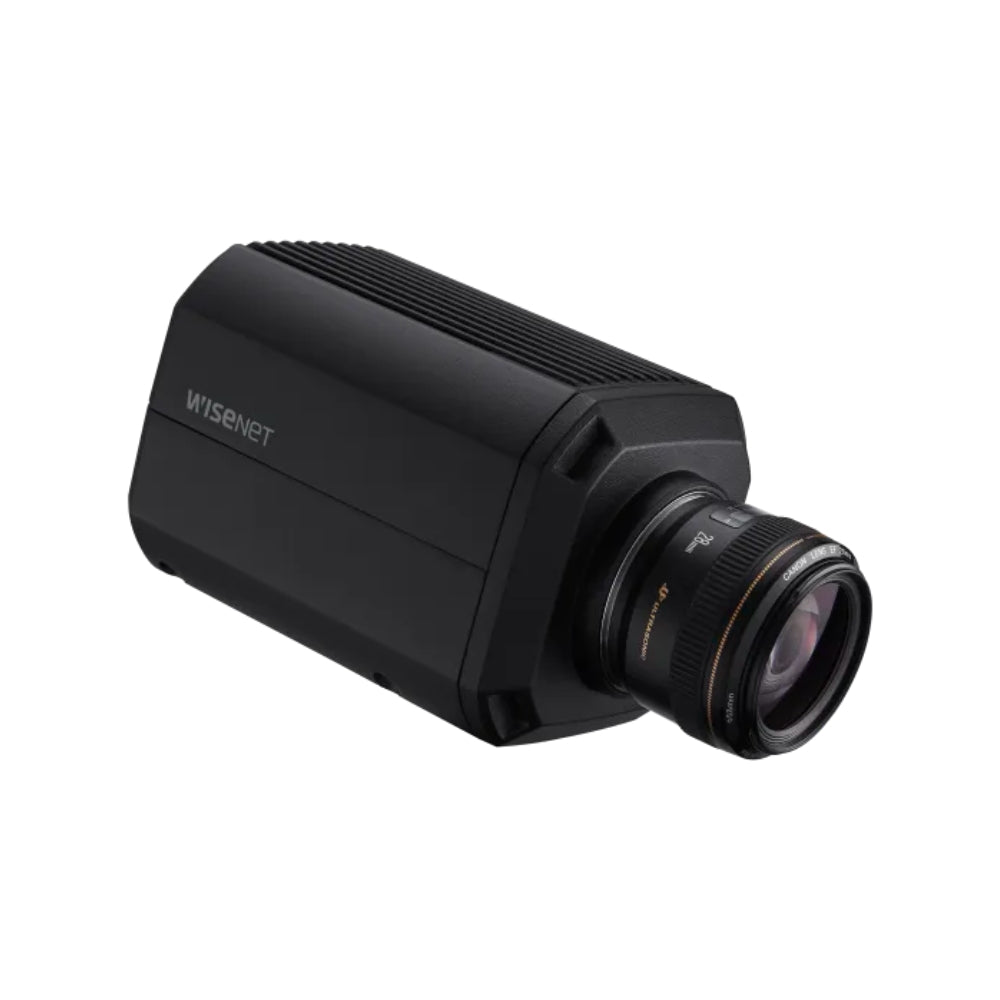

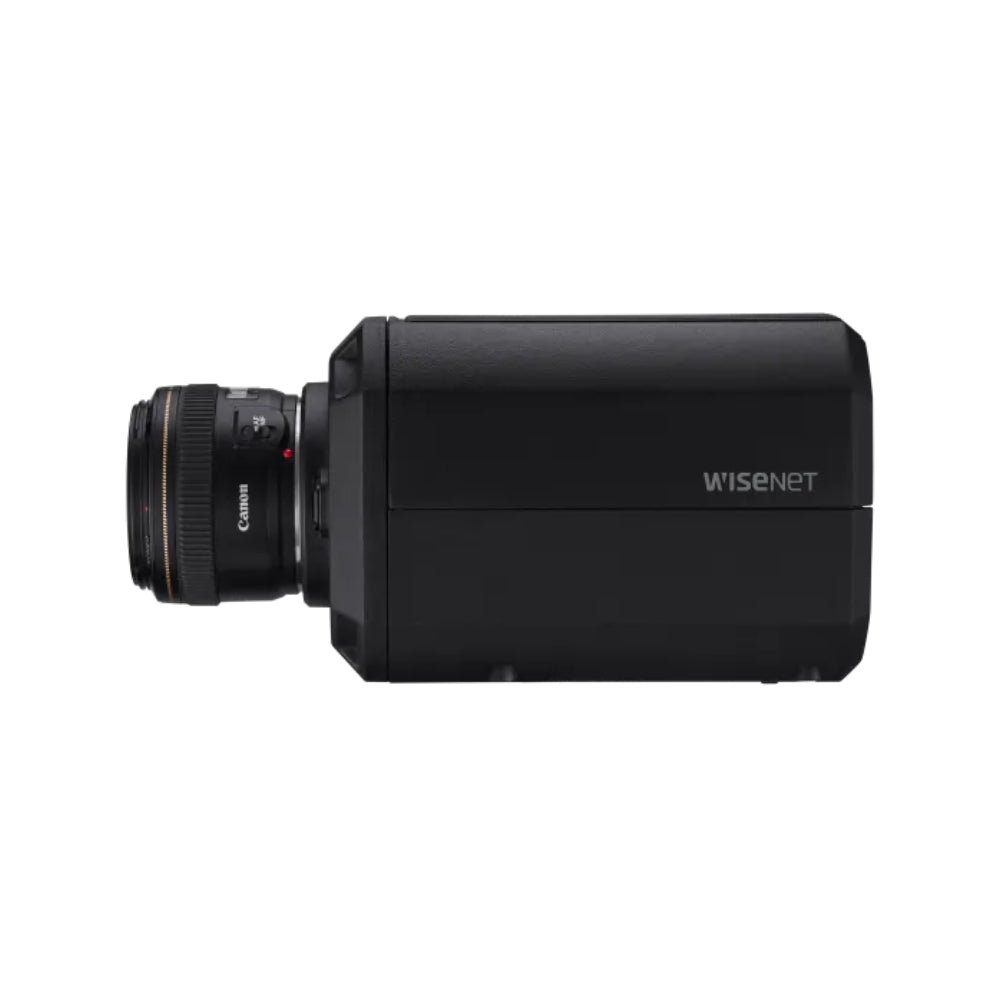

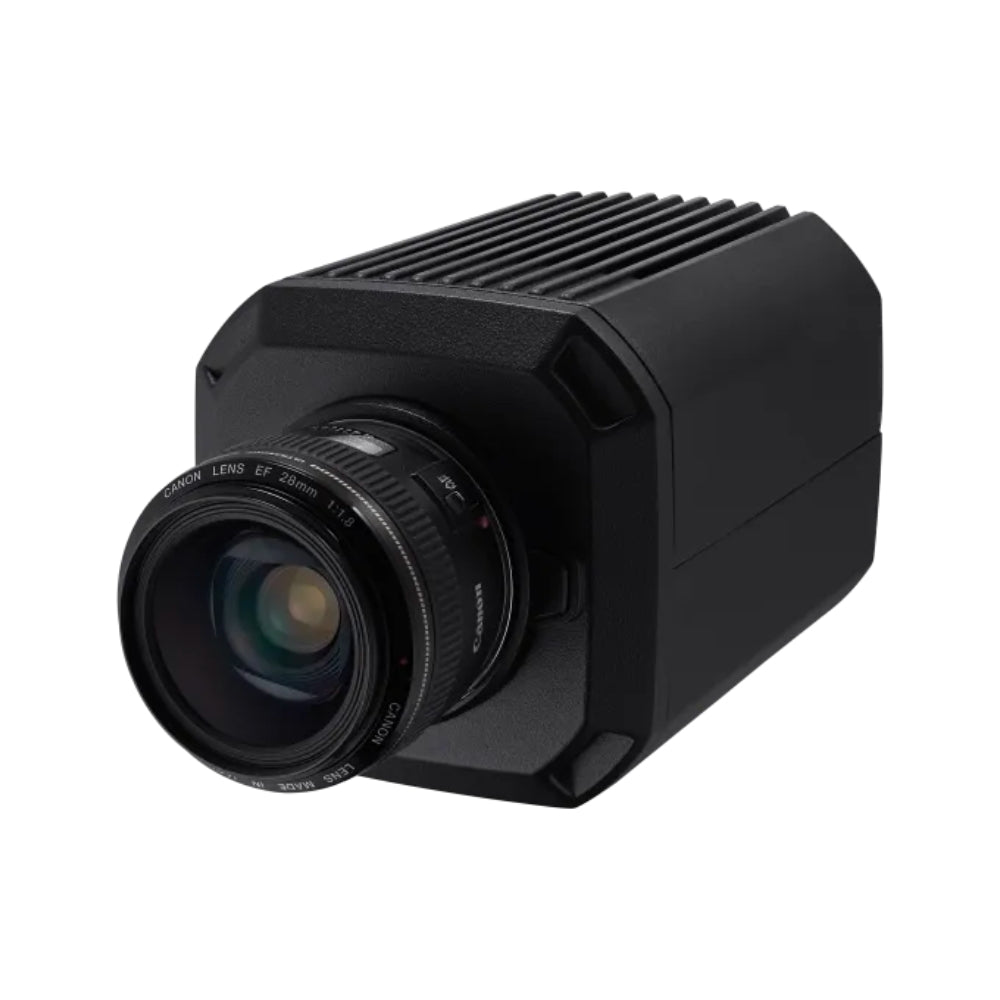

Hanwha’s 8K UHD features a 43.3mm full-frame CMOS Image Sensor for 32 Megapixel output. A high frame rate of 15fps@8K, 20fps@24MP, 30fps@15MP, and 60fps@4K ensures you don't miss the action. Compatible with specific Canon EF mount Lenses. Features intelligent video & audio analytics based on AI (Object detection/classification, Attribute, BestShot). Micro HDMI (1080p 30fps) Video Output for installation or monitoring. Efficient video streaming with H.265/H.264 with WiseStreamⅡ support, as well as MJPEG. Single Micro SD slot (Up to 256GB) for edge recording. Network connectivity includes RJ-45 & SFP slot (100/1000Mbps), HPoE (IEEE802.3bt, Class5), 12VDC options. Integration capabilities include ONVIF, alarm I/O & RS-485 controls. Simple Focus & MicroUSB port (optional Wi-Fi dongle) allows easy and perfect focus control.

Features

• 8K / 32MP (7680 x 4320) / 8M (3840 x 2160) resolution
• 15fps @ 8K / 20fps @ 24MP/ 30fps @ 15MP / 60fps @ 4K
• H.265 / H.264 / MJPEG Triple Codec encoding
• Simple focus, Day & Night (ICR)
• AI-based Intelligent video & audio analytics with object detection & classification for people's faces, vehicles & license plate
• micro SD/SDHC/SDXC memory slot
• Bi-directional audio support
• DPTZ channel for easy monitoring
• ONVIF Profile S/G/T
• HPoE (IEEE802.3bt, Class5), 12VDC power options
• Lens & outdoor housing are optional accessories
• Compatible lenses include:
• EF 24mm f/1.4L II USM
• EF 28mm f/1.8 USM
• EF 35mm f/1.4L II USM
• EF 40mm f/2.8 STM
• EF 50mm f/1.2L USM
• EF 50mm f/1.4 USM
• EF 50mm f/1.8 STM
• EF 85mm f/1.2L II USM
• EF 85mm f/1.8 USM
• EF 100mm f/2 USM
• EF 200mm f/2.8L II USM
• EF 16-35mm f/2.8L III USM
• EF 70-200mm f/2.8L USM (*Lens bracket must be used)
• EF f/4-5.6L IS USM
• EF f4.5-5.6L IS II USM

Technical Specifications

• Video
• Imaging Device: 43.3mm Full-frame CMOS
• Effective Pixels: 7680(H)x4320(V)
• Minimum Illumination:
• Color: 0.015Lux(F1.4, 1/30sec)
• B/W: 0.0015Lux(F1.4, 1/30sec)
• Video Out HDMI: 1080p@30fps
• Lens

• Angular Field of View: Canon 24mm f1.4L, Auto-Iris (EF 24mm f/1.4L II USM): Horizontal field of view: 8K 62.1°
• Canon 35mm f1.4L, Auto-Iris (EF 35mm f/1.4L II USM): Horizontal field of view: 8K 44.5°
• Canon 50mm f1.4, Auto-Iris (EF 50mm f/1.4 USM): Horizontal field of view: 8K 31.6°
• Canon 85mm f1.2L, Auto-Iris (EF 85mm f/1.2L II USM): Horizontal field of view: 8K 19.2°
• Canon 100mm f2.0, Auto-Iris (EF 100mm f/2 USM): Horizontal field of view: 8K 16.1°
• Canon 70-200mm f2.8L, Auto-Iris, Vari Focal (EF 70-200mm f/2.8L USM): Horizontal field of
• view: 8K 23.2° ~ 8.3°
• Focus Control: Autofocus
• Lens Type: Canon EF mount Lens

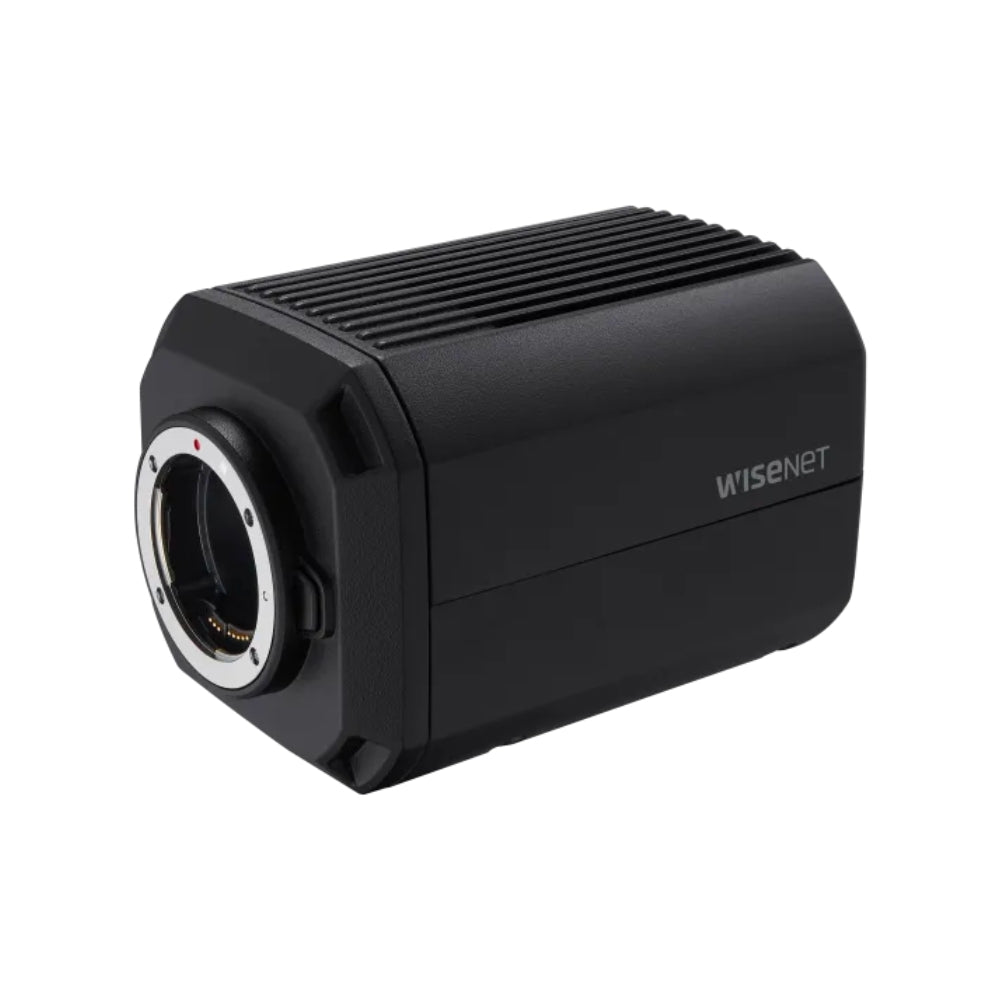

• Mount Type: Canon EF mount
• Optional Compatible Lenses: Canon 24mm f1.4L, Auto-Iris (EF 24mm f/1.4L II USM)
• Canon 35mm f1.4L, Auto-Iris (EF 35mm f/1.4L II USM)
• Canon 50mm f1.4, Auto-Iris (EF 50mm f/1.4 USM)
• Canon 85mm f1.2L, Auto-Iris (EF 85mm f/1.2L II USM)
• Canon 100mm f2.0, Auto-Iris (EF 100mm f/2 USM)
• Canon 70-200mm f2.8L, Auto-Iris, Vari Focal (EF 70-200mm f/2.8L USM)
• Operational
• Camera Title: Displayed up to 75 characters
• Day & Night: Auto(ICR)
• Backlight Compensation: BLC, DWDR
• Digital Noise Reduction: SSNRⅤ
• Motion Detection: 8ea, 8point polygonal zones (in 8K resolution only)
• Privacy Masking: 6ea, Rectangular
• - Color: Grey/Black/White
• Gain Control: Low / Middle / High
• White Balance: ATW / AWC / Manual / Indoor / Outdoor
• Electronic Shutter Speed: Minimum / Maximum / Anti-flicker (1/5 ~ 1/12,000sec)
• Analytics: - Classified object type: Person/Face/Vehicle/License plate with attributes, BestShot per object
• - Analytics events based on AI engine: object detection, Directional detection, Enter/Exit, Loitering, Virtual line
• - Analytics events: Defocus detection, Motion detection, Appear/Disappear, Tampering, Audio detection, Sound classification
• Serial Interface: RS-485(Samsung-T, Pelco-D/P)
• Alarm I/O: Input 1ea / Output 1ea
• Alarm Triggers: Analytics, Network disconnect, Alarm input
• Alarm Events: File upload via FTP and e-mail
• Notification via e-mail
• SD/SDHC/SDXC or NAS recording at event triggers
• Alarm output
• Handover
• Audio In: Selectable(mic in/line in)
• Supply voltage: 2.5VDC(4mA), Input impedance: 2K Ohm
• Audio Out: Line out, Maximum output level: 1Vrms
• Network
• Ethernet: RJ-45(10/100/1000 BASE-T), SFP slot(100/1000Mbps)
• Video Compression: H.265/H.264: Main/High, MJPEG
• Resolution: 7680x4320, 7360x4128, 6016x3384, 6016x4008, 5472x3648, 4768x3184,
• 4608x2592, 3840x2160, 1920x1080, 1280x1024, 1280x960, 1280x720, 1024x768,
• 800x600, 800x448, 720x576, 720x480, 640x480, 640x360
• Maximum Framerate: H.265/H.264: 8K @ Max. 15fps (Mode 0): Available in Jan. 2020

• H.265/H.264: 24MP @ Max. 20fps (Mode 1): Available in May. 2020
• H.265/H.264: 15MP @ Max. 30fps (Mode 2): Available in May. 2020
• H.265/H.264: 4K @ Max. 60fps (Mode 3): Available in May. 2020
• Smart Codec: WiseStreamⅡ
• Bitrate Control: H.264/H.265: CBR or VBR
• MJPEG: VBR
• Streaming: Unicast(10 users) / Multicast
• Multiple streaming(Up to 3 profiles)
• Audio Compression: G.711 u-law /G.726 Selectable
• G.726(ADPCM) 8KHz, G.711 8KHz
• G.726: 16Kbps, 24Kbps, 32Kbps, 40Kbps
• AAC-LC: 48Kbps at 16KHz
• Protocol: IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour, LLDP
• Security: HTTPS(SSL) Login Authentication
• Digest Login Authentication
• IP Address Filtering
• User access log
• 802.1X Authentication(EAP-TLS, EAP-LEAP)
• Device Certificate(Hanwha Techwin Root CA)
• Edge Storage Micro SD/SDHC/SDXC 1 slot maximum 256GB
• Application Programming Interface
• ONVIF Profile S/G/T
• SUNAPI(HTTP API)
• Web Viewer Supported OS: Windows 8.1, 10, Mac OS X 10.10, 10.11, 10.12
• Recommended Browser: Google Chrome
• Supported Browser: MS Internet Explorer 11, MS Edge, Mozilla Firefox (Windows 64-bit only), Apple Safari (Mac OS X only)
• Memory: 4096MB RAM, 512MB Flash
• Environmental

• Operating Temperature / Humidity: 0°C ~ +45°C(32°F ~ +122°F) / Less than 90% RH
• Storage Temperature / Humidity: -40°C ~ +65°C(-40°F ~ +149°F) / Less than 90% RH
• Certification: EMC
• EN 50130-4, EN 55032 Class A, EN 61000-6-3, EN 61000-3-2,
• EN 61000-3-3, EN 61000-6-1, FCC Part 15 Subpart B Class A,
• IC ICES-003 Class A,
• Safety
• UL 60950-1
• Electrical
• Input Voltage HPoE (IEEE802.3bt, Class5), 12VDC
• Power Consumption
• PoE: Maximum 30W, typical 20W
• 12VDC: Maximum 26W, typical 18W
• Mechanical

• Color / Material: Black / Aluminum
• Product dimensions / weight: 120(W)x118.1(H)x179(D)mm, 2.1Kg(4.55 lb)
• Package dimensions / weight: 9.842"(W)x 9.842"(D)x9.134"(H), 3.8Kg(8.38 lb)
