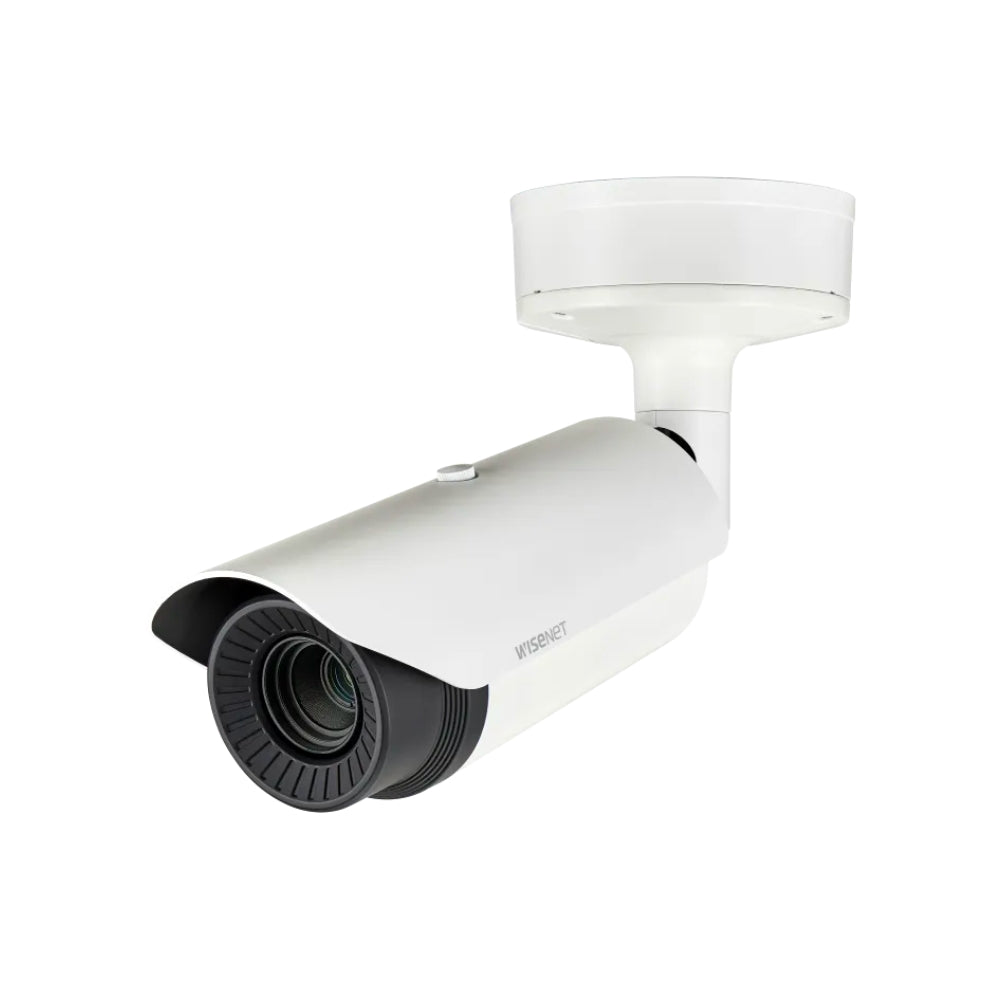

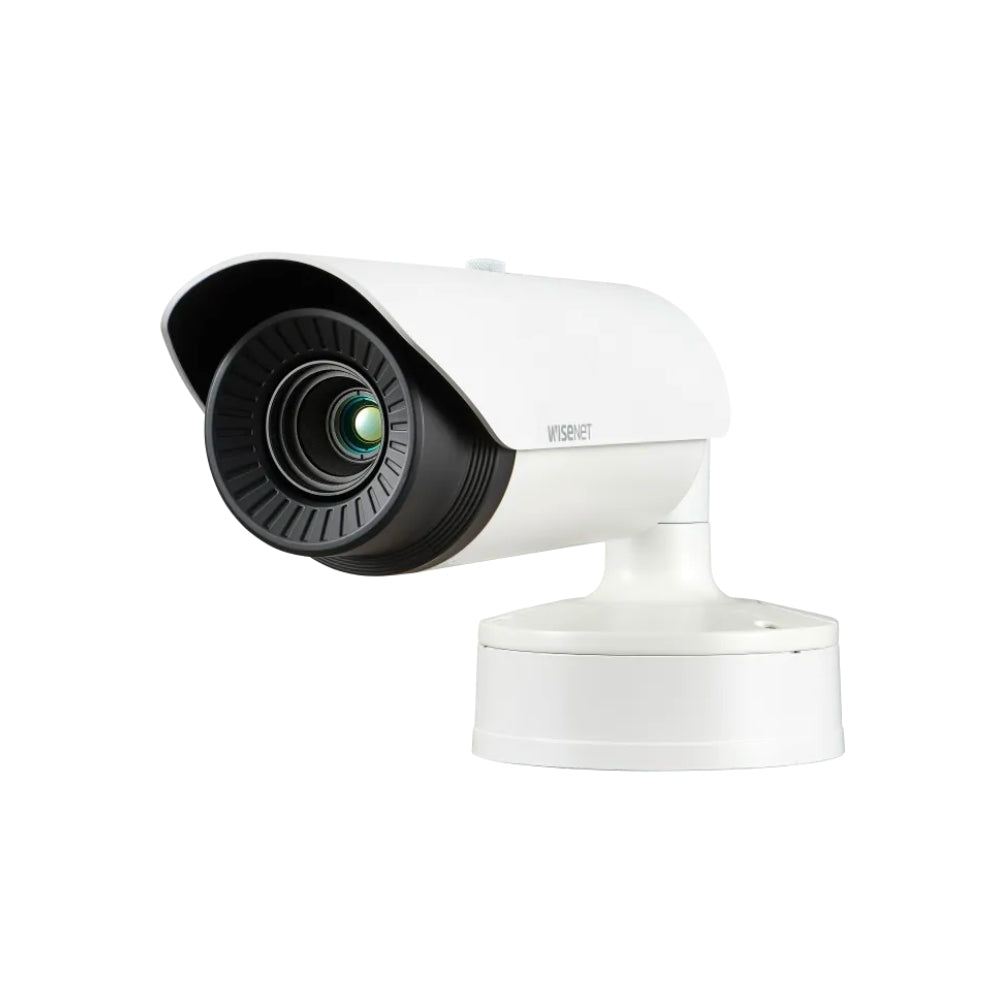

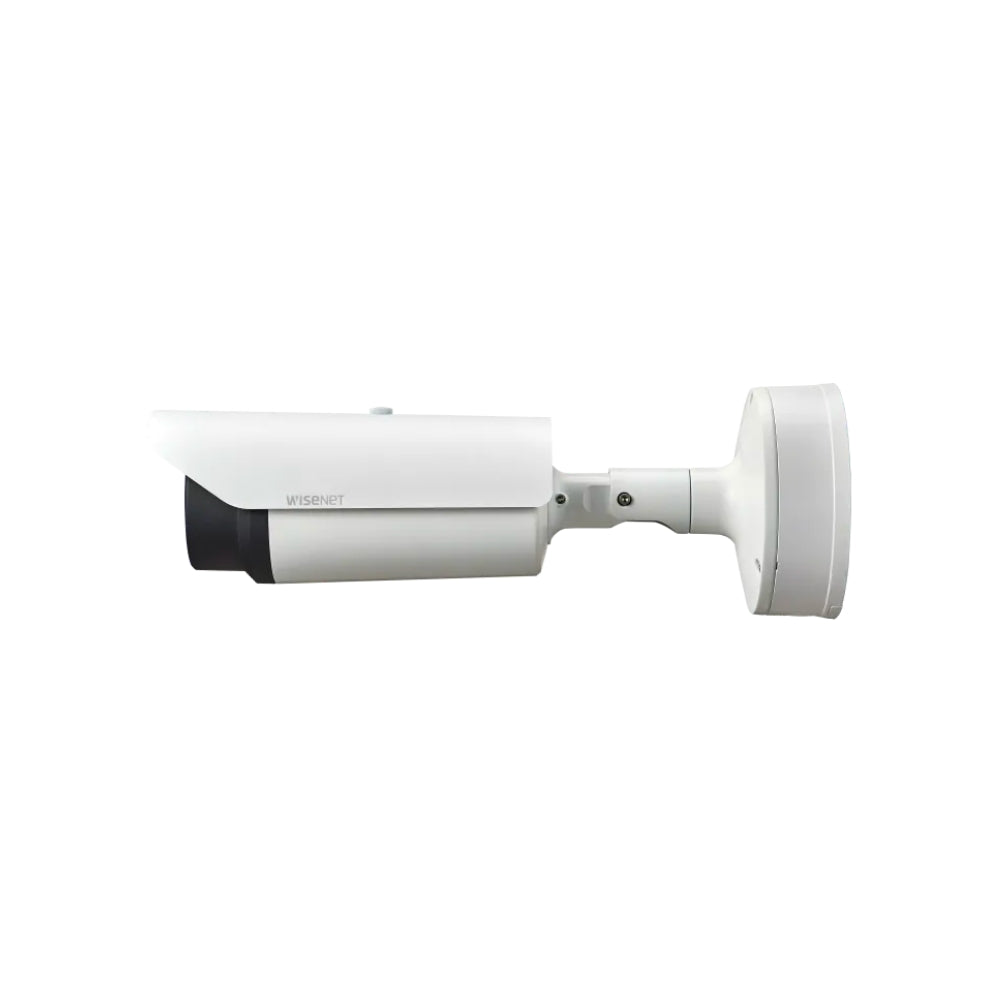

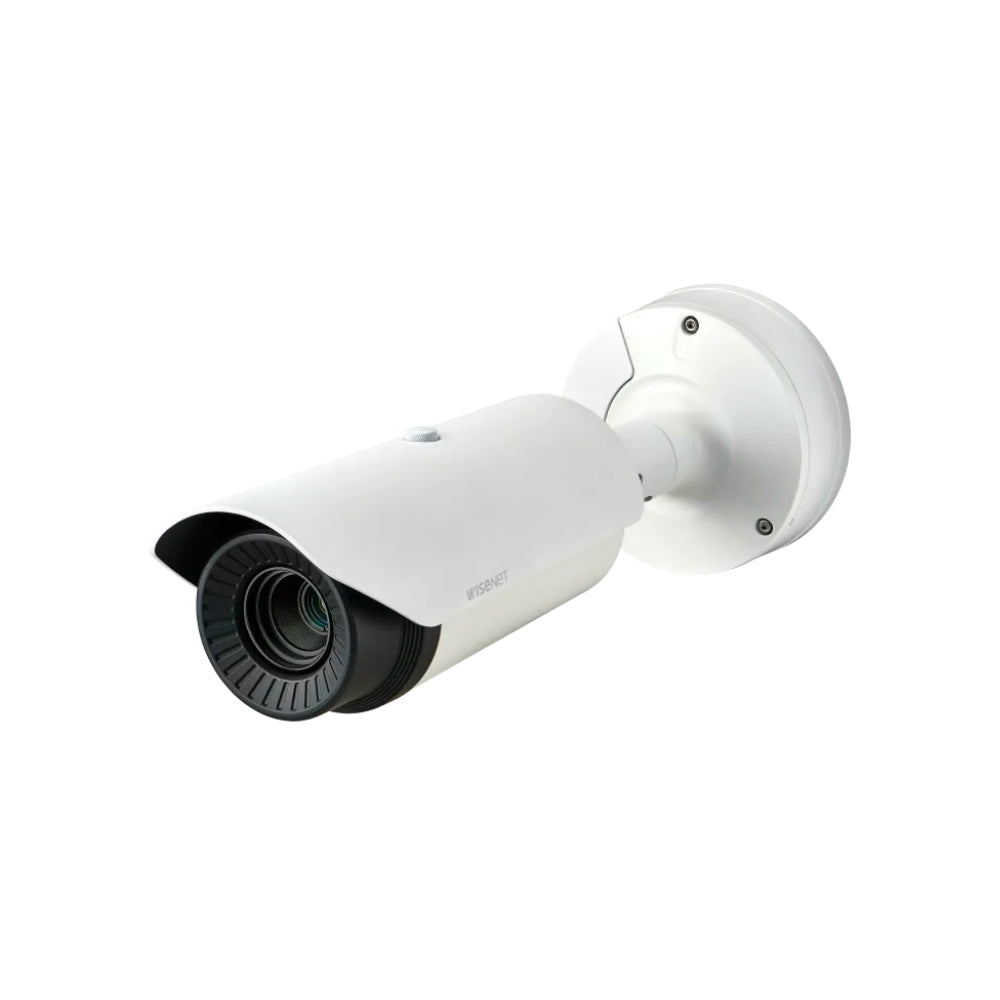

Hanwha Vision VGA Radiometric Thermal Bullet Camera | HAN-TNO-4030TR

Hanwha Vision VGA Radiometric Thermal Bullet Camera | HAN-TNO-4030TR

In challenging weather(fog, smoke, rain) or lighting conditions(complete darkness, backlight), it can be difficult to distinguish people or objects in a complex background by a visible camera or a human eye. For accurate monitoring purposes, a professional surveillance system is required. Wisenet thermal cameras are an excellent choice: they provide high-contrast images based on temperature differences between the object and background so that users can detect incidents more easily. The advanced thermal imaging technology provides high contrast to make the unseen details visible without additional lighting. The TNO-4030TR is a VGA radiometric thermal bullet network camera

Features

• High-resolution radiometric thermal VGA (640 x 480) resolution
• Built-in 13mm fixed lens
• 30fps@all resolutions(H.265, H.264, MJPEG)
• H.265, H.264, MJPEG triple codec support
• WiseStream II support
• 7 selectable color palettes
• User-defined area & spot temperature monitoring and alerting with average/minimum/maximum display
• Tampering, Loitering, Directional / Virtual Fence Line detection, Enter/ Exit, (Dis) appearance, Audio detection, Motion detection, Sound classification, Shock detection, Temperature change detection
• 2-way bi-directional audio & Alarm I/O support
• SD / SDHC / SDXC memory slot (Maximum 256GB)
• Operating temperature -40°F ~ +140°F
• PoE, 24V AC, 12V DC / IP66, NEMA4X, IK10

Technical Specifications

• Imaging Device: Uncooled microbolometer
• Resolution: 640x480, 640x360, 320x240
• Max. Framerate: H.265/H.264: Max. 30fps/25fps(60Hz/50Hz)
• MJPEG: Max. 30fps/25fps(60Hz/50Hz)
• NETD: ＜50mK
• Pixel Size: 17㎛
• Video Out:
• CVBS: 1.0 Vp-p / 75Ω composite, 720x480(N), 720x576(P) for installation
• USB: Micro USB Type B, 1280x720 for installation
• Focal Length (Zoom Ratio): 13mm fixed focal
• Max. Aperture Ratio: F1.0
• Angular Field of View: H: 48.6° / V: 36.4 / D: 61.6°
• Min. Object Distance: 5m(16.40ft)
• Focus Control: Fixed
• Camera Title: Displayed up to 85 characters
• Digital Image Stabilization: Support(built-in gyro sensor)
• Motion Detection: 8ea, 8point polygonal zones
• Privacy Masking: 24ea, polygonal zones
• - Color: Grey/Green/Red/Blue/Black/White
• - Mosaic
• Video Rotation: Flip, Mirror, Hallway view(90/270)
• Analytics: Directional detection, Motion detection, Appearance/Disappear, Enter/Exit, Loitering, Tampering, Virtual line, Audio detection, Temperature detection, Sound classification, Shock detection
• Alarm I/O: Input 1ea / Output 2ea
• Alarm Triggers: Analytics, Network disconnect, Alarm input, MQTT subscription
• Alarm Events: When alarm trigger occurred
• - File upload(image): e-mail/FTP
• - Notification: e-mail
• - Recording: SD/SDHC/SDXC or NAS recording at event triggers
• - Alarm output
• - Handover: PTZ preset
• - MQTT: publication
• Audio In: Selectable(mic in/line in)
• Supply voltage: 2.5VDC(4mA), Input impedance: 2K Ohm
• Audio Out: Line out, Max. output level: 1Vrms
• Color palettes: Whitehot, Blackhot, Rainbow, Rainbow2, Sepia, Red, Iron, Custom
• Temperature Detect Range: -20°C~130°C(-4°F~266°F)
• Temperature Accuracy: ±5°C(≤100°C), ±20%(>100°C)
• Temperature Detection: 6 Quadrangle ROI zones, whole FoV area
• Additional: Hybrid palettes, Spot temperature reading
• Ethernet: RJ-45(10/100BASE-T)
• Video Compression: H.265/H.264: Main/Baseline/High, MJPEG
• Audio Compression: G.711 u-law / G.726 Selectable
• G.726(ADPCM) 8KHz, G.711 8KHz
• G.726: 16Kbps, 24Kbps, 32Kbps, 40Kbps
• AAC-LC: 48Kbps at 16KHz
• Smart Codec: Manual(5ea area), WiseStreamⅡ
• Bitrate Control: H.264/H.265: CBR or VBR
• MJPEG: VBR
• Streaming: Unicast(20 users) / Multicast
• Multiple streaming(Up to 10 profiles)
• Protocol: IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour, LLDP, SRTP, MQTT
• Security: HTTPS(SSL) login authentication
• Digest login authentication
• IP address filtering
• User access log
• 802.1X authentication(EAP-TLS, EAP-LEAP)
• Application Programming Interface: ONVIF Profile S/G/T
• SUNAPI(HTTP API)
• Wisenet open platform
• Webpage Language: English, French, Italian, Spanish, German, Japanese, Russian, Swedish, Portuguese, Czech, Polish, Turkish, Dutch, Hungarian, Greek
• Edge Storage: Micro SD/SDHC/SDXC 1slot 256GB
• Memory: 1024MB RAM, 256MB Flash
• Operating Temperature / Humidity: -40°C ~ +60°C (-40°F ~ +140°F) / Less than 90% RH
• Storage Temperature / Humidity: -50°C ~ +60°C (-58°F ~ +140°F) / Less than 90% RH
• Certification: IP66, IK10, NEMA4X
• Input Voltage: PoE(IEEE802.3af, Class3), 24VAC, 12VDC
• Power Consumption: PoE: Max. 10W, typical 8.6W
• 12VDC: Max. 9W, typical 7.5W
• 24VAC: Max. 10.5W, typical 8.9W
• Color / Material: White / Aluminum
• RAL Code: RAL9003
• Product dimensions / weight: Φ101.97x401.8mm(4.01x15.82") / 3,124g(6.89lb)
