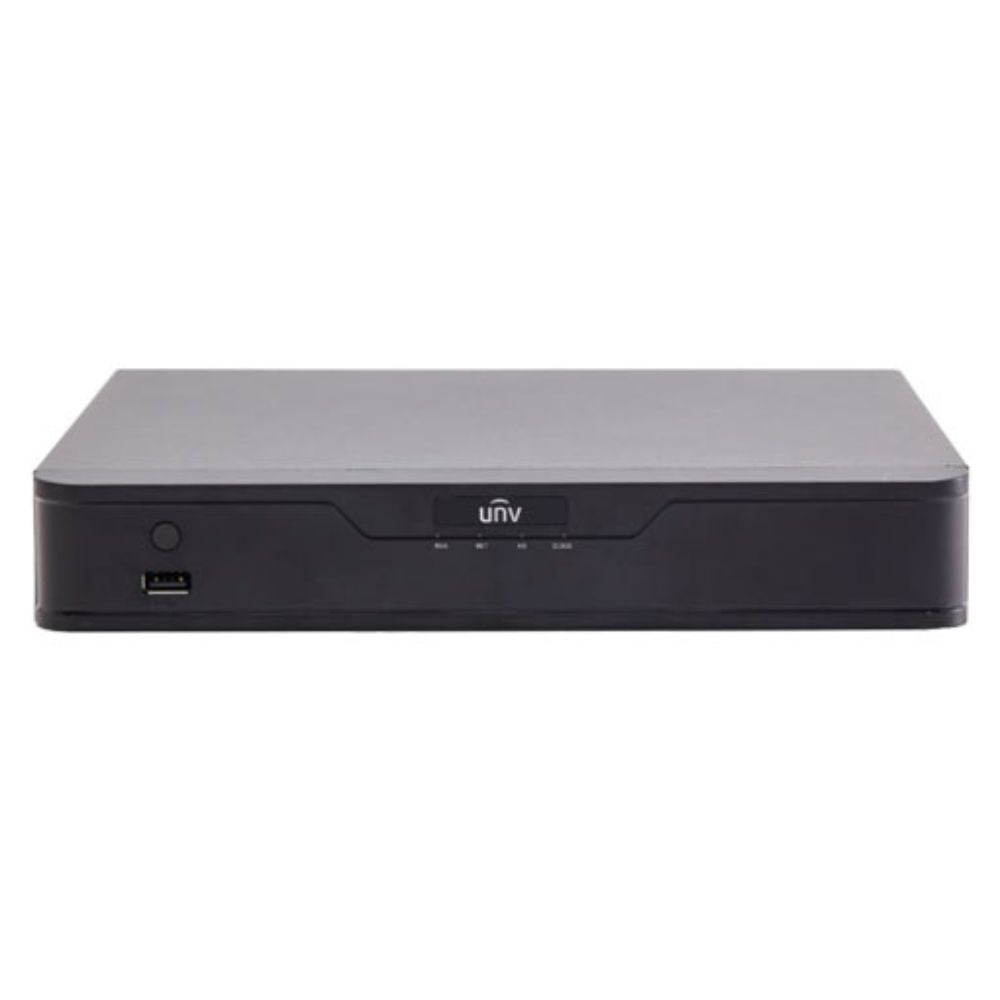

UNV 8/16-ch 2-SATA XVR Digital Video Recorder | UNV-XVR302-16Q3
With support for up to 8 or 16 channels, the UNV-XVR302-16Q3 caters to a range of surveillance needs, whether in small businesses, residences, or commercial establishments. The 2-SATA interface ensures ample storage capacity for video footage, allowing users to retain critical data for extended periods.
This XVR seamlessly integrates both analog and IP cameras, showcasing its adaptability to diverse camera technologies. This flexibility is particularly advantageous for users looking to upgrade or expand their existing surveillance infrastructure without the need for a complete overhaul.
Features
- Support TVI, AHD, CVI, CVBS, and IP cameras with adaptive access
- Support audio over coaxial cable
- 8/16-channel BNC input
- Up to 4K resolution for recording
- Support 1-ch HDMI output, 1-ch VGA output at up to 1920*1080
- Long transmission distance over coaxial cable
Technical Specifications
Video/Audio Input
- Analog Video Input: 16-ch, BNC
- IP Video Input: 8-ch (only IP up to 24ch), each channel up to 4K
- Supported Analog Camera Types
- Support AHD input: 8MP@15fps (channel 1, channel 4), 5MP@20fps, 4MP@30fps, 3MP@30fps (channel 1-channel 4), 1080P@30fps, 720P@60fps
- Support TVI input: 8MP@15fps (channel1-channel4), 5MP@20fps, 4MP@30fps, 3MP@20fps (channel1-channel4), 1080P@30fps, 720P@60fps
- Support CVI input: 8MP@15fps (channel1-channel4), 4MP@30fps, 1080P@30fps, 720P@60fps
- Support CVBS input
- Audio Input: 1-ch, RCA
- Two-way Audio: 1-ch, RCA
Network
- Incoming Bandwidth: 72Mbps
- Outgoing Bandwidth: 80Mbps
- Remote Users: 128
- Protocols: TCP/IP, P2P, UPnP, NTP, DHCP, PPPoE
Video/Audio Output
- CVBS Output: 1-ch, BNC
- VGA Output: 1920x1080p/60Hz, 1920x1080p/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz
- HDMI Output: 1920x1080p/60Hz, 1920x1080p/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz
- Audio Output: 1-ch, RCA
- Synchronous Playback: 16-ch
Encoding
- Recording Resolution: 8MP Lite/5MP Lite/4MP Lite / 3MP/ 1080P/ 960P/ 720P/ 960H/ 4CIF/ CIF
- Recording Frame Rate: Main stream: 8MP Lite@8fps(channel1-channel4), 5MP Lite@12fps, 4MP Lite@15fps, 3MP@15fps(channel1-channel4), 2MP@15fps, 720P@30fps
- Substream: D1@30fps (Max)
Hard Disk
- SATA: 2 SATA interfaces
- Capacity: up to 6TB for each HDD
External Interface
- Network Interface: 1 RJ45 10M/100M/1000M self-adaptive Ethernet Interface
- USB Interface: Rear panel: 1 x USB3.0, Front panel: 1xUSB2.0
- Serial Interface: 1 x RS485
General
- Power Supply: 12V DC
- Power Consumption: ≤ 12 W (without HDD)
- Working Environment: -10°C~+ 55°C (+14°F~+131°F), Humidity ≤ 90% RH (non-condensing)
- Dimensions (W×D×H): 380mm ×315mm× 53mm (15" × 12.4"×2.1")
- Weight (without HDD): ≤1.9 Kg (4.19lb)
