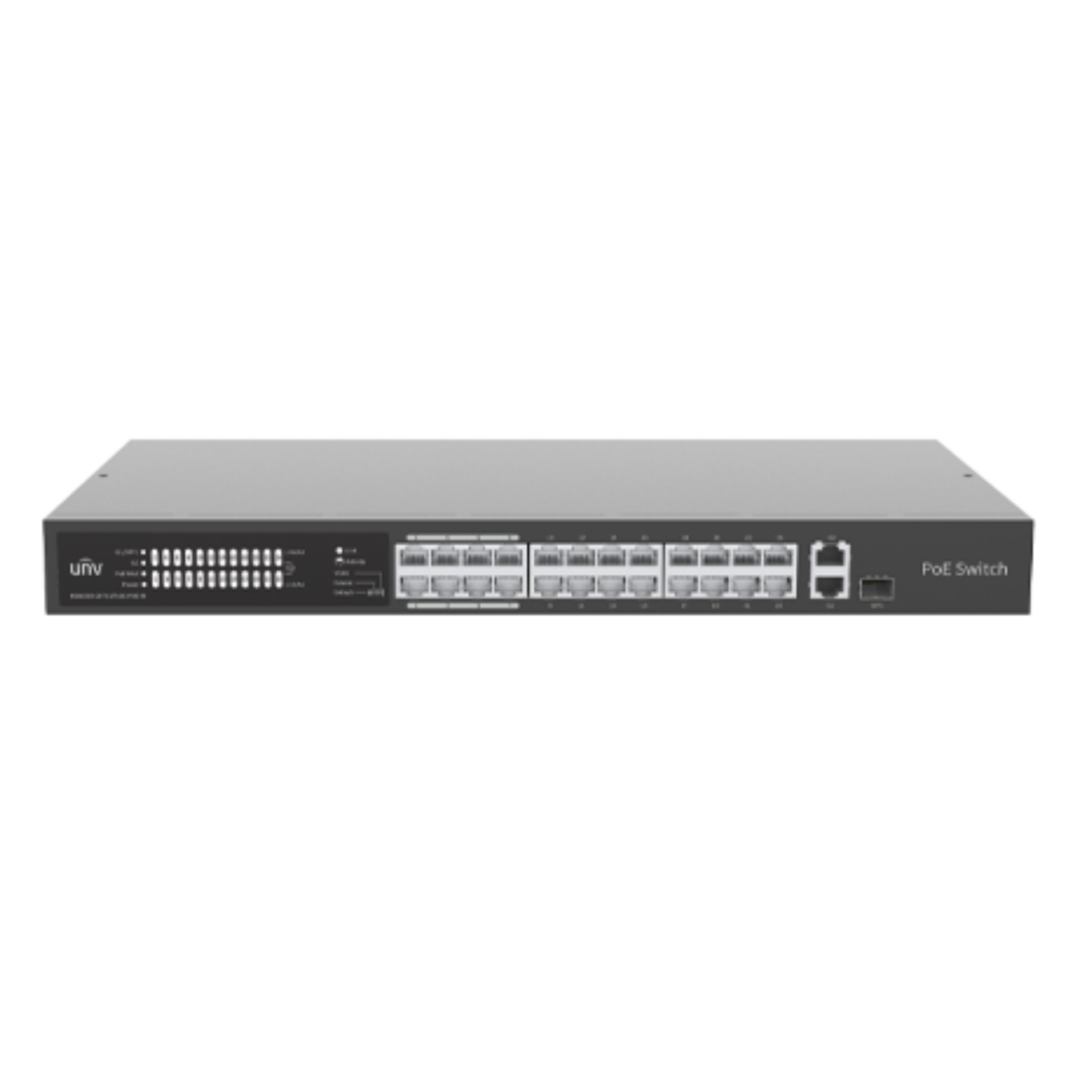

UNV Ethernet Switch Host | UNV-NSW2020-24T1GT1GC-POE-IN
Introducing the UNV Ethernet Switch Host, model UNV-NSW2020-24T1GT1GC-POE-IN. This Ethernet switch is designed to provide efficient and reliable network connectivity, featuring a range of ports and Power over Ethernet (PoE) capabilities for enhanced functionality.
Features
- Multiple working modes to address your business needs: Default(Normal mode), VLAN(Secure mode), EXTEND(Surveillance mode)
- Support port traffic control
- Support for secure mode, all downlink ports can communicate only with uplink ports
- Up to 250m transmission distance on surveillance mode
- Support buffer optimization
- All metal housing, safe and reliable
Technical specification
- Ports: 24×100Mbps PoE ports (RJ45) + 1×1000Mbps Gigaethernet ports +1×1000Mbps Combo ports
- Standards: IEEE802.3u,IEEE802.3z, IEEE802.3ab, IEEE802.3x,IEEE802.3af,IEEE802.3at,IEEE802.3az
- Switching capacity: 8.8Gbps
- Forwarding performance: 6.55Mpps
- Packet Buffer: 4Mbit
- MAC: 16K
- Dimensions (W×D×H): 17.32*9.63*1.73 INCHES
- Weight: 2.93KG
- Power supply: AC: 100-240V, 50/60Hz
- PoE: 802.3at/af （4/5+，7/8-）
- Max. PoE Power:
- Max capacity: 370W
- Max capacity for single port: 30W
- Prior Ports: 1~8
- Cooling Fans: 1
- Operating temperature: 0°C-40°C (32°F-104°F)
- Operating humidity: 10%～90% (noncondensing)
- Storage humidity: 5%～90% (noncondensing)
- Indicator POWER:
- Steady on: AC input is normal
- Off: No AC input
- PoE power supply
- Steady on: PoE power supply is normal
- PoE-MAX off: The POE power supply power of the whole machine is less than 80% of the specification
- Steady on: The POE power supply power of the whole machine is greater than 85% of the specification
- LINK/AC: Off: No link Steady on Linked Flashing: Transmitting data
- Working Mode:
- Default(Normal mode): All ports can communicate with each other.
- VLAN(Secure mode): Downlink ports can communicate only with uplink ports. Enabling the PD keepalive function, the switch will restart the IPC via PoE power when the IPC sends no message in a period.
- Extend(Surveillance mode): Transmission distance up to 250 meters. Downlink ports can communicate only with uplink ports.
