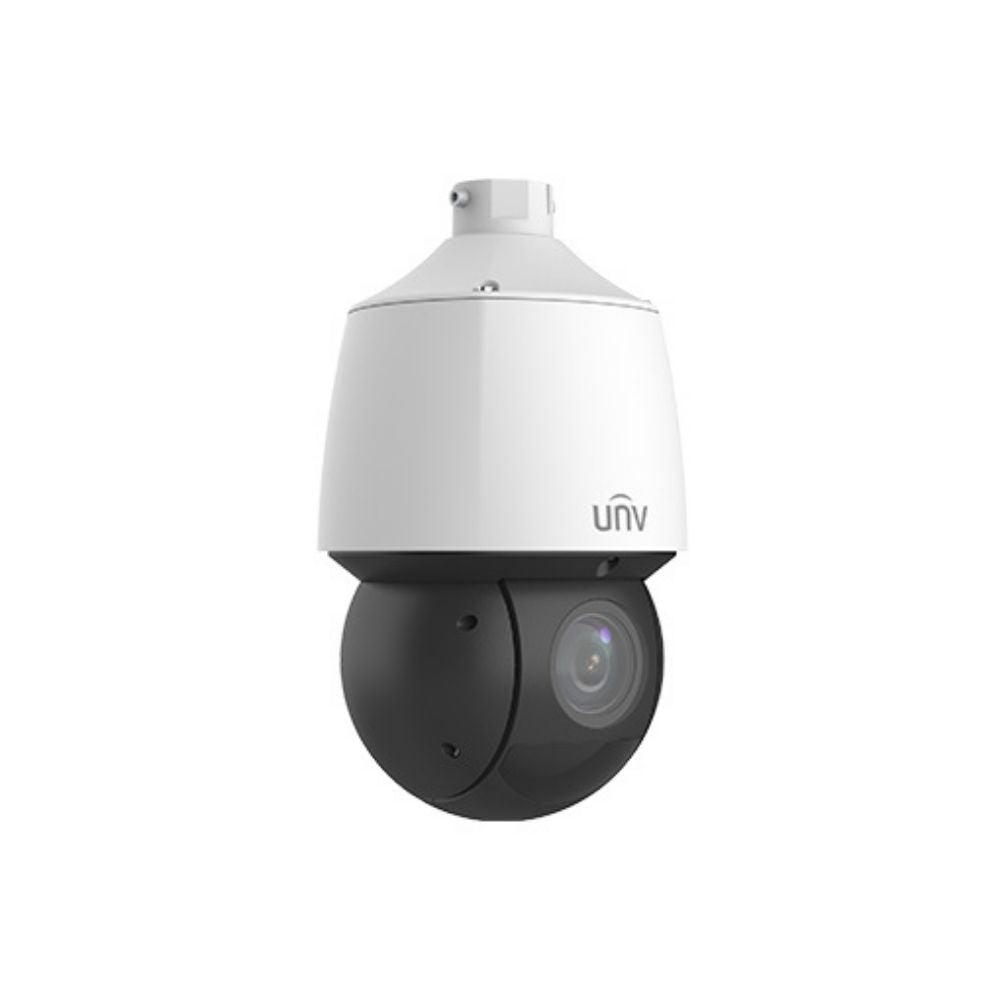

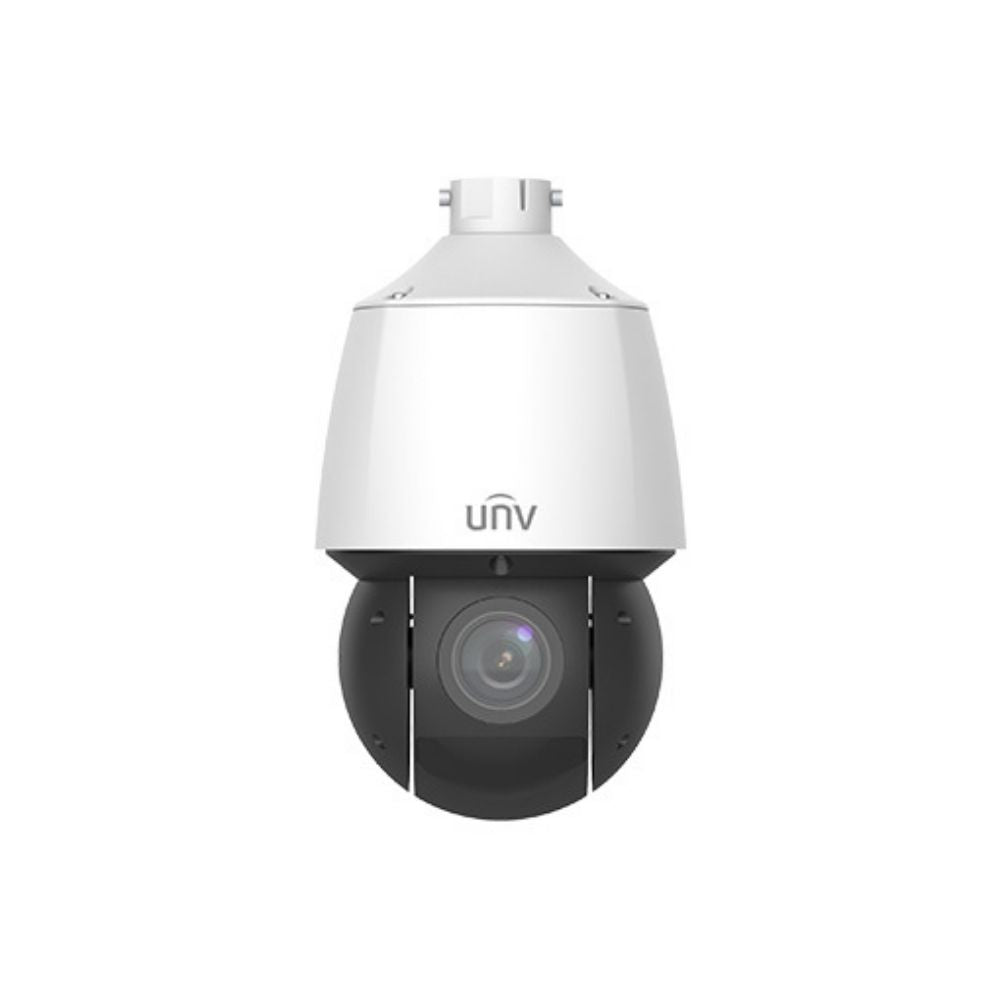

UNV 4MP 25x Lighthunter Network PTZ Dome Camera | UNV-IPC6424SR-X25-VF

Free US Shipping
UNVSKU: UNV-IPC6424SR-X25-VF

Price:
Sale price$1,079.00

Estimate shipping

UNV 4MP 25x Lighthunter Network PTZ Dome Camera | UNV-IPC6424SR-X25-VF

Experience superior surveillance capabilities with the UNV 4MP 25x Lighthunter Network PTZ Dome Camera. This cutting-edge camera offers a wide range of features and technical specifications designed to provide high-quality monitoring and security in various environments. Here's what makes it stand out:

Features
  • High-quality image with 4MP,1/2.8’’ CMOS sensor
  • 2688*1520@30fps in the mainstream
  • Ultra 265, H.265, H.264, MJPEG
  • Triple streams
  • 25X Optical Zoom
  • Lighthunter technology ensures ultra-high image quality in a low illumination environment
  • Smart IR, up to 100m (328ft) IR distance
  • DC 12V±25% or PoE+ (IEEE 802.3at)
  • Alarm 2 in and 1 out, Audio 1 in and 1 out
  • IP67 ingress protection
  • IK10 vandal resistant
Technical Specifications

Camera

  • Image Sensor: 1/2.8", 4.0 megapixel, progressive scan, CMOS
  • Minimum Illumination: Colour: 0.003 Lux (F1.5, AGC ON) 0 Lux with IR
  • Day/Night: IR-cut filter for day & night function
  • Shutter: Auto/Manual, shutter time: 1~1/100000 s
  • WDR: 120dB
  • S/N: >56dB
  • Lens type: 4.8 ~ 120mm, AF automatic focusing and motorized zoom lens
  • Digital Zoom: 16
  • Optical Zoom: 25
  • Iris: Auto; F1.5 ~ F3.8
  • Angle of View (H): 52.20°~2.74°
  • Angle of View (V): 30.81°~1.54°
  • Angle of View (O): 64.20°~3.23°
  • DORI Distance
    • Detect (m): 119.3(391.2ft)
    • Observe (m): 47.7(156.5ft)
    • Recognize (m): 23.9(78.2ft)
    • Identify (m): 11.9(39.1ft)
  • IR Range: Up to 100m (328 ft) IR range
  • Wavelength: 850nm
  • IR On/Off Control: Auto/Manual

Video

  • Compression: Ultra 265, H.265, H.264, MJPEG
  • Frame Rate
    • Main Stream: 4MP(2688*1520),Max 30fps;
    • Sub Stream: 2MP (1920*1080), Max 30fps;
    • Third Stream: D1 (720*576), Max 30fps;
  • Video Bit Rate: 128 Kbps~16 Mbps
  • U-code: Support
  • ROI: Support
  • Video Stream: Triple streams
  • OSD: Up to 8 OSDs
  • Privacy Mask: 24 areas, up to 4 areas per scene


  • White Balance: Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2
  • Digital noise reduction: 2D/3D DNR
  • Smart IR: Support
  • Flip: Normal/Flip Vertical/ Flip Horizontal/180°
  • HLC: Support
  • BLC: Support
  • Defog: Digital Defog

Events

  • Basic Detection: Motion detection, Audio detection, Tampering Alarm
  • Auto Tracking: Support
  • General Function: Watermark, IP Address Filtering, Alarm input, Alarm output, Access Policy, ARP Protection, RTSP Authentication, User Authentication

Audio

  • Audio Compression: G.711U,G.711A
  • Audio Bitrate: 64 Kbps
  • Two-way audio: Supported
  • Suppression: Supported
  • Sampling Rate: 8 KHZ

Storage

  • Edge Storage: Micro SD, up to 256GB
  • Network Storage: ANR, NAS (NFS)

Network

  • Protocols: IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS, RTMP,SSL/TLS
  • Compatible Integration: ONVIF (Profile S, Profile G, Profile T), API, SDK
  • User/Host: Up to 32 users. 2 user levels: administrator and common user
  • Security: Password protection, Strong password, HTTPS encryption, Export operation logs, Basic and digest authentication for RTSP, Digest authentication for HTTP, TLS 1.2, WSSE, and digest authentication for ONVIF
  • Client:  EZStation / EZView / EZLive
  • Web Browser: Plug-in required live view: IE9+, Chrome 41 and below, Firefox 52 and below

Pan & Tilt

  • Pan Range: 360° (endless)
  • Pan Speed: 0.1°/s ~ 200°/s - Preset speed: 240°/s
  • Tilt Range: –15° ~ 90° (auto-reverse)
  • Tilt Speed: 0.1°/s ~ 120°/s - Preset speed: 200°/s
  • Number of Presets: 1024
  • Preset Patrol: 16 patrols, up to 64 presets for each patrol
  • Route Patrol: 16 patrols, up to 32 actions for each patrol
  • Recorded Patrol: 16 patrols, up to 128 actions for each patrol
  • Patrol Stay Time: 15s~1800s
  • Preset Image Freeze: Support
  • Home Position: Support

Interface

  • Audio I/O: 1/1
  • Alarm I/O: 2/1
  • Serial Port: 1 RS485
  • Built-in Mic: N/A
  • Built-in Speaker: N/A
  • WIFI: N/A
  • Network: 1 * RJ45 10M/100M Base-TX Ethernet
  • Video Output: 1 BNC

Certifications

  • EMC
    • FCC Part 15
    • EN 55032:2015
    • EN 55024:2010
    • EN 61000-3-2:2014
    • EN 61000-3-3-2013
  • Safety
    • IEC 62368-1
    • EN 62368-1
    • UL 60950-1
  • Environment: CE-ROHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU); REACH (Regulation (EC) No 1907/2006)

General

  • Power: DC12V(±25%,3A), PoE+(IEEE 802.3at)
  • Power consumption: MAX 21W
  • Power Interface: Ø 5.5mm coaxial power plug
  • Dimensions (Ø x H): Ø166 x 295mm (Ø6.5” x 11.6”)
  • Weight: 3.05kg (6.72lb)
  • Material: Metal + Plastic
  • Working Environment: -40℃~70℃(-40°F ~ 158°F),Humidity: ≤95% RH (non-condensing)
  • Storage Environment: -40℃~70℃(-40°F ~ 158°F),Humidity: ≤95% RH (non-condensing)
  • Surge Protection: 6KV
  • Reset Button: Supported
  • Protection
    • Ingression protection: IP67
    • Vandal-resistant: IK10
