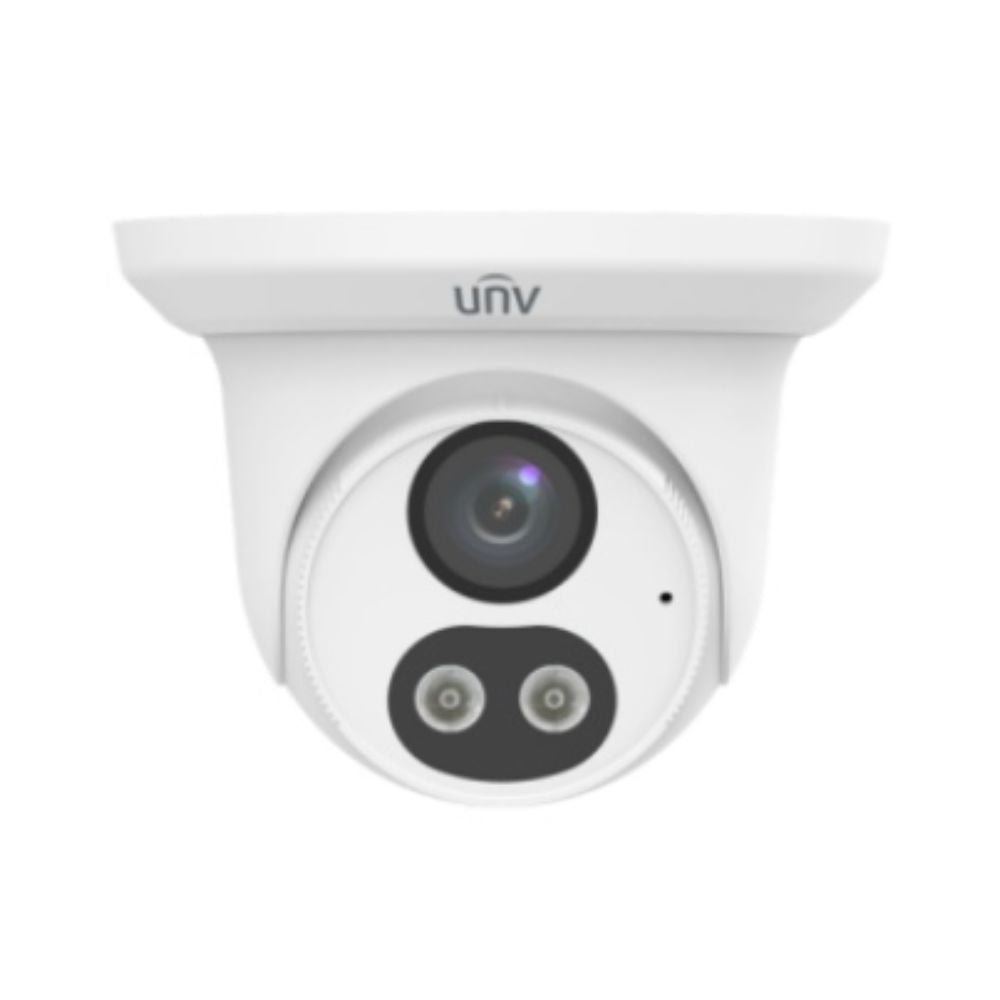

UNV IPC3615LB-AF28K-DL 5MP HD ColorHunter Fixed Eyeball Network Camera

• High quality image with 5MP, 1/3"CMOS sensor
• 5MP (2880*1620)@ 20fps; 4MP (2560*1440)@ 25/20fps; 3MP (2304*1296) @30/25fps; 2MP (1920*1080) @30/25fps
• Ultra H.265,H.265, H.264
• Support 9:16 Corridor Mode
• Built in Mic
• Smart IR, up to 30m (98ft) IR distance
• Warm Light, up to 30m (98ft) warm light distance
• 2D/3D DNR (Digital Noise Reduction)
• Support 128GB Micro SD card
• IP67 protection
• Support PoE power supply
• 3 Axis

• Camera
• Resolution: 5MP
• Sensor: 1/3.0" CMOS
• Min. Illumination Colour: 0.01 lux ( F1.6, AGC ON)
• 0 lux with IR
• Day/Night: IR‑cut filter with auto switch (ICR)
• Shutter: Auto/Manual, 1 ~ 1/100000s
• Adjustment angle: Pan: 0° ~ 360°, Tilt: 0° ~ 80°,
• Rotate: 0° ~ 360°
• S/N>52dB
• WDR: DWDR
• LensDescription
• Lens type: 2.8mm
• Iris Type: Fixed
• Iris: F1.6
• Field of View (H): 97.0°
• Field of View (V): 52.2°
• Field of View (D): 107.5°
• DORI
• DORI Distance（Lens）: 2.8mm
• DORI Distance（Detect）: 63.0m(206.7t)
• DORI Distance（Observe）: 25.2m(82.7ft)
• DORI Distance（Recognize）: 12.6m(41.3ft)
• DORI Distance（Identify）: 6.3m(20.7ft)
• IlluminatorDescription
• Illumination Distance(IR): 30m
• Illumination Distance(Warm Light): 30mW
• Wavelength: 850nm
• IR On/Off Control: Auto/Manual
• VideoDescription
• Video Compression: Ultra 265; H.265; H.264;MJPEG H.264 code profile: Baseline profile, Main profile, High profile
  Frame Rate: Main Stream: 5MP (28801620)@ 20fps; 4MP (25601440), Max 25fps; 3MP (23041296), Max 30fps; 1080P (19201080), Max 30fps; 720P (1280*720), Max 30fps
  Sub Stream: D1 (720576), Max 30fps; 640360,Max 30fps; 2CIF(704288), Max 30fps; CIF(352288), Max 30fps;
• Video Bit Rate: 128 Kbps~6144 Kbps
• U-code: Support
• OSD: Up to 4 OSDs
• Privacy Mask: Up to 4 areas
• ROI: Up to 8 areas
• Video stream: Dual streams
• Image
• White Balance: Auto; Outdoor; Fine Tune; Sodium Lamp; Locked; Auto2
• Digital noise reduction: 2D/3D DNR
• Smart IR: Support
• Flip: Normal; Flip Vertical; Flip Horizontal; 180°; 90°Clockwise; 90°Anti‑clockwise
• Dewarping: N/A
• HLC: Support
• BLC: Support
• Defog: Digital Defog
• Events
• Basic Detection: Motion detection; Tampering alarm; Audio detection
• General Function
• Watermark; IP Address Filtering; Access Policy; ARP Protection; RTSP Authentication; User Authentication; HTTP authentication
• Audio
• Audio Compression: G.711U; G.711A
• Audio Bitrate: 64 Kbps
• Two-way Audio: N/A
• Suppression: Support
• Sampling Rate: 8KHZ
• Storage:
• Edge Storage: Micro SD，up to 128 GB
• Network Storage: ANR; NAS(NFS)
• Network
• Protocols: IPv4; IGMP; ICMP; ARP; TCP; UDP; DHCP; RTP; RTSP; RTCP; RTMP; DNS; DDNS; NTP; FTP; UPnP; HTTP; HTTPS; SMTP; QoS; SSL/TLS; SNMP
• Compatible Integration: ONVIF (Profile S, Profile G, Profile T); API; SDK
• User/Host: Up to 32 users, 2 user levels: administrator and common user
• Security
• Password protection; Strong password; HTTPS encryption; Export operation logs; Basic and digest authentication for RTSP; Digest authentication for HTTP; TLS 1.2; WSSE and digest authentication for ONVIF
• Client
• UNV‑Link; UNV‑Link Pro; EZStation
• Web Browser: Plug‑in required live view: IE 10 and above, Chrome 45 and above, Firefox 52 and above, Edge 79 and above; Plug-in free live view: Chrome 57.0 and above, Firefox 58.0 and above, Edge 16 and above
  InterfaceDescription
• Audio I/O: N/A
• Alarm I/O: N/A
• Serial Port: N/A
• Built-in Mic: Support
• Built-in Speaker: N/A
• WIFI: N/A
• Network: 1 * RJ45 10M/100M Base‑TX Ethernet
• Video Output: N/A
• Certification
• EMC: CE‑EMC (EN 55032, EN 61000‑3‑3, EN IEC 61000‑3‑2, EN 50130)
  FCC (FCC 47 CFR part15 B)
• Safety: CE LVD (EN 62368‑1)
  UL/CUL (UL 62368‑1, CAN/CSA C22.2 No. 62368‑1)
• Environment: CE‑RoHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU);
• Protection: IP67 (IEC 60529)
• General:
• Power: DC 12V±25%, PoE (IEEE 802.3af)
• Power consumption: Max 2.8W
• Power Interface: Ø 5.5mm coaxial power plug
• Dimensions: Φ126 x 93.6mm (Φ5.0” x 3.7”)
• Weight: 0.29kg (0.64lb)
• Material: Metal + Plastic
• Working Environment: ‑30 °C ~ 60 °C (‑22 °F ~ 140 °F), Humidity: ≤95% RH (non‑condensing)
• Storage Environment: ‑30 °C ~ 60 °C (‑22 °F ~ 140 °F), Humidity: ≤95% RH (non‑condensing)
• Surge protection: 4KV
• Reset button: N/A
• Web Client Language: 4 Languages
  English, Russian, Spanish, Vietnamese
