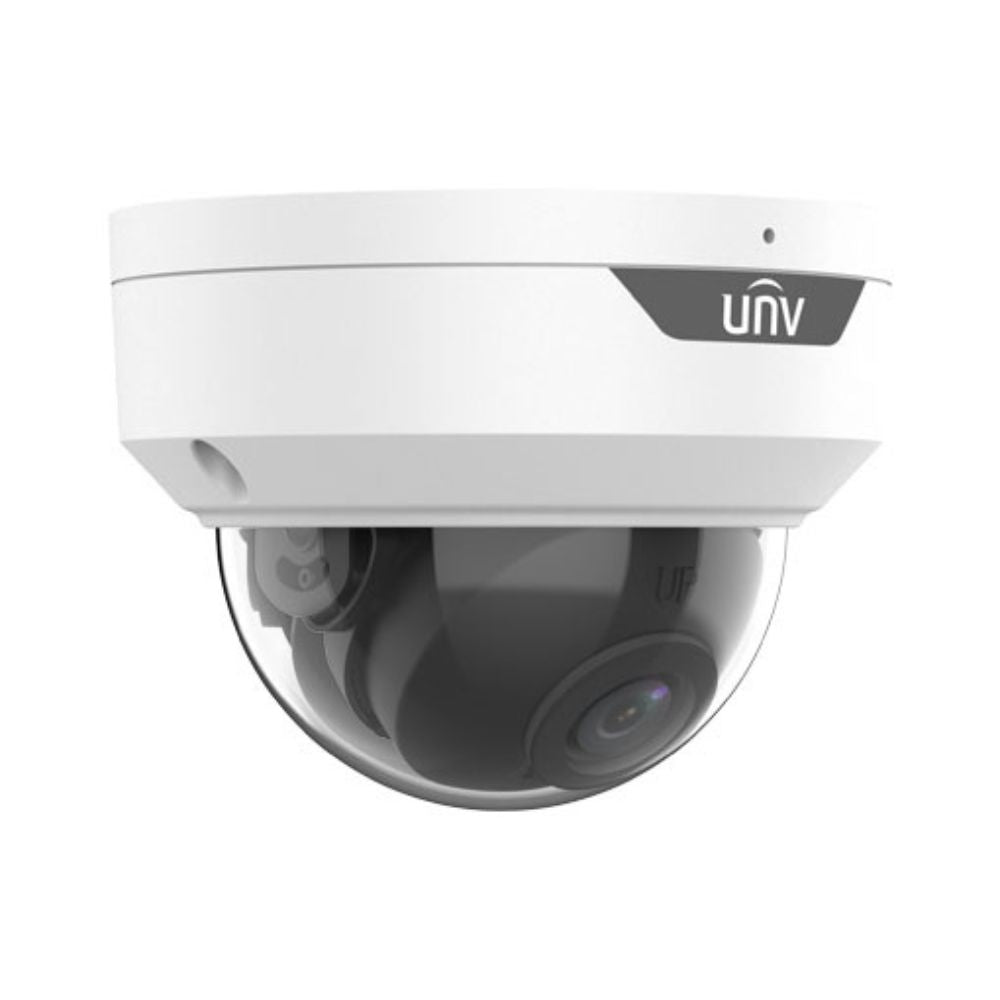

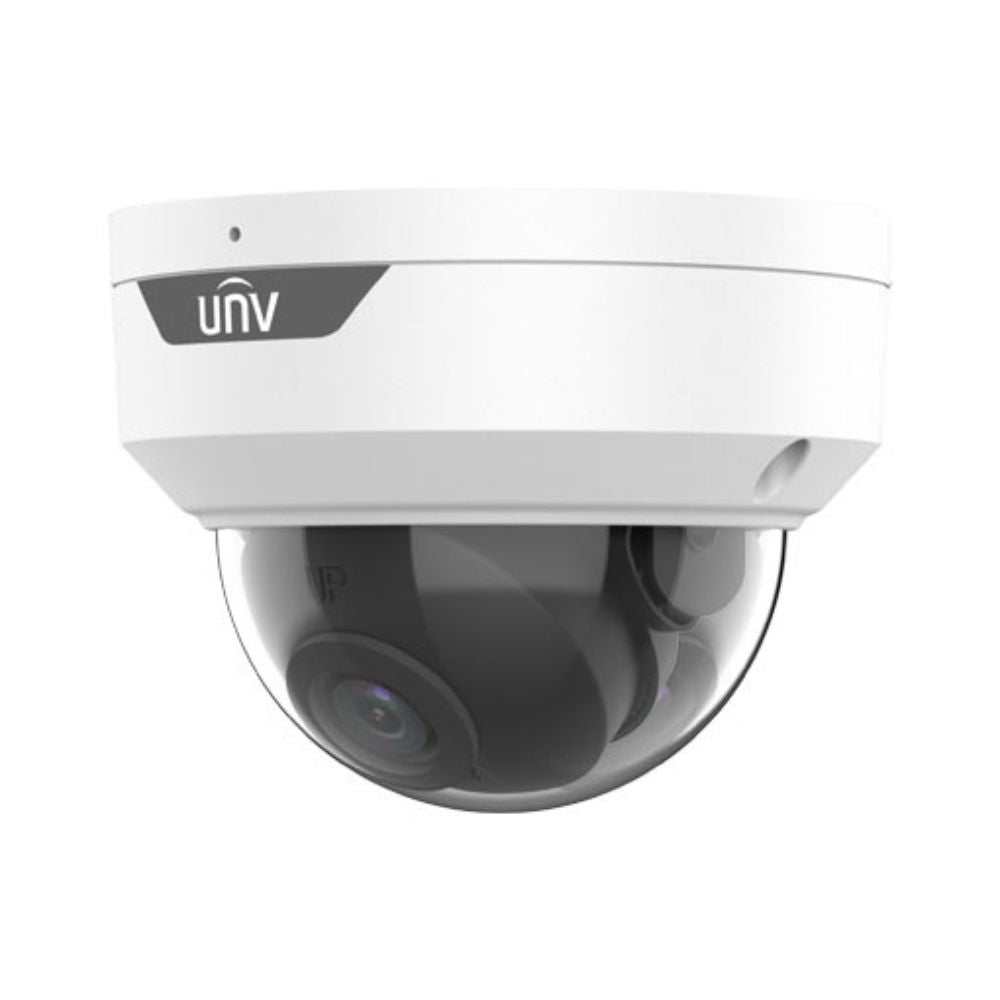

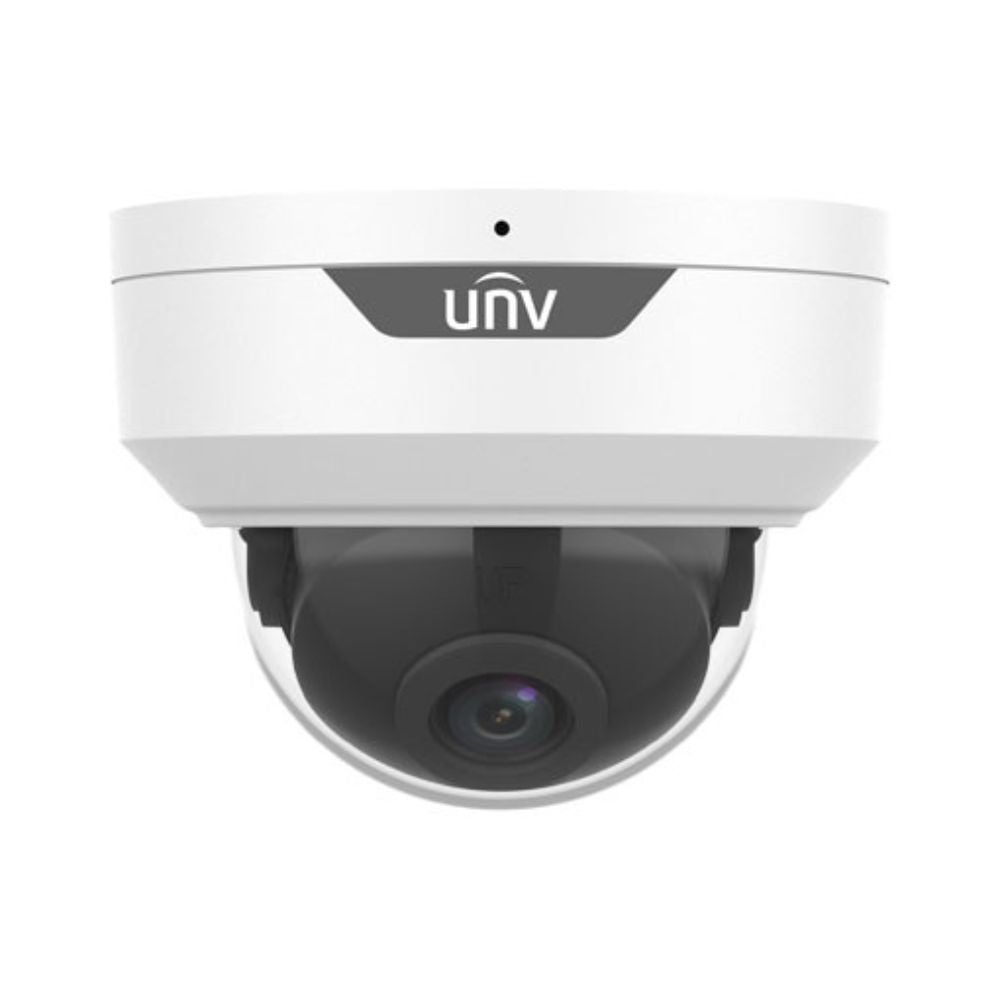

UNV 4K HD Vandal-resistant IR Fixed Dome Network Camera (Only for USA) | UNV-IPC328SR3-ADF28KM-G

Free US Shipping
UNVSKU: UNV-IPC328SR3-ADF28KM-G

From Price:
Sale price$359.00

Estimate shipping

UNV 4K HD Vandal-resistant IR Fixed Dome Network Camera (Only for USA) | UNV-IPC328SR3-ADF28KM-G

Introducing the UNV 4K HD Vandal-resistant IR Fixed Dome Network Camera (Only for USA) - UNV-IPC328SR3-ADF28KM-G — your steadfast guardian in the realm of surveillance and security. Designed for the rigorous demands of the United States market, this advanced dome camera offers a plethora of cutting-edge features and specifications that make it an unparalleled choice for safeguarding your premises.

Features
  • High-quality image with 8MP, 1/2.7"CMOS sensor
  • 8MP (3840*2160)@20fps; 5MP (3072*1728)@30/25fps; 4MP(2560*1440)@30/25fps; 2MP (1920*1080) @30/25fps
  • Ultra 265, H.265, H.264, MJPEG
  • LightHunter technology ensures high image quality in a low illumination environment
  • 120dB true WDR technology enables a clear image in a strong light scene
  • Support 9:16 Corridor Mode
  • Built-in Mic
  • Smart IR, up to 30m (98ft) IR distance
  • Supports 256 G Micro SD card
  • IK10 vandal resistant
  • IP67 protection
  • Support PoE power supply
  • 3-Axis
Technical Specifications

Camera

  • Sensor: 1/2.7", 8.0 megapixel, progressive scan, CMOS
  • Minimum Illumination
    • Support LightHunter: Colour: 0.005Lux ( F1.6, AGC ON) 0Lux with IR on
  • Day/Night: IR-cut filter with auto switch (ICR)
  • Shutter: Auto/Manual, 1 ~ 1/100000s
  • Adjustment angle
    • Pan: 8° to 360°
    • Tilt: 0° to 68°
    • Rotate: 10° to 360°
  • WDR: 120dB
  • S/N: >56dB
  • Lens Type: 2.8mm and 4.0mm @1.6, Fixed-focal
  • Lens Mount: M12
  • Angle of View (H): 112.9°
  • Angle of View (V): 59.1°
  • Angle of View (O): 121.2°
  • DORI Distance
    • Lens (mm): 2.8
    • Detect (m): 84
    • Observe(m): 33.6
    • Recognize (m): 16.8
    • Identify (m): 8.4
  • IR Range: Up to 30m (98ft)
  • Wavelength: 850nm
  • IR On/Off Control: Auto/Manual

Video

  • Video Compression: Ultra 265, H.265, H.264, MJPEG
  • H.264 Code Profile: Baseline Profile, Main Profile, High Profile
  • Frame Rate
    • Main Stream: 8MP (3840*2160), Max 20fps; 5MP (3072*1728), Max 30fps; 4MP (2560*1440), Max 30fps; 1080P (1920*1080), Max 30fps;
    • Sub Stream: 1080P (1920*1080), Max 30fps;720P (1280*720), Max 30fps; D1 (720*576), Max 30fps; 640*360,Max 30fps; 2CIF(704*288), Max 30fps; CIF(352*288), Max 30fps;
    • Third Stream: D1 (720*576), Max 30fps; 640*360,Max 30fps; 2CIF(704*288), Max 30fps; CIF(352*288), Max 30fps;
  • Video Bit Rate: 128 Kbps~16 Mbps
  • U-code: Supported
  • 9:16 Corridor Mode: Supported
  • ROI: Up to 8 areas
  • OSD: Up to 4 OSDs
  • Privacy Mask: Up to 4 areas
  • ROI: Up to 8 areas
  • Motion Detection: Up to 4 areas


  • White Balance: Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2
  • Image Setting: Image rotation, brightness, saturation, contrast, sharpness, gain adjustable by web browser
  • Digital Noise Reduction: 2D/3D DNR
  • Smart IR: Support
  • Flip: Normal/Vertical/Horizontal/180°/90°Clockwise/90°Anti-clockwise
  • Dewarping: N/A
  • HLC: Supported
  • BLC: Supported
  • Defog: Digital Defog

Events

  • Basic Detection
    • Cross line, intrusion (based on human body detection)
    • Motion detection, tampering alarm, audio detection
  • General Function: Watermark, IP address filtering, access policy, ARP protection, RTSP authentication, user authentication, HTTP authentication

Audio

  • Audio Compression: G.711
  • Suppression: Supported
  • Sampling Rate: 8KHZ

Storage

  • Edge Storage: Micro SD, up to 256GB
  • Network Storage: ANR, NAS (NFS)

Network

  • Protocols: IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, RTMP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, SSL/TLS, 802.1x, SNMP
  • Compatible Integration: ONVIF (Profile S, Profile G, Profile T), API, SDK
  • User/Host: Up to 32 users. 2 user levels: administrator and common user
  • Security: Password protection, Strong password, HTTPS encryption, Export operation logs, Basic and digest authentication for RTSP, Digest authentication for HTTP, TLS 1.2, WSSE and digest authentication for ONVIF
  • Client: EZStation/EZView/EZLive
  • Web Browser
    • Plug-in required live view: IE9+, Chrome 41 and below, Firefox 52 and below
    • Plug-in free live view: Chrome 57.0+, Firefox 58.0+, Edge 16+

Interface

  • Network: 1 * RJ45 10M/100M Base-TX Ethernet
  • Built-in Mic: Supported

Certifications

  • EMC: FCC Part 15
  • Safety
    • CE: EN 60950-1
    • UL: UL60950-1
    • IEC 60950-1

General

  • Power: DC 12V±25%, PoE (IEEE 802.3af)
  • Power consumption: Max 4.5W
  • Power Interface: Ø 5.5mm coaxial power plug
  • Dimensions (Ø x H): Φ109 x 83mm (Φ4.3” x 3.3”)
  • Weight: 0.37kg (0.82lb)
  • Material: Metal
  • Working Environment: -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing)
  • Storage Environment: -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing)
  • Surge Protection: 4KV
  • Ingress Protection: IP67
  • Vandal resistant: IK10
  • Reset Button: Supported
