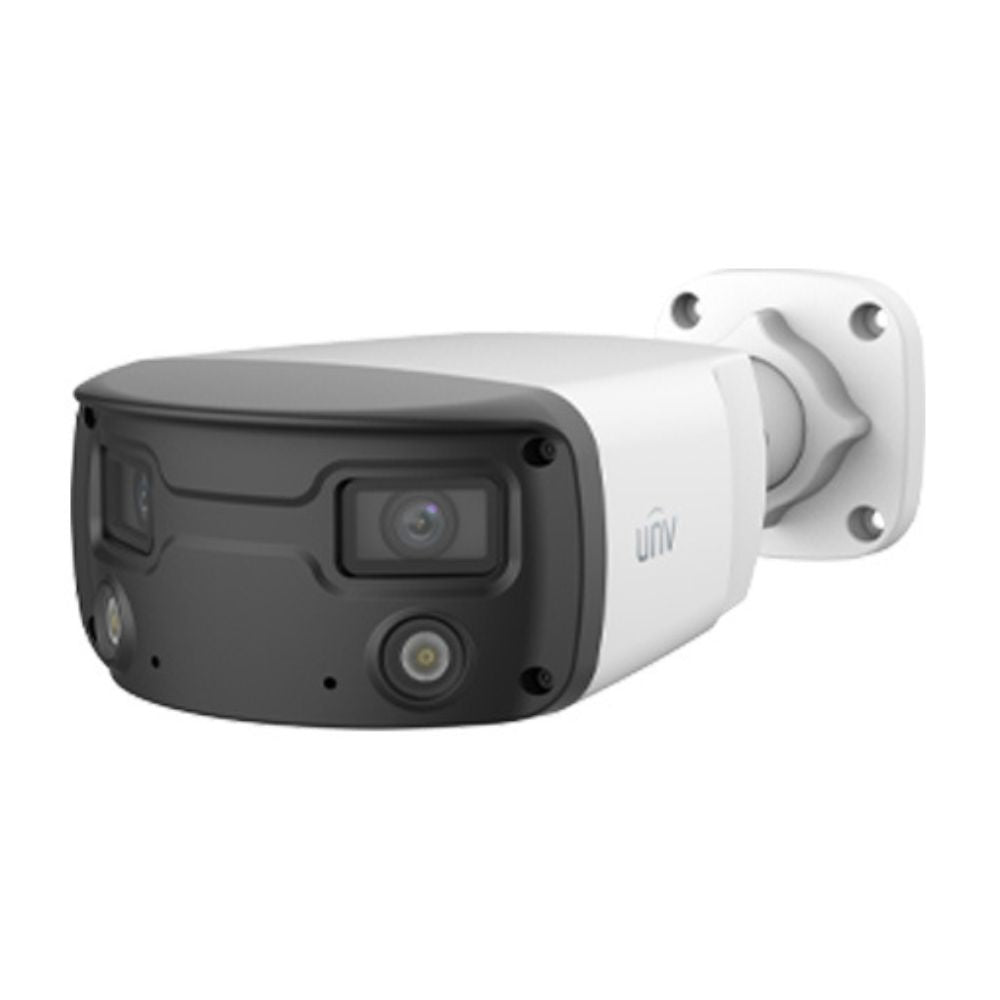

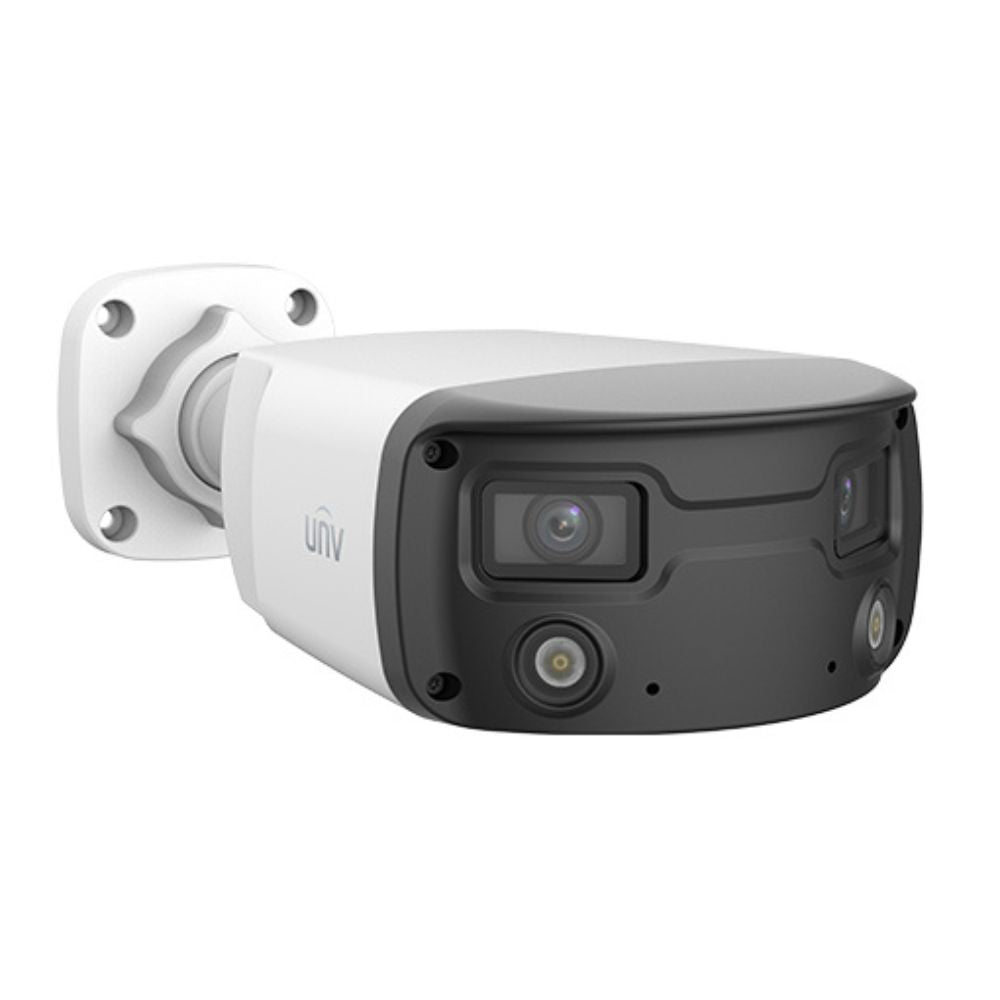

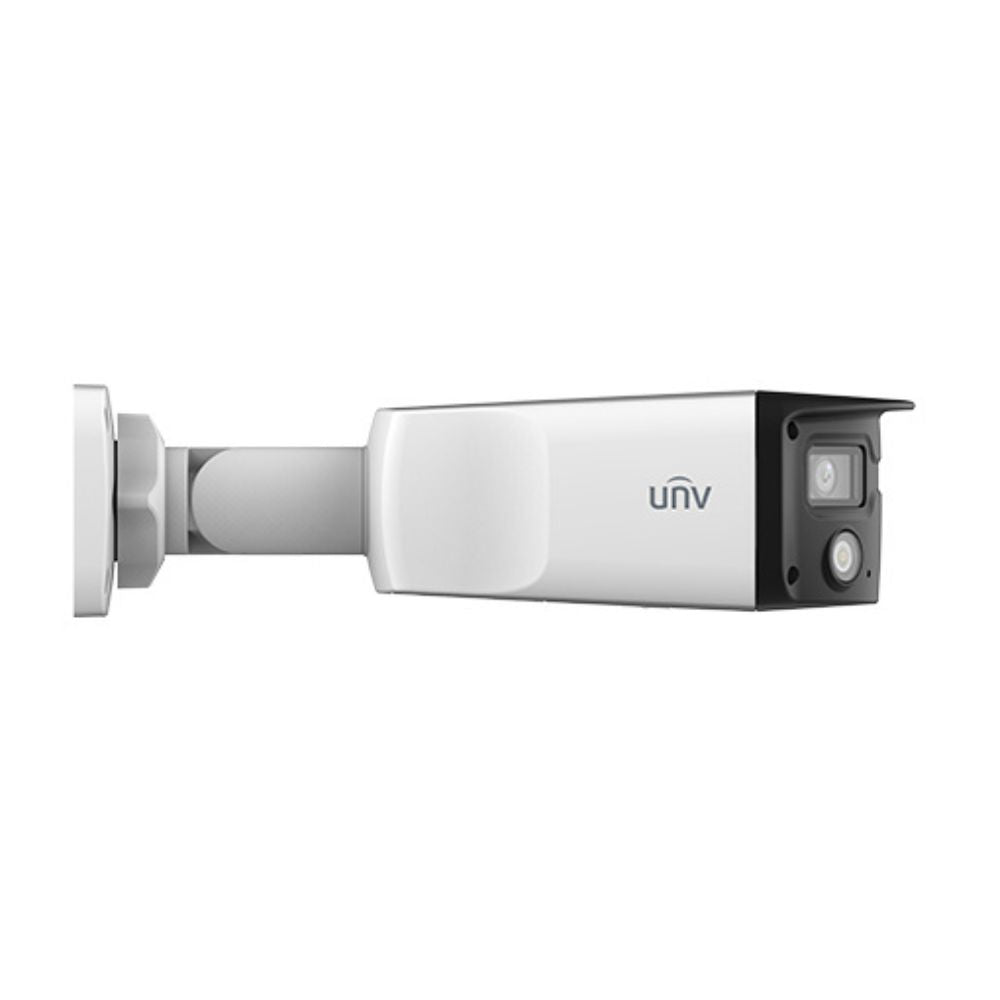

UNV 4MP HD ColorHunter Wide Angle Fixed Bullet Network Camera | UNV-IPC2K24SE-ADF40KMC-WL-I0

Free US Shipping
UNVSKU: UNV-IPC2K24SE-ADF40KMC-WL-I0

Price:
Sale price$489.00

Estimate shipping

UNV 4MP HD ColorHunter Wide Angle Fixed Bullet Network Camera | UNV-IPC2K24SE-ADF40KMC-WL-I0

The UNV 4MP HD ColorHunter Wide Angle Fixed Bullet Network Camera (UNV-IPC2K24SE-ADF40KMC-WL-I0) is a high-quality surveillance camera designed to provide sharp and clear images even in challenging lighting conditions. It comes with various advanced features and specifications:

Features
  • High-quality image with 4MP, 1/2.9"CMOS sensor
  • 4MP (3840*1080)@25fps (Human Body Detection off); 4MP (3840*1080)@20fps (Human Body Detection on)
  • The double lens splicing technology is adopted to realize the horizontal viewing angle of 160.00°±10°
  • Ultra 265, H.265, H.264, MJPEG
  • Support Human Body Detection
  • Colorhunter technology ensures 24-hour full-color images
  • Alarm:1 in/1 out
  • Audio: 1 in/1 out
  • Built-in speaker and dual mics
  • Support 256 GB micro SD card
  • 12V DC/PoE power supply
Technical Specifications

    Camera

    • Sensor: 1/2.9″, 4.0 megapixel, progressive scan, CMOS
    • Minimum Illumination: Colour: 0.0005 lux (F1.0, AGC ON)
    • Shutter: Auto/Manual, 1 ~ 1/100000s
    • Adjustment angle
      • Pan: 0° ~ 360°
      • Tilt:  0° ~ 90°
      • Rotate: 0° ~ 360°
    • WDR: DWDR
    • S/N: >56dB
    • Lens type: 2 * 4.0mm@F1.0
    • Iris: Fixed
    • Field of View (H): 160.00°±10°
    • Field of View (V): 43.22°
    • Field of View (D): 180.13°±10°
    • DORI Distance
      • Lens (mm): 4.0
      • Detect (m): 64.3
      • Observe (m): 25.7
      • Recognize (m): 12.9
      • Identify (m): 6.4
    • Illuminator
      • LED Distance: Up to 30m (98ft)
      • LEDs Number: 2
      • LED On/Off Control: Auto/Manual

    Video

    • Video Compression: Ultra265, H.265, H.264, MJPEG
    • H.264 Code Profile: Baseline profile, Main Profile, High profile
    • Frame Rate
      • Main Stream: 4MP (3840*1080), Max 25fps(Human Body Detection off)
      • Sub Stream: 1920*540, Max 25fps
    • Video Bit Rate: 1920*540, Max 25fps
    • U-code: Support
    • OSD: Up to 8 OSDs
    • Privacy Mask: Up to 4 areas
    • ROI: Up to 8 areas
    • Video Stream: Double streams


    • White Balance: Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2
    • Digital Noise Reduction: 2D/3D DNR
    • Smart IR: Supported
    • Flip: N/A
    • Dewarping: N/A
    • HLC: Support
    • BLC: Support
    • Defog: Digital Defog

      Events

      • Basic Detection: Human Body Detection, Motion detection, tampering alarm, audio detection
      • General Function: Watermark, IP address filtering, Alarm input, Alarm output, access policy, ARP protection, RTSP authentication, user authentication

        Audio

        • Audio Compression: G.711
        • Audio Bitrate: 64 Kbps
        • Two-way audio: Supported
        • Suppression: Supported
        • Sampling Rate: 8KHZ

        Storage

        • Edge Storage: Micro SD, up to 256GB
        • Network Storage: ANR, NAS (NFS)

          Network

          • Protocols: IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS, RTMP,SSL/TLS, SSH
          • Compatible Integration: ONVIF (Profile S, Profile G, Profile T), API,SDK
          • User/Host: Up to 32 users. 2 user levels: administrator and common user
          • Security: Password protection, Strong password, HTTPS encryption, Export operation logs, Basic and digest authentication for RTSP, Digest authentication for HTTP, TLS 1.2, WSSE and digest authentication for ONVIF
          • Client: EZStation/EZView/EZLive
          • Web Browser
            • Plug-in required live view: IE9+, Chrome 41 and below, Firefox 52 and below
            • Plug-in free live view: Chrome 57.0+, Firefox 58.0+, Edge 16+

          Interface

          • Audio I/O
            • Input: impedance 35kΩ; amplitude 2V [p-p]
            • Output: impedance 600Ω; amplitude 2V [p-p]
          • Alarm I/O: 1/1
          • RS485: N/A
          • Built-in Mic: Built-in two mics
          • Built-in Speaker: Support
          • WIFI: N/A
          • Network: 1 * RJ45 10M/100M Base-TX Ethernet
          • Video Output: N/A

          Certifications

          • EMC
            • CE-EMC (EN 55032: 2015+A1:2020, EN 61000-3-3: 2013+A1: 2019, EN IEC 61000-3-2: 2019+A1: 2021, EN 55035: 2017+A11:2020)
            • FCC (FCC CFR 47 part15 B, ANSI C63.4-2014)
          • Safety
            • CE LVD (EN 62368-1:2014+A11:2017)
            • CB (IEC 62368-1:2014)
            • UL (UL 62368-1, 2nd Ed., Issue Date: 2014-12-01)
          • Environment: CE-RoHS (2011/65/EU; (EU)2015/863); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)
          • Protection
            • IP67 (IEC 60529:1989+AMD1:1999+AMD2:2013)
            • IK10 (IEC 62262:2002)

          General

          • Power: DC 12V±25%, PoE (IEEE 802.3af)
          • Power consumption: Max 6.5W
          • Power Interface: Ø 5.5mm coaxial power plug
          • Dimensions (L × W × H): 273× 130 × 76mm (10.7” × 5.1” × 3.0”)
          • Weight: 0.95kg (2.09lb)
          • Material: Metal
          • Working Environment: -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing)
          • Storage Environment: -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing)
          • Surge Protection: 4KV
          • Reset Button: Support
