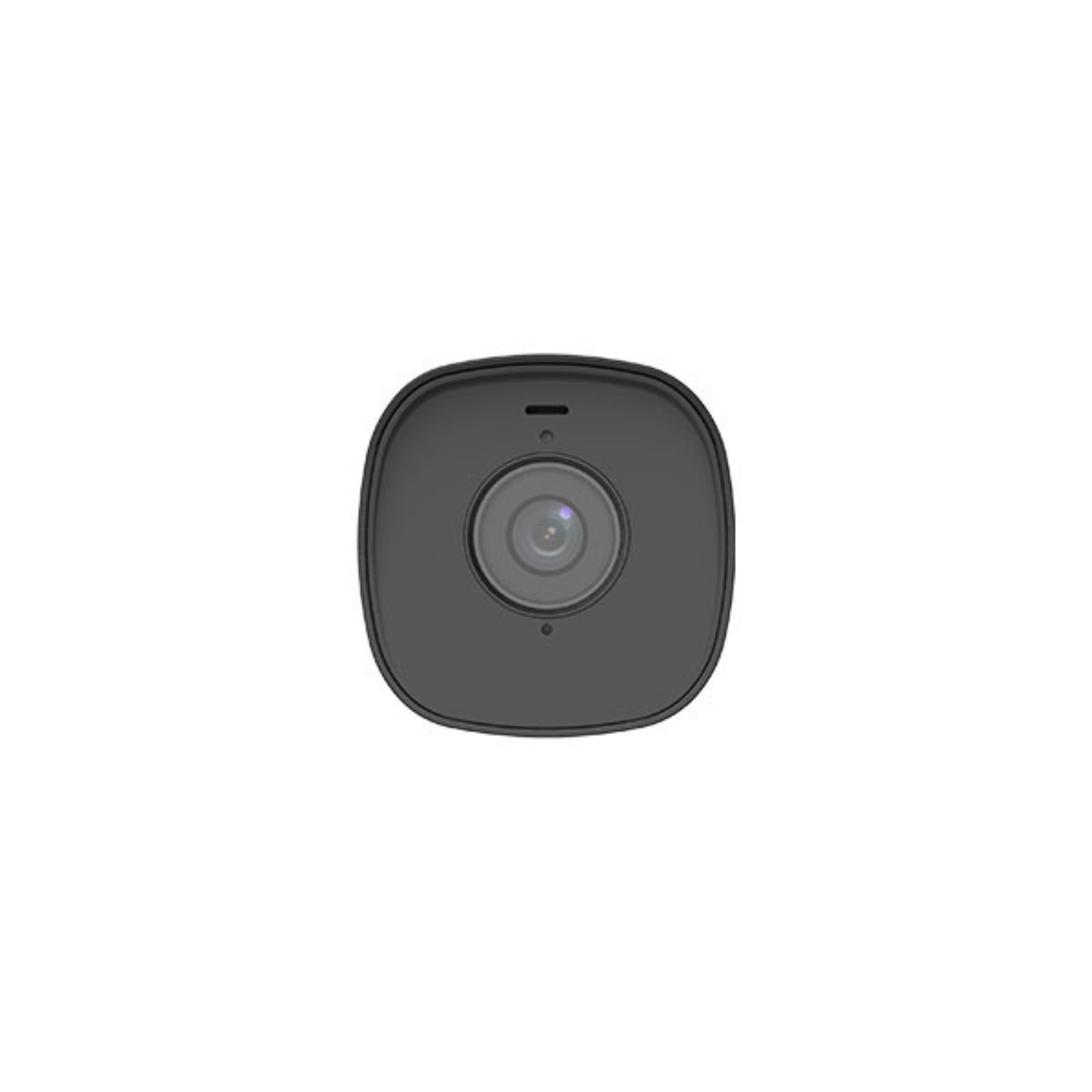

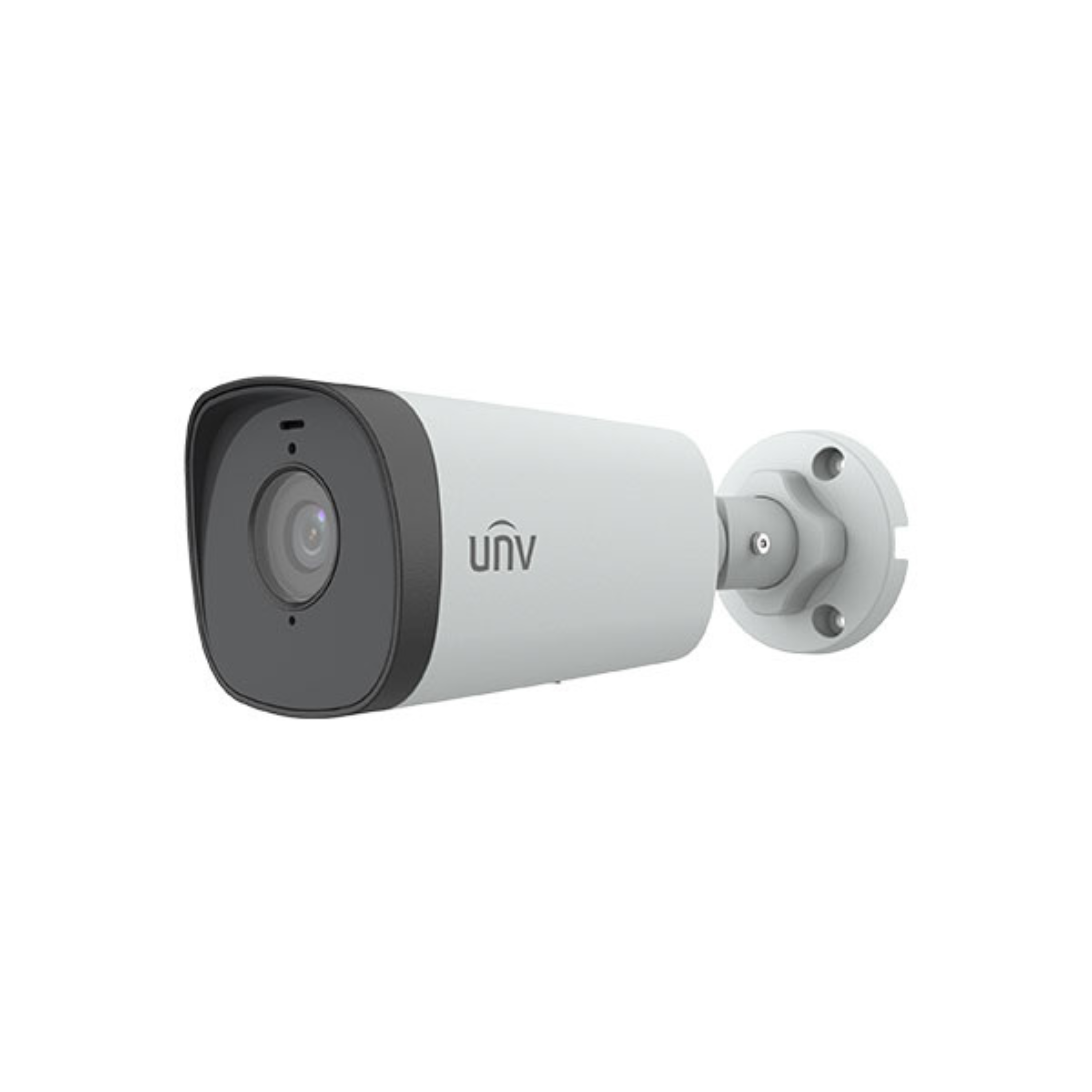

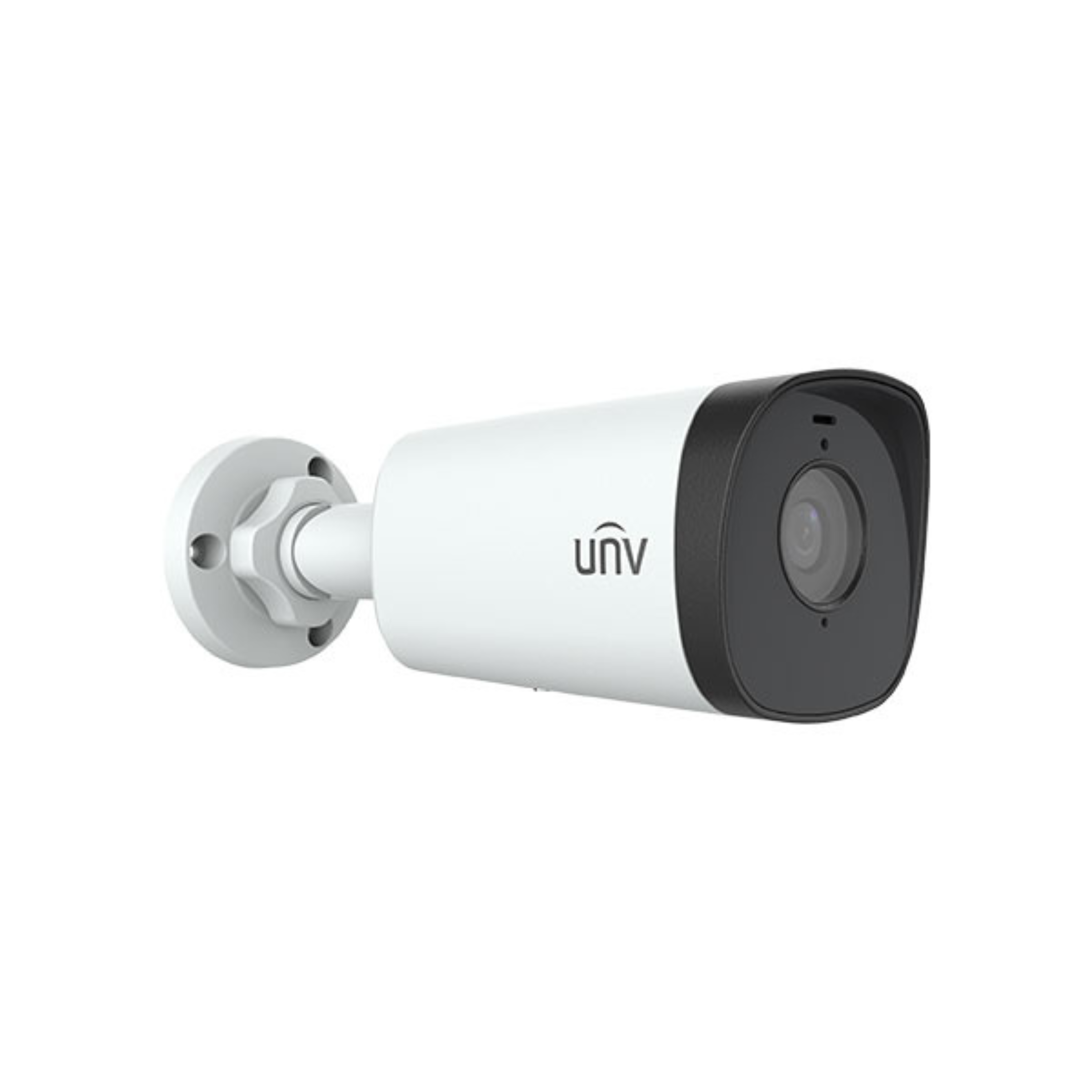

UNV 4MP HD Intelligent 80m IR Fixed Bullet Network Camera | UNV-IPC2314SB-ADF40KM-I0

UNV 4MP HD Intelligent 80m IR Fixed Bullet Network Camera | UNV-IPC2314SB-ADF40KM-I0

This advanced surveillance solution is meticulously engineered to provide outstanding security features and cutting-edge technology. With a high-resolution 4-megapixel sensor, the UNV-IPC2314SB-ADF40KM-I0 ensures clear and detailed visuals, enhancing identification and monitoring in various scenarios.

Features

• High quality image with 4MP, 1/2.7"CMOS sensor
• 4MP (2688*1520)@ 30/25fps; 4MP (2560*1440)@ 30/25fps; 3MP (2304*1296) @30/25fps; 2MP (1920*1080) @30/25fps;
• Ultra 265, H.265, H.264, MJPEG
  Smart intrusion prevention, includes cross line, intrusion, enter area, leave area detection

• Based on target classification, smart intrusion prevention significantly reduces false alarms caused by leaves, birds and lights, etc., accurately focuses on human, motor vehicle, and non-motor vehicle
• Intelligent People Flow Counting and Crowd Density Monitoring
• 120dB true WDR technology enables clear images in the strong light scene

• Support 9:16 Corridor Mode
• Built-in 2 Mic
• Smart IR, up to 80m (262 ft) IR distance
• Supports 256 G Micro SD card

• IP67 protection

Technical Specifications

Camera

• 1/2.7″, 4.0 megapixel, progressive scan, CMOS
• Adjustment Angle: Pan: 0° ~ 360° Tilt: 0° ~ 90° Rotate: 0° ~ 360°

• Shutter: Auto/Manual, 1 ~ 1/100000s
• Day/Night: IR-cut filter with auto switch (ICR)
• Minimum Illumination:
• Support LightHunter: Colour: 0.002Lux ( F1.0, AGC ON)
• 0 lux with IR on
• S/N: >56dB

• WDR: 120dB


Lens

• Lens: 4.0mm@F1.6
• Iris: Fixed
• Angle Of View: (H) 83.7°
• Angle Of View: (V) 44.9°
• Angle Of View: (O) 89.2°

Dori

• DORI Distance:
• Lens (mm): 4.0
• Detect (m): 90.0
• Observe (m): 36.0
• Recognize (m): 18.0
• Identify (m): 9.0

Illuminator

• IR Range: Range Up to 80m (262 ft) IR Range
• Wavelength: 850nm
• LED On/Off Control: Auto/Manual


Video

• Video Compression: Ultra 265, H.265, H.264, MJPEG
• H.264 Code Profile: Baseline profile, Main Profile, High profile
• Frame Rate: Main Stream: 4MP (2688*1520), Max 30fps;4MP (2560*1440), Max 30fps; 3MP (2304*1296), Max 30fps; 1080P (1920*1080), Max 30fps; Sub Stream: 720P (1280*720), Max 30fps; D1 (720*576), Max 30fps; 640*360,Max 30fps;Third Stream: D1 (720*576), Max 30fps; 640*360,Max 30fps; 2CIF(704*288), Max 30fps; CIF(352*288), Max 30fps;
• Video Bit Rate: 128 Kbps~16 Mbps
• U-code: Supported
• OSD: Up to 8 OSDs
• Privacy Mask: Up to 4 areas
• ROI: Up to 8 areas
• Video Stream: Triple Streams



• White Balance: Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2
• Image Setting: Image rotation, brightness, saturation, contrast, sharpness, gain adjustable by a web browser
• Digital Noise Reduction: 2D/3D DNR

• Smart Illumination: Supported
• Flip: Normal/Vertical/Horizontal/180°/90°Clockwise/90°Anti-clockwise
• Dewarping: N/A
• HLC: Supported
• BLC: Supported
• Defog: Digital Defog

Intelligent

• Smart intrusion prevention: Support false alarm filtering: Cross Line detection, Intrusion detection, Enter Area detection, Leave Area detection

• Statistical Analysis: People counting, support people flow counting and crowd density monitoring

Events

• Basic Detection: Motion detection, Ultra motion detection, tampering alarm, audio detection
• General Function: Watermark, IP address filtering, tampering alarm, access policy, ARP protection, RTSP authentication, user authentication

Audio

• Audio Compression: G.711
• Audio Bitrate: 64 Kbps
• Suppression: Supported

• Sampling Rate: 8KHZ

Storage

• Edge Storage: Micro SD, up to 256GB
• Network Storage: ANR, NAS(NFS)

Network

• Protocols: IPv4, IPv6, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS, RTMP, SSL/TLS, SSH
• Compatible Integration: ONVIF (Profile S, Profile G, Profile T), API, SDK
• User/Hots: Up to 32 users. 2 user levels: administrator and common user
• Security: Password protection, strong password, HTTPS encryption, Export operation logs, basic and digest authentication for RTSP, digest authentication for HTTP, TLS 1.2, WSSE and digest authentication for ONVIF

• Client:
• EZStation
• EZView
• EZLive
• Web Browser:
• Plug-in required live view: IE 10 and above, Chrome 45 and above, Firefox 52 and above, Edge 79 and above
• Plug-in free live view: Chorme 57.0+, Firefox 58.0+, Edge IE 10 and above

Interface

• Audio I/O: N/A
• Alarm I/O: 1/1
• RS485: N/A
• Built-in Mic: Support
• Built-in Speaker: N/A
• WIFI: N/A
• Network: 1 * RJ45 10M/100M Base-TX Ethernet
• Video:Output: N/A

Certifications

• EMC:
• CE-EMC (EN 55032: 2015+A1:2020,EN 61000-3-3: 2013+A1: 2019,EN IEC 61000-3-2: 2019+A1: 2021,EN 55035: 2017+A11:2020)
  FCC (FCC CFR 47 part15 B, ANSI C63.4-2014)
• Safety:

• CE LVD (EN 62368-1:2014+A11:2017)
  CB (IEC 62368-1:2014)
  UL (UL 62368-1, 2nd Ed., Issue Date: 2014-12-01)
• Environment: CE-RoHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)
• Protection: Ingression protection: IP67 (IEC 60529:1989+AMD1:1999+AMD2:2013)

General

• Power: DC 12V±25%, PoE (IEEE 802.3af)
• Power consumption: Max 7.0W
• Power Interface: Ø 5.5mm coaxial power plug
• Dimensions(L × W × H): 206 × 74 × 74mm (8.1” × 2.9” × 2.9”)

• Net Weight: 0.51kg (1.12lb)
• Material: Metal
• Working Environment: -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing)
• Strorage Environment: -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing)
• Surge Protection: 4KV
• Reset Button: Support
