SCP EasyFiber™ Visual Fault Locator | SCP-EFT-VFL-1MW

SCPSKU: SCP-EFT-VFL-1MW

Price:
Sale price$77.99

Estimate shipping

SCP EasyFiber™ Visual Fault Locator | SCP-EFT-VFL-1MW

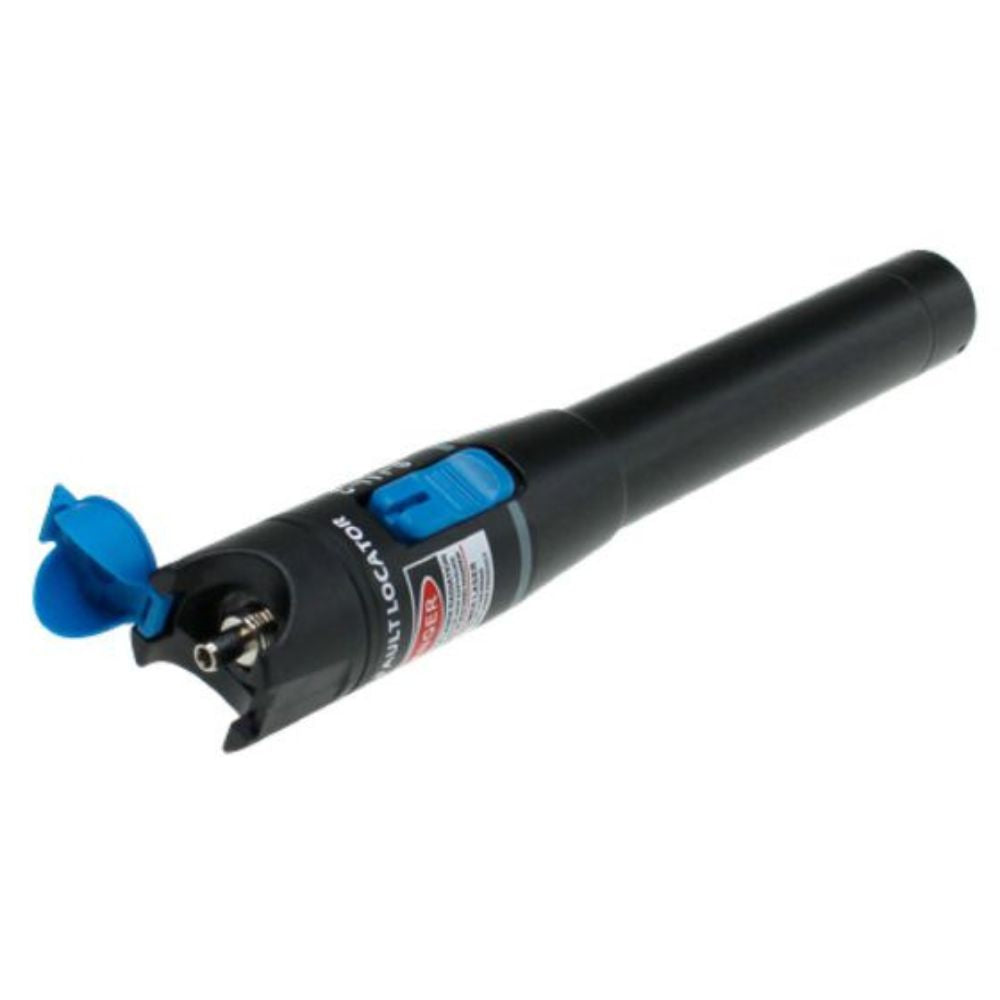

The SCP-EasyFiber Visual Fault Locator (VFL) is a compact fiber optic visual fault locator that is ideal for locating breaks and out-of-spec bends in a fiber optic cable. It's also a crucial tool for verifying mechanical fiber optic connectors are terminated properly and identifying strands during splicing and/or patching.

The VFL features a 1mW output which drives a visible laser signal up to 5km. Plus, two modes of operation -- continuous-wave output and flashing wave output -- help identify different strands and cable runs.

The VFL features battery power and a 2.5mm universal connector, which is designed for use with SC, ST, and FC style connectors (integration with LC style connectors requires a 2.5mm to 1.25mm adapter). Both single-mode and multi-mode fiber are supported.

Features
  • 1mW visible wave output
  • Up to 5km max signal transmission
  • Ideal for locating out-of-spec bends & breaks in fiber optic cabling
  • Ideal for verifying proper fiber optic connector termination
  • Ideal for toning & tracing fiber optic cable runs & strands
  • Battery-powered with 18-hour average battery life
  • Built-in dust cap
  • Metal construction
  • Continuous-wave & pulsed wave modes of operation
  • 650nm wavelength
  • Compatible with SC, ST & FC style connectors (LC connectors require an adapter)
  • Compatible with single-mode & multimode fiber
Specifications
  • Overall Construction -Metal
  • Dimensions - 6.8" x 1.0" x 1.0" (175mm x 26mm x 26mm)
  • Weight - 0.2lb (75g)
  • Output Power - 1mW
  • Output Color - Red
  • Wavelength - 650nm +/-20nm
  • Transmission Distance - <5km
  • Ferrule Size - 2.5mm
  • Compatible Connectors - SC, ST, FC, *LC with additional adapter (sold separately)
  • Battery Compatibility - (2) AA
  • Approximate Battery Life - 18 hours
  • Modes of Operation - Pulsed (2Hz) / Continuous
  • Operating Temperature - 32 140 degrees F (0 60 degrees C)
  • Accessories - Carrying case
