SCP 48 Port Loaded Unshielded Cat5e Class D Patch Panel | SCP-348

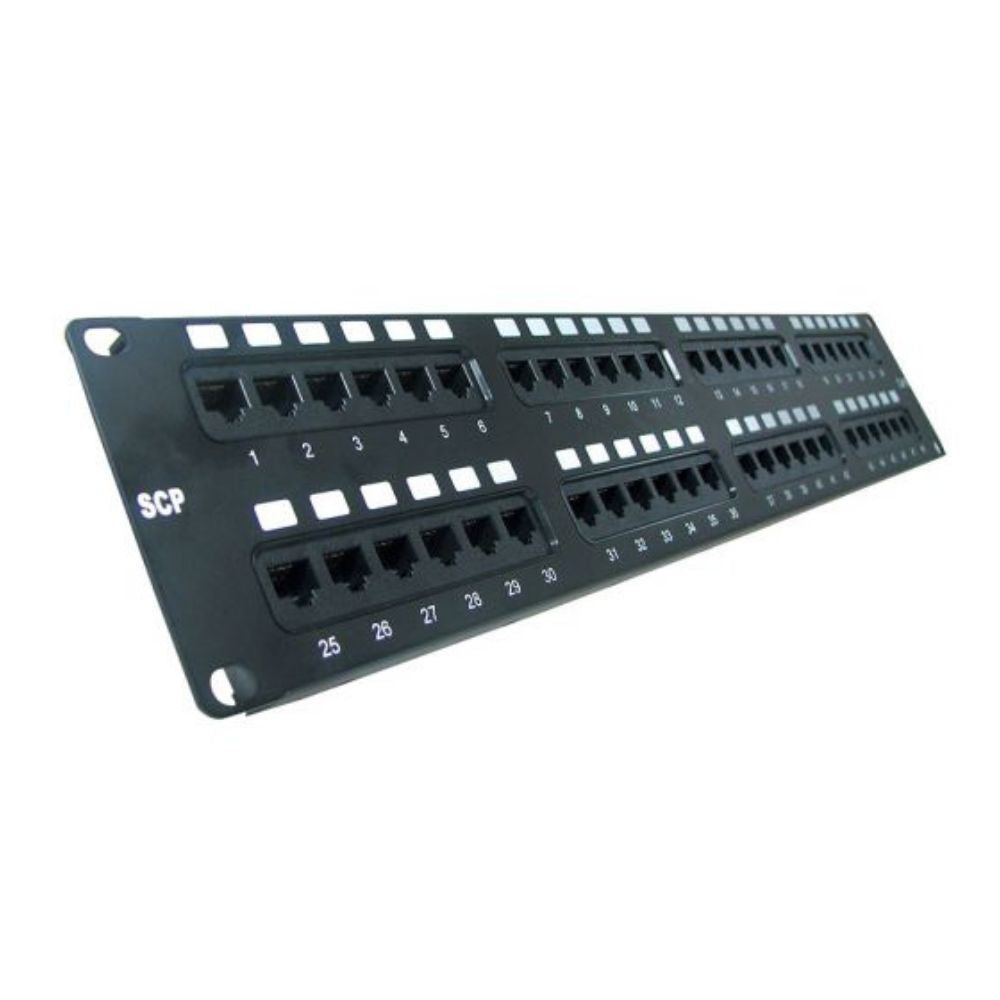

48 Port Loaded Unshielded Cat5e Class D Patch Panel, 2RU w/ Rear Cable Management

SCP Rack Mount RJ45 110-Style Patch Panels easily mount to standard TIA 19-inch racks. Our patch panels feature rear IDC 110-Punchdown Modules. IDC compatible for 110 and Krone tools. Panels are universal fit with heavy-duty steel construction, scratch-resistant powder-coat finish; 110 terminals Color Coded T568A/T568B Wiring Labels.

Features
  • IDC compatible for 110 and Krone tools
  • Universal fit panel with heavy-duty steel construction
  • Scratch-resistant powder-coat finish
  • Includes Cable Ties
  • 110 terminals Color Coded T568A/T568B Wiring Labels
  • Gold Plated RJ45 port contacts
  • ANSI/TIA 568.2-D
  • ISO/IEC 11801 Class D
  • PoE IEEE 802.3bt
  • 2 RU
  • FCC Part 68
  • RoHS Compliant. Reach Compliant
  • UL
Specifications

Physical

  • Panel: SPCC with Black Coating
  • RJ45 Jack Holder: High Impact, Flame Retardant Plastic, UL 94V-0
  • RJ45 Spring Wire: Phosphor Bronze with 50u Gold plating
  • 110 Connector: Phosphor Bronze with 100μin 100% tin alloy
  • 110 Connector Holder: Polycarbonate
  • Mounting Bracket: ABS
  • Dimensions: 10 in W x 1.7 in D x 3.3 in H / 25.4 cm W x 4.4 cm D x 8.4 cm H
  • Weight: 0.6lb (0.3kg)

Electrical Characteristics

  • Contact Resistance: <=20m Ω
  • Insulation Resistance: >=500M Ω
  • Dielectric Withstand Voltage: 1000V AC @ 60 Hz for 1 min
  • Current Rating: 1.5A at 68°F

Mechanical

  • Transmission Performance: ANSI/TIA 568.2-D Category 6 (1 MHz–500 MHz)
  • Transmission Media: Unscreened Twisted Data Cable
  • Plug Insertion Life: >=750 times plugin
  • Contact Force: 0.98N using FCC plug
  • Plug Retention Force: 30lb (133n/13.3Kg)
  • IDC Insertion Force: 4.5 kg min.
  • IDC Retention Force: 0.5 kg min

Environmental

  • Operating Temperature: 14 - 140°F (-10 - 60°C)
  • Storage Temperature: 40 - 154°F (-40 - 68°C)
  • Operating Humidity: 10 – 90%, non-condensing
