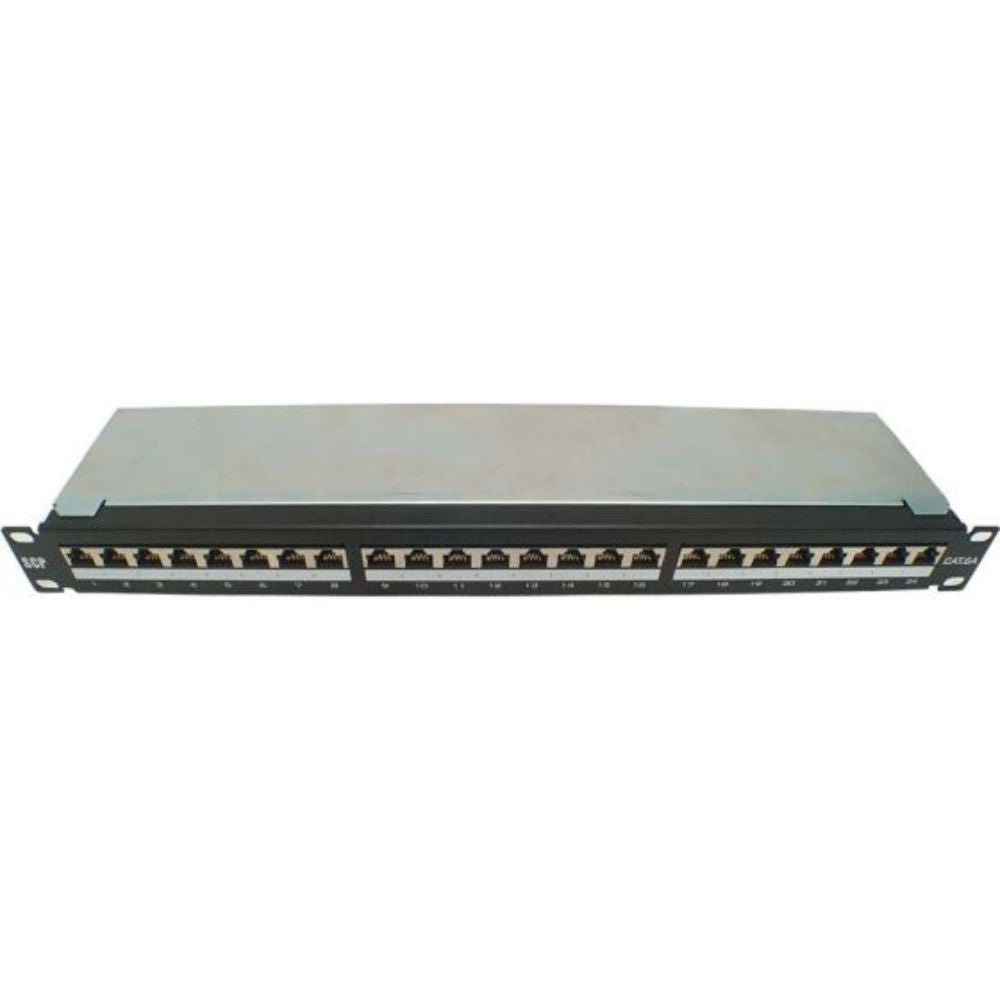

SCP 24 Port Loaded Shielded 10GBaseT Patch Panel | SCP-324-6ASH

24 PORT LOADED SHIELDED 10GBaseT PATCH PANEL FOR CAT6/6A SHIELDED

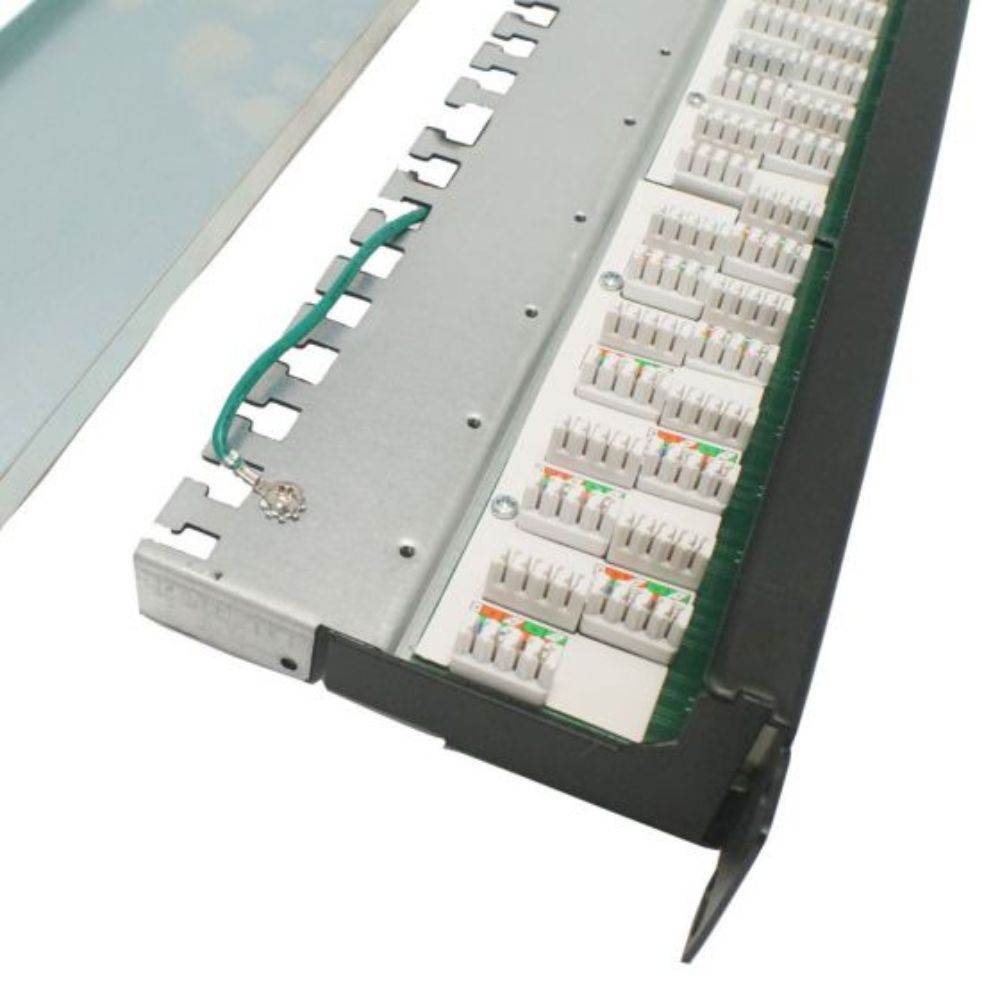

10GBaseT loaded 24 port shielded inline patch panel. 1RU. Ideal for 10G shielded cabling such as Cat7a/7/6a ISO/IEC 11801 Class Ea. Backward compatible for shielded Cat6; ISO/IEC 11801 Class E; and shielded Cat5e ISO/IEC 11801 Class D. Rear IDC punch-down modules designed to minimize alien crosstalk between ports. Includes cable management and mounting hardware.

Features
  • IDC compatible with 110 and Krone tools.
  • Universal fit panel with heavy-duty steel construction
  • Scratch-resistant powder-coat finish
  • 110 terminals Color Coded T568A/T568B Wiring Labels
  • Gold Plated RJ45 port contacts
  • ANSI/TIA 568.2-D
  • ISO/IEC 11801 Class Ea/E/D
  • PoE IEEE 802.3bt.

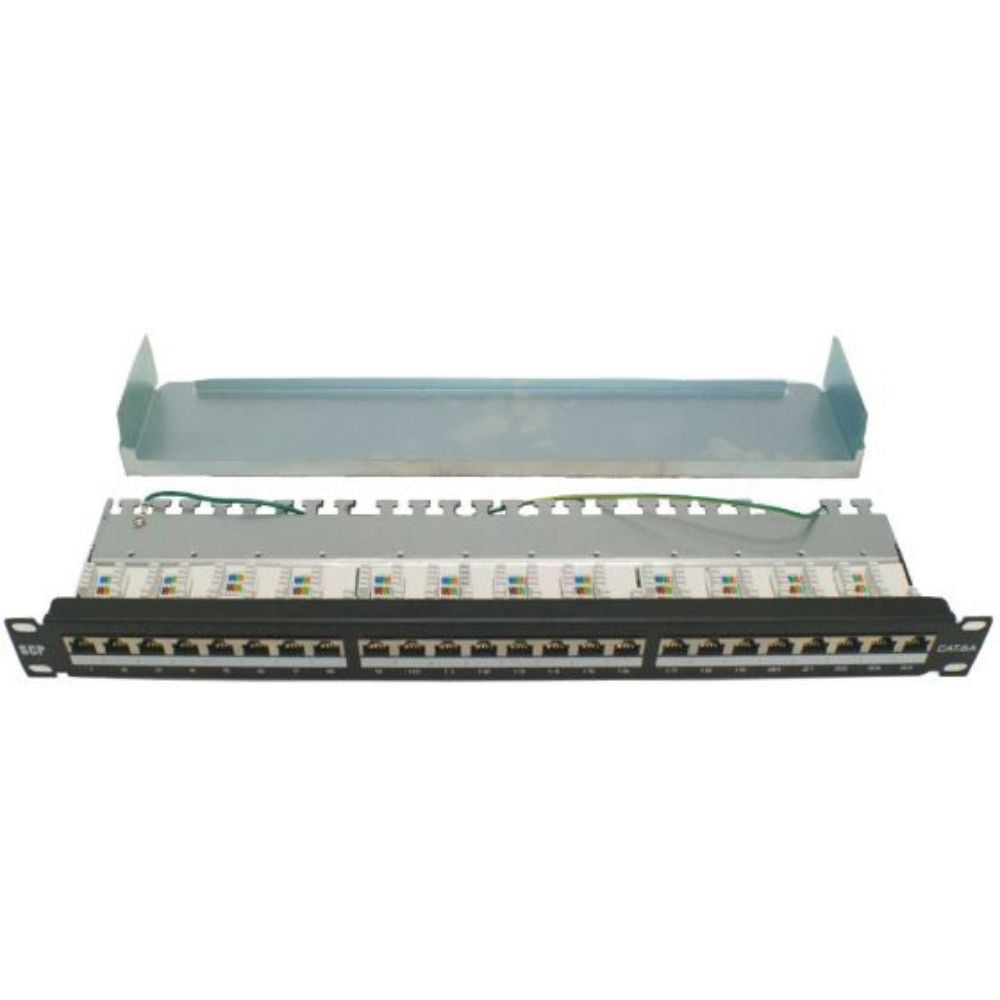

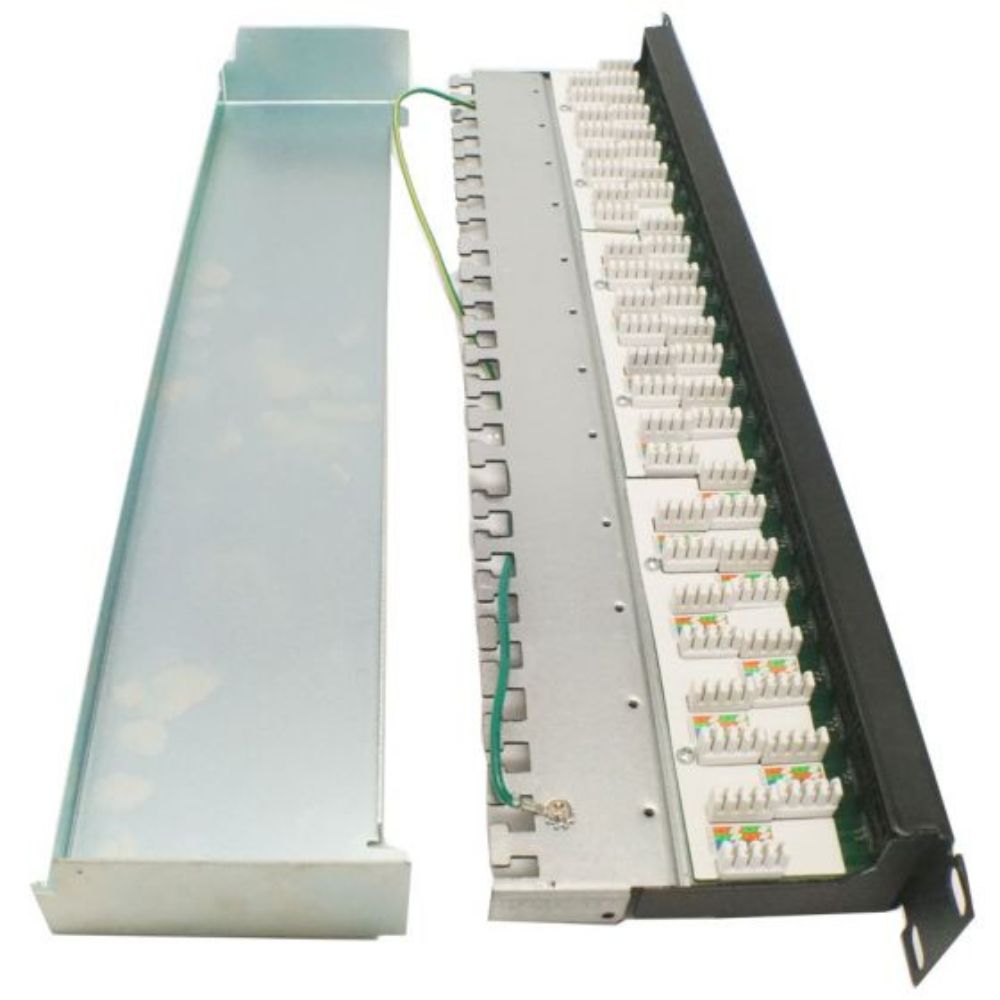

  • Removable Shield Cover
  • Metal Cable Clamps with Hand Turn Locks.
  • FCC Part 68
  • RoHS Compliant.
  • Reach Compliant.
Specifications

Physical

  • Panel: SPCC with Black Coating
  • Panel Cover: SPCC with Zinc Plating
  • RJ45 Jack Holder: High Impact, Flame Retardant Plastic, UL 94V-0
  • RJ45 Spring Wire: Phosphor Bronze with 50u Gold plating
  • 110 Connector: Phosphor Bronze with 100μin 100% tin alloy
  • 110 Connector Holder: Polycarbonate
  • Dimensions: 19 in W x 4.4 in D x 1.7 in H / 48.2 cm W x 11.1 cm D x 4.4 cm H
  • Weight: 3.5lb (1.6kg)

Electrical Characteristics

  • Contact Resistance: <=20m Ω
  • Insulation Resistance: >=500M Ω
  • Dielectric Withstand Voltage: 1000V AC @ 60 Hz for 1 min
  • Current Rating: 1.5A at 68°F

Mechanical

  • Transmission Performance: ANSI/TIA 568.2-D Category 6A (1 MHz–500 MHz)
  • Transmission Media: Screened Twisted Data Cable
  • Plug Insertion Life: >=750 times plugin
  • Contact Force: 0.98N using FCC plug
  • Plug Retention Force: 30lb(133n/13.3Kg)
  • IDC Insertion Force: 4.5 kg min.
  • IDC Retention Force: 0.5 kg min.

Environmental

  • Operating Temperature: 14 - 140°F (-10 - 60°C)
  • Storage Temperature: 40 - 154°F (-40 - 68°C)
  • Operating Humidity: 10 – 90%, non-condensing
