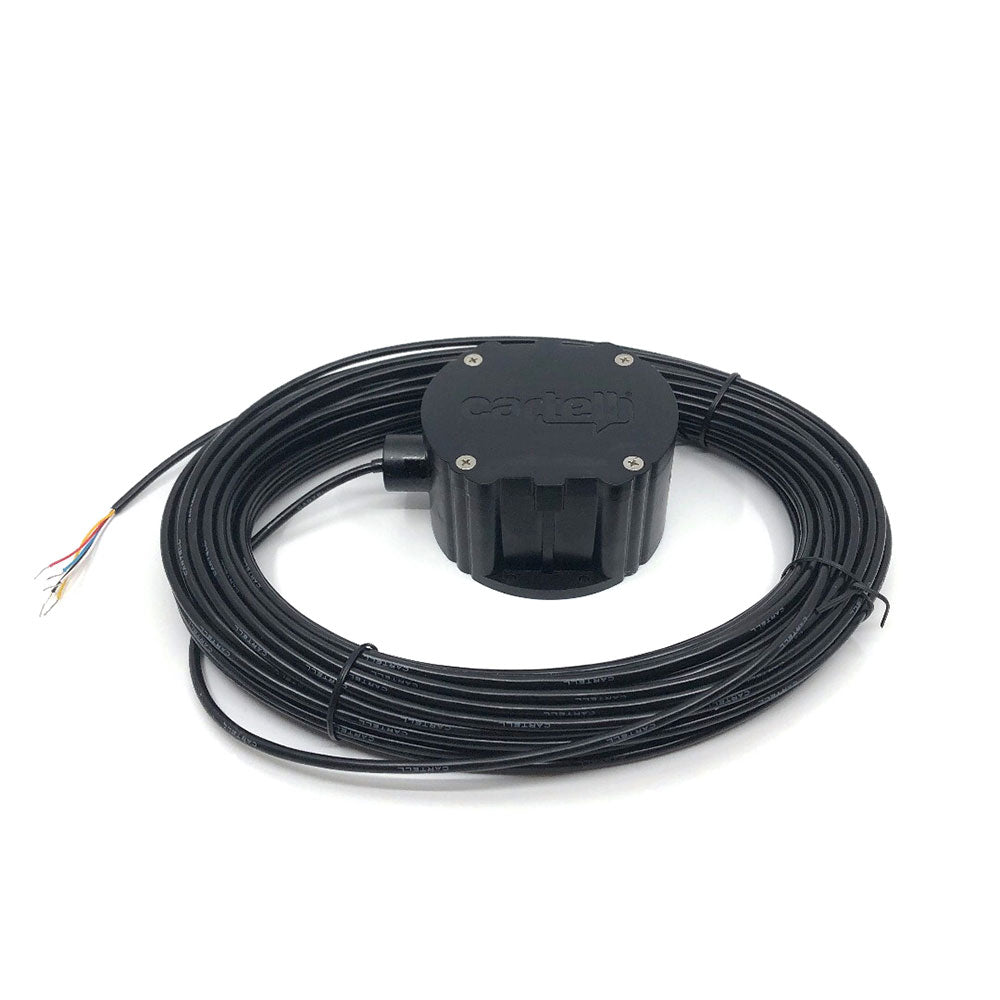

Cartell CP-4 Automatic Gate Opener Free Exit System | CAR-CP-4-100

CartellSKU: CAR-CP-4-100

Price:
Sale price$179.00

Cartell CP-4 Automatic Gate Opener Free Exit System with Sensitivity Adjustment and 100 ft. Weather-resistant Cable CP4-100

Direct replacement for CP-3 with added features. CP-4 automatic gate opener is Cartell’s best automatic gate opener ever. The Free Exit System opens your automatic gate so you and your visitors can exit the property without having to use a remote or keypad. This self-contained system connects directly to any gate opener system without an external output board and can be used with solar-powered gates.

Features
  • Self-contained system
  • Conduit-ready housing
  • Sensitivity adjustment
  • Better heat resistance
  • More lightning protection
  • New proven digital circuit
  • Weather-resistant cable
  • One model, less confusion
  • Industry-standard wire colors
  • Universal voltage AC & DC
  • Works with all gate operators
  • 5-year manufacturer’s warranty

Please Note: This item is available with a wide variety of cable lengths as you can view below. Please contact us if you would like to special order a different length of cable other than the 100' model offered here:

  • Cartell Model CP4-200 (200' Cable)
  • Cartell Model CP4-300 (300' Cable)
  • Cartell Model CP4-500 (500' Cable)
Specifications
  • Power Required: 8–24 VAC or 8–30 VDC
  • Stand-By Current: 30–70 Microamps (μA)
  • Alarm Current: 40–60 Milliamps (mA)
  • Relay Contacts: SPDT, floating, N.O. or N.C. (Form C)
  • Relay Contact Rating: 1 amp/24 VDC (1 mA at 5 VDC min. load)
  • Relay Time: 2–3 seconds
  • Enclosure Rating: IP67
  • Strength Rating: 9.53 ton-force 8646 kgf
  • Temperature Range: -25° F. – +140° F. (-32° C. – 60° C.)
  • Dimensions: 4.5 in. dia. x 3.5 in. high
  • Weight: 5 lbs. with 100 ft. cable
Product Literature
