BFT Deimos BT A400 Solar Slide Gate Operator Kit | BFT-FASDEIMOSSOLARKIT

Save $613.91
BFTSKU: BFT-FASDEIMOSSOLARKIT

Price:
Sale price$1,129.00 Regular price$1,742.91

Estimate shipping

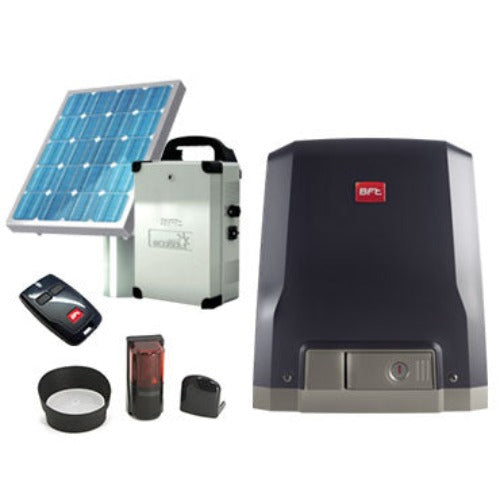

BFT Deimos BT A400 Solar Slide Gate Operator Kit For Gates Up To 75' or 800 lbs.

Includes
  • 1 Deimos A400 120V P925222 00001
  • 1 MITTO2 Rolling Code Transmitter D111904
  • 1 Polarized Reflective Photo Eye with Hood KIRPOLAPHOT001
  • 1 QB Wireless Keypad - 10 Channels/100 Codes P121024
  • 1 ECOSOL Solar Kit KED113731H
    • Harness
    • 7.2 Amp/h Batteries
    • 10 Watt Solar Panel
    • 15' Panel Cable
Smart Technology

D-Track facilitates the installer in providing for the certifications required by law.

Conventional control units do not "read" the exact position of the gate and consequently apply constant thrust levels, without ensuring stable sensitivity during the opening and closing operations.

BFT control devices record the slightest variation in the gate or door force, for example, due to differences in temperature or wear, constantly supplying the optimum torque to the motor.

A conventional control unit could not detect these thrust variations, which would result in it indicating the presence of non-existent obstacles.

Maximum Safety

The BFT system thus guarantees the maximum safety and perfect functioning of the equipment, no matter what the climatic and temperature conditions and degree of mechanical wear.

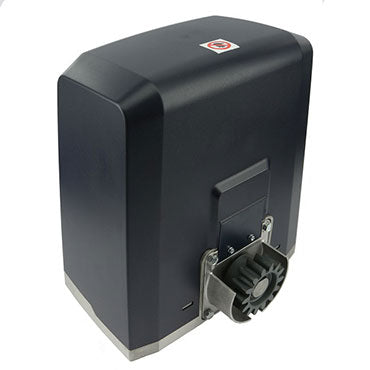

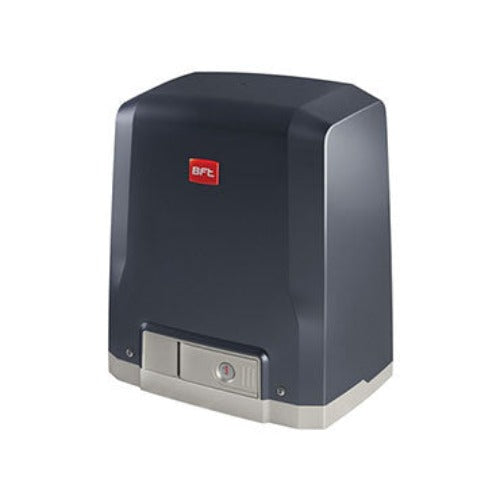

BFT Deimos BT A400 Specifications
  • Control unit HAMAL (included)
  • Board power supply 120 V
  • Supply voltage AC 24 V
  • Power input 50 W
  • Max. door/gate weight 800 lbs.
  • Gate speed 39 ft/min
  • Type of limit switch Electromechanical
  • Pinion module 4
  • Slowdown Yes
  • Locking Mechanical
  • Release Lever-operated with personal key
  • Impact reaction D-Track
  • Frequency of use intensive
  • Protection rating IP24
  • Environmental conditions-20 ÷ 55 °C
  • U-Link no
