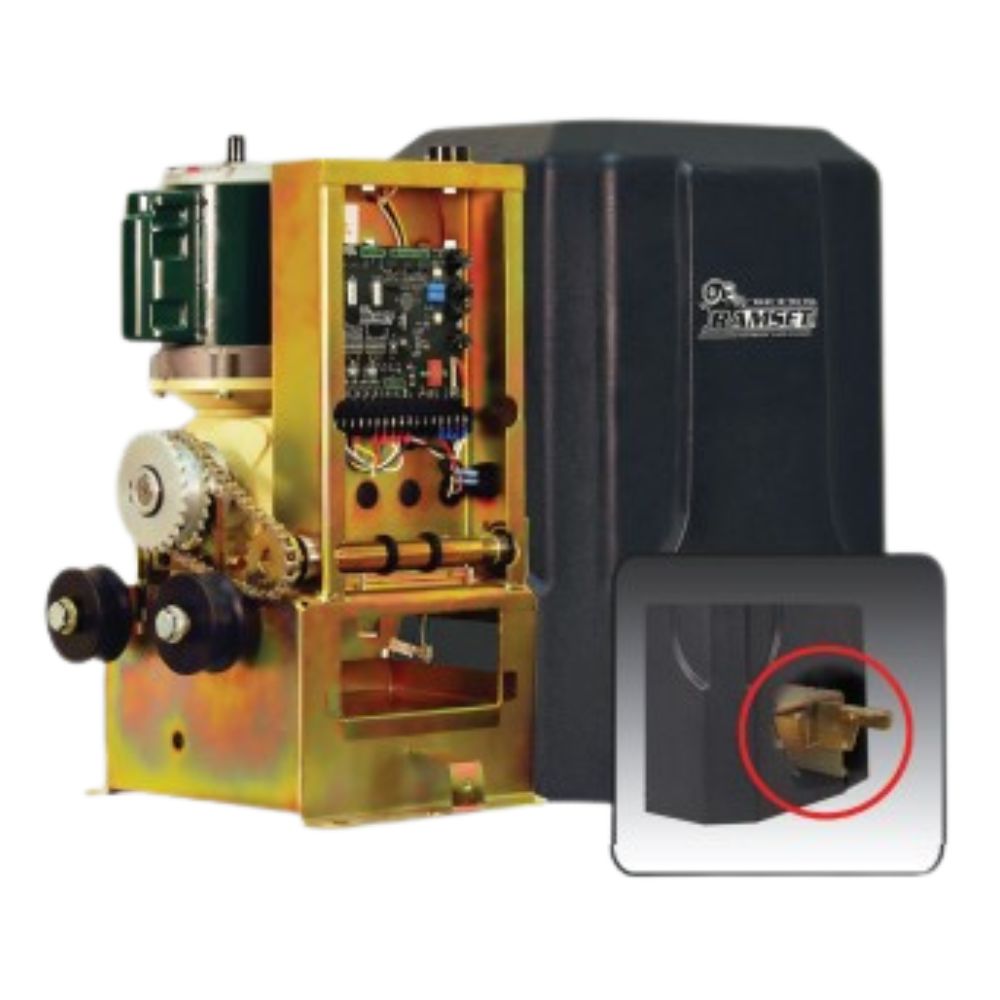

Ramset Commercial/Industrial DC High-Traffic Slide Gate Operator | RAM-1000-DC

RamsetSKU: RAM-1000-DC

Price:
Sale price$2,174.40

Estimate shipping

Ramset Commercial/Industrial DC High-Traffic Slide Gate Operator | RAM-1000-DC

The Ramset Commercial/Industrial DC High Traffic Slide Gate Operator is a reliable and strong choice for busy gates. This operator utilizes DC technology, robust construction, and is designed to handle heavy usage.

Features
  • Advanced Battery Back-Up System: When the battery has reached 90% of its battery life, it will then switch to Ultra Low Battery Mode. The system will then stop all gate operations preventing the battery from over-discharge damage. Through a dip switch, the gate can be set to Fail Safe or Fail Secure.
  • Foot Pedal Emergency Release: Ability to open the gate manually in the event of an emergency. Just shut off the power breaker, step on the foot pedal, and open the gate.
  • Mechanical Limit System: Adjust limit switches quickly and accurately with our mechanical system. This helps maintain accurate gate position throughout gate travel.
  • Ramset "Intelligate" Control Board: The Intelligate Control Board is the most advanced gate controller in the industry, putting Ramset ahead of the competition when it comes to reliability and number of features. It is controlled by a programmable microprocessor that reads and precisely executes all functions of the control board.
Technical Specifications

Mechanics

  • Brushless DC Motor: 24 VDC, 13 AMPS
  • Gearbox Commercial Synthetic Oil-Bath gearbox to promote smooth and quiet operation. Size 43, Ratio 30:1
  • Operating Temperature: -10 to 160 degrees F
  • Overall Dimensions: H:26" x L:16" x W:16"
  • Gate Travel Speed: Variable Cycle Speed 12"/10"/8"/6" Per Second
  • Maximum Travel / Weight: 45 ft / 1000 lbs
  • Motor: Continuous Duty

Power

  • 115 VAC Single-Phase
  • Accessory Power: 24VDC

Design

  • Chassis: 1/4" Steel, gold zinc plated to inhibit corrosion.
  • Cover: High-impact resistant charcoal gray polyethylene plastic. Blends seamlessly with any property.
Product Literature
