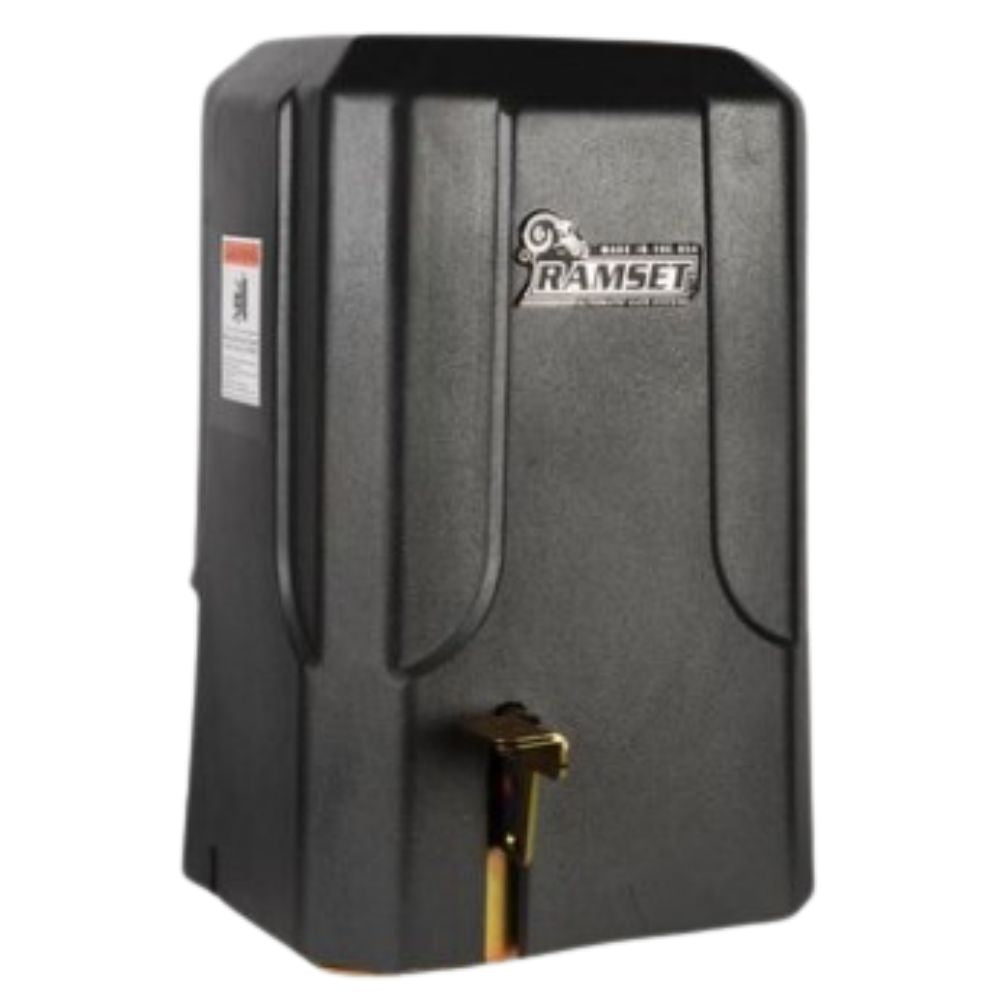

Ramset Residential/Commercial DC High Traffic Slide Gate Operator | RAM-100-DC

RamsetSKU: RAM-100-DC

Price:
Sale price$1,813.67

Estimate shipping

Ramset Residential/Commercial DC High Traffic Slide Gate Operator | RAM-100-DC

The Ramset Residential/Commercial DC High Traffic Slide Gate Operator is a reliable and strong choice for busy gates. This operator utilizes DC technology, robust construction, and is designed to handle heavy usage.

Note: Model RAM 100 is designed to be installed only for front installations.

Features

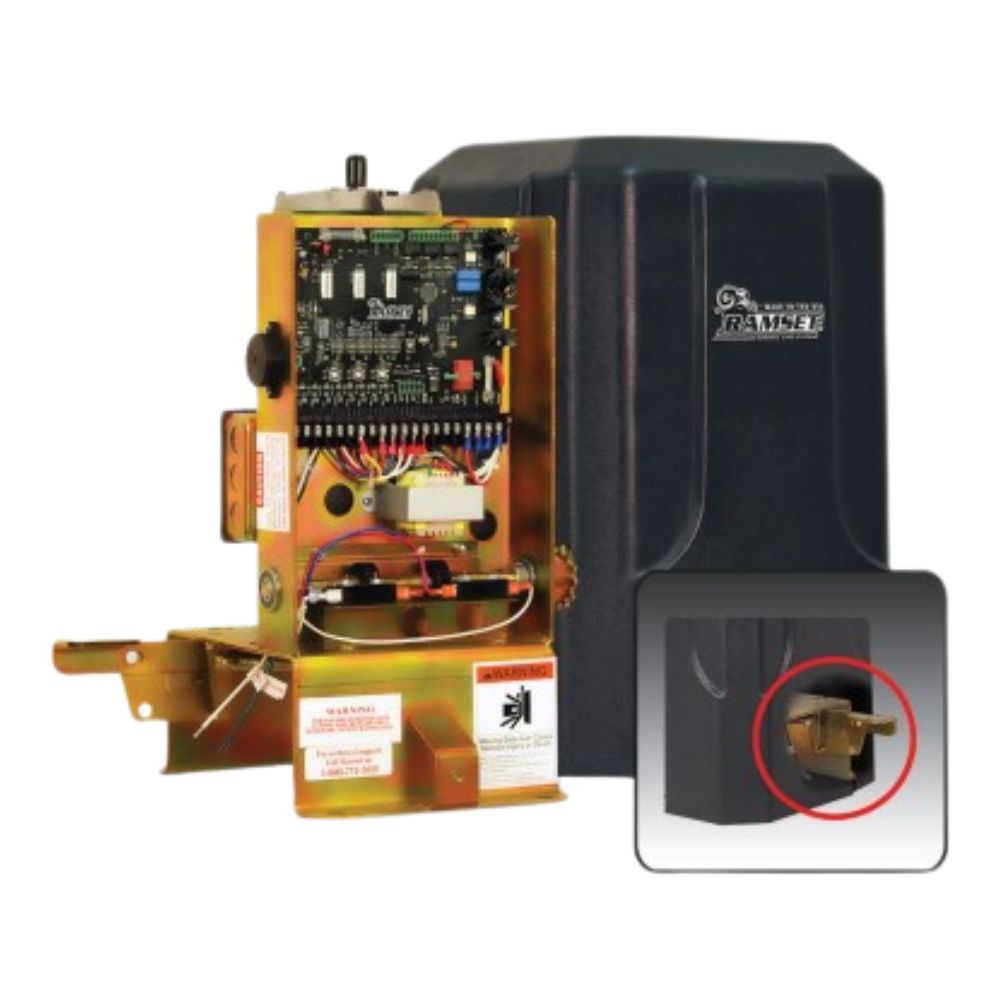

  • Foot Pedal Emergency Release: Ability to open the gate manually in the event of an emergency. Just shut off the power breaker, step on the foot pedal, and open the gate.
  • Double Sprocket *NEW*: Our latest models will now come with a double sprocket and two idler wheels to prevent the chain from slipping off the drive sprocket.
  • Mechanical Limit System: Adjust limit switches quickly and accurately with our mechanical system. This helps maintain accurate gate position throughout gate travel.
  • Ramset "Intelligate" Control Board: The Intelligate Control Board is the most advanced gate controller in the industry, putting Ramset ahead of the competition when it comes to reliability and number of features. It is controlled by a programmable microprocessor that reads and precisely executes all functions of the control board.
Technical Specifications
  • MAX. Gate Travel: 20 feet
  • MAX. Gate Weight: 700 lbs
  • Cycles: Continuous
  • Capacitor: Aerovox 65µƒ, 240 V, 50/60HZ, protected S 1000AFC
  • Application: Residential/ Commercial
  • Finish and Construction: Gold/Zinc plated 3/16” H.R. Metal
  • Continuous Duty Motor:  1/2 Hp 115 Volts. AC 4.5 amp. 1625 rpm.
  • Power Failure Release: Exclusive Foot Pedal Release (RPI-TL only)
  • Overall Dimensions: H: 22” - L: 14½” - W: 15”
  • Gate Travel Speed: Approx. 1’ per sec
