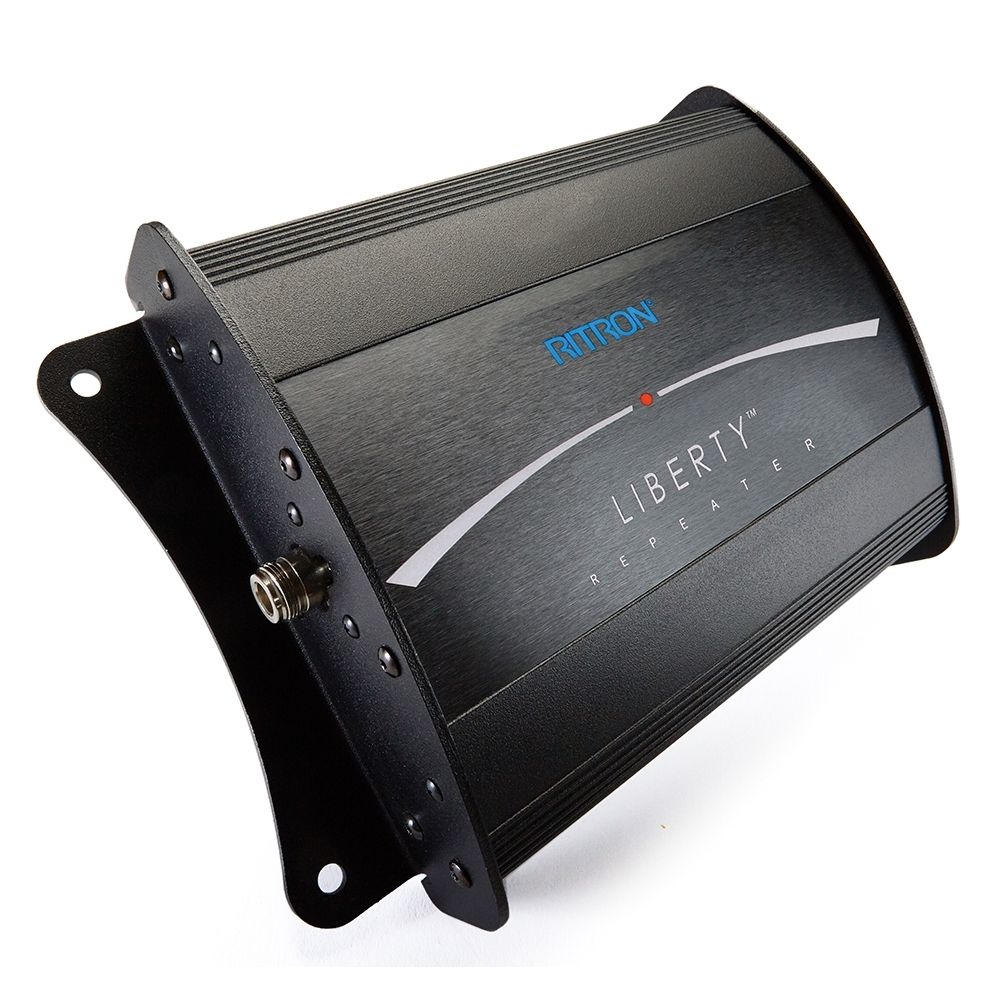

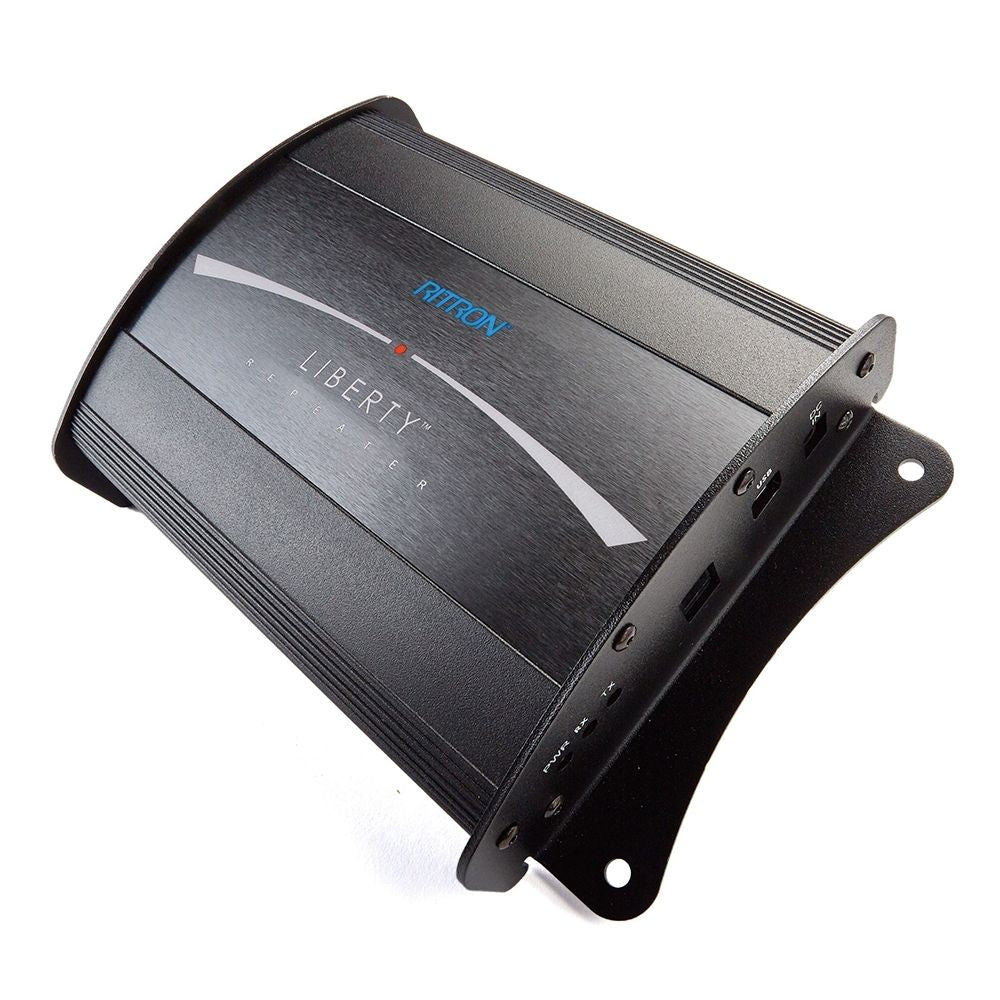

Ritron Liberty Repeater/Extender Package
Repeaters/extenders do just what they say...extend the range of your wireless communications. Integrating the Liberty Repeater/Extender Package will effectively help you eliminate dead spots, increase the range of new or existing radios, and is the perfect on-site communications package. The Liberty Repeater is the perfect wireless solution for on-site communication needs. Industrial plants, stores, schools, golf courses, and other “tough-to-cover” applications no longer need to suffer from the limitations common to all brands of portable two-way radios.
When properly located and matched with the appropriate antenna the Liberty repeater provides rock-solid communication from one radio to another, virtually eliminating shadowing, fading, and dead spots. Rugged and compact, the UHF analog Liberty repeater is a completely integrated full-duplex wireless solution. The Liberty repeater is an integrated ground-up design resulting in an efficient, full-duplex, on-site repeater.
Includes
- Integrated Full Duplex Repeater with Duplexer
- RPS-1B 110VAC-12VDC 1 Amp Cube Power Supply (for RLR-460)
- RPS-1500 110VAC-12VDC 1.5 Amp Power Supply (for RLR-465-N)
Features
- Narrow or Wide* Bandwidth (*International Only) Versions Available
- Integrated Full-Duplex Radio and Duplexer w/ "N" Connector

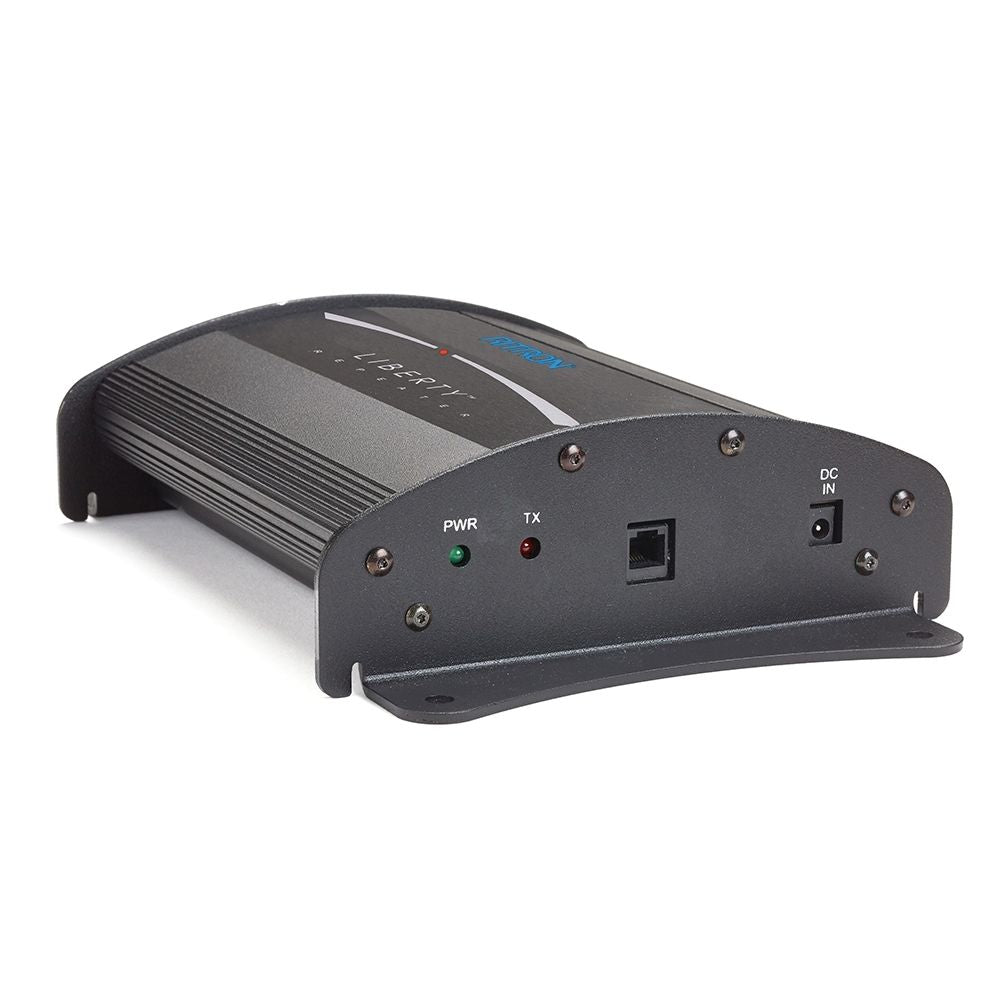

- Power On and Transmit Indicator LED’s
- RJ-12 Jack For Remote Speaker Microphone
- CTCSS or DCS Signaling (1 CTCSS or 2 DCS codes)
- Synthesized & PC Programmable (tuning required and Windows-based Ritron PC Software)
- Built-In Mounting Flanges
Manufacturer's Warranty
- 1 Year
Technical Specifications
- Dimensions: 2.125"H x 8.0" W x 5.75" D
- Weight: 3.5 lbs.
- Emission Designators: 11K1F3E
- Operating Frequency Range: 450-470 MHz
- Frequency Separation: TX/RX: 5.0 MHz
- Frequency Stability: + 1.5 ppm (-30º to +50º C)
- RF Channels: (1) TX/RX Channel
- Synthesized Steps: 12.5 kHz
- Tone/Code Signalling: 1 QC (Quiet Call) Talk Group or 2 DQC (Digital Quiet Call) Talk Groups
- Power Requirements: (2 Watt)- 12 VDC nominal @ 1A. (5 Watt)- 12 VDC nominal @ 1.5A
- Local Audio Output: 1/8 Watt into 8 Ohms
- Hang-Time Timer: 0 to 8 seconds, programmable
- Squelch Tail Eliminator Timer: 0 to 8 seconds, programmable
- Time-out Timer: 0 to 30 minutes, programmable

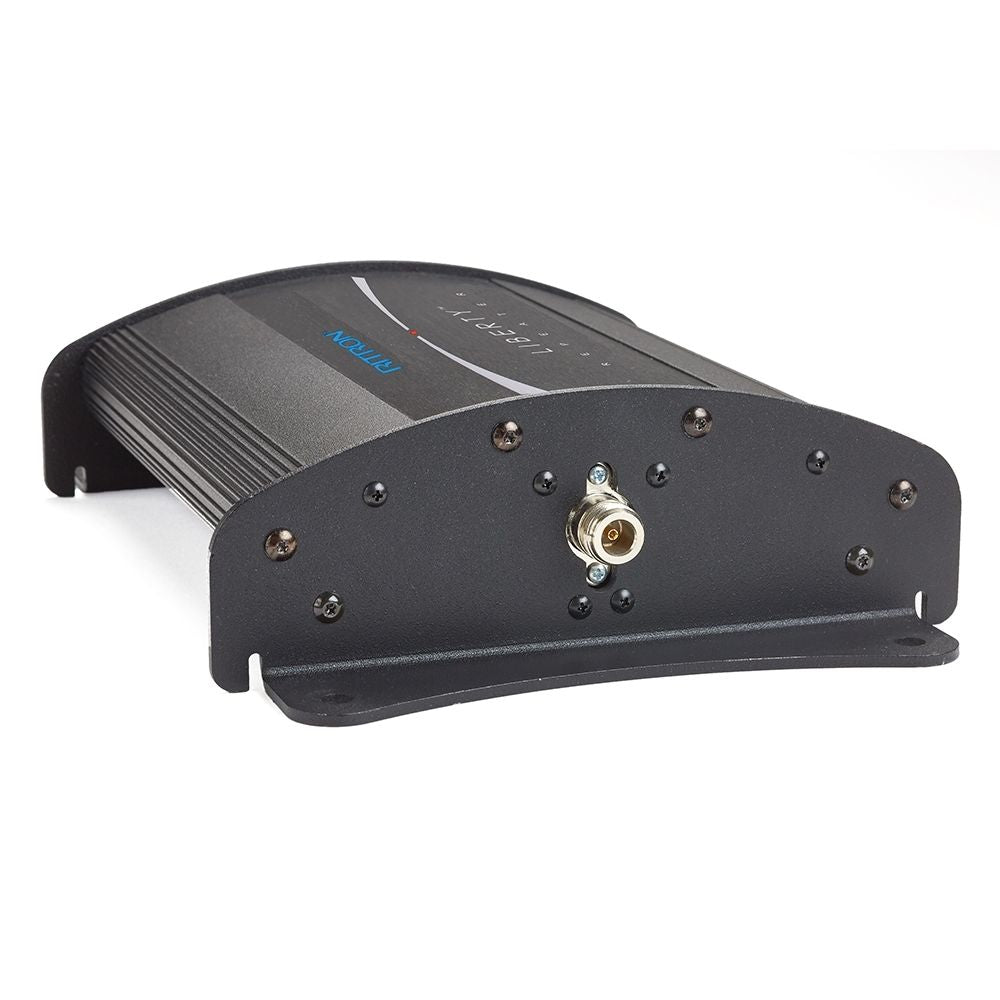

- RF Connector: "N" Type
- DC Power Connector: P-5 (2.1 mm X 5.51mm X 9.5 mm)
- Antenna Impedance: 50 Ohms
Note
- Requires 5MHz separation of TX and RX frequencies.
