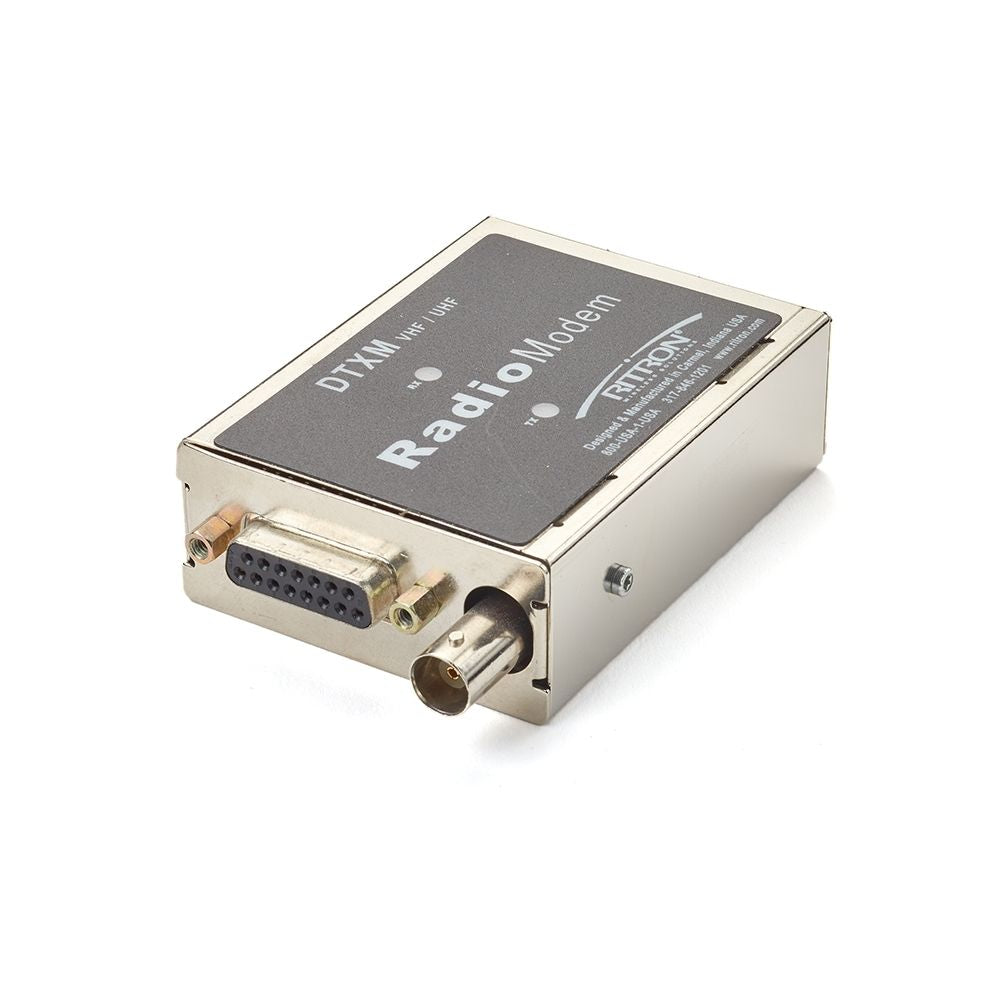

Ritron DTXM Radio Modem 400-430 MHZ

RitronSKU: RIT-DTXM-460-GBN6I

Model: DTXM Radio Modem 400-430 MHZ 1-6W 10-15VDC
Price:
Sale price$580.00

Estimate shipping

Ritron DTXM Radio Modem 400-430 MHZ

The DTXM Radio Modem is a high-performance Wireless Modem that supports blazing over-the-air data rates of over 19,000 bps in a 25 kHz channel, 9600 bps in a 12.5 kHz channel, and 4800 bps in a 6.25 kHz channel. High-performance specifications permit integration into systems that demand the utmost in reliability in high-traffic, frequency congested environments.

Direct modulation with low distortion and low group delay results in a low bit-error rate (BER) for enhanced system integrity and reliability. Utilizing the same Swift Lock synthesizer used by the DTX + RF transceiver for transmitting and receiving attack times of 15 ms or less for high-speed data throughput. Also, the Controlled Envelope keying reduces adjacent channel "keyclicks" resulting in spectrum-friendly operation.

Includes
  • Synthesized RF Transceivers w/ Control Board
  • Enclosure
  • BNC Antenna Connector
  • DB-15 Data/Power Connector
Features
  • Ultra Narrowband (6.25 kHz), Narrowband (12.5 kHz), or Wideband (25 kHz) Models
  • 4800 bps Ultra Narrow Band / 9600 bps Narrow Band / 19,200 bps Wide Band (International only)
  • Ultra-Fast TX/RX Attack Times
  • Controlled Envelope TX Keying
  • RS-232 Interface
  • Programmable Electronic Settings and Adjustments
  • SMD Component Design
Manufacturer's Warranty
  • 1 Year
Technical Specifications
  • FCC Identifier: AIERIT39-46006
  • Industry Canada Identifier: 1084A-RIT3946006
  • Number of Channels: 2
  • Watts: 1-6
  • TX/RX Spacing (w/in frequency range): 20 MHz max.
  • Mode of Operation: Simplex/Half Duplex
  • Channel Increment (Synthesizer step size): 5/6.25 kHz
  • Emissions Bandwidth: Ultra Narrow Mode - 4.0 kHz, Narrow Mode - 11 kHz
  • Frequency Stability (-30° to +60° C): 1.0 ppm
  • Supply Voltage (VDC): 7.5 or 11-16
  • RF Input/Output Connector: BNC
  • Power/Data Interface: 15 pin sub D
  • Operating Temperature: -30° to +60° C -
  • Maximum Dimensions (L x W x H): 3.6 x 2.3 x 1.0
  • Weight: 6 oz.
