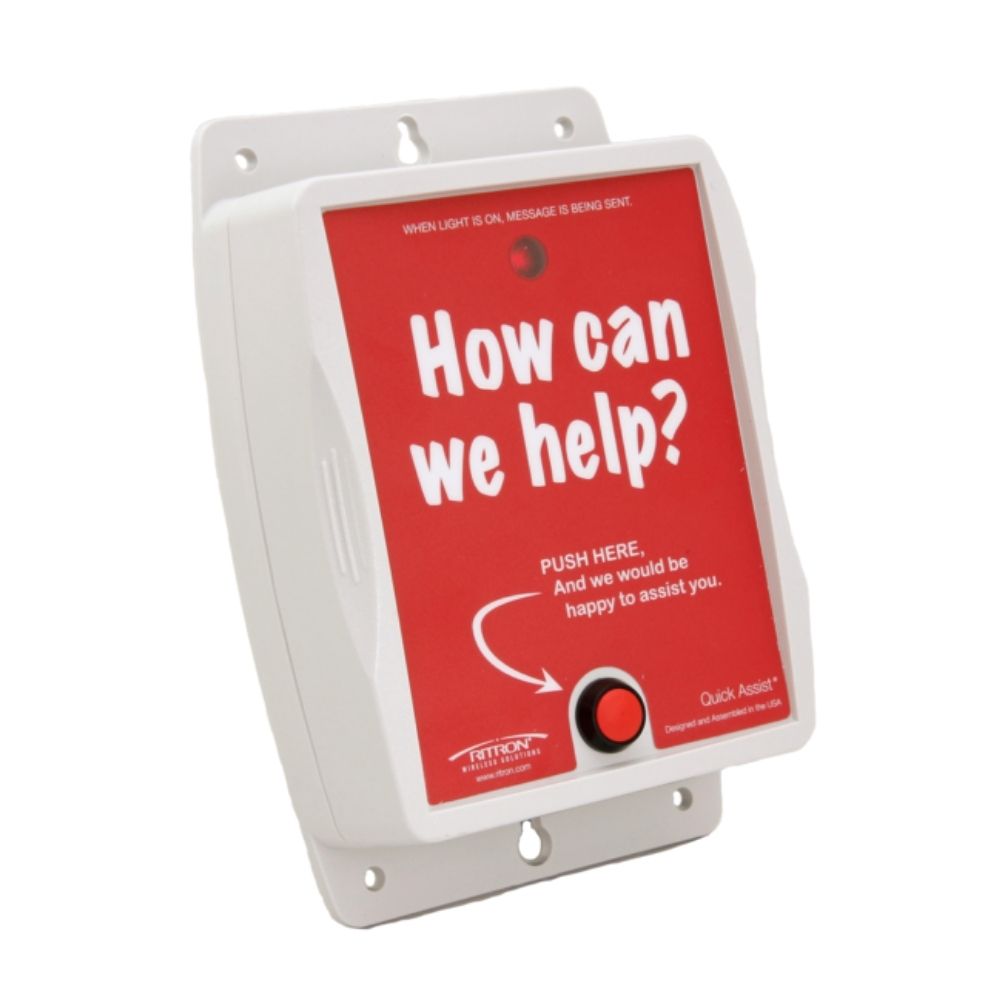

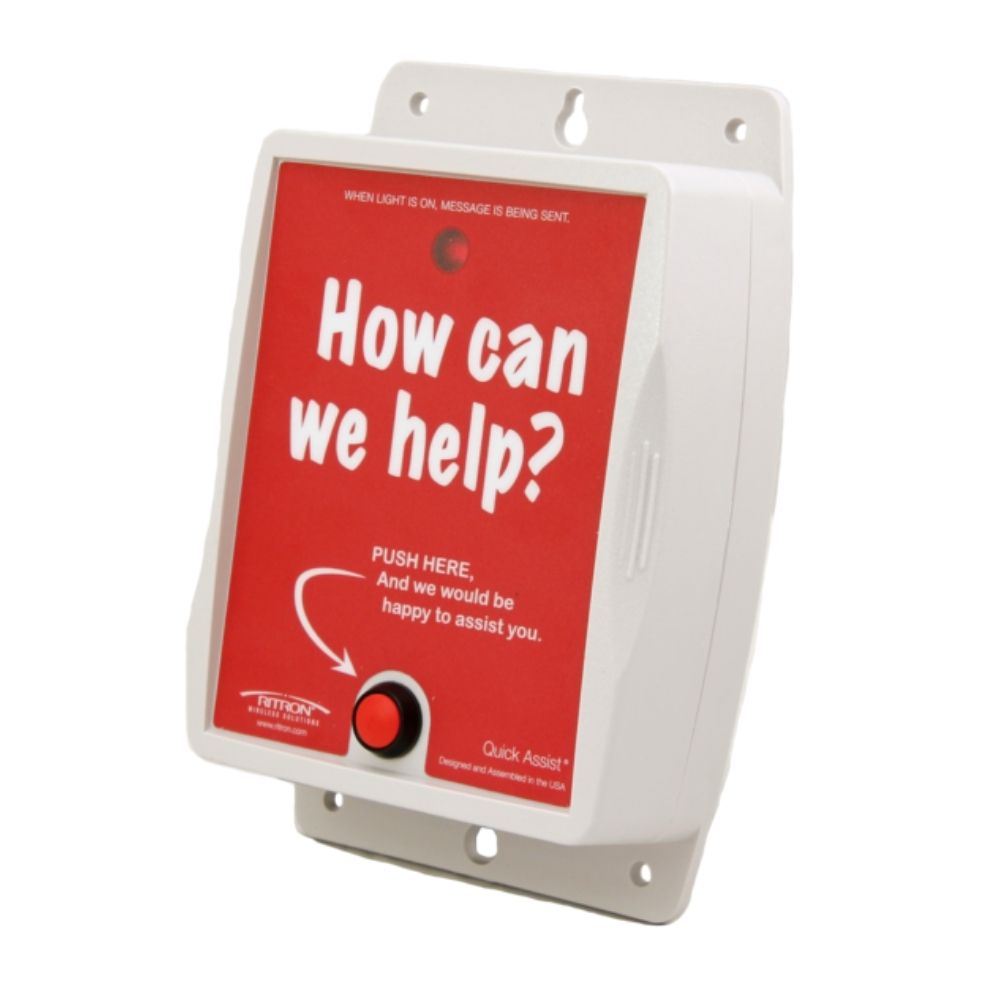

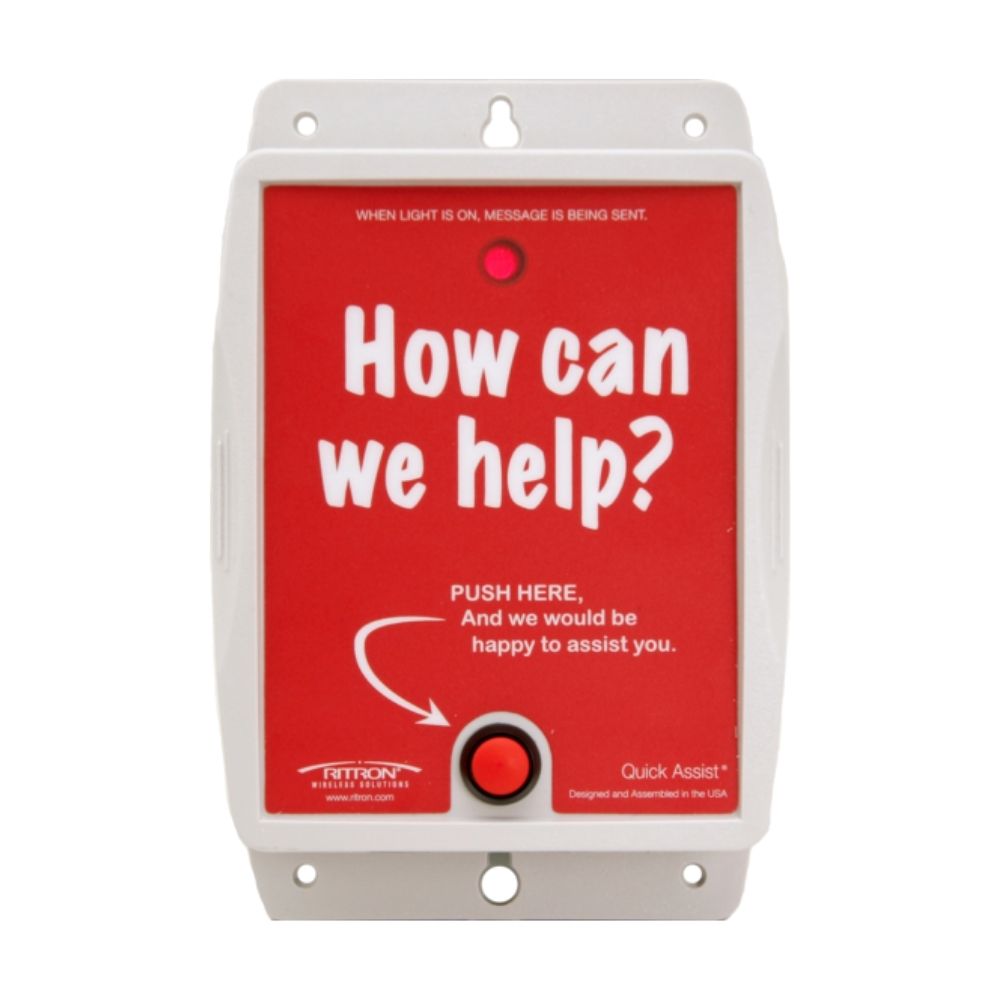

Ritron 120mWatt Quick Assist Transmitters

Ritron 120mWatt Quick Assist Transmitters

The Quick Assist® wireless shopper call button provides a low-cost, fast and efficient way to boost customer service, control costs, and improve employee productivity. With Quick Assist, customers simply push a button when they need assistance. Your two-way radio-equipped personnel is immediately alerted with a customized voice message. The Quick Assist is compatible with your existing store 2-way radios and talks directly to radio-equipped personnel. It does not require any additional wireless infrastructure for operation and is the ideal solution for any business wanting to maximize customer satisfaction, product sales, and employee productivity.

Places to use the Quick Assist Call Button

• High-Value Merchandise
• Controlled Substances / Merchandise
• Site-To-Store Pick-Up Areas (Buy Online, Pick-up In-Store BOPIS)
• Cutting Stations
• Paint Department
• Sporting Goods
• Fitting Room
• Locked Cabinet Displays
• Un-Staffed and Part-Time Counters or Registers
• Question-Intensive Merchandise Areas
• Seasonal or Outdoor Departments, Lumber, Nursery, Patio
• Heavy or Out-of-Reach Merchandise Areas

Features

• Works independently of any network, does not use Wifi or IP
  connection
• Transmits message instantly and directly to store 2-way radios
• Battery-powered, no wiring required
• Large easy-to-see signage
• Custom-Recordable voice messages (voice message recording via onboard microphone or pre-recorded .wav file)
• Durable, water-resistant
• Works with virtually any analog VHF or UHF Business-Band 2-Way Radio
• 120mWatt or 1 Watt Transmitter Models
• New Escalation Feature and Escalate to 2nd RF Channel (aka Manager Channel)
• New LED Message Indicator Flash Pattern- remains blinking for the duration of the message schedule
• Battery Powered (6 AA Cells)
• Sealed Housing, Internal Antenna and Bright Transmit LED Indicator
• PC and Field Programmable Settings and Frequencies: Requires PC Programming Software (RQT-PCPS-1)
• Programmable Features: TX audio companding (allows compatibility with certain 2-way radios)
• Built-in Mounting Flanges

• Virtually eliminates in-store PA paging
• Improves employee efficiency, reduces payroll costs
• Simple to install and maintain by store personnel can be relocated to different locations

Manufacturer's Warranty

• 1 Year

Technical Specifications

• Transmit Power: 120mW
• FCC Rule Parts: MURS License-Free- 95J. Licensed Frequencies- 90.
• Frequency Range: MURS License-Free (150 to 165 MHz). Licensed Frequencies (150 – 165 MHz / 450 – 470 MHz). 5 MURS frequencies below (151.880, 151.940, 154.600, 154.570, 151.280).
• Coded Signaling: Encode CTCSS, DCS, DTMF, 3-7 tone SelCall
• Typical Range/Coverage: One-half mile, line-of-sight to a portable 2-way radio, or approximately
• Range: 75,000 sq. ft. (Greater range is possible when a radio repeater is used)
• Battery Life: 1 year when using AA Alkaline, non-rechargeable batteries, or approximately 7,000 transmissions
• Internal Battery: 6 AA Alkaline, non-rechargeable batteries
• Antenna: Internal, tamper-proof, ¼ wave
• Housing: Gasketed, water-resistant, polycarbonate with UV stabilizer for outdoor use
• Dimensions: 7.57” x 5.07” x 2.1” (19.23cm x 12.88cm x 5.33cm)
• Weight: 1 pound, without batteries
• Switch Input: Front-panel, momentary push button
• Voice Message “Assistance Needed”: Customizable, 12 seconds max if Reset Message also used.
• Voice Message “Reset”: Optional, Customizable, 12 seconds max
• Voice Message “Low Battery Alert”: Customizable - 2 seconds
• Voice Message “External Power Fail”: Customizable - 2 seconds
• Programming Method: User Programmable with PC Programmer and USB to 5 Pin Mini USB Cable

Product Video

Product Literature

• Ritron Quick Assist Transmitter Brochure
