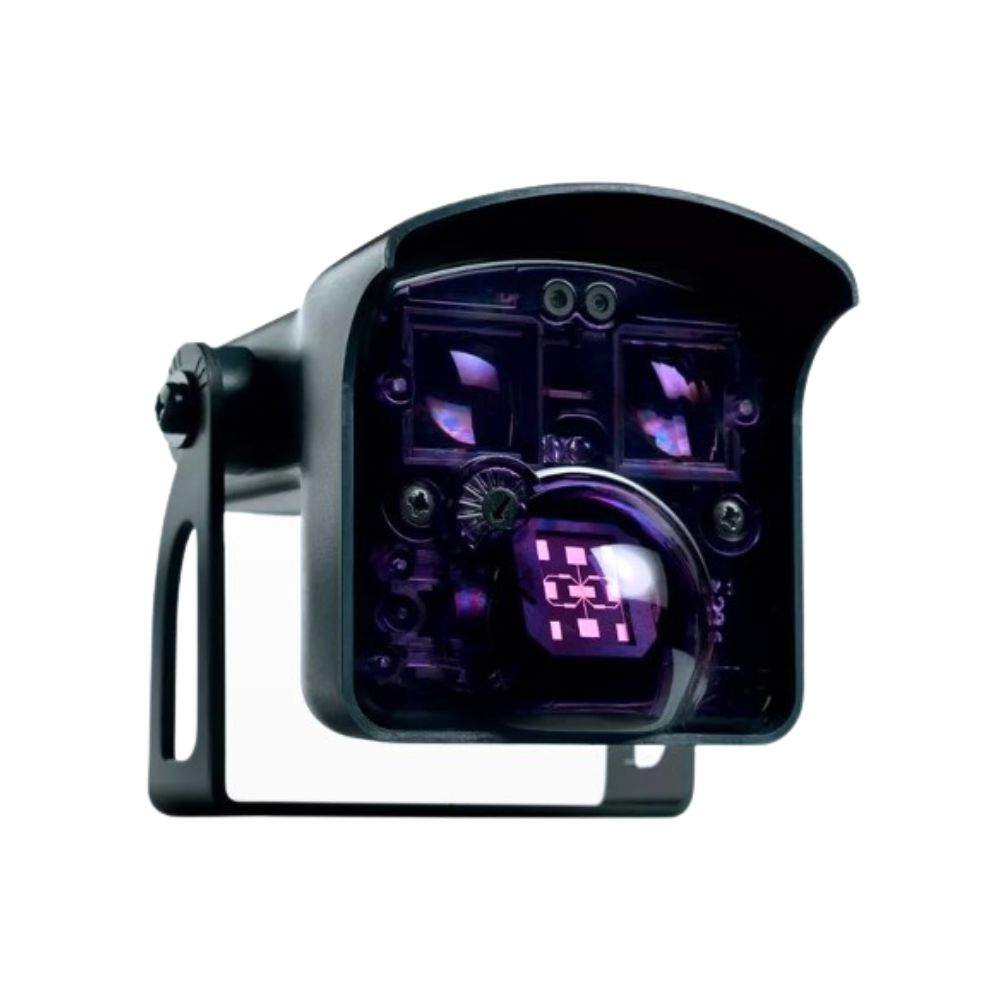

BEA IS40 / IS40XL Motion and Presence Sensor for Industrial Doors

BEA SensorsSKU: BEA-10IS40

Model: For standard mounting heights
Price:
Sale price$460.99

Estimate shipping

BEA IS40 / IS40XL Motion and Presence Sensor for Industrial Doors

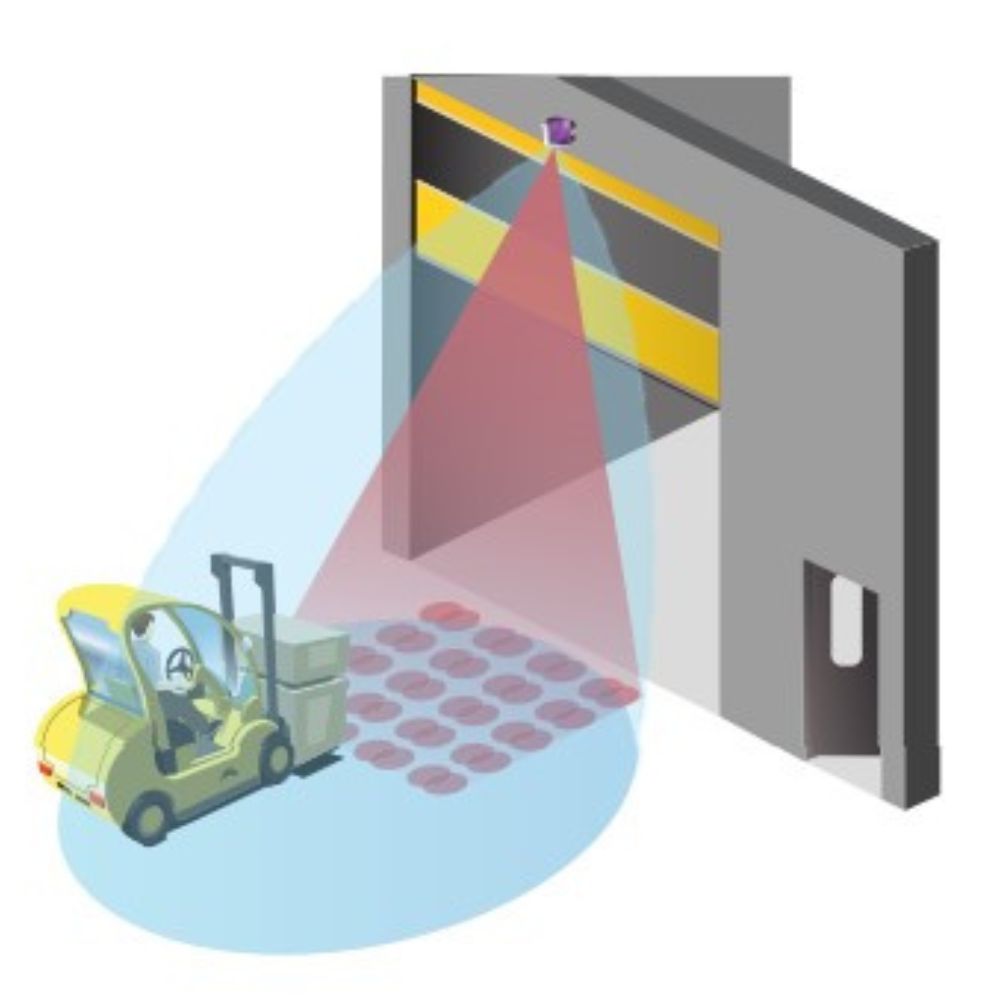

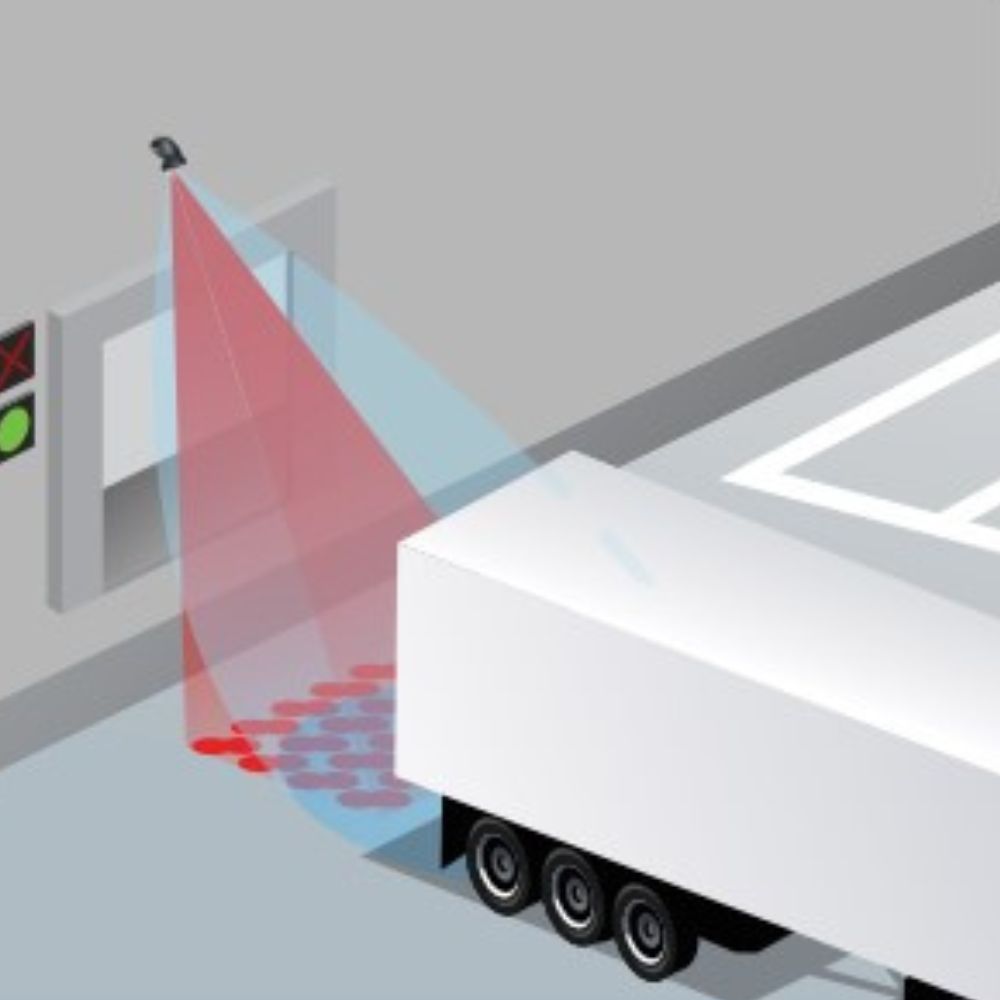

BEA’s IS40 / IS40XL are dual technology sensors designed to provide motion and presence detection in industrial applications.

The standard IS40 can be mounted from 8 feet to 16 feet to fit any industrial application. For lower mounting heights, BEA’s IS40XL can be mounted from 6 ½ feet to 11 ½ feet.

Housed in a rugged IP65-rated enclosure, the IS40 / IS40XL will operate in harsh environments, capable of withstanding damage caused by wind-blown dust and rain and hose-directed water.

Features
  • Energy savings - Bidirectional, unidirectional approach and unidirectional depart microwave detection options.
  • Adjustable detection settings - Six modes of detection filtering are available for microwave immunity, as well as pedestrian and parallel traffic rejection.
  • Customizable patterns - Nine unique infrared patterns capable of highly flexible presence detection in any industrial environment.
  • Reduce false detections - Adjustable infrared immunity modes mitigate environmental disturbances such as subtle door vibrations, light and sun.
  • 10IS40 - Motion & presence sensor
  • 10IS40XL - Extra-low motion & presence sensor
Specifications
  • Technology: Microwave Doppler Radar | Active Infrared
  • Detection Mode: Motion | Presence
  • LED Signal
    • Green (Activation Relay)
    • Red (Presence Relay)
  • Transmitter Frequency / Wavelength: < 5mW / cm² | < 250 mW / m²
  • Max. Detection Field
    • IS40: 13’ × 16 1/2‘ | 10’ × 10’**
    • IS40XL: 13’ × 6 1/2‘ | 7 1/2‘ × 7 1/2‘
  • Output Hold Time: 0.5 s – 9 s | 0.5 s
  • Min. Detection Speed: 2 in / s | 0 in / s to activate detection
  • Tilt Angle: -8 – 22° (Relative to sensor face) | 15 – 45°
  • Mains Frequency: 50 – 60 Hz
  • Power Consumption: < 3.5 W
  • Output - 2 relays (free of potential change-over contact)
    • Max. Contact Voltage: 42 VAC / VDC
    • Max. Contact Current: 1 A (resistive)
    • Max. Switching Power: 30 W (DC) / 48 VA (AC)
  • Installation Height
    • IS40: 8 – 16’
    • IS40XL: 6 1/2 – 11 1/2’
  • Temperature Range: -22 – 140 °F
  • Dimensions: 3 3/4” (W) × 4” (H) × 5” (L)
  • Material: ABS & Polycarbonate
  • Cable Length: 32’
  • Degree of Protection: NEMA 4 / IP65
  • Norm Conformity: R&TTE: 1999 / 5 / EC; EMC 2004 / 108 / EEC
