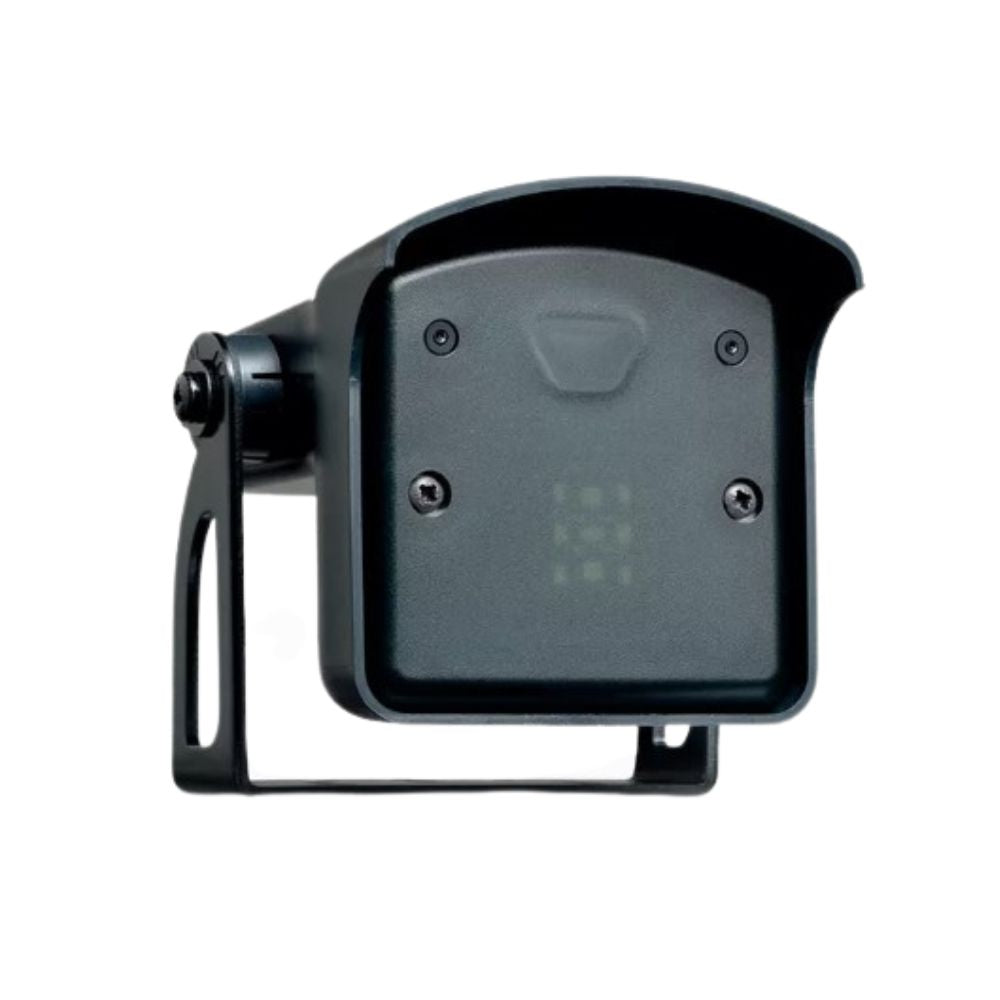

BEA FALCON Industrial Motion Sensors

BEA SensorsSKU: BEA-10FALCON

Model: Standard mounting heights
Price:
Sale price$301.54

Estimate shipping

BEA FALCON Industrial Motion Sensors

Motion Sensor for Industrial Doors, Gates & Warning Indication

BEA’s FALCON FAMILY of sensors is the premier microwave activation solution for indoor and outdoor industrial applications. The family includes the FALCON, FALCON XL (extra low mount), and FALCON WIDE (for wide detection areas).

BEA’s FALCON FAMILY is ideal for automatic industrial doors, vehicle gates/barriers, vehicle detection, loading docks, or any other industrial application where motion detection is required.

Housed in a NEMA 4-rated enclosure, the FALCON FAMILY is designed to operate in harsh environments.

Features
  • Energy savings - Bidirectional, unidirectional approach and unidirectional depart microwave detection options.
  • Adjustable detection settings - Six modes of detection filtering for pedestrian and parallel traffic rejection.
  • Rated for harsh environments - IP65-rated enclosure
  • Remote control adjustments - Remote control programming enables user to quickly and safely make changes from the ground.
  • FALCON: for normal to high mounting (11.5 - 23 ft)
  • FALCON XL: for low mounting (6.5 - 11.5 ft)
  • FALCON WIDE: for wide detection field
Specifications
  • Technology: Microwave Doppler Radar
    • Radiated Frequency: 24.150 GHz
    • Transmitter Radiated Frequency: < 20 dBm EIRP
    • Radiated Power Density: < 5 mW / cm²
  • Detection Mode: Motion
  • Detection Zone
    • FALCON: 13’ × 16’ @ 16’
    • FALCON XL: 13’ × 6 1/2’ @ 8 1 ⁄5’
    • FALCON WIDE: 30’ × 11’ @ 21’ Typical at 30° and field size 9
  • Tilt Angles 0 – 180°
  • Output: Relay (free of potential change-over contact)
    • Max. Contact Voltage: 42 VAC / VDC
    • Max. Contact Current: 1 A (resistive)
    • Max. Switching Power: 30 W (DC); 60 VA (AC)
  • Minimum Detection Speed: 2 in / s*
  • Mains Frequency: 50 – 60 Hz
  • Supply Voltage: 12 – 24 VAC; ±10% / 12 – 24 VDC; 30% / -10%
  • Power Consumption: < 2 W
  • Mounting Height
    • FALCON: 11 1/2 – 23’
    • FALCON XL: 6 1/2 – 11 1/2’
    • FALCON WIDE: 11 1/2 – 21’
  • Dimensions: 3 3/4“ (W) × 4“ (H) × 5“ (L)
  • Material: ABS & Polycarbonate
  • Temperature Range: -22 – 140 ºF
  • Degree of Protection: IP65
  • Norm Conformity
    • EMC: 2004 / 108 / EC
    • R&TTE: 1999 / 5 / EC
