BEA IS40P Presence Sensor with Virtual Loop Functionality | BEA-10IS40P

BEA SensorsSKU: BEA-10IS40P

Price:
Sale price$356.99

Estimate shipping

BEA IS40P Presence Sensor with Virtual Loop Functionality | BEA-10IS40P

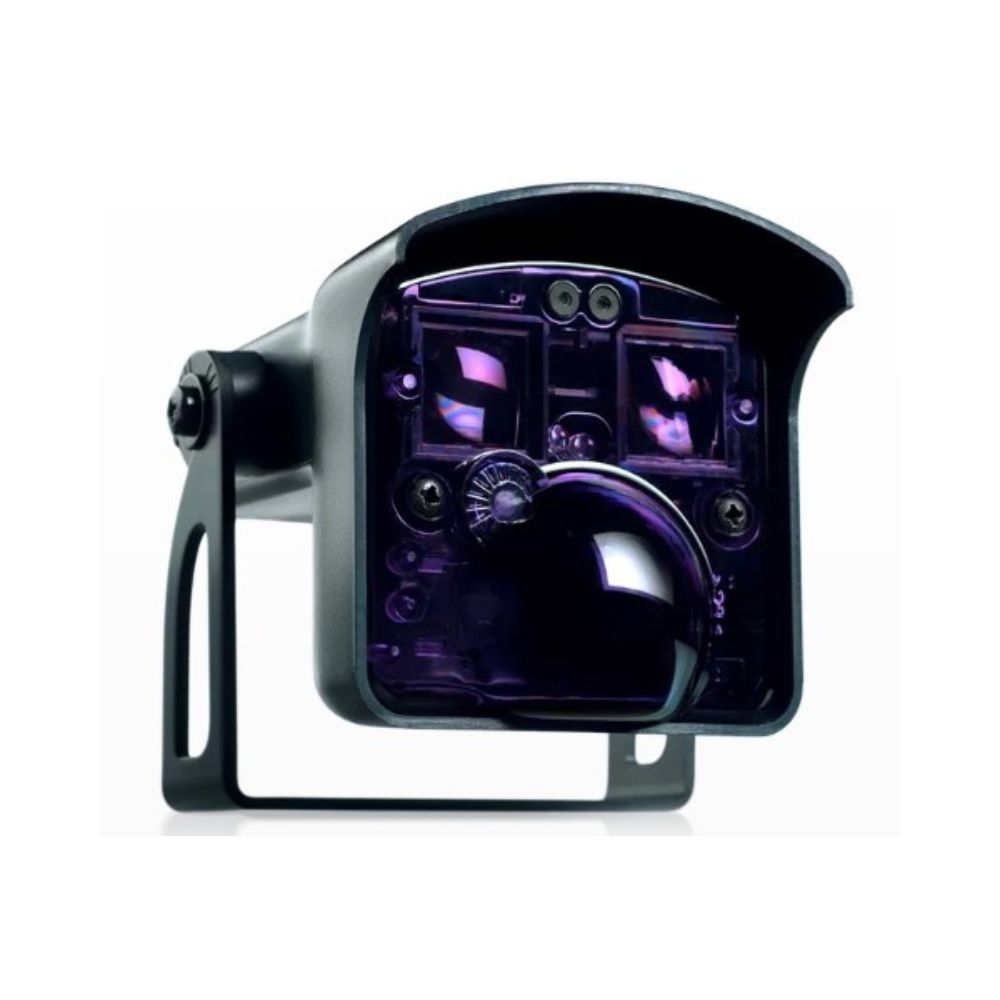

BEA’s IS40P is an infrared presence sensor designed for use in industrial applications. This sensor utilizes 40 active infrared spots for reliable presence detection.

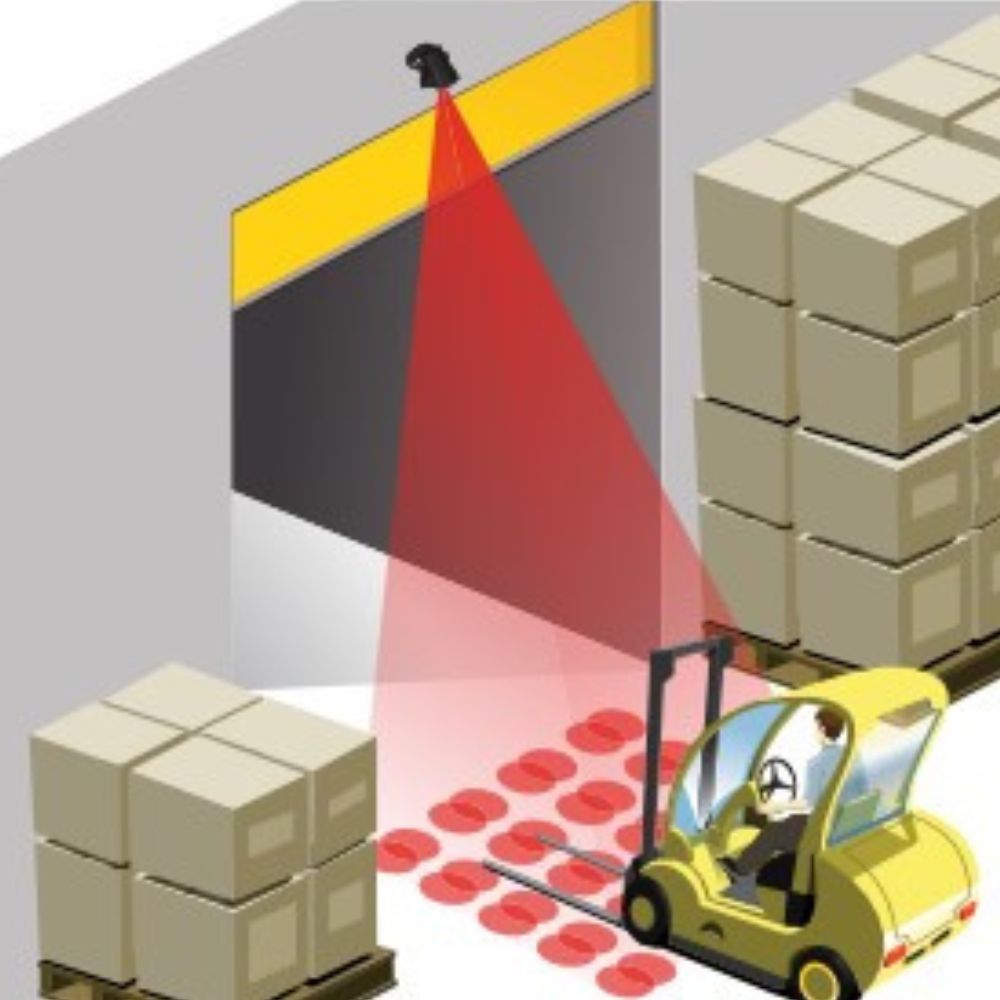

The IS40P is ideal for use on automatic industrial doors, vehicle gates/barriers, loading docks, and other applications where presence detection is required. It can be mounted from 8 feet to 16 feet to fit most industrial applications.

Its rugged IP65-rated enclosure can withstand harsh environments and is capable of preventing damage caused by dust, rain and hose-directed water.

Features
  • Customizable Patterns - Nine unique infrared patterns capable of highly flexible presence detection in any industrial environment.
  • Reduce False Detections - Adjustable infrared immunity modes mitigate environmental disturbances such as subtle door vibrations, light, sun, rain and snow.
  • Programmable via remote - Remote control programming enables user to quickly and safely make changes from the ground (sold separately).
Specifications
  • Technology: Active Infrared
  • Detection Mode: Presence
  • Main Frequency: 50 – 60 Hz
  • Power Consumption: < 3.5 W
  • Output - 2 Relays (free of potential change-over contact)
    • Max. Contact Voltage: 42 VAC / VDC
    • Max. Contact Current: 1 A (resistive)
    • Max. Switching Power: 30 W (DC) / 48 VA (AC)
  • Supply Voltage: 12 – 24 VAC; ±10%, 12 – 24 VDC; 10% / -3%
  • Temperature Range: -22 – 140 °F
  • Tilt Angle: 15 – 45°
  • Transmitter Frequency / Wavelength: 875 nm
  • Transmitter Power Density: < 250 mW / m²
  • Detection Field: 10’ × 10’ @ max. mounting height of 16’ (*emitting spots)
  • Output Hold Time: 0.5 s
  • Min. Detection Speed: 0 in / s to activate detection
  • Reaction Time: 250 ms
  • Mounting Height: 8 – 16’
  • Humidity: 0 – 95% non-condensing
  • Weight: 14 oz
  • Dimensions: 3 4 ⁄ 5“ (W) × 4” (H) × 5” (D)
  • Material: ABS & Polycarbonate
  • Cable Length: 32’
  • Degree of Protection: IP65
  • Norm Conformity: EMC: 2004 / 108 / EC. R&TTE: 1999 / 5 / EC
