Magnetic Autocontrol Parking Pro Right-Hand Barrier Gate Operator Only

For heavily frequented parking and access control locations

In a multi-story car park or an underground garage, Parking Pro barriers from Magnetic are the ideal solution for professional parking applications. Thanks to their configuration and security settings, Parking Pro barriers are designed for use in heavily frequented facilities in which the movement of persons can be ruled out. Rapid opening times and the detection of tailgating vehicles ensure reliable processing for users, while low energy consumption, low-maintenance components, and simple servicing keep running costs down permanently.

This operator unit is an excellent choice for replacement, system upgrades, or bespoke barrier configurations where the boom and other peripherals are acquired independently. It incorporates MHTM™ drive technology and the sophisticated MGC Pro control unit, ensuring extensive, smooth, secure, and efficient operation.

The barrier arms(sold separately) are optimized for use in parking applications: with the boom breakaway option, for example, the boom is completely jettisoned in the case of a forced unauthorized passage – and it can be re-attached again without any impairment of function. In addition, visibility can be further increased by means of lighting elements and an expansion set. At the heart of the car park barrier is the innovative MHTM™ drive, characterized by its energy efficiency, lack of maintenance, and long service life – the Parking Pro is designed for 10 million opening and closing cycles.

Professional Parking Solution

The Parking Pro is the first choice for operators of multi-storey car parks and solution suppliers thanks to its rapid opening times, low operating costs, easy handling, great reliability, and extraordinarily long service life.

Innovative Drive Technology

The MHTM™ drive unit operates without maintenance, energy-efficiently, and quietly. Its high torque ensures the best possible operation even under extreme weather conditions.

Unmatched Speed and Durability:

The Parking Pro series is renowned for its exceptional speed and endurance. With an opening/closing time as fast as 1.3 seconds (depending on boom length and configuration), it minimizes wait times and keeps traffic flowing.

Easy access to components

Two simple steps: control systems and the drive unit are easily reached by removing the top cover and front plate. This increases user-friendliness and accelerates commissioning and service.

Legal Security

All barriers from Magnetic have a conformity declaration in line with the Machinery Directive and a performance declaration according to the EU’s Construction Products Regulation. So operators and installers are always on the safe side regarding liability issues.

Intelligent Control and Safety Features:

Equipped with advanced control electronics, the Parking Pro offers a range of customizable settings and intelligent features. Integrated loop detectors, safety photocells, and various access control integrations ensure secure operation and prevent accidents. The VarioBoom arm is designed for flexibility and can be adjusted to specific requirements, offering optimal lane coverage. Its break-away function (optional, depending on boom type) can prevent damage to the barrier and vehicle in case of impact

Note

Please allow an extended lead time due to manufacturing and shipping for this product. For questions or additional information, please contact customer support at (800) 730-8382.

*Arm and Flange Sold Separately

Features

• Reliable detection of tailgating vehicles
• Low power consumption for economical operation
• Optimum accessibility for particularly easy maintenance
• German Design Award 2014 and red dot design award 2012
• Designed for 10 million opening and closing cycles
• UL Approved

Manufacturer's Warranty Period

• 2 years or 2 million cycles (whichever occurs first)

Technical Specifications

• Lane width: Max. 3.5 m
• Opening/closing time: 1.3 s
• Power consumption: Max. 95 W
• Drive technology: MHTM™
• Voltage: 85–264 VAC, 50/60 Hz
• Duty cycle: 100%

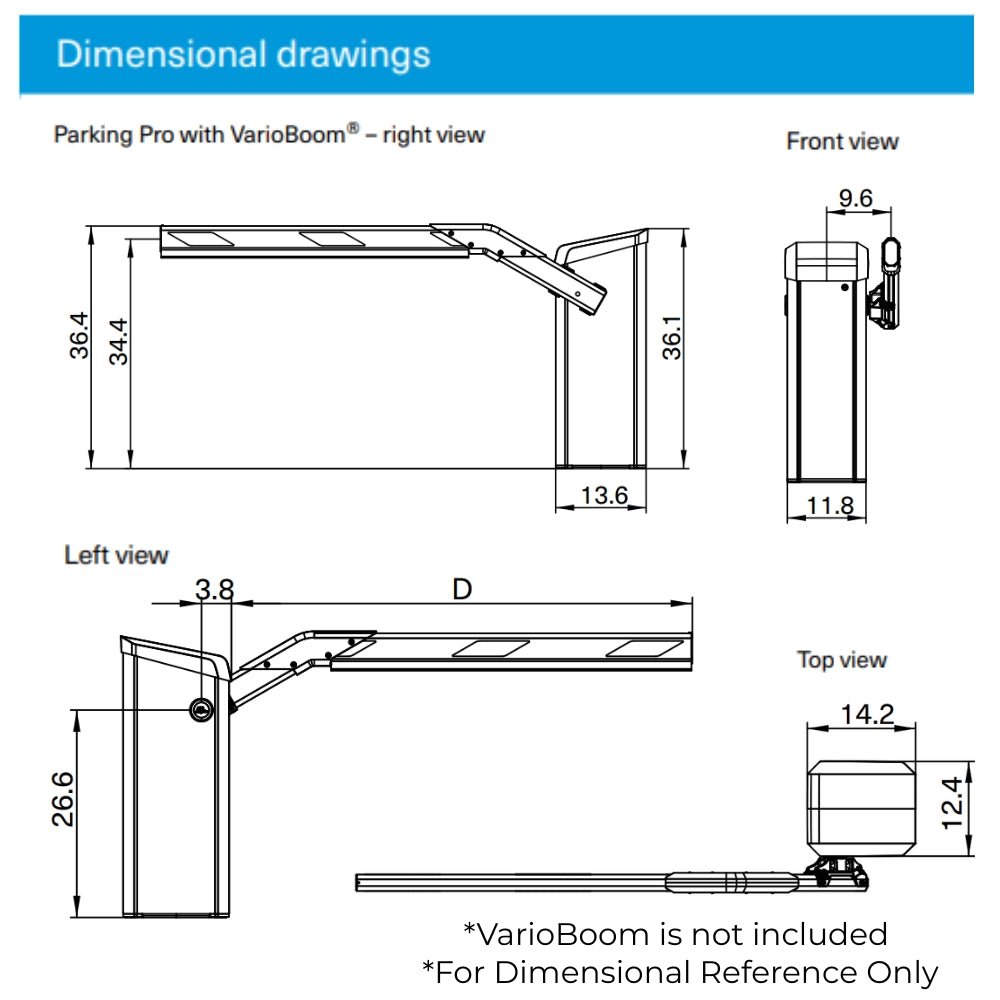

• Housing dimensions (W x D x H): 12.40 in x 14.17 in x 36.02 in
• Enclosure rating: IP 54
• Temperature range: −30 to +55° C
• Weight: 88.18 lb
• Colors: Orange, Dark Grey, Light Grey, White
• Barrier Arm Type: VarioBoom (Excluded)
• Control system: MGC Pro
• Integrated 2-channel detector for induction loops: Standard
• Modular expansion of control system: Standard
• Variable I/O assignment: Standard
• No. of digital inputs: 8
• No. of relays/digital outputs: 6/4
• Input with test for safety light barrier/ Laser scanner: 1
• Selectable closing speed: Standard
• Selectable opening speed: Standard

Product Literature

• Magnetic Autocontrol Parking Pro Right-Hand Datasheet
• Magnetic Limited Warranty Policy
