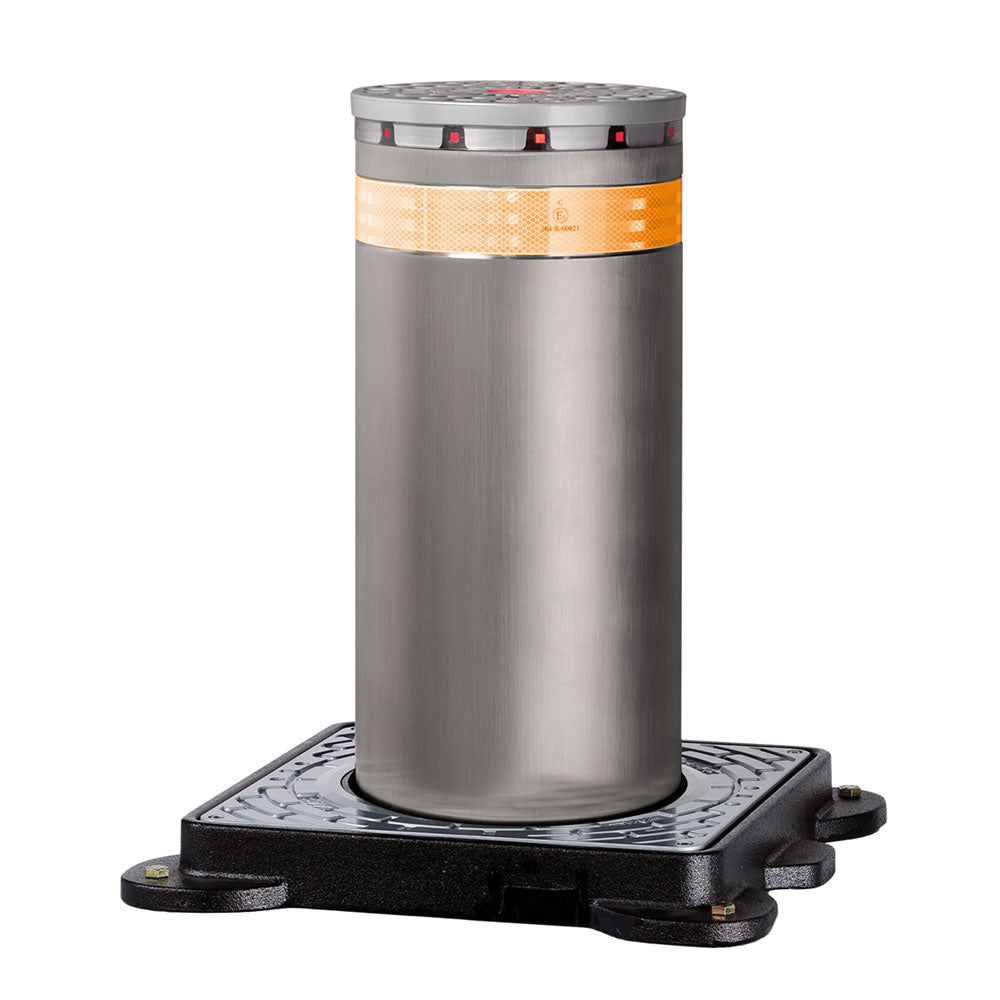

FAAC J275 SA 600 Retractable Traffic Bollard in Painted Steel | FAA-116050

FAAC solutions represent an elegant and functional alternative to fixed bollards, gates, barriers, chains, and similar. The bollard defines pedestrian areas during peak times or permanently, it enables only authorized people (business owners, residents, hotel guests, garage customers, taxi, owners of parking spaces) to enter and/or exit from certain areas, it defines parking places, squares or sidewalks and protects sensitive areas, such as embassies, coastlines, military installations, etc.

Features
  • Power supply and wiring not required
  • Simple and safe movement, thanks to the special release key
  • Supplied with the main accessories already included
  • Low position lock guaranteed against accidental release
  • Extremely simple maintenance
  • A cylinder in steel, thickness 0.28 in (7 mm) cataphoresis treatment and painted
  • Powder paint dark grey metalized RAL 7021
  • Flashing lights ring with central LED
  • Mechanical lock in the up position with special release key (2 keys included)

Note: The power supply unit (24V DC) and the cable for the flashing light are not supplied.

Technical Specifications
  • Drive: Gas actuator
  • Cylinder stroke: 23.6 in (600 mm)
  • Cylinder diameter: 10.8 in (275 mm)
  • Cylinder material, standard version: Fe 360 steel 0.28 (mm) thickness
  • Standard cylinder surface treatment: Cataphoresis and polyester powder painted RAL 7021 metallic dark grey
  • Cylinder head: Aluminium RAL 9006
  • Rising: Key release for automatic rising, with gas actuator
  • Lowering: Key release to lower, with pressure on the top of the cylinder
  • Standard reflecting strip: Height 2.2 in (55 mm)
  • Impact resistance: 38 KJoules/painted steel
  • Crash resistance: 128 KJoules/painted steel
  • Total weight (Bollard + Pit): 154 + 121 lb. (70+55kg)
  • Foundation size (LxWxH): 39 x 39 x 49 in (1000x1000x1250 mm)
Manufacturer's Warranty Period
  • 2 years
