Signal-Tech Triple Indicator Dots with Hoods Vertical TCL217RAG-226H/12-24VDC | SIG-30842

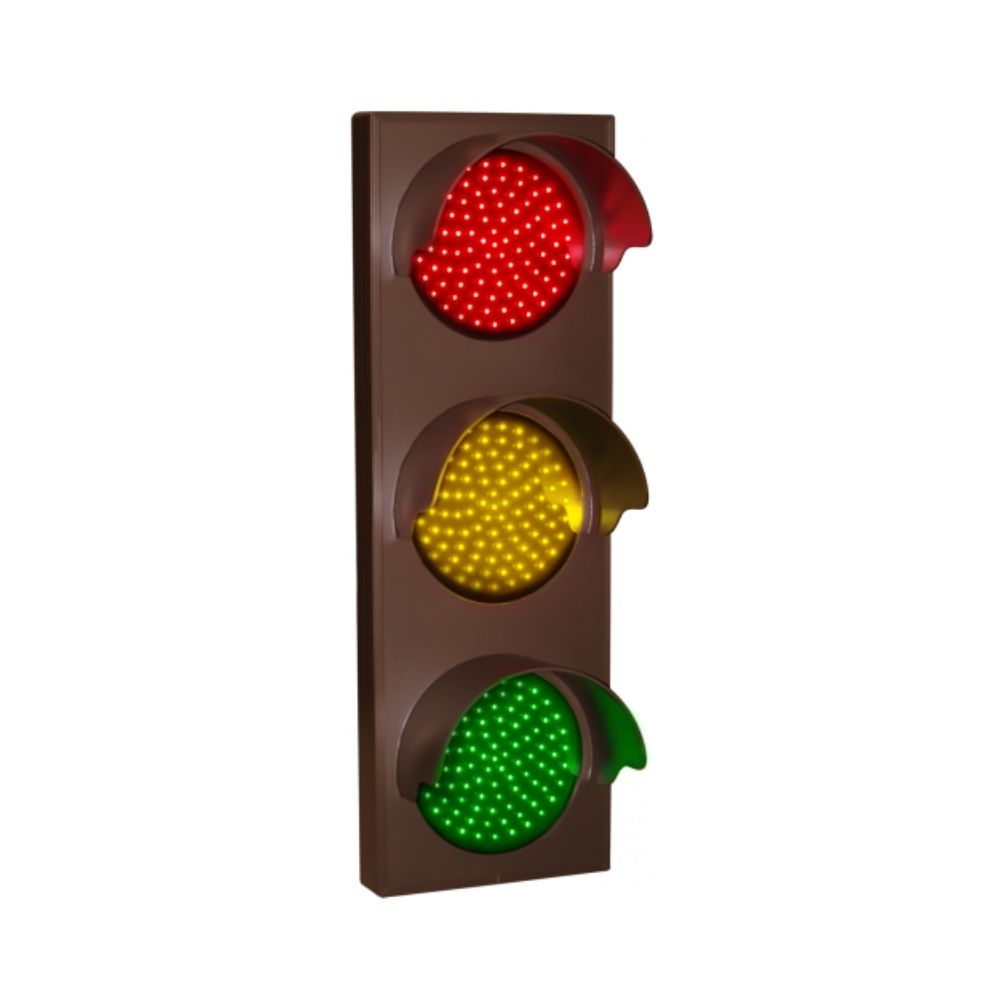

This TCL Series Indicator Dots, Triple with Hoods, Vertical, 4 in dia, Red - Amber - Green (12-24VDC) outdoor, blank-out sign is designed with super bright LEDs and a contrasting face; we guarantee it's readable in direct sunlight. The sign message is formed by visible LEDs on a black sign face and is designed to illuminate the message(s) when turned on and blank out or extinguish the message when off.

It is engineered with a solid-state circuit board and switch-mode power supply for maximum LED life. The cabinet is constructed of corrosion-resistant, extruded aluminum, and ships with our Lift'N Shift back for wall mounting. Ceiling, post, and wall-projection mountings are available. The standard cabinet finish is Duranodic Bronze; custom paint finishes are available. The sign can be controlled by a switch or third-party relay. Control switches can be purchased separately. UL/cUL Listed for wet locations.

Includes
  • Built-in Lift'N Shift Wall Mount
Technical Specifications
  • Product #: 30842
  • Product Line: TCL (Outdoor Blank-out LED Direct-view Sign)
  • Model: TCL217RAG-226H/12-24VDC
  • Dimensions: 21" H x 7" W x 2.5" D
  • Weight: 5.186 lbs.
  • Faces: Single Face
  • Face Material: Lexan Hood with Lens
  • Illumination: TCL LED
  • Input Voltage: 12-24 VDC
  • LED Viewing Angle: Wide Angle LEDs
  • UL/cUL Listed: Wet Locations
  • Finish: Duranodic Bronze
  • Mounting Channel: None
  • Flashing: Not Included
  • Cabinet: Combo 2.5"
Messages Message Color Character Height
Red Indicator Dot Red Wide Angle LED 4.0"
Amber Indicator Dot Amber Wide Angle LED 4.0"
Green Indicator Dot Green Wide Angle LED 4.0"

Manufacturer's Warranty
  • 5 Years
