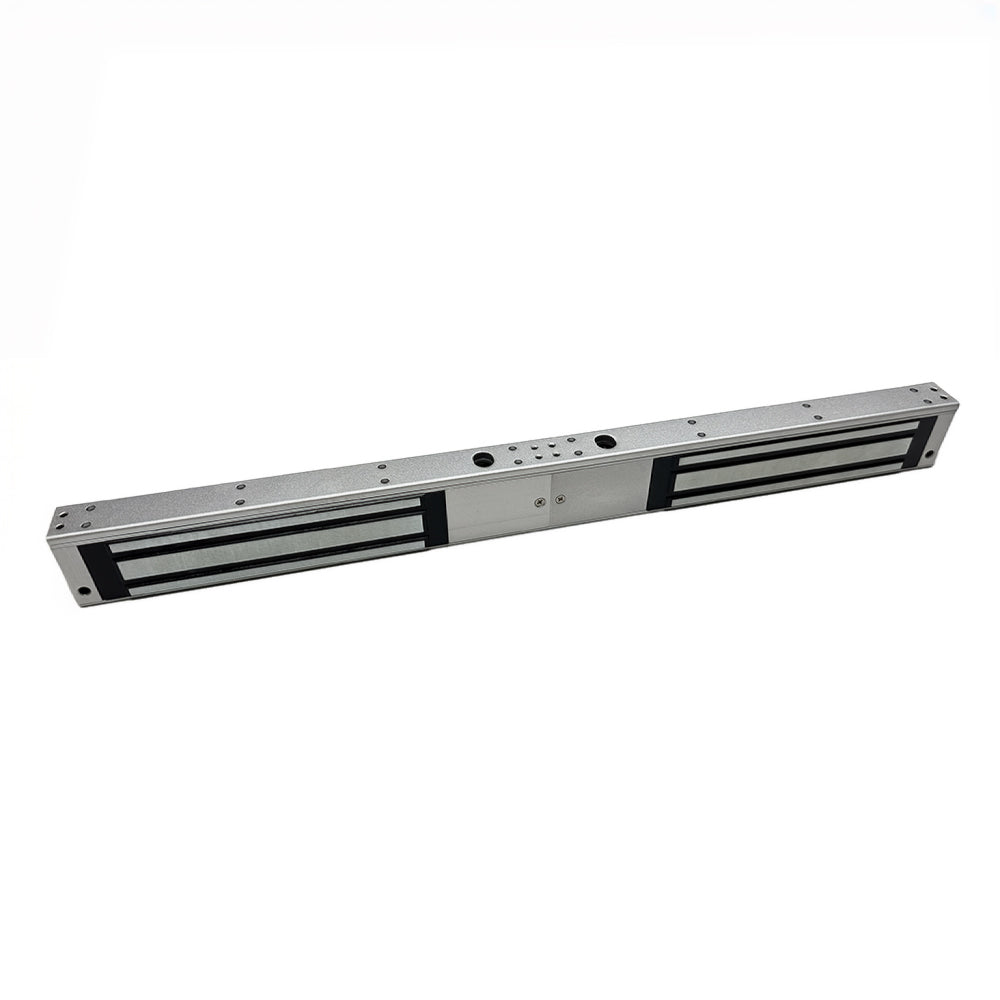

Surface Mount UL Listed Double Door Magnetic Lock | FAS-HUL2X600LSDM
This is a double door magnetic lock, with 600lb. Hold force for each door (total Holding Force 1200 lbs.). All Magnetic Locks Include Manual, Armature Plate & Mounting Hardware For Basic Out-swing Applications.
This is a double door 600lb holding force (each door) magnetic lock. This lock features delay, monitoring, LED, lock sensor, spike suppressor, and is CE approved and UL listed.
Please note: Individual products from a kit cannot be returned. The full kit must be returned in its original condition.

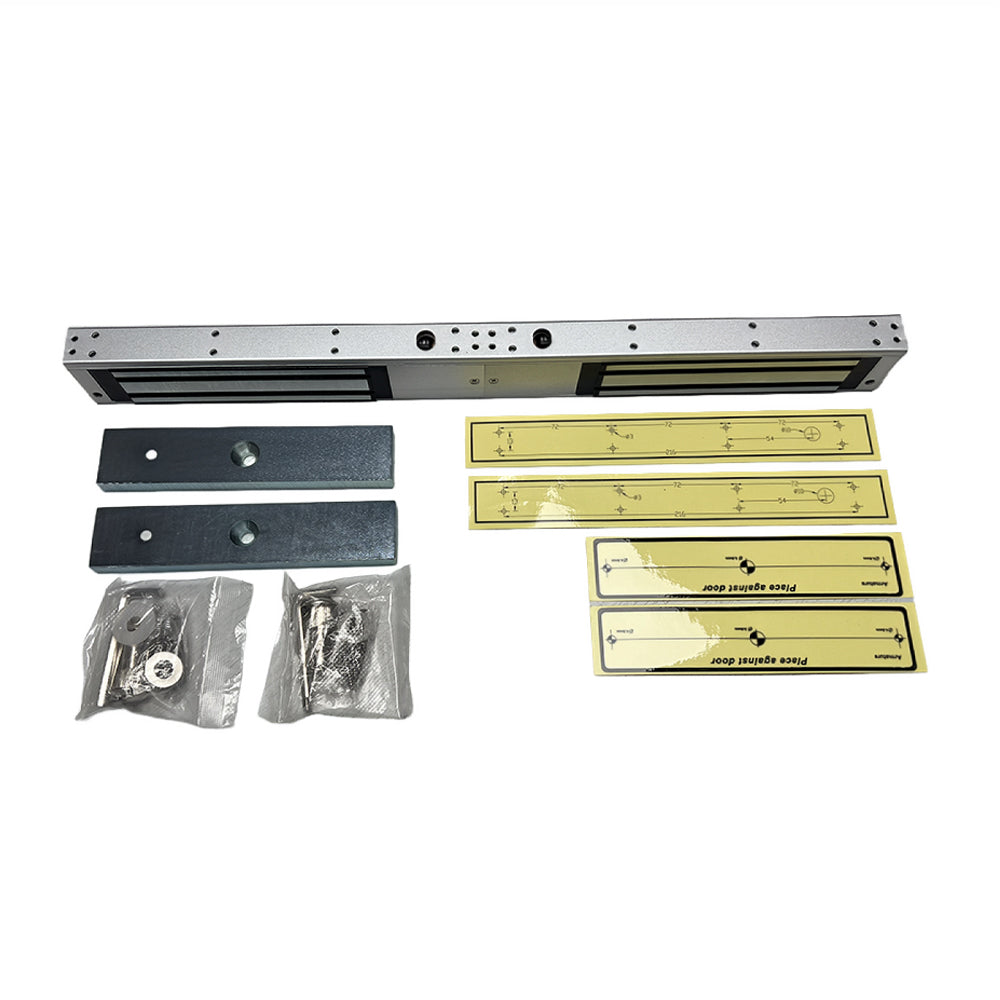

Includes
- Manual
- Armature Plate
- Mounting Hardware For Basic Out-swing Applications
Features
- Mount Type: Surface Mount Double Door
- Delay: Yes
- Monitoring: Yes
- LED: Yes
- Lock Sensor: Yes
- Built-In Voltage Spike Suppressor: Yes
- UL Listed: Yes
- CE Approved: Yes
Technical Specifications
- Holding Force: 1200 Lbs. (600 Lbs. Holding Force Per Door)
- Dimensions: 19.6 x 1.85 x 1
- Weight: 16 lb.
- Dual Voltage Current Draw: 500mA/12V-250mA/24V
Note
- **In-Swing applications of this maglock require brackets (available below)
- **Magnetic locks require power a supply (available below)
